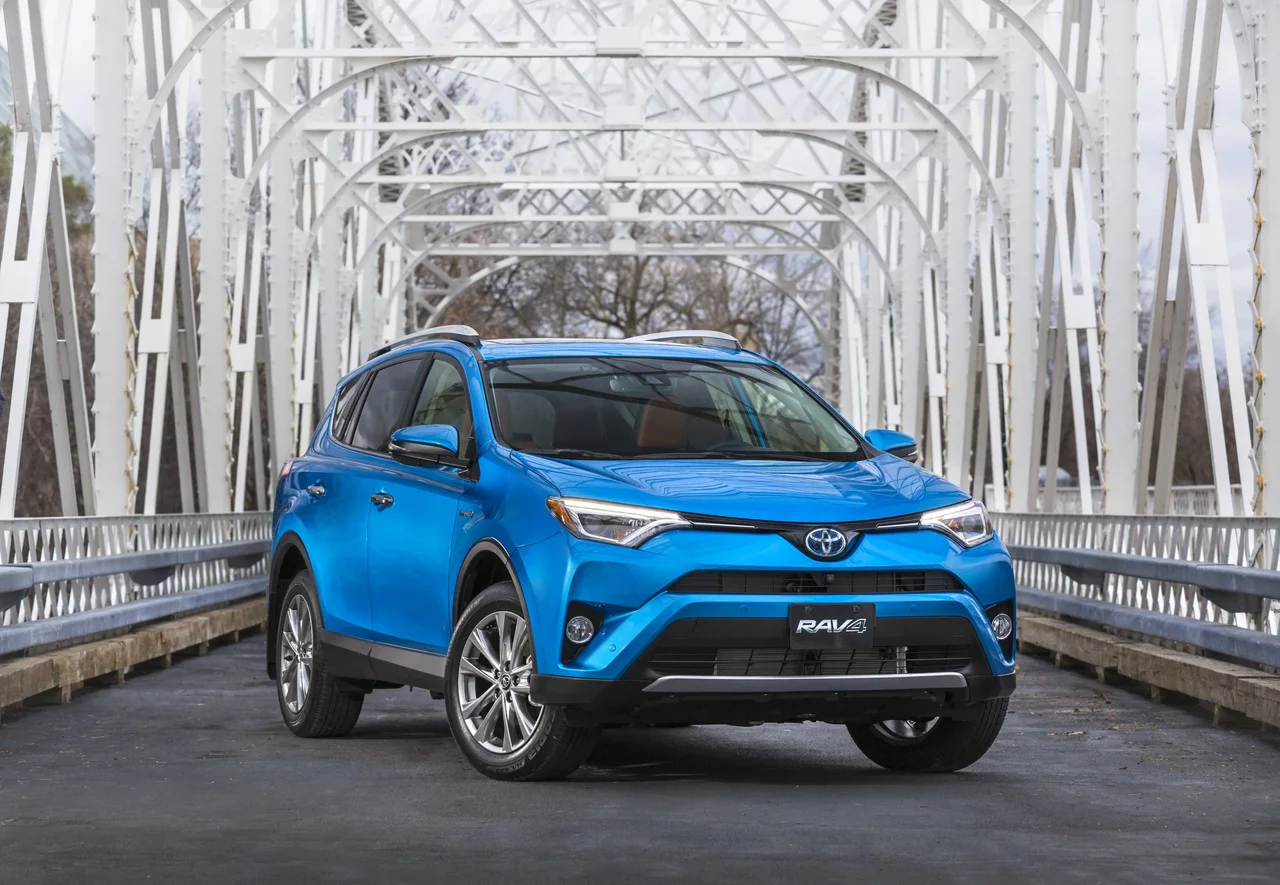

2019 Toyota RAV4

JapanHybrid GasolineAWDSUV

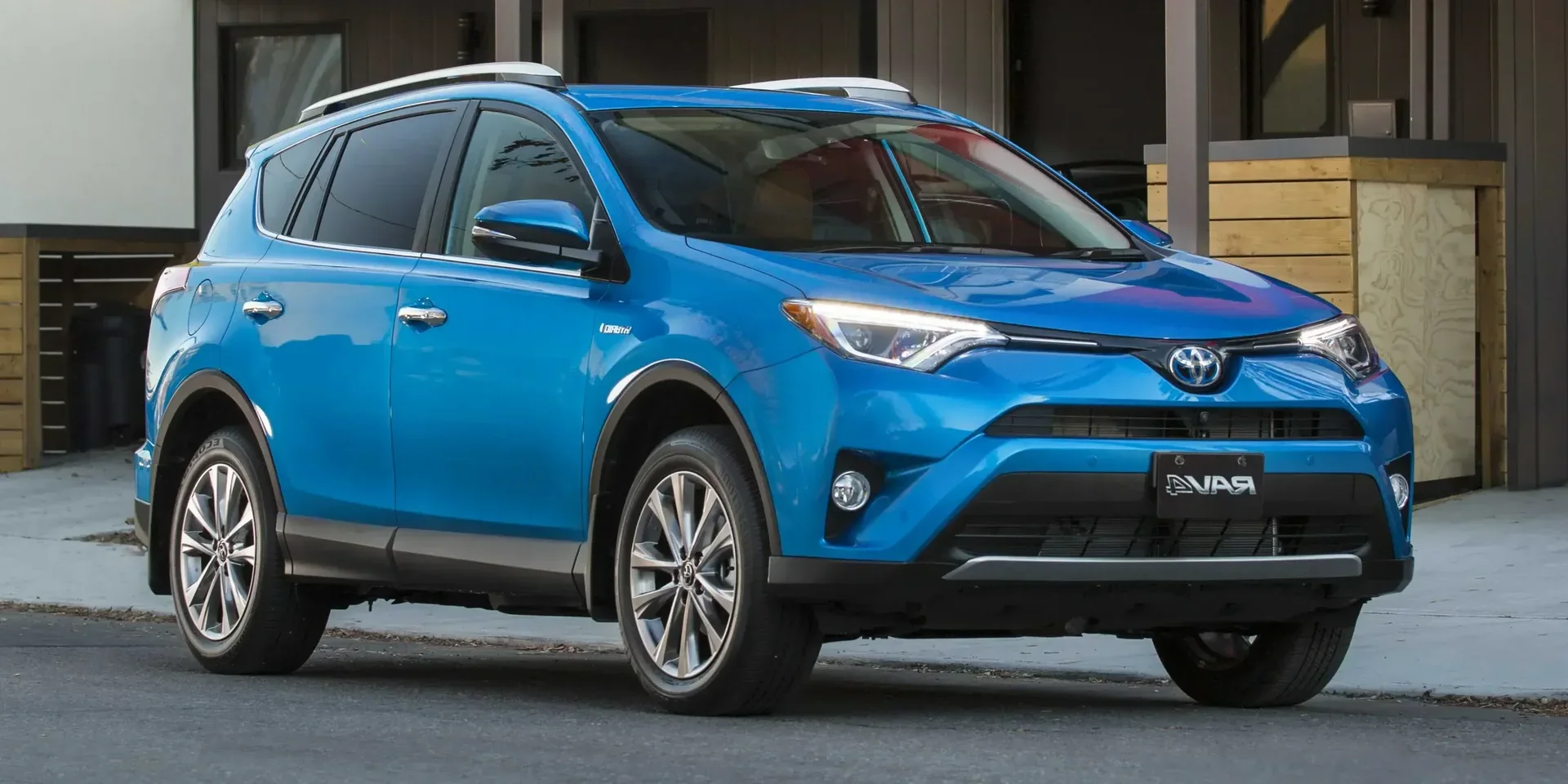

Photos

Specifications

Vehicle Details

Year
2019
Make
Toyota
Model
RAV4
Body Style
SUV
Generation
XA40 Facelift
Seats
5
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic (Continuously variable)

Powertrain

Engine Name
Hybrid E-CVT
Engine Configuration
Inline
Power (hp)
197 hp
Power (kW)
145 kW
Torque
270 Nm (199 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
7.9 seconds (estimated)
0–100 km/h
8.3 seconds
Displacement
2,494 cc

Dimensions

Length
4,661 mm (183.5 in)
Width
1,844 mm (72.6 in)
Height
1,674 mm (65.9 in)
Wheelbase
2,659 mm (104.7 in)
Curb weight
1,765 kg (3,891 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Torque
4,200 - 4,400 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-20
  • 5W-30
  • 10W-30
  • 15W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
  • 15W-40
Engine Oil, Volume
4.4 litres
Configuration Combustion
Bore
90 mm (3.5 in)
Stroke
98 mm (3.9 in)
Compression Ratio
12.5 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Configuration Electric
Type of Electric Car
Hybrid
Service Intervals
Air Filter
60,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
150,000 km (93,206 mi)
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Continuously variable)

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
56 litres
Emission
Emission Standard
Euro 6
Emission WLTP
CO₂, Combined
152 - 156 g/km
Emission NEDC
CO₂, Combined
118 g/km
Fuel Consumption NEDC
City
5.1 litres / 100 km
Highway
5.1 litres / 100 km
Combined
5.1 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,570 mm (61.8 in)
Track, Rear
1,570 mm (61.8 in)
Turning Circle
10.6 m
Ground Clearance
155 mm (6.1 in)

Interior

Head Room, Front
1,011 mm (39.8 in)
Head Room, Rear
988 mm (38.9 in)
Leg Room, Front
1,082 mm (42.6 in)
Leg Room, Rear
945 mm (37.2 in)
Hip Room, Front
1,379 mm (54.3 in)
Hip Room, Rear
1,242 mm (48.9 in)
Shoulder Room, Front
1,455 mm (57.3 in)
Shoulder Room, Rear
1,407 mm (55.4 in)

Weight

Gross Weight
2,270 kg (5,004 lb)
Max Trailer Load, braked 12%
1,650 kg (3,638 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
505 kg (1,113 lb)
Max Roof Load
85 kg (187 lb)
Max Towbar Download
70 kg (154 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Platform
Toyota Platform
MC Platform (New MC)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Heated
Yes
Turning Signal
Yes
Windscreen Wipers
Heated Washer Nozzles
Optional
Integrated Water Nozzles in Wipers
Optional
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
Yes
Tinted Windows
  • Second Row
  • Rear Window
Other Equipment
Roof Railing
Yes
Spoiler
Yes
Antenna
Shark Fin
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)
Colour
Silver

Lights

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Main Beam Assist
  • Adaptive Headlights
  • Come Home/Leaving Lights
  • Headlight Range Adjustment
Fog Lights
Front
Yes
Special Features
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
60.1
Fastening Type
Lug Nuts
Tightening Torque
103 Nm
Rim Type
Disc Wheel
Spare Wheel
Yes

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Instrument Cluster › Trip Computer
Display
7"
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
DAB
Media Format
CD
Media Inputs
USB
Bluetooth
Yes
Connectivity › Media Format
DVD
Optional
Connectivity › Media Inputs
AUX
Yes
Displays
Center Display
4.2"
Center Display Controls
Touchscreen
Speakers
Total Number of Speakers
6 pcs
Rear-view Mirror
Anti-glare
Automatic
Interior Storage › Storage Compartments
Glove Compartment
Lockable
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Lights
Read Light
Front
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
12V Outlet
Front
Ashtray
Yes
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Material
Leather
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
Yes

Trunk

Rear Trunk
Yes
Cargo Hooks
Yes
Light
Yes
Rear Trunk
Volume
577 litres
Volume, Back Seat Collapsed
1,776 litres
Depth
1,025 mm (40.4 in)
Depth, Back Seat Collapsed
1,720 mm (67.7 in)
Width
1,335 mm (52.6 in)
Height
975 mm (38.4 in)

Design

Transmission Knob Material
Leather

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Heated Seats
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Adaptive Cruise Control
Cameras
Rear

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Lane Assist System
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Yes
Trailer Stability Assist (TSA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2013
Adult Occupant
89 %
Child Occupant
82 %
Vulnerable Road Users
66 %
Safety Assist
66 %
Overall
5/5 stars
Frontal Crash
Front Driver Side
4/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
5/5 stars
Front Seat Rating
5/5 stars
Combined Rear Seat Rating
5/5 stars
Side Barrier Rating
5/5 stars
Overall Side Pole Star Rating
5/5 stars
Rollover
Rollover Resistance
16.9 %
Overall Safety Rating
5/5 stars
Overall Frontal Rating
4/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years
Hybrid Components
240,000 km / 10 years
EV Battery
160,000 km / 8 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
  • D4S (xenon)
  • HB3
  • HIR2
Main Beam
  • HB3
  • HIR2
Fog Light, Front
H16
Fog Light, Rear
W3×16d (W21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
W3×16q (W21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Rear
WX3×16d (WY21W)
Read Light
W2.1×9.5d (W5W)
Trunk
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

ACRISS

Category
Standard (S)
Type
Crossover (G)
