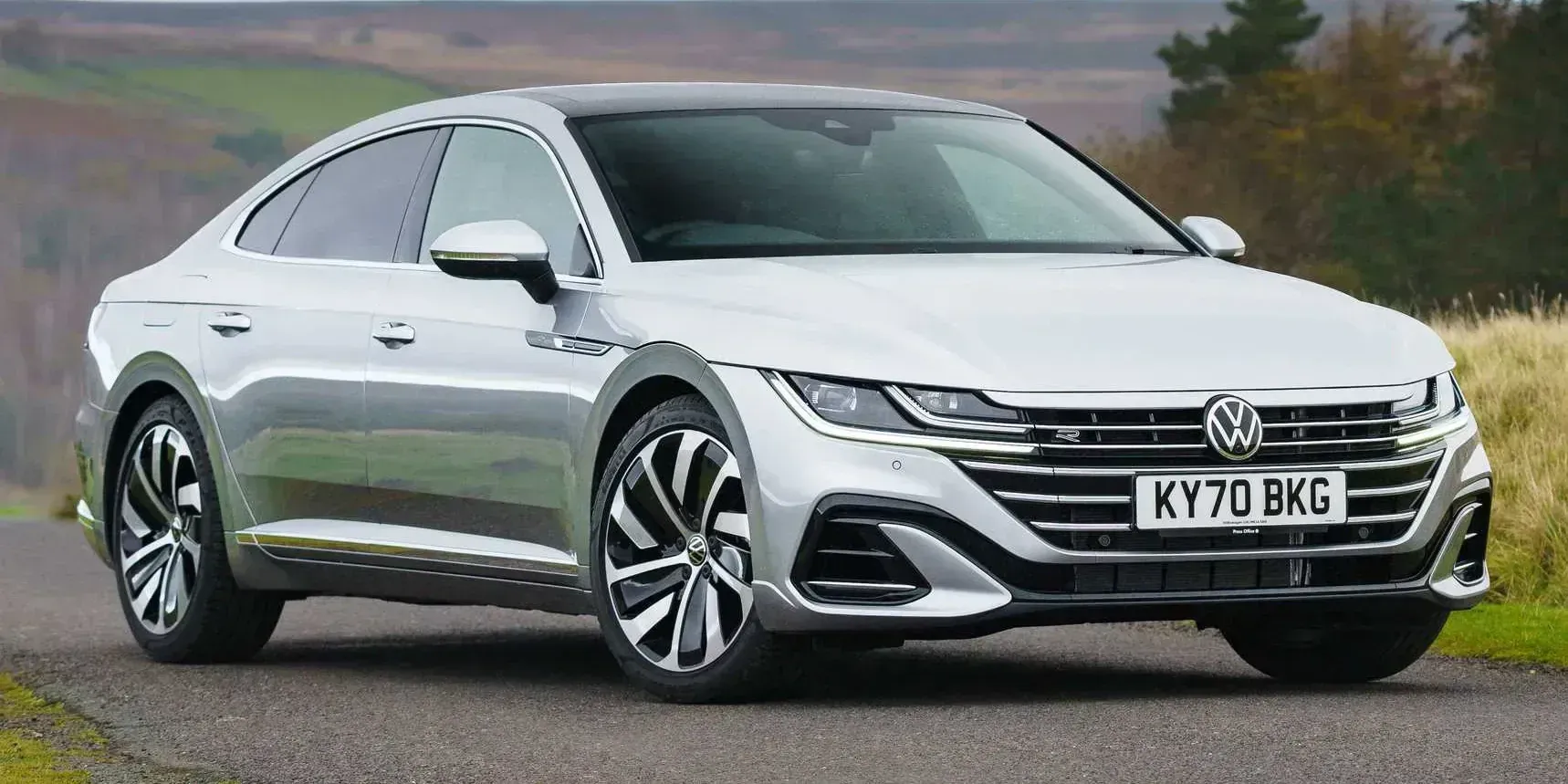

2019 Volkswagen Arteon

Germany Gasoline FWD Hatchback

Specifications

Generation

Type 3H

Seats

5

Doors

5

Fuel

Gasoline

Drivetrain

FWD

Transmission

Automatic (Dual-clutch), 7-speed

Displacement

1,984 cc

Engine Oil, Volume

5.7 litres

Car Battery

Voltage: 12 V
Alternator Voltage: 14 V

Engine Configuration

Bore: 82.5 mm (3.2 in)
Stroke: 92.8 mm (3.7 in)
Compression Ratio: 9.6 :1
Engine Configuration: Inline
Turbocharger: Single-turbo
Synchronization: Timing Chain
Engine Placement: Front
Engine Mount: Transversally
Type of Combustion Engine

Service Intervals

Air Filter: 90,000 km / 6 years
Spark Plug: 60,000 km / 4 years
Brake Fluid: 2 years
Oil Change & Engine Filter: 15,000 km / 1 years
Transmission, Fluid: 120,000 km (74,565 mi)
Transmission, Fluid Filter: 120,000 km (74,565 mi)
Interior Filter: 60,000 km / 2 years

Piston

Fuel System

Electronic (Direct) Fuel Injection

Camshaft Type

DOHC

Engine Block

Cast Iron

Engine Heads

Aluminium

Engine Cooling

Liquid Cooling

Width

25 mm (1.0 in)

Cooling

Ventilated

Rear Brakes

Diameter: 300 mm (11.8 in)
Width: 12 mm (0.5 in)
Cooling: Solid

Independent

Multi-link

Exhaust Gas Recirculation

Positive Crankcase Ventilation

Fuel Consumption NEDC

City: 7.9 - 8.4 litres / 100 km
Highway: 4.9 - 5.2 litres / 100 km
Combined: 6 - 6.4 litres / 100 km

Emission NEDC

CO₂, Combined: 138 - 144 g/km

11.9 m

Ground Clearance

138 mm (5.4 in)

Rear Doors

Conventional

Soft Close

Optional

Door Handles

Pull-out

Platform

Volkswagen Group: MQB Platform

Air Condition

Yes

Outside Temperature Indicator

Yes

Climate Control › Air Condition

Refrigerant: R1234yf
R134A
Refrigerant, Capacity: 500 g

Connectivity

Radio: FM
Media Format: CD
Memory Card Reader
MP3
WMA
App-Connect: MirrorLink
Bluetooth: Phone
Audio
Cellular Network: Optional
WiFi: Optional

Connectivity › Radio

DAB: Optional

Connectivity › Media Inputs

AUX: Armrest Hatch/Mid-console
USB: USB-C

Connectivity › Media Inputs › USB

Placement: Armrest Hatch/Mid-console

Connectivity › App-Connect

Android Auto: Optional
Apple CarPlay: Optional

Connectivity › Cellular Network

4G: Optional

Connectivity › Cellular Network › 4G

3G: Optional

Displays

Center Display: Yes
Center Display Controls: Touchscreen

Rear-view Mirror

Adjustments: Mechanical
Rear-view Mirror: Mirror Type: Standard

Interior Storage › Storage Compartments

Glove Compartment: Cooled
Light
Lockable
Armrest Hatch: Front
Back Pocket: Yes
Sunglass Compartment: Yes
Coin Holder: Optional
Card Holder: Yes
Under Seats: Optional
Door: Driver Side
Passenger Side
Rear

Interior Storage › Storage Compartments › Under Seats

Front: Optional

Interior Storage

Cup Holders: Yes

Interior Storage › Cup Holders

Front: 2
Rear: 2

Interior Storage › Cup Holders › Front

Placement: Middle Console

Lights

Read Light: Front
Rear
Guide Light: Entry Guard
Footwell

Lights › Guide Light

Door Handles: Optional

Other Equipment

Make-up Mirror: Driver Side
Passenger Side
Clock: Yes
12V Outlet: Front
Trunk
230V Outlet: Optional
Carpets: Front
Rear
Ashtray: Optional
Cigarette Lighter: Optional

Other Equipment › Make-up Mirror

Make-up Light: Driver
Passenger

Other Equipment › Clock

Analogue: Dashboard
Digital: Center Display
Instrument Cluster

Other Equipment › 230V Outlet

Rear: Optional

Other Equipment › Carpets

Colour: Black

Other Equipment › Ashtray

Front: Optional

Sides

Optional

Rear

Optional

Belt Pretensioner

Belt Load Limiter

Height Adjustable Retractor

Manual: Yes

Type of Belt

Three-Point-Belt: Front Seats
Outer Rear Seats
Centre Rear Seat

Yes

Pillar

B-Pillar, Left

Trunk

Inside Sill

On-board Diagnostic, Port Type: OBD-II
On-board Diagnostic, Port Location: Steering Wheel, Lower Left

Arteon

8.9

€67,000

MSRP · EUR

Body

90 kg (198 lb)

Permitted Axle Load, front

1,110 kg (2,447 lb)

Permitted Axle Load, rear

1,070 kg (2,359 lb)

4

Heated Washer Nozzles

Optional

Heated Water Tank

Optional

Windows

Window Lifts, Front: Powered
Window Lifts, Rear: Powered
Heated Windows: Rear
Heat-Insulating Windows: Front
First Row
Second Row
Rear
Noise Reducing Windows: Optional
Sun Visors: Optional
Frameless Windows: First Row
Second Row
Tinted Windows: Optional

Windows › Window Lifts, Features

Pinch Protection: Yes

Windows › Heated Windows

Front: Optional

Windows › Noise Reducing Windows

Front: Optional
First Row: Optional
Second Row: Optional

Windows › Tinted Windows

Second Row: Optional
Rear Window: Optional

Other Equipment

Sunroof: Optional
Normal Roof: Yes
Roof Railing: Yes
Antenna: Shark Fin
Mud Flaps: Optional

Other Equipment › Roof Railing

Roof Railing Type: Fix Points

Other Equipment › Mud Flaps

Front: Optional
Rear: Optional

Rear: LED

Special Features

Dynamic Turn Signal: Optional
Headlight Range Adjustment: Automatic (Dynamic)

Direct

Optional

Steering Ratio

13.6 :1

Steering Mechanism

Rack and Pinion

Multifunction Steering Wheel

Menu Navigation: Buttons
Cruise Control: Activate/Deactivate
Speed Up/Down (Buttons)
Resume
Media: Yes

Multifunction Steering Wheel › Media

Voice Command: Yes
Answer Phone: Yes
Channels: Yes
Volume: Buttons
Mute Audio: Yes

Yes

Hatch Opening Type

From Roof

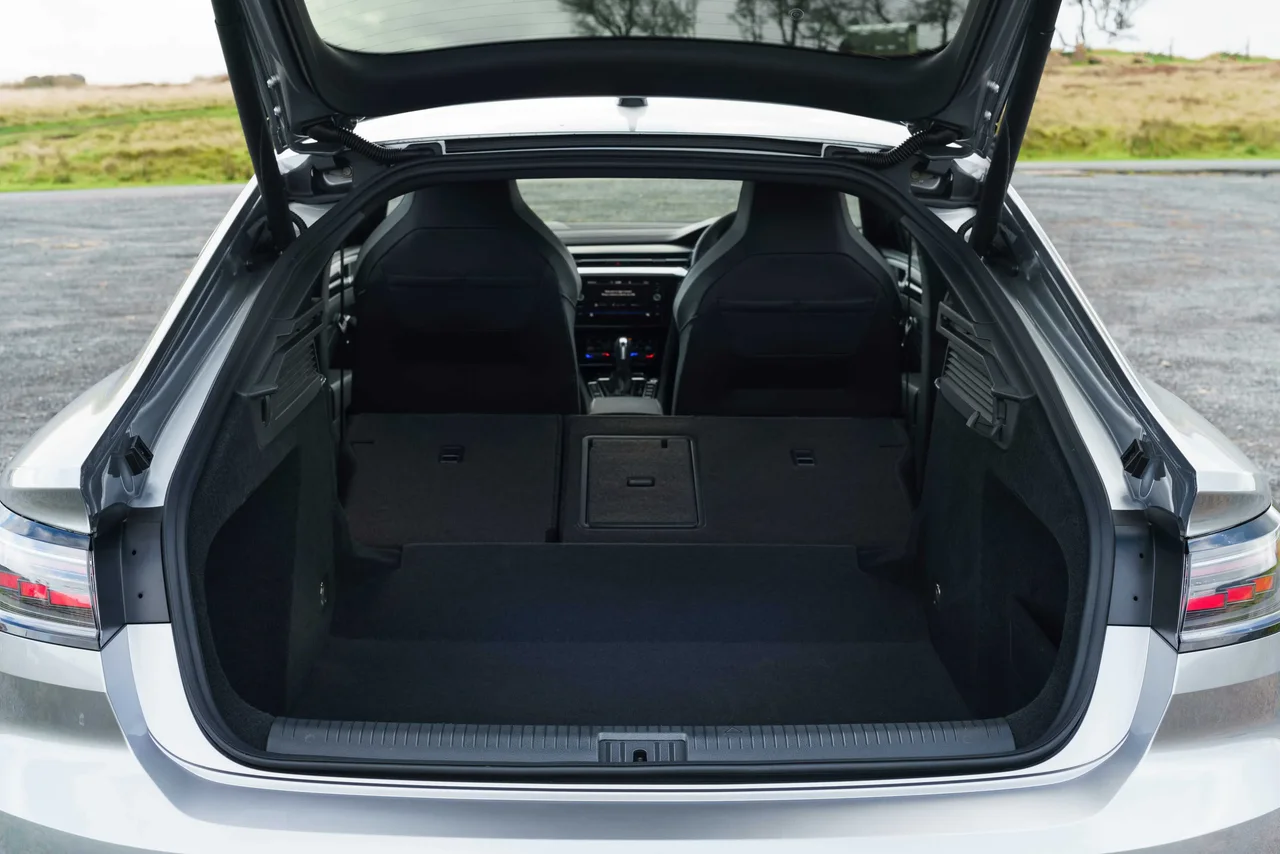

Rear Trunk

Volume: 563 litres
Volume, Back Seat Collapsed: 1,557 litres
Depth: 1,181 mm (46.5 in)
Depth, Back Seat Collapsed: 2,092 mm (82.4 in)
Width, Between Wheel Arches: 1,005 mm (39.6 in)
Opening Width: 969 mm (38.1 in)
Trunk Door Opening Height: 2,172 mm (85.5 in)
Sill Height

Carpet

Rubber: Optional

Manual

Front Seats › Adjustments, Passenger

Seat Depth: Yes
Seat Height: Yes
Backrest Angle: Yes
Lumbar Support: Yes
Headrest, Height: Manual

Front Seats

Power Seat, Driver: Optional
Power Seat, Passenger: Optional
Heated Seats: Yes
Massage: Optional
Ventilated Seats: Optional

Front Seats › Heated Seats

Areas: Cushion
Backrest

Front Seats › Massage

Driver: Optional

Front Seats › Ventilated Seats

Driver: Optional
Passenger: Optional

Second Seat Row

Armrest: Yes
Collapsible: Manual
Number of Seats: 3
Type of Seat: Adult
Height Adjustment: Yes

Second Seat Row › Collapsible

Backrest Release: From Trunk
Split Fold Ratio: 60/40
Heated Seats: Optional

Normal

Optional

Sport

Optional

Coat Hanger

Optional

Lane Departure Warning (LDW)

Yes

Autonomous Emergency Brake System (AEB)

Pedestrian: Yes
City: Yes
Inter-urban: Yes

Interior Monitoring: Yes

Child Safety Locks

Electrical: Optional

5

Adult Occupant

Total Points: 36.8 /38
Frontal Impact: 15.6 /16
Lateral Impact: 15.9 /16
Rear Impact: 2.3 /4
Protection: 96 %
Protection: 36.8
Full Width: 7.67
Frontal Offset: 7.87
Side Impact: 8

Child Occupant

Total Points: 42 /49
Crash Test Performance: 15
8 /16
Safety Features: 7 /13
CRS Installation Check: 12 /12
Protection: 85 %
Protection: 42.1

Vulnerable Road Users

Total Points: 36.1 /49
Pedestrian: 19
6
6
AEB Pedestrian: 5.1 /9

Safety Assist

Speed Assistance (points): 1.5 /3
Lane Support (points): 2.7 /4
Safety Assist: 74 %
Safety Assist: 8.9
Speed Assistance System: 1.5
Seat Belt Reminders: 2
Lane Support System: 2.7
AEB (Interurban): 2.7

Pedestrian

Protection: 85 %
Protection: 36.1

IIHS

Test Year: 2020
Award: Top Safety Pick
Small Overlap Front: Driver Side: Good
Small Overlap Front: Passenger Side: Good
Moderate Overlap Front: Good
Side: Good
Roof Strength: Good
Head Restraints & Seats: Good
Front Crash Prevention: Vehicle-to-vehicle

Optional

Side Head Airbag

Side Pelvis Airbag

-

Knee Airbag

-

Curtain Airbag

Airbag cut-off Switch

-

Hatchback

Variant

Arteon Hatchback Generations1 of 2

Year

Powertrain

Horsepower

190 hp

Drivetrain

FWD

Fuel

Gasoline

Transmission

Automatic (Dual-clutch), 7-speed

713 mm (28.1 in)

Pole

7.87

Whiplash Protection (Front)

2.35

AEB (City)

3

Superior

Front Crash Prevention: Vehicle-to-pedestrian

Advanced

Latch Ease of Use

Acceptable
