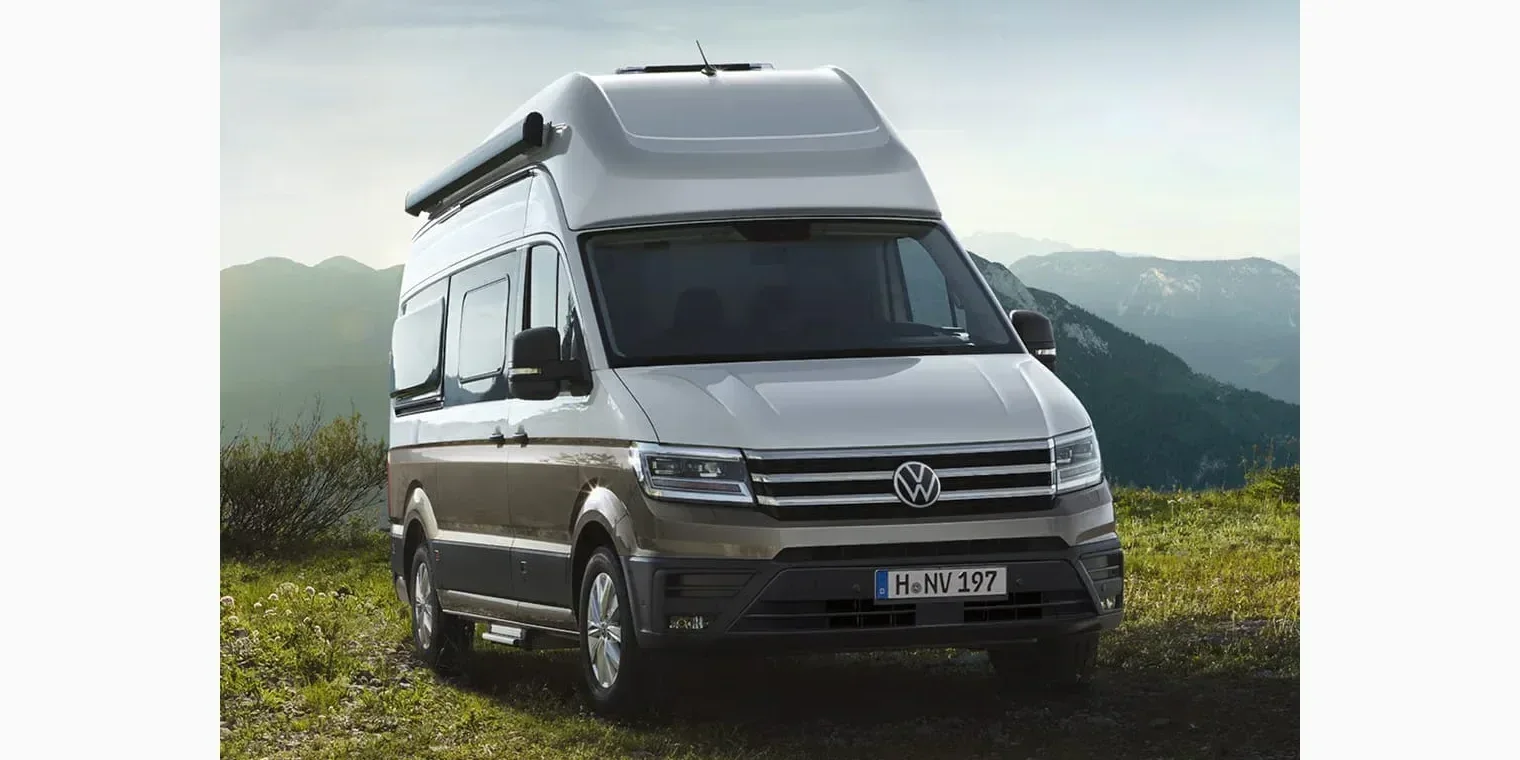

2019 Volkswagen Grand California

GermanyDiesel4WDLCV

Photos

Specifications

Vehicle Details

Year
2019
Make
Volkswagen
Model
Grand California
Body Style
LCV
Generation
1st Generation
Doors
4
Fuel
Diesel
Drivetrain
4WD
Transmission
Automatic, 8-speed

Powertrain

Engine Name
2.0 TDI 4Motion Automatic
Engine Configuration
Inline
Power (hp)
177 hp
Power (kW)
130 kW
Torque
410 Nm (302 lb-ft)
Top speed
159 km/h (99 mph)
Displacement
1,968 cc

Dimensions

Length
5,986 mm (235.7 in)
Width
2,040 mm (80.3 in)
Height
2,971 mm (117.0 in)
Wheelbase
3,640 mm (143.3 in)
Curb weight
3,150 kg (6,945 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,600 rpm
Rev. at Max Torque
1,500 rpm
Engine Configuration
Bore
81 mm (3.2 in)
Stroke
95.5 mm (3.8 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
Yes

Transmission & Drivetrain

Transmission
Automatic, 8-speed

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leather
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
75 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 6
WLTP Consumption
Low (l/100km) (WLTP)
13 litres / 100 km
Medium (l/100km)
10.7 litres / 100 km
High (l/100km)
9.8 litres / 100 km
Extra High (l/100km)
13 litres / 100 km
Combined (l/100km)
11.6 litres / 100 km
Fuel Consumption NEDC
City
9.9 litres / 100 km
Highway
8.7 litres / 100 km
Combined
9.1 litres / 100 km
Emission WLTP
CO₂, Combined
303 g/km
Emission NEDC
CO₂, Combined
240 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,427 mm (95.6 in)
Overhang, Front
1,000 mm (39.4 in)
Overhang, Rear
1,346 mm (53.0 in)
Ground Clearance
185 mm (7.3 in)

Weight

Gross Weight
3,880 kg (8,554 lb)
Max Trailer Load, braked 12%
2,000 kg (4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
730 kg (1,609 lb)
Max Towbar Download
80 kg (176 lb)

Exterior

Chassis & Body

Chassis
Chassis
LCV (Camper Van)
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
Windscreen Wipers
Number of Wiper Speeds
4
Intermittent Control
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Safety Glass
Yes
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Tow Hook
Optional
Normal Roof
Yes
Antenna
Whip
Mud Flaps
Optional
Side Steps
Optional
Other Equipment › Tow Hook
Front
Optional
Rear
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional
Other Equipment › Side Steps
Stationary
Optional

Lights

Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Rear
Yes
Special Features
Automatic Headlight Activation
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Yes

Rims & Tires

Tightening Torque
160 Nm

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • FM
  • DAB+
Media Format
MP3
Media Inputs
USB
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Media Inputs
AUX
Yes
HDMI
Optional
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
MirrorLink
Optional
Connectivity › Cellular Network
4G
Optional
Connectivity › Cellular Network › 4G
3G
Optional
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Optional
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Fridge
Optional
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Armrest Hatch
Front
Optional
Back
Optional
Cooled
Optional
Interior Storage › Storage Compartments › Fridge
Rear
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Rear
Optional
Interior Storage
Cup Holders
Yes
Phone/Tablet Holder
Optional
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
230V Outlet
Optional
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional

Trunk

Rear Trunk
Yes
Rear Trunk
Sill Height
670 mm (26.4 in)

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Optional
Speed Limiter
Optional
Cameras
Optional
Rear Camera Preparation
Optional
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional
Voice Control
Navigation
Optional

Other Features

GPS
Optional
Start & Stop
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional
Portable Cooling Box
Optional
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Optional
Parking Assist
Optional
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive | Walk Away)
Emergency Call
Optional
Immobiliser
Electronic
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: -

Other

Warranty

Manufacturer
2 years
Paintwork
3 years
Rust Damage
12 years

Car Classification

European Segment
M-Segment
Car.info Classification
Camper Van
