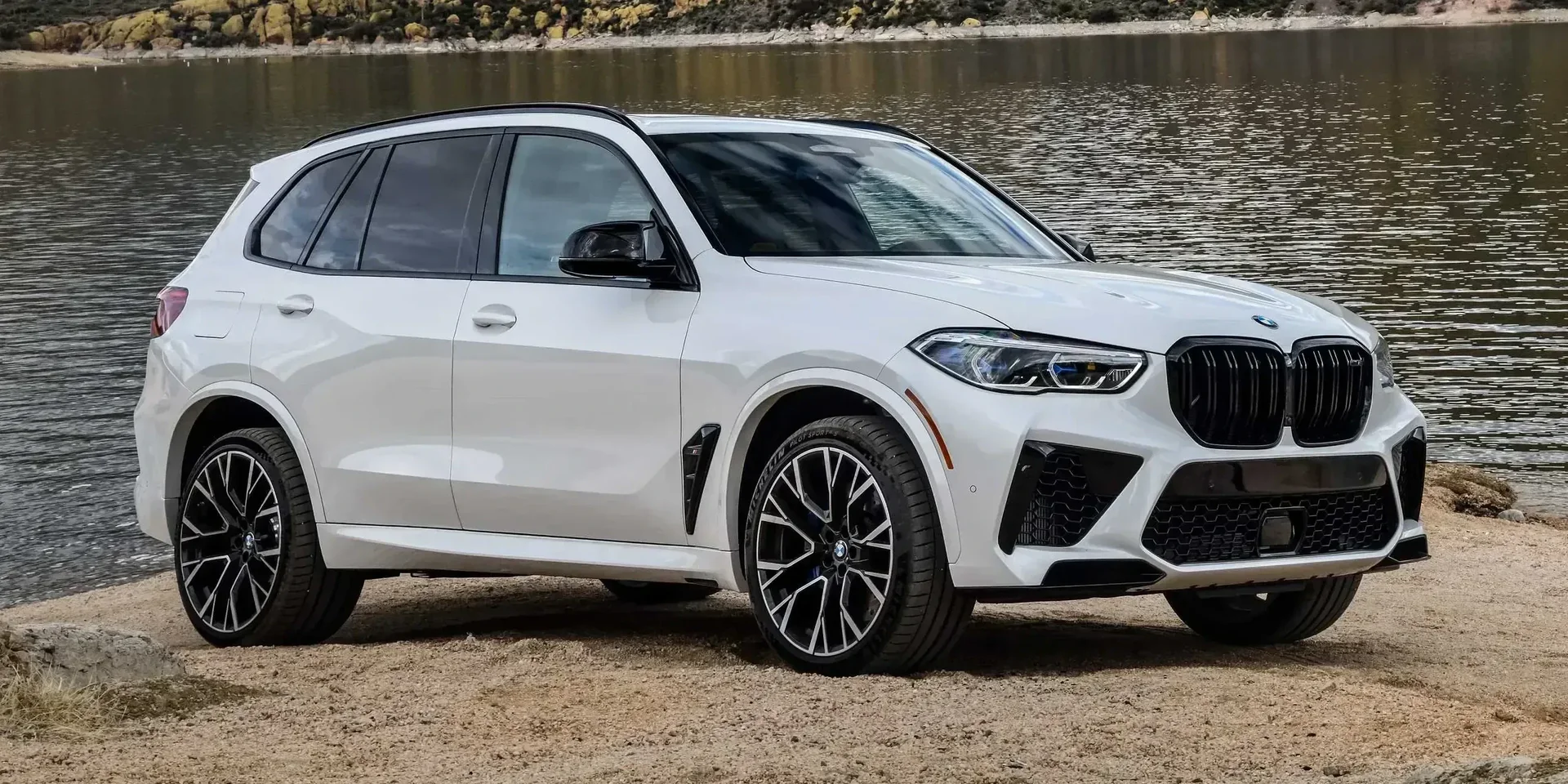

2020 BMW X5 M Competition

GermanyGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2020
Make
BMW
Model
X5
Variant
M Competition
Body Style
SUV
Generation
G05
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
M Competition Steptronic
Engine Configuration
V
Power (hp)
625 hp
Power (kW)
460 kW
Torque
750 Nm (553 lb-ft)
Top speed
290 km/h (180 mph)
0–60 mph
3.6 seconds (estimated)
0–100 km/h
3.8 seconds
Displacement
4,395 cc

Dimensions

Length
4,941 mm (194.5 in)
Width
2,019 mm (79.5 in)
Height
1,962 mm (77.2 in)
Wheelbase
2,972 mm (117.0 in)
Curb weight
2,370 kg (5,225 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
1,800 - 5,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 0W-30
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Configuration
Bore
89 mm (3.5 in)
Stroke
88.3 mm (3.5 in)
Compression Ratio
10 :1
Engine Configuration
V-Engine
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Service Intervals
Air Filter
20,000 km / 1 years
Fuel Filter
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
80,000 km / 5 years
Interior Filter
20,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Colour
Blue
Front Brakes
Cooling
Ventilated
Brake Caliper Colour
Black
Optional
Red
Optional

Suspensions

Suspension, Front
Active/Adaptive Suspension
Yes
Suspension, Rear
Active/Adaptive Suspension
Yes

Fuel

General
Tank Volume
83 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d
WLTP Consumption
Combined (l/100km)
13.3 - 13.6 litres / 100 km
Emission WLTP
CO₂, Combined
303 - 307 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,218 mm (87.3 in)
Track, Front
1,699 - 1,680 mm (66.9 - 66.1 in)
Track, Rear
1,688 - 1,689 mm (66.5 - 66.5 in)
Overhang, Front
874 mm (34.4 in)
Overhang, Rear
1,073 mm (42.2 in)
Turning Circle
12.8 m
Ground Clearance
213 - 214 mm (8.4 - 8.4 in)

Interior

Head Room, Front
1,037 mm (40.8 in)
Head Room, Rear
1,001 mm (39.4 in)
Leg Room, Front
1,011 mm (39.8 in)
Leg Room, Rear
950 mm (37.4 in)
Hip Room, Front
1,524 mm (60.0 in)
Hip Room, Rear
1,476 mm (58.1 in)
Shoulder Room, Front
1,560 mm (61.4 in)
Shoulder Room, Rear
1,525 mm (60.0 in)

Weight

Gross Weight
3,000 kg (6,614 lb)
Max Trailer Load, braked 12%
3,000 kg (6,614 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
630 kg (1,389 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
140 kg (309 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Soft Close
Optional
Door Handles
Pull-out
Platform
BMW Platform
CLAR Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Automatic Anti-glare
Driver side
Heated
Yes
Automatic Tilt Down
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Noise Reducing Windows
First Row
Optional
Second Row
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Black
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Adaptive Headlights
  • Dynamic Cornering Lights
Fog Lights
Front
LED
Rear
LED
Special Features
Headlight Range Adjustment
Automatic

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
12.3"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
Buttons
Back Seat Controls
Optional
Air Ionizer
Optional
Fragrance System
Optional
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • DAB+
  • RDS
Media Format
Memory Card Reader
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
  • 4G
  • 3G
WiFi
Yes
Connectivity › Media Format
Hard Drive
30 GB
Connectivity › Media Inputs
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
Armrest Hatch/Mid-console
Number of Ports
2 pcs
Connectivity › App-Connect
Amazon Alexa
Optional
Apple CarPlay
Optional
Displays
Center Display
12.3"
Center Display Controls
Touchscreen
Entertainment Screens
Optional
Touchscreen
Yes
Displays › Center Display
Type
Colour
Displays › Entertainment Screens
Back of Headrest
10.2"
Speakers
Total Number of Speakers
16 - 20 pcs
Speakers Max. Watt
464 - 1,500 W
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
  • Entry Guard
  • Footwell (Front)
  • Door Handles (Exterior | Interior)
  • Bottom of the Doors
Ambient Light
Yes
Selectable Light Colour
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Center Display
Other Equipment › Carpets
Material
Textile
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Sport
Yes
Rear-axle Steering
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Adjustments
Tilt
Powered
Telescope
Powered

Trunk

Rear Trunk
Yes
Automatic Open
From Inside Car
Barrier Net/Grid
Optional
Carpet
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
650 litres
Volume, Back Seat Collapsed
1,870 litres
Depth
1,029 mm (40.5 in)
Width
1,105 mm (43.5 in)
Height
800 mm (31.5 in)
Carpet
Rubber
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Cushion Tilt
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Powered
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Cushion Tilt
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Powered
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
  • Driver
  • Passenger
Armrest
Middle (Heated)
Massage
Optional
Ventilated Seats
Optional
Type of Seat
Sport Seats
Front Seats › Power Seat, Driver
User Memory
5 slots
Front Seats › Power Seat, Passenger
User Memory
Yes
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Massage
Driver
Optional
Passenger
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Heated Seats
Optional
Powered Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Cushion Edge
Optional
Backrest Angle
Optional
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes
Third/Fourth Seat Row
Third Seat Row
Optional
Colour & Material
Upholstery
  • Alcantara
  • Leather

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Rear
Voice Control
  • Climate Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Front
Cruise Control
Adaptive Cruise Control
Optional
Active Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Phone Application
Optional
Cameras
View Location
Center Display

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Sport
Smartphone App
Yes
Horn
Dual Note
GPS
Map-update
Internet

Accessories

Tire Repair Kit
Optional
Compressor
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Forward Collision Warning (FCW)
Yes
Rear Collision Warning (RCW)
Yes
Front Cross-Traffic Alert (FCTA)
Optional
Rear Cross-Traffic Alert (RCTA)
Yes
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Optional
Parking Assist
Yes
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Optional
Emergency Stop Signal (ESS)
Optional
Lane Assist System
Lane Departure Warning (LDW)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Reverse
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
  • Front
  • Rear
  • Side
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Night Vision
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Child Safety Locks
Electrical
Active Bonnet
Yes
Emergency Call
Yes
Type of Keys
Standard Key
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes
Towing Protection
Yes
Back-up Horn
Yes
Type of Keys
Smartphone as a Key
Optional
Display
Optional

Safety Testing

General
Test Year
2018
Adult Occupant
89 %
Child Occupant
86 %
Vulnerable Road Users
75 %
Safety Assist
75 %
Overall
5/5 stars
Test Year
2018
ANCAP Safety Rating
5
Adult Occupant
Total Points
34.2 /38
Lateral Impact
15.2 /16
Rear Impact
1.6 /4
Protection
89 %
Protection
34.2
Full Width
5.84
Frontal Offset
7.51
Side Impact
8
Pole
7.23
Whiplash Protection (Front)
1.13
Whiplash Protection (Rear)
0.44
AEB (City)
4
Child Occupant
Total Points
42.6 /49
Crash Test Performance
  • 15.9
  • 8 /16
Safety Features
7 /13
CRS Installation Check
11.7 /12
Protection
87 %
Protection
42.9
Dynamic (Front)
15.94
Dynamic (Side)
8
Child Restraint Installation
12
On-Board Features
7
Vulnerable Road Users
Total Points
36.3 /49
Pedestrian
  • 18.3
  • 0
  • 5.9
AEB Vulnerable Road Users
12 /18
AEB Pedestrian
6 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
6 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.8 /3
Speed Assistance (assesment)
Good
Seat Belt Reminder (assesment)
Good
Lane Support (points)
1.8 /4
Lane Support (assesment)
Marginal
AEB Car-to-Car (assesment)
Good
Safety Assist
71 %
Safety Assist
9.3
Speed Assistance System
2
Seat Belt Reminders
2.5
Lane Support System
2
AEB (Interurban)
2.75
Pedestrian
Protection
75 %
Protection
36.3
Head Impact
18.35
Upper Leg Impact
0
Lower Leg Impact
5.95
AEB VRU (Pedestrian)
5.97
AEB VRU (Cyclist)
6
IIHS
Test Year
2019
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV

ACRISS

Category
Special (X)

Similar suvs

Suggested vehicles
