2020 Ford Mustang Shelby GT500

United States Gasoline RWD Coupe

Photos

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 2020
Make: Ford
Model: Mustang
Variant: Shelby GT500

Photos

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 2020
Make: Ford
Model: Mustang
Variant: Shelby GT500

Body Style

Coupe

Generation

6th Generation Facelift (S550)

Seats

4

Doors

2

Fuel

Gasoline

Drivetrain

RWD

Transmission

Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name: Shelby GT500 DCT
Engine Configuration: V
Power (hp): 771 hp
Power (kW): 567 kW
Torque: 848 Nm (625 lb-ft)
Displacement: 5,163 cc

Dimensions

Length: 4,788 mm (188.5 in)
Width: 1,916 mm (75.4 in)
Height: 1,381 mm (54.4 in)
Wheelbase: 2,720 mm (107.1 in)

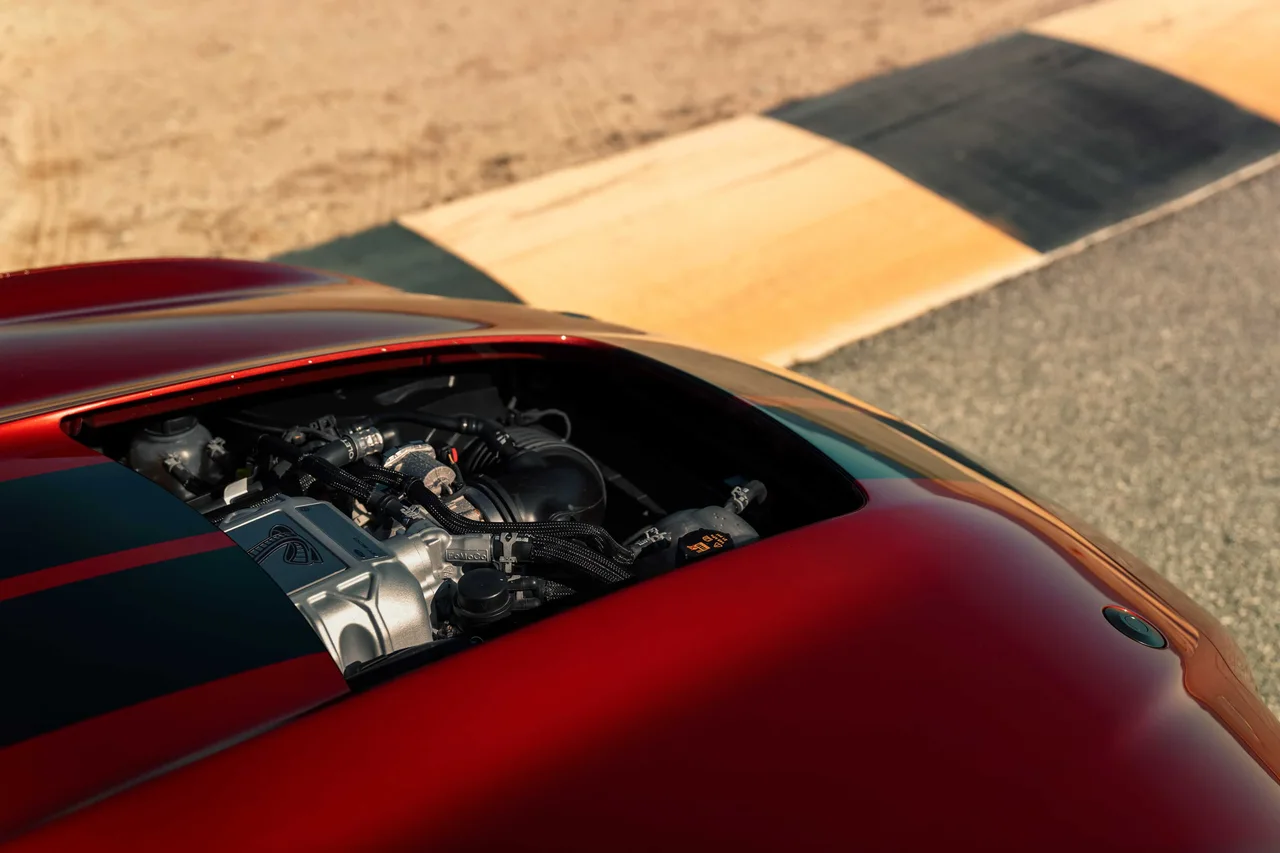

Engine & Performance

Engine

Engine Specification

Rev. at Max Power: 7,300 rpm
Rev. at Max Torque: 5,000 rpm

Engine Configuration

Bore: 94 mm (3.7 in)
Stroke: 93 mm (3.7 in)
Compression Ratio

Similar coupes

Suggested vehicles

View all

2020 McLaren 720S

9.5 :1

Engine Configuration

V-Engine

Supercharger

Yes

Synchronization

Timing Chain

Type of Combustion Engine

Piston

Transmission & Drivetrain

Transmission: Automatic (Dual-clutch), 7-speed

Fuel

General › Fuel Cap Position

Rear: Left

Brakes

Front Brakes: Disc Brakes
Rear Brakes: Disc Brakes
Brake Caliper Pistons: Front
Rear
Brakes Material: Aluminium

Front Brakes

Cooling: Ventilated

Rear Brakes

Cooling

Suspensions

Spring, Front: Coil
Spring, Rear: Coil
Anti-roll Bar: Front
Rear

Suspension, Front

Independent: MacPherson Strut

Suspension, Rear

Independent: Multi-link

Dimensions & Weight

Exterior

Width, with Mirrors: 2,080 mm (81.9 in)
Turning Circle: 12.2 m
Ground Clearance: 120 mm (4.7 in)

Interior

Head Room, Front: 955 mm (37.6 in)

Exterior

Chassis & Body

Chassis

Chassis: Coupé
Pillars: A-C
Chassis Construction: Unibody

Doors

Front Doors: Conventional
Door Handles: Pull-out

Interior

Equipment

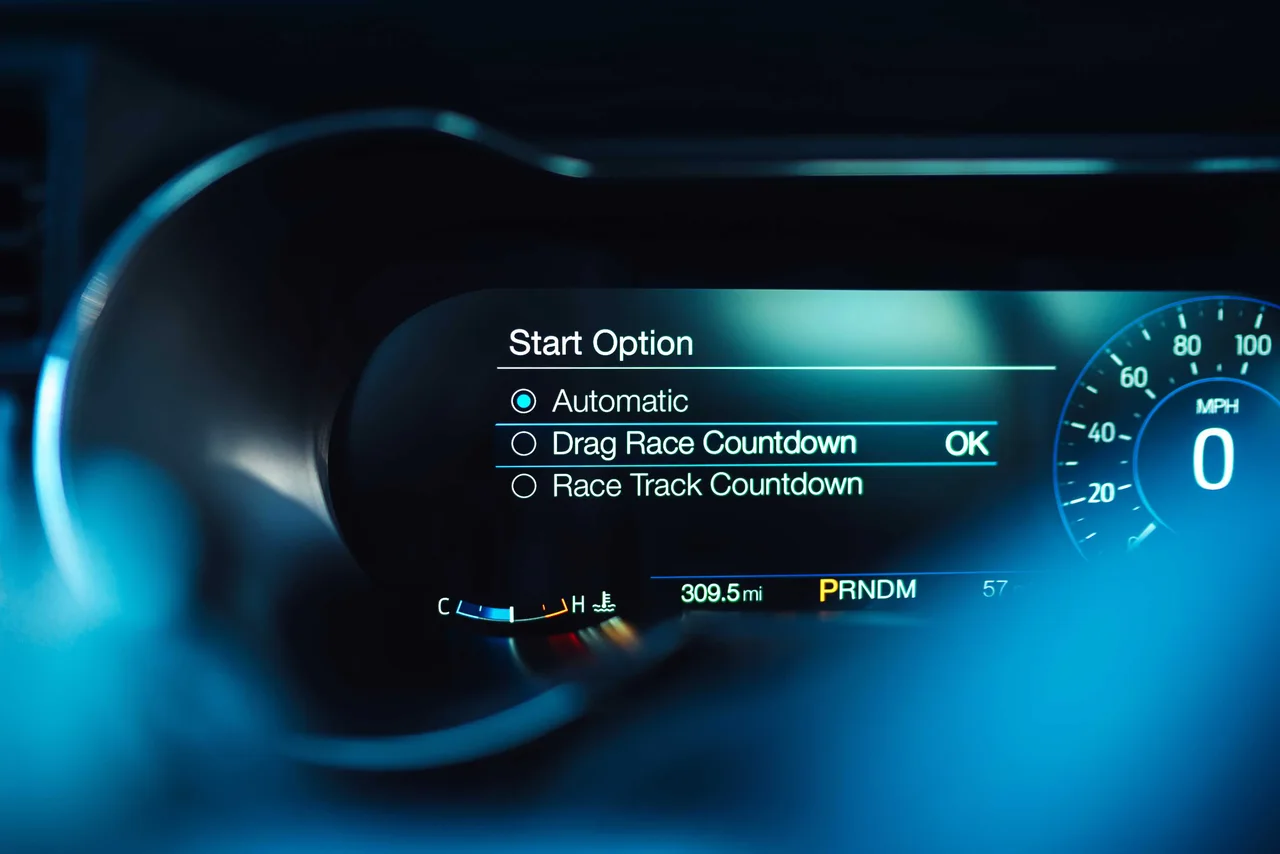

Instrument Cluster

Trip Computer: Yes
Speedometer: Digital
Tachometer: Digital
Fuel Gauge: Digital
Oil Pressure: Analogue
Oil Temperature: Analogue

Features

Comfort Features

Keyless Entry: Yes
Cruise Control: Yes
Speed Limiter: Yes
Cameras: Rear
Voice Control: Media
Phone
Wireless Phone Charger: Optional

Cruise Control

Safety & Security

Seat Belt

Height Adjustable Retractor: Yes
Seat Belt Colour: Black

Feature

Driver

Passenger

Rear

Seat Belt Reminder

Driver

Other

Warranty

Manufacturer: 2 years
Body Protection: 3 years
Paintwork: 2 years
Rust Damage: 12 years

Identification

VIN Location

Left Side Casing of Window

Showcase

Forza Horizon 6May 19, 2026Windows, PlayStation 5, Xbox Series X/S

Ventilated

Head Room, Rear

884 mm (34.8 in)

Leg Room, Front

1,146 mm (45.1 in)

Leg Room, Rear

737 mm (29.0 in)

Hip Room, Front

1,394 mm (54.9 in)

Hip Room, Rear

1,212 mm (47.7 in)

Shoulder Room, Front

1,430 mm (56.3 in)

Shoulder Room, Rear

1,326 mm (52.2 in)

Weight

Max Roof Load: 75 kg (165 lb)

Equipment

Side Mirrors

Mirror Type: Conventional
Adjustments: Electrical
User Memory: Optional
Turning Signal: Yes
House Colour: Same as Car

Windscreen Wipers

Intermittent Control: Yes

Windows

Window Lifts, Front: Powered
Heated Windows: Rear
Heat-Insulating Windows: Front
First Row
Second Row
Rear
Safety Glass: Yes

Windows › Window Lifts, Features

Pinch Protection: Driver
Passenger
One-touch up/down: Driver
Passenger

Windows › Safety Glass

Front: Laminated

Other Equipment

Normal Roof: Yes
Antenna: Yes

Lights

Main Beam: LED
Low Beam: LED
Rear Lights: LED
Daytime Running Light: LED
Special Features: Automatic Headlight Activation
Headlight Range Adjustment

Special Features

Main Beam Assist: Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS): Direct
Number of Bolts: 5 pcs
Bolt Distance: 114.3
Nut/Bolt Dimensions: M14x1.5
Central Bore (CB), front: 70.5
Central Bore (CB), rear: 70.5
Fastening Type: Lug Nuts
Anti-Theft Locking Lug Nuts/Bolts: Optional

Coolant Temperature

Digital

Odometer Limit

1,000,000 km/miles

Instrument Cluster › Trip Computer

Display: 12"

Instrument Cluster › Trip Computer › Display

Type: Colour
Shape: Cockpit

Climate Control

Climate Control: Automatic
Number of Climate Zones: 2
Air Condition: Yes
Pollen Filter: Yes
Outside Temperature Indicator: Yes
Controls: Buttons
Rotary Dials

Climate Control › Air Condition

Refrigerant: R1234yf

Connectivity

Radio: AM
FM
App-Connect: Optional
Bluetooth: Phone
Audio
Cellular Network: 4G
3G
WiFi: Yes

Connectivity › Radio

XM: Optional

Connectivity › Media Inputs

USB: USB-A

Connectivity › Media Inputs › USB

Placement: Front

Connectivity › App-Connect

Android Auto: Optional
Apple CarPlay: Optional

Displays

Center Display: 4.2 - 12"
Center Display Controls: Buttons

Displays › Center Display

Type: Colour

Displays › Center Display Controls

Touchscreen: Optional

Rear-view Mirror

Adjustments: Mechanical
Anti-glare: Automatic
Rear-view Mirror: Mirror Type: Standard

Interior Storage › Storage Compartments

Glove Compartment: Light
Lockable (Manual)
Armrest Hatch: Front
Back Pocket: Yes
Door: Driver Side
Passenger Side

Interior Storage

Cup Holders: Yes

Interior Storage › Cup Holders

Front: 2

Interior Storage › Cup Holders › Front

Placement: Middle Console

Lights

Read Light: Front
Guide Light: Entry Guard

Other Equipment

Make-up Mirror: Driver Side
Passenger Side
Clock: Yes
Carpets: Front

Other Equipment › Make-up Mirror

Make-up Light: Driver
Passenger

Other Equipment › Clock

Digital: Center Display

Other Equipment › Carpets

Material: Textile
Colour: Black

Steering Wheel

Multifunction Steering Wheel: Yes
Heated: Optional
Power Steering: Electric
Adjustments: Tilt
Telescope
Number of Spokes: 3
Material: Alcantara
Leather
Colour: Black
Steering Mechanism

Trunk

Rear Trunk: Yes
Automatic Open: From Inside Car
Hatch Opening Type: Under Rear Window

Rear Trunk

Volume: 408 litres

Seats

Colour & Material

Upholstery: Leather
Suede Microfiber
Seat Colour: Black

Front Seats › Adjustments, Driver

Seat Depth: Powered
Seat Height: Powered
Backrest Angle: Powered
Lumbar Support: Powered

Adaptive Cruise Control: Optional

Cameras

View Location: Center Display

Voice Control

Navigation: Optional

Other Features

GPS: Optional
Start & Stop: Yes
Launch Control: Yes
Driving Mode Selection: Optional
Horn: Dual Note

Driving Mode Selection

Normal: Optional
Sport: Optional

Accessories

Tool Kit and Jack: Yes
Tire Repair Kit: Optional
Compressor: Optional
Fire Extinguisher: Optional
Warning Triangle: Optional
First Aid Kit: Optional
Bicycle Holder: Optional
Coat Hanger: Optional

Yes

PassengerYes

Rear-

Belt Pretensioner

DriverYes

PassengerYes

Rear-

Belt Load Limiter

DriverYes

PassengerYes

Rear-

Height Adjustable Retractor

Manual: Yes

Type of Belt

Three-Point-Belt: Front Seats
Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC): Yes
Lane Assist System: Yes
Emergency Assist: Yes

Lane Assist System

Lane Keeping Assist (LKA): Yes

Brake Systems

Autonomous Emergency Brake System (AEB): Yes
Power Brakes: Yes
Anti-lock Braking System (ABS): Four-channel
Traction Control System (TCS): Yes
Electronic Brakeforce Distribution (EBD): Yes
Electronic Brake Assist (BA/EBA): Yes
Brake Pad Wear Indicator: Yes
Differential Lock: Limited Slip Differential (LSD)

Sensors

Parking Sensors: Optional
Blind Spot Detection (BLIS): Optional
Pedestrian/Bicycle Detection: Optional
Light Sensor: Yes
Rain Sensors: Yes

Parking Sensors

Front: Optional
Rear: Optional

Other Features

Immobiliser: Yes
Anti-theft Alarm: Yes
Central Locking: Remote
Emergency Call: Yes

Immobiliser

Electronic: Yes

Anti-theft Alarm

Interior Monitoring: Yes

Safety Testing

General

Test Year: 2017
Adult Occupant: 72 %
Child Occupant: 32 %
Vulnerable Road Users: 64 %
Safety Assist: 16 %
Overall: 2/5 stars

IIHS

Test Year

Airbags

Feature

Driver

Passenger

Rear

Frontal Airbag

DriverYes

PassengerYes

Rear-

Side Chest Airbag

Driver

Child Protection

Isofix: Passenger: -
Rear: Yes

Yes

Pillar

B-Pillar, Left
B-Pillar, Right

Passenger Seat

in Front of

Car Classification

Australian Classification: Sports Car
European Segment: S-Segment
Car.info Classification: Sports Car

Spare Parts BETA

Bulb Types

Fog Light, Rear: W2.1×9.5d (W16W)
Reversing Light: W2.1×9.5d (W16W)
Glove Compartment: W2.1×9.5d (W5W)
Trunk: W2.1×9.5d (W5W)
Entry Light: W2.1×9.5d (W5W)

ACRISS

Type: Coupe (E)

Mustang

8.9

€67,000

MSRP · EUR

Body

Tightening Torque

204 Nm

Rim Material

Alloy

Rim Type

Disc Wheel

Rack and Pinion

Voice Command

Yes

Answer Phone

Yes

Channels

Yes

Volume

Yes

Mute Audio

Yes

Multifunction Steering Wheel

Menu Navigation: Buttons
Cruise Control: Activate/Deactivate
Speed Up/Down (Buttons)
Resume
Mode Selection: Yes

Headrest, Height

Optional

Headrest, Tilt

Optional

Front Seats › Adjustments, Passenger

Seat Depth: Powered
Seat Height: Powered
Backrest Angle: Powered
Headrest, Height: Optional
Headrest, Tilt: Optional

Front Seats

Power Seat, Driver: Yes
Power Seat, Passenger: Yes
Heated Seats: Driver
Passenger
Armrest: Middle
Ventilated Seats: Driver
Passenger

Front Seats › Heated Seats

Areas: Cushion
Backrest

Second Seat Row

Collapsible: Yes
Number of Seats: 2
Type of Seat: Adult

Second Seat Row › Collapsible

Split Fold Ratio: 50/50

Autonomous Emergency Brake System (AEB)

Car-to-car: Yes
Pedestrian: Yes

2016

Small Overlap Front: Driver Side

Acceptable

Moderate Overlap Front

Good

Side

Good

Roof Strength

Good

Head Restraints & Seats

Good

Yes

PassengerYes

Rear-

Side Head Airbag

DriverYes

PassengerYes

RearYes

Side Pelvis Airbag

DriverYes

PassengerYes

Rear-

Knee Airbag

DriverYes

PassengerYes

Rear-

Curtain Airbag

DriverYes

PassengerYes

Rear-

Airbag cut-off Switch

Driver-

PassengerYes

Rear-

Coupe

Variant

Mustang Shelby GT500 Coupe Generations3 of 3

Year

Powertrain

Shelby GT500 DCT

Horsepower

771 hp

Drivetrain

RWD

Fuel

Gasoline

Transmission

Automatic (Dual-clutch), 7-speed

Showcase

Forza Horizon 6May 19, 2026Windows, PlayStation 5, Xbox Series X/S

Similar coupes

Suggested vehicles

View all

2020 McLaren 720S

2017–2023

2020 Roush Mustang Stage

2020–2023

2020 Aston Martin VIctor

2020

2019 Lamborghini Aventador LP 770-4 SVJ

2019–2023

2019 Chevrolet Corvette ZR1

2019–2026

2020 Shelby Mustang GT500SE

2020–2026

2020 Ultima RS

2020–2026

2020 Dodge Challenger SRT

2020–2023

2021 Ferrari Omologata

2021

2019 McLaren Senna

2019–2020

2020 Brabus Taycan

2020–2023

2020 Italdesign GT-R50

2020
