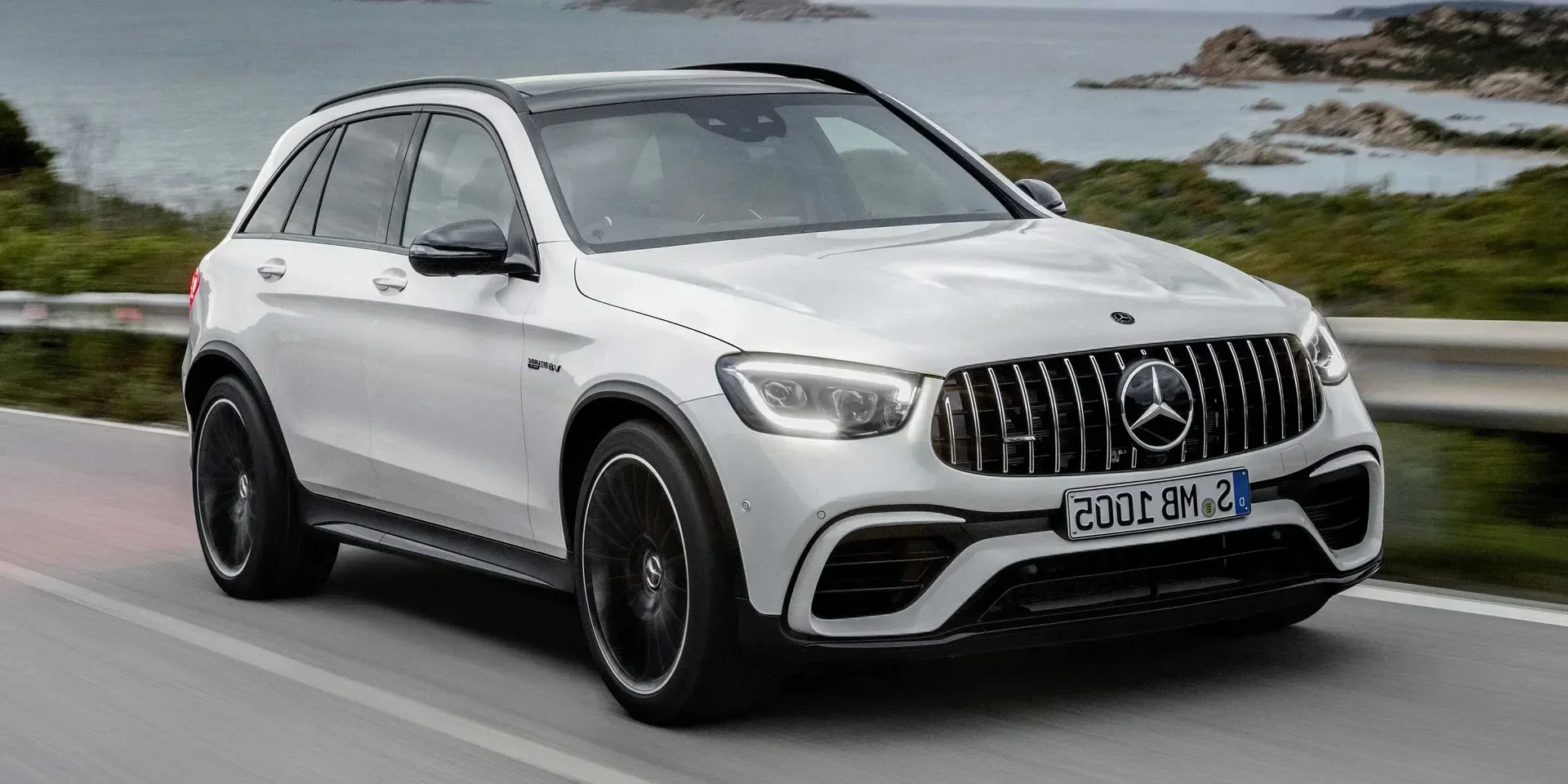

2020 Mercedes-Benz GLC AMG GLC

GermanyGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2020
Make
Mercedes-Benz
Model
GLC
Variant
AMG GLC
Body Style
SUV
Generation
X253 Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic, 9-speed

Powertrain

Engine Name
AMG GLC 43 4MATIC AMG SpeedShift MCT 9-speed
Engine Configuration
V
Power (hp)
390 hp
Power (kW)
287 kW
Torque
520 Nm (384 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.7 seconds (estimated)
0–100 km/h
4.9 seconds
Displacement
2,996 cc

Dimensions

Length
4,658 mm (183.4 in)
Width
1,890 mm (74.4 in)
Height
1,644 mm (64.7 in)
Wheelbase
2,873 mm (113.1 in)
Curb weight
1,870 kg (4,123 lb)

Engine & Performance

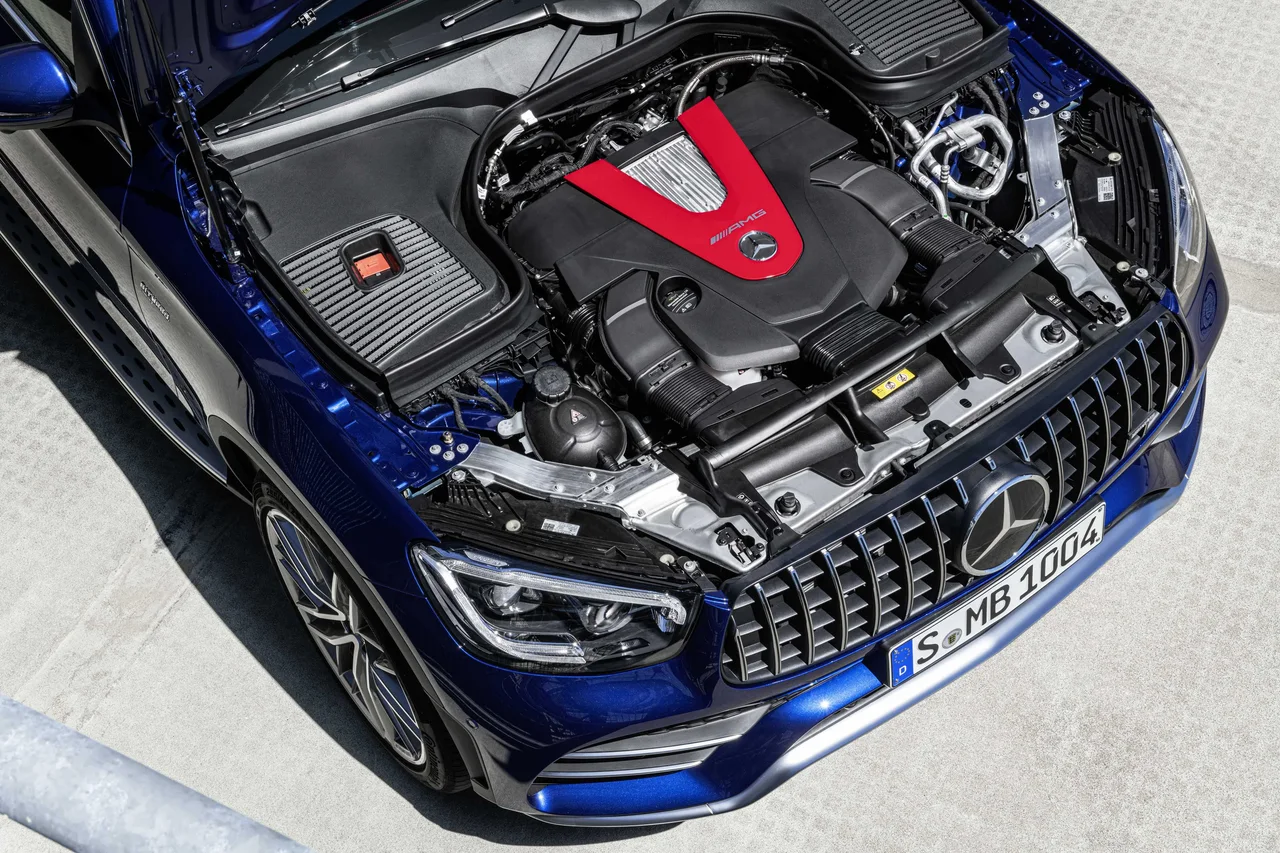

Engine

Engine Specification
Rev. at Max Power
5,500 - 6,000 rpm
Rev. at Max Torque
2,500 - 4,500 rpm
Engine Configuration
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Synchronization
Timing Chain
Engine Mount
Longitudinally
Service Intervals
Air Filter
80,000 km (49,710 mi)
Spark Plug
100,000 km / 5 years
Oil Change & Engine Filter
25,000 km / 1 years
Engine Coolant
200,000 km / 10 years
Interior Filter
25,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic, 9-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated
Ceramic
Optional
Red
Optional
Yellow
Optional

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
66 litres
Emission
Emission Standard
Euro 6d -TEMP-EVAP-ISC
Emission Class
F
WLTP Consumption
Low (l/100km) (WLTP)
15.7 - 16.7 litres / 100 km
Medium (l/100km)
9.7 - 10.5 litres / 100 km
High (l/100km)
8.5 - 9.3 litres / 100 km
Extra High (l/100km)
9.7 - 10.7 litres / 100 km
Combined (l/100km)
10.2 - 10.9 litres / 100 km
Fuel Consumption NEDC
City
13.6 - 14.5 litres / 100 km
Highway
8 - 8.6 litres / 100 km
Combined
10.2 - 10.6 litres / 100 km
Emission WLTP
CO₂, Combined
232 - 248 g/km
Emission NEDC
CO₂, Combined
234 - 242 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,096 mm (82.5 in)
Height (Bonnet Open)
2,397 mm (94.4 in)
Track, Front
1,621 mm (63.8 in)
Track, Rear
1,617 mm (63.7 in)
Overhang, Front
830 mm (32.7 in)
Overhang, Rear
952 mm (37.5 in)
Turning Circle
12.1 m
Ground Clearance
123 mm (4.8 in)

Interior

Head Room, Front
1,064 mm (41.9 in)
Head Room, Rear
1,005 mm (39.6 in)
Leg Room, Front
1,036 mm (40.8 in)
Leg Room, Rear
947 mm (37.3 in)
Hip Room, Front
1,455 mm (57.3 in)
Hip Room, Rear
1,436 mm (56.5 in)
Shoulder Room, Front
1,499 mm (59.0 in)
Shoulder Room, Rear
1,475 mm (58.1 in)

Weight

Gross Weight
2,460 kg (5,423 lb)
Max Trailer Load, braked 12%
2,460 kg (5,423 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
590 kg (1,301 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Aluminium
Roof Material
Aluminium
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Yes
Antenna
Glass-integrated
Mud Flaps
Optional
Side Steps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional
Other Equipment › Side Steps
Stationary
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Adaptive Headlights
  • Headlight Washers
  • Headlight Range Adjustment
Fog Lights
Front
LED

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
150 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Full-size
Optional

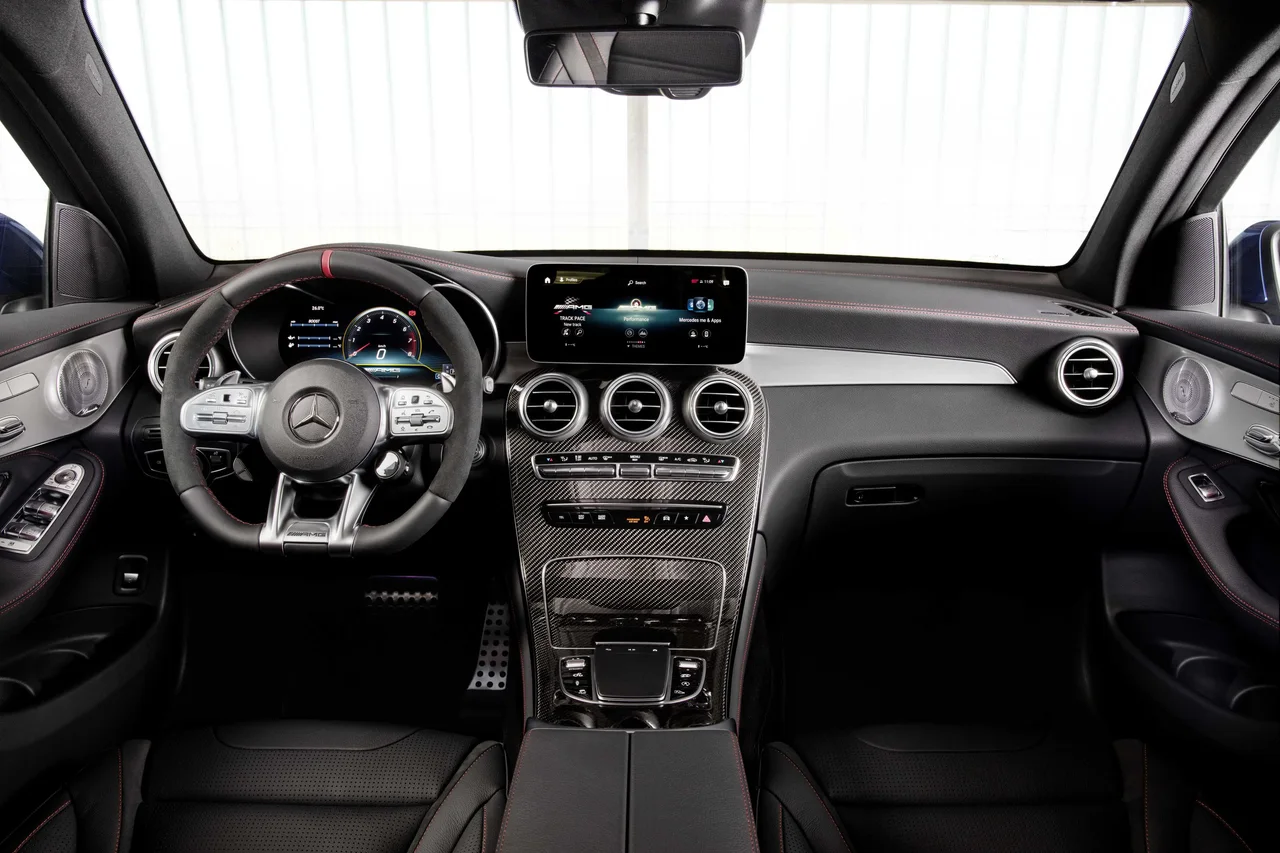

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Instrument Cluster › Trip Computer
Display
12.3"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
Buttons
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
TV Receiver
Optional
Media Format
  • MP3
  • WMA
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Yes
Connectivity › Radio
DAB
Optional
Connectivity › TV Receiver
Digital
Optional
Connectivity › Media Inputs
USB
  • USB-A
  • USB-C
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Cellular Network
4G
Optional
Displays
Center Display
Yes
Center Display Controls
Touchpad
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Yes
Card Holder
Yes
Fridge
Optional
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Fridge
Trunk
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Bottom of the Doors
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Footwell
Optional
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes
Adjustments
User Memory
Optional

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Release Button
Yes
Carpet
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
550 litres
Volume, Back Seat Collapsed
1,600 litres
Depth
930 mm (36.6 in)
Depth, Back Seat Collapsed
1,558 mm (61.3 in)
Height
808 mm (31.8 in)
Trunk Door Opening Height
2,126 mm (83.7 in)
Sill Height
723 mm (28.5 in)
Carpet
Rubber
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Easy Entry
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Height Adjustment
Yes
Tilt Adjustment
Yes
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional
Voice Control
Navigation
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Forward Collision Warning (FCW)
Optional
Front Cross-Traffic Alert (FCTA)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Traffic Light Recognition
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Pedestrian/Bicycle Detection
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Electrical
Collision Avoidance System
Optional
Active Bonnet
Yes
Emergency Call
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
95 %
Child Occupant
89 %
Vulnerable Road Users
82 %
Safety Assist
71 %
Overall
5/5 stars
IIHS
Test Year
2017
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Body Protection
3 years
Rust Damage
30 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Rear
BAU15s (PY21W)
Trunk
W2.1×9.5d (W5W)

ACRISS

Category
Premium Elite (U)

Similar suvs

Suggested vehicles
