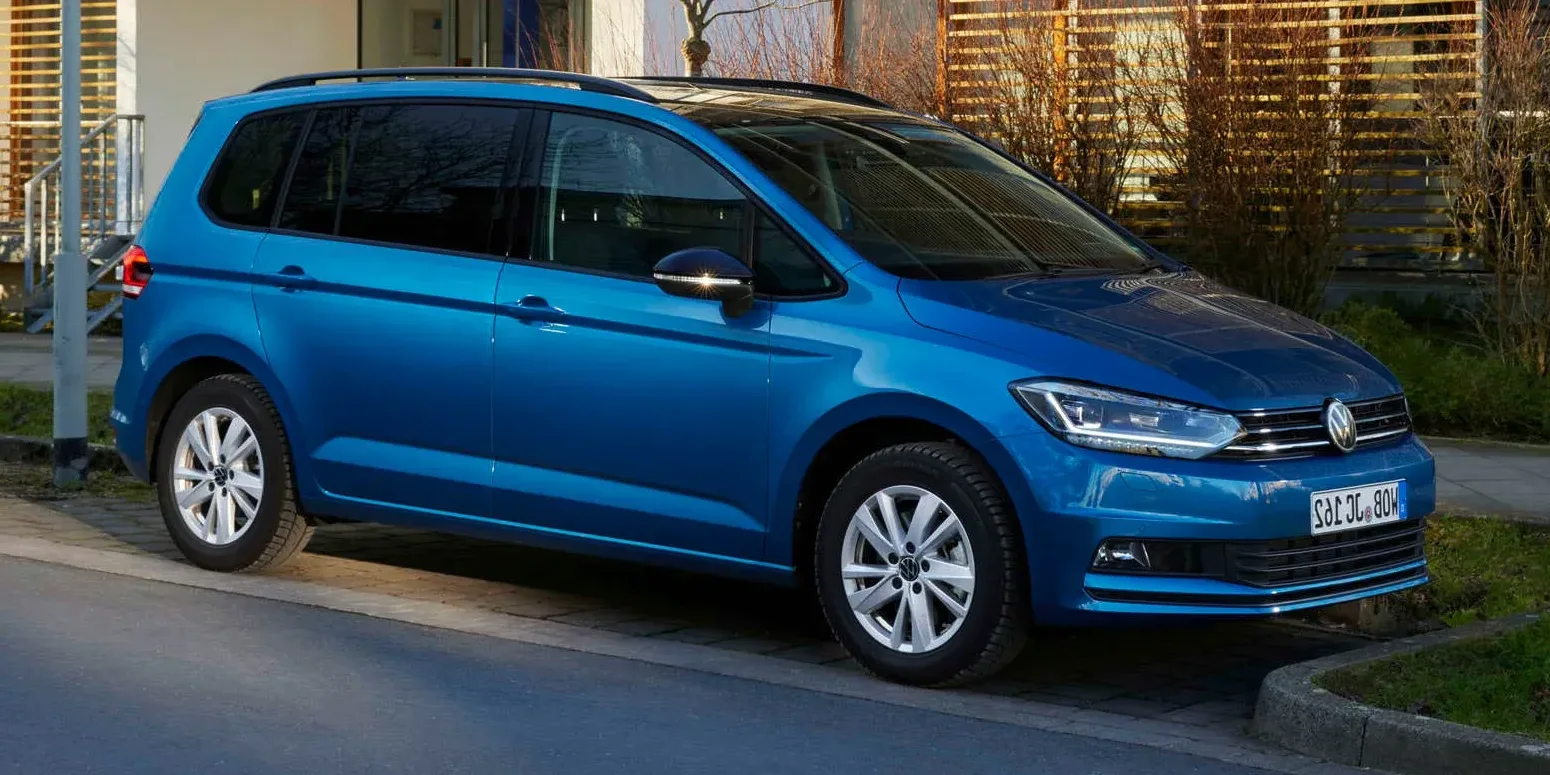

2020 Volkswagen Touran

GermanyGasolineFWDMinivan

Photos

Specifications

Vehicle Details

Year
2020
Make
Volkswagen
Model
Touran
Body Style
Minivan
Generation
II (Type 5T)
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Powertrain

Engine Name
1.5 TSI ACT OPF
Engine Configuration
Inline
Power (hp)
150 hp
Power (kW)
110 kW
Torque
250 Nm (184 lb-ft)
Top speed
209 km/h (130 mph)
0–60 mph
8.5 seconds (estimated)
0–100 km/h
8.9 seconds
Displacement
1,498 cc

Dimensions

Length
4,527 mm (178.2 in)
Width
1,829 mm (72.0 in)
Height
1,674 mm (65.9 in)
Wheelbase
2,786 mm (109.7 in)
Curb weight
1,500 kg (3,307 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 rpm
Rev. at Max Torque
1,500 - 3,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-30
Semi-synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
4.3 litres
Car Battery
Voltage
12 V
Engine Configuration
Bore
74.5 mm (2.9 in)
Stroke
85.9 mm (3.4 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Timing Interval, No Definite Interval
Yes
Air Filter
90,000 km / 6 years
Spark Plug
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years
Accessory Belt
60,000 km / 3 years
Service Intervals › Timing Interval, No Definite Interval
Check Status, First time
240,000 km (149,129 mi)

Transmission & Drivetrain

Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (1)
  • Rear (1)
Brakes Material
Cast Iron
Front Brakes
Diameter
312 - 340 mm (12.3 - 13.4 in)
Cooling
Ventilated
Rear Brakes
Diameter
272 - 280 mm (10.7 - 11.0 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
58 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d -TEMP-EVAP-ISC
Emission Class
A
Emission Control
  • Catalyst
  • Particle Filter
  • Adaptive Cylinder Management
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
WLTP Consumption
Low (l/100km) (WLTP)
8.3 – 8.5 litres / 100 km
Medium (l/100km)
6.4 – 6.5 litres / 100 km
High (l/100km)
5.5 – 5.8 - 5.8 litres / 100 km
Extra High (l/100km)
6.9 – 7 litres / 100 km
Combined (l/100km)
6.7 litres / 100 km
Fuel Consumption NEDC
City
6.6 – 6.7 - 6.7 – 7.1 litres / 100 km
Highway
4.6 – 5 - 4.8 – 5.4 litres / 100 km
Combined
5.3 – 5.7 - 5.5 – 6 litres / 100 km
Emission WLTP
CO₂, Combined
151 – 152 g/km
Emission NEDC
CO₂, Combined
123 – 125 - 127 – 134 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,087 mm (82.2 in)
Track, Front
1,561 - 1,569 mm (61.5 - 61.8 in)
Track, Rear
1,534 - 1,542 mm (60.4 - 60.7 in)
Overhang, Front
858 mm (33.8 in)
Overhang, Rear
878 mm (34.6 in)
Turning Circle
11.5 m
Ground Clearance
156 mm (6.1 in)

Interior

Head Room, Front
1,021 - 1,064 mm (40.2 - 41.9 in)
Head Room, Rear
958 - 979 mm (37.7 - 38.5 in)
Head Room, Third Row
930 mm (36.6 in)
Shoulder Room, Front
1,490 mm (58.7 in)
Shoulder Room, Rear
1,518 mm (59.8 in)
Shoulder Room, Third Row
1,269 mm (50.0 in)

Weight

Gross Weight
2100 – 2110 kg (4,630 – 4,652 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, braked 8%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
595 – 600 kg (1,312 – 1,323 lb)
Max Roof Load
80 kg (176 lb)
Max Towbar Download
80 kg (176 lb)
Permitted Axle Load, front
1070 – 1080 kg (2,359 – 2,381 lb)
Permitted Axle Load, rear
1,080 kg (2,381 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D
Chassis Construction
Unibody
Body Material
  • Plastic
  • Steel
Roof Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
MQB Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Yes
Fog Lights
Rear
Yes
Special Features
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Adaptive Headlights
Optional
Dynamic Turn Signal
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Central Bore (CB), rear
57.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
120 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Yes
Tire Pressure Monitoring System (TPMS)
Indirect
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Shape
Square
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
  • WMA
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
Memory Card Reader
SD
Connectivity › Media Inputs
AUX
Armrest Hatch/Mid-console
USB
USB-A
Connectivity › Media Inputs › USB
Placement
Front
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
MirrorLink
Optional
Connectivity › Cellular Network
4G
Optional
Connectivity › Cellular Network › 4G
3G
Optional
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Optional
Card Holder
Optional
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Lights › Guide Light
Footwell
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
230V Outlet
Optional
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cover
Yes
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Second Trunk Compartment
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
834 litres
Volume, Back Seat Collapsed
1,980 litres
Depth
344 mm (13.5 in)
Depth, Back Seat Collapsed
1,892 mm (74.5 in)
Width
1,269 mm (50.0 in)
Width, Between Wheel Arches
1,048 mm (41.3 in)
Opening Width
1,049 mm (41.3 in)
Height
1,049 mm (41.3 in)
Height, to Trunk Cover
609 mm (24.0 in)
Trunk Door Opening Height
2,035 mm (80.1 in)
Sill Height
612 mm (24.1 in)
Carpet
Rubber
Optional

Design

Interior Decor Material
Plastic
Transmission Knob Material
Leather

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Manual
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Foldable Table
On Backrest
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
  • From Trunk
  • On Top of Backrest
Split Fold Ratio
35/30/35
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Keyless Start
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Emergency Assist
Optional
Emergency Stop Signal (ESS)
Optional

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Active Bonnet
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2015
Adult Occupant
88 %
Child Occupant
89 %
Vulnerable Road Users
71 %
Safety Assist
76 %
Overall
5/5 stars
Adult Occupant
Total Points
33.8 /38
Frontal Impact
15.4 /16
Lateral Impact
16 /16
Rear Impact
2.4 /4
Child Occupant
Total Points
43.7 /49
Safety Features
8 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 18.7
  • 1
  • 6
Safety Assist
Speed Assistance (points)
1.3 /3
Seat Belt Reminder (points)
2 /2
Seat Belt Reminder (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Trunk
On Sil

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Medium MPV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Datyime Running Light
W3×16d (W21W)
Fog Light, Front
H11
Fog Light, Rear
W3×16d (W21W)
Rear/Brake Light
W3×16d (W21W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Rear
BAU15s (PY21W)
Glove Compartment
W2.1×9.5d (W3W)
Read Light
W2.1×9.5d (W5W)

Similar minivans

Suggested vehicles
