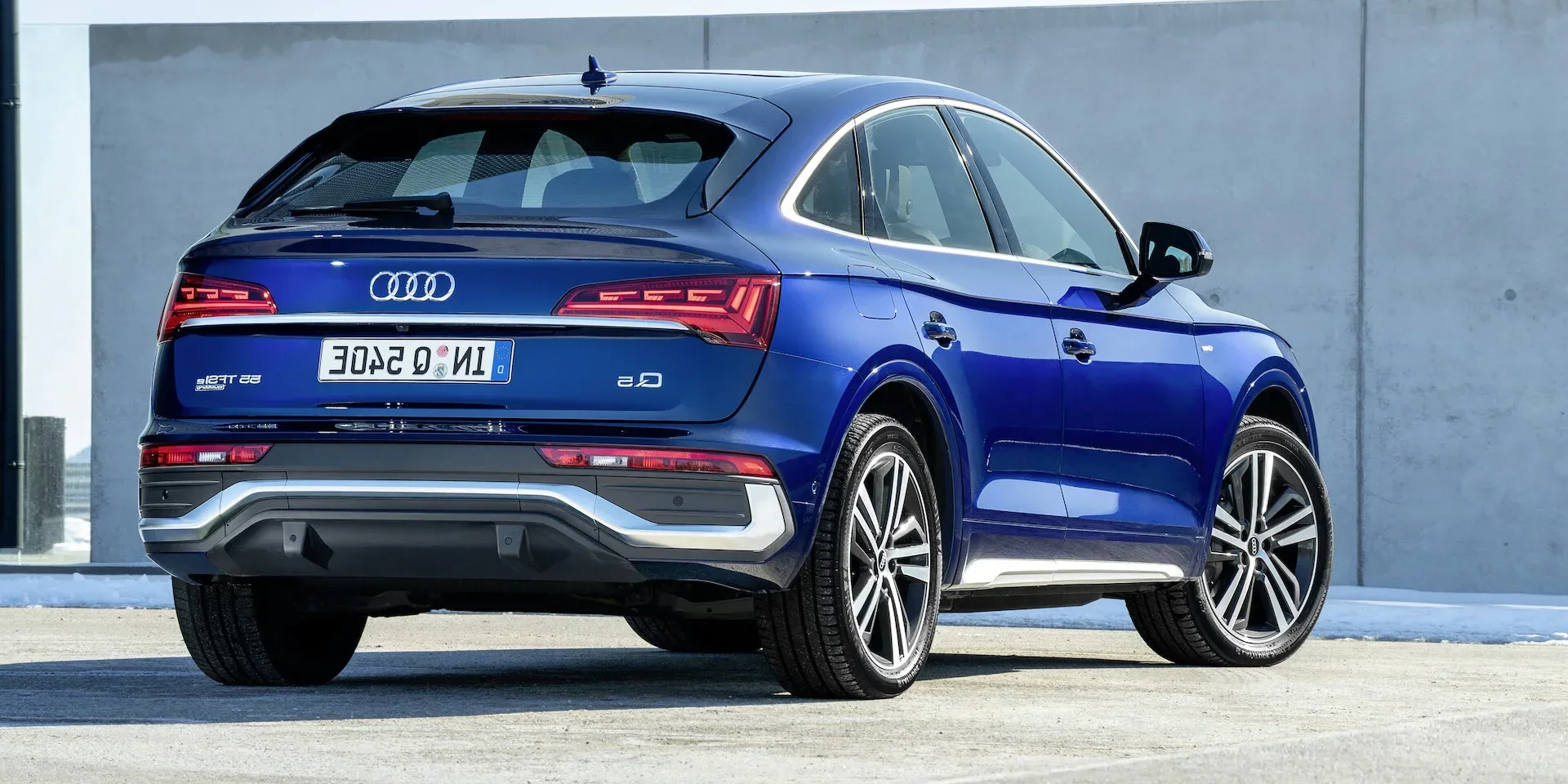

2021 Audi Q5

GermanyPlug In Hybrid GasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2021
Make
Audi
Model
Q5
Body Style
SUV
Generation
FY Facelift
Seats
5
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
55 Sportback TFSI e quattro S Tronic
Engine Configuration
Inline
Power (hp)
367 hp
Power (kW)
270 kW
Torque
370 Nm (273 lb-ft)
Top speed
239 km/h (149 mph)
0–60 mph
5.0 seconds (estimated)
0–100 km/h
5.3 seconds
Electric range
57 km (35 mi)
Battery
17.9 kWh
Displacement
1,984 cc

Dimensions

Length
4,689 mm (184.6 in)
Width
1,893 mm (74.5 in)
Height
1,660 mm (65.4 in)
Wheelbase
2,819 mm (111.0 in)
Curb weight
2,150 kg (4,740 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,250 - 6,500 rpm
Rev. at Max Torque
1,600 - 4,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
5.2 litres
Engine Coolant, Volume
12.3 litres
Configuration Combustion
Bore
82.5 mm (3.2 in)
Stroke
92.8 mm (3.7 in)
Compression Ratio
9.6 :1
Engine Configuration
Inline
Turbocharger
Yes
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Battery Capacity, Gross
17.9 kWh
Battery Capacity, Net
14.4 kWh
AC Charge Type
  • Single-phase
  • Three-phase
Service Intervals
Oil Change & Engine Filter
15,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Anti-roll Bar
  • Front
  • Rear

Fuel

General
Tank Volume
54 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d -ISC-FCM
WLTP Consumption
Weighted, Combined
1.6 - 1.9 litres / 100 km
Combined
22.2 - 23.4 kWh/100km
Electric Range
57 - 61 km (35 - 38 mi)
Emission WLTP
CO₂, Weighted, Combined
36 - 42 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,140 mm (84.3 in)
Track, Front
1,616 mm (63.6 in)
Track, Rear
1,609 mm (63.3 in)
Overhang, Front
910 mm (35.8 in)
Overhang, Rear
960 mm (37.8 in)
Turning Circle
11.8 m
Ground Clearance
200 - 210 mm (7.9 - 8.3 in)

Interior

Head Room, Front
965 mm (38.0 in)
Head Room, Rear
952 mm (37.5 in)
Leg Room, Front
1,038 mm (40.9 in)
Leg Room, Rear
965 mm (38.0 in)
Shoulder Room, Front
1,465 mm (57.7 in)
Shoulder Room, Rear
1,435 mm (56.5 in)

Weight

Gross Weight
2,660 kg (5,864 lb)
Max Trailer Load, braked 12%
2,000 kg (4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
510 kg (1,124 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Roof Material
Aluminium
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Heated Water Tank
Optional
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
Yes
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED

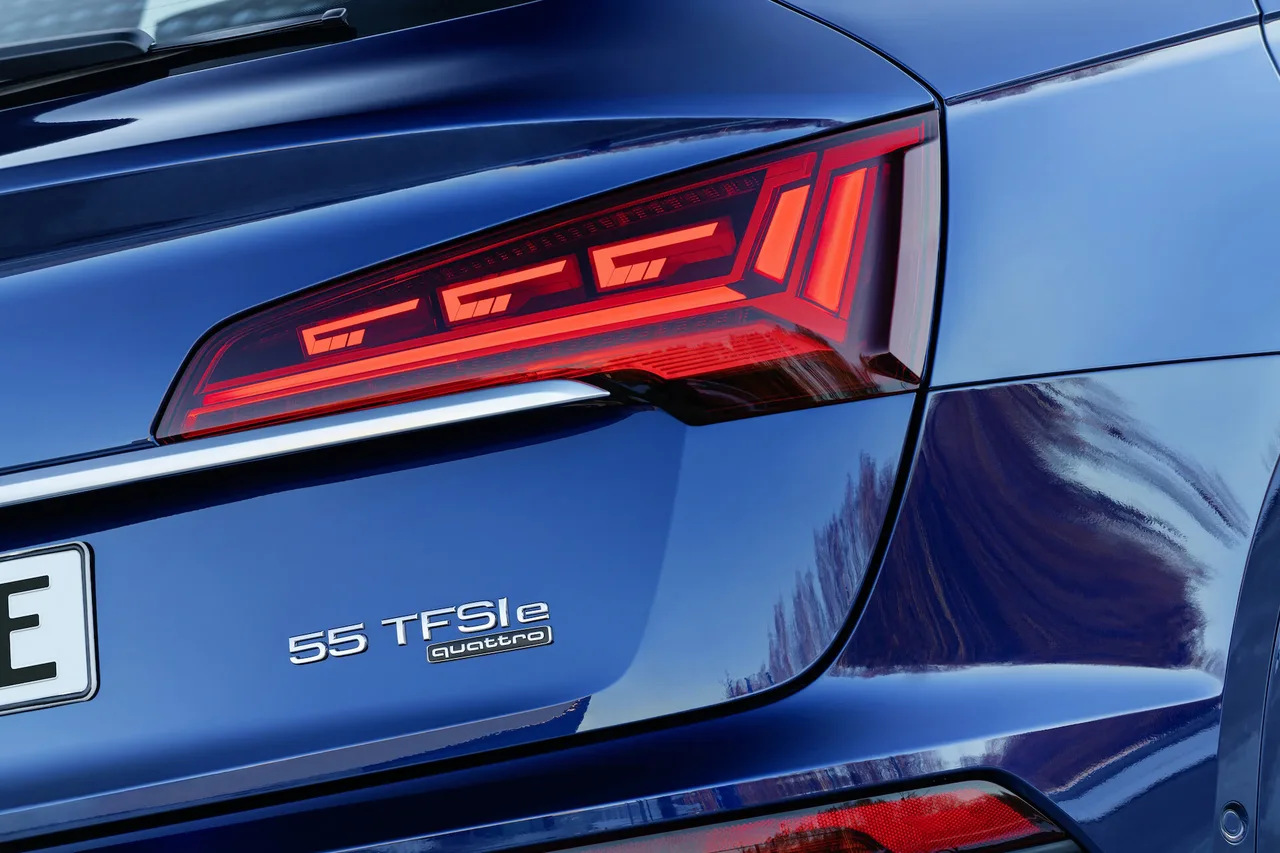

Rear Lights
LED
Daytime Running Light
LED
Special Features
  • Automatic Headlight Activation
  • Dynamic Cornering Lights
  • Come Home/Leaving Lights
Special Features
Main Beam Assist
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
66.5
Central Bore (CB), rear
66.5
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
5 - 12.3"
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
  • DAB+
Media Format
  • MP3
  • WMA
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
WiFi
Yes
Connectivity › Media Inputs
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Armrest Hatch/Mid-console
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
10.1"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
8 - 19 pcs
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Phone/Tablet Holder
Optional
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
230V Outlet
Optional
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Number of Spokes
3
Material
Leather
Colour
Black
Steering Ratio
15.9 :1
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes
Adjustments
Tilt
Yes
Telescope
Yes

Trunk

Rear Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • From Inside Car
  • Key Button
Automatic Close
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
510 litres
Volume, Back Seat Collapsed
1,480 litres
Depth
982 mm (38.7 in)
Width
1,050 mm (41.3 in)
Opening Width
1,133 mm (44.6 in)
Sill Height
760 mm (29.9 in)

Design

Transmission Knob Material
Leather
Entry Guard Material
Aluminium
Colour
Silver
Colour
Beige
Optional
Black
Optional
Brown
Optional
Grey
Optional

Seats

Front Seats › Adjustments, Driver
Cushion Edge
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Cushion Edge
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Heated Seats
Yes
Armrest
Middle
Massage
Optional
Ventilated Seats
Optional
User Memory
Optional
User Memory
Optional
Semi-Powered
Yes
Easy Entry
Optional
Semi-Powered
Yes
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Massage
Driver
Optional
Passenger
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Rear Camera Preparation
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
GPS Preparation
Optional
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Dynamic
  • Individual
  • Off-road
  • Auto
Multifunction Camera
Yes
Horn
Dual Note
GPS
Internet
Optional
GPS › Internet
USB
Optional

Accessories

Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional
Portable Cooling Box
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Optional
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Pedestrian/Bicycle Detection
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2017
Adult Occupant
93 %
Child Occupant
86 %
Vulnerable Road Users
73 %
Safety Assist
58 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Low Beam
D5S (xenon)
Bi-Xenon
D5S
Fog Light, Rear
W2.1×9.5d (W16W)
Rear/Brake Light
W2.1×9.5d (W16W)
Reversing Light
W2.1×9.5d (W16W)
Glove Compartment
W2.1×9.5d (W5W)

Similar suvs

Suggested vehicles
