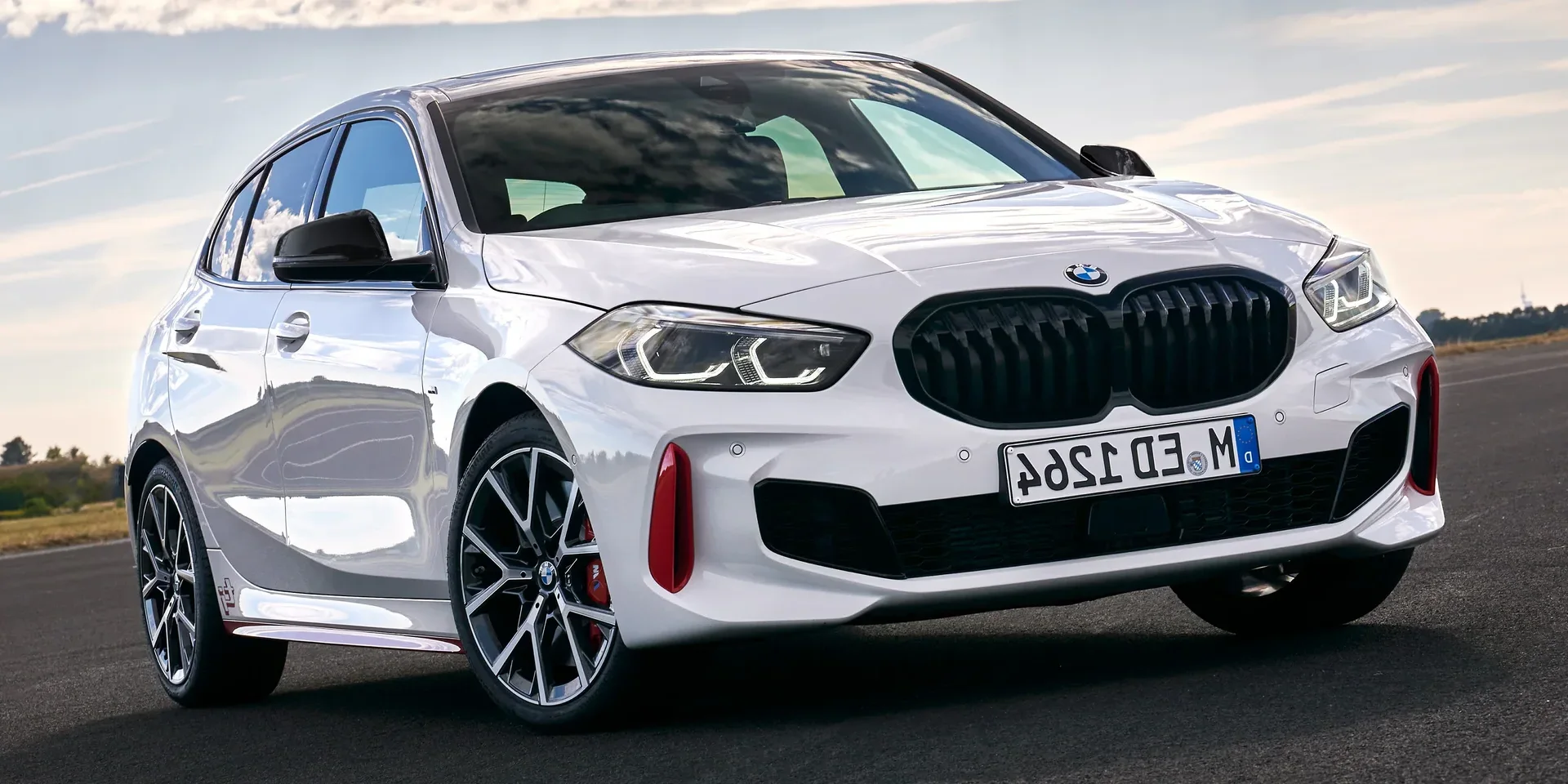

2021 BMW 1 Series

GermanyGasolineFWDHatchback

Photos

Specifications

Vehicle Details

Year
2021
Make
BMW
Model
1 Series
Body Style
Hatchback
Generation
F40
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
128ti Steptronic
Engine Configuration
Inline
Power (hp)
265 hp
Power (kW)
195 kW
Torque
400 Nm (295 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
5.8 seconds (estimated)
0–100 km/h
6.1 seconds
Displacement
1,998 cc

Dimensions

Length
4,319 mm (170.0 in)
Width
1,799 mm (70.8 in)
Height
1,434 mm (56.5 in)
Wheelbase
2,670 mm (105.1 in)
Curb weight
1,520 kg (3,351 lb)

Engine & Performance

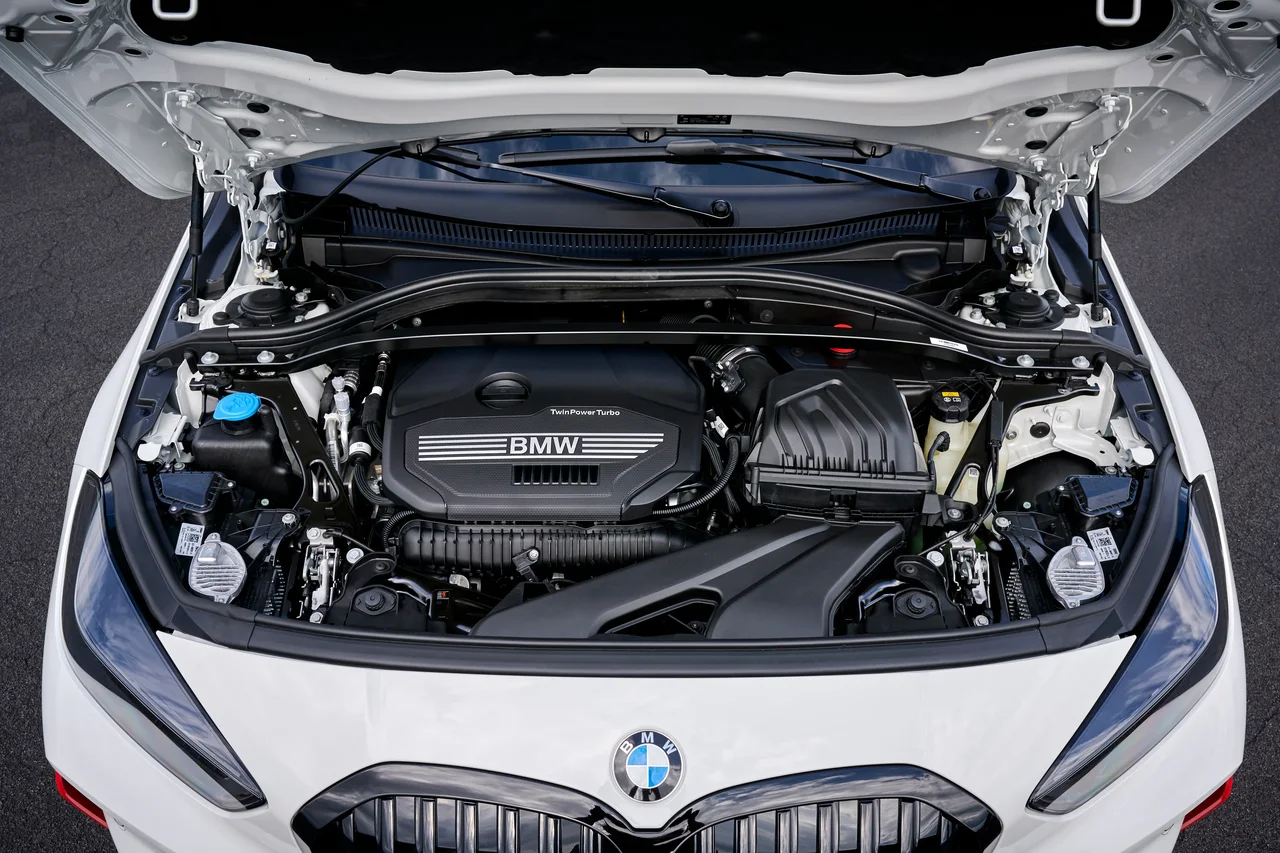

Engine

Engine Specification
Rev. at Max Power
4,750 - 6,500 rpm
Rev. at Max Torque
1,750 - 4,500 rpm
Engine Fluids
Engine Oil, Volume
5.25 litres
Car Battery
Battery Capacity
70 Ah
Engine Configuration
Bore
82 mm (3.2 in)
Stroke
94.6 mm (3.7 in)
Compression Ratio
9.5 :1
Engine Configuration
Inline
Turbocharger
Twin-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Service Intervals
Air Filter
30,000 km / 2 years
Fuel Filter
60,000 km / 4 years
Spark Plug
60,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed
Gear Ratio
1st Gear
5.52 :1
2nd Gear
3.18 :1
3rd Gear
2.05 :1
4th Gear
1.49 :1
5th Gear
1.24 :1
6th Gear
1 :1
7th Gear
0.8 :1
8th Gear
0.67 :1
Final Drive
3 :1
Reverse
4.22 :1

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (4)
  • Rear (1)
Brake Caliper Colour
Red
Front Brakes
Diameter
330 mm (13.0 in)
Width
24 mm (0.9 in)
Cooling
Ventilated
Rear Brakes
Diameter
300 mm (11.8 in)
Width
20 mm (0.8 in)
Cooling
Ventilated
Brake Caliper Colour
Blue
Optional

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Sports Suspension
Yes

Fuel

General
Tank Volume
50 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d
Emission Class
B
WLTP Consumption
Combined (l/100km)
6.8 - 7.4 litres / 100 km
Fuel Consumption NEDC
City
7.5 - 7.7 litres / 100 km
Highway
5.2 - 5.7 litres / 100 km
Combined
6.1 - 6.4 litres / 100 km
Emission WLTP
CO₂, Combined
156 - 170 g/km
Emission NEDC
CO₂, Combined
139 - 148 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,081 mm (81.9 in)
Track, Front
1,560 - 1,565 mm (61.4 - 61.6 in)
Track, Rear
1,563 - 1,565 mm (61.5 - 61.6 in)
Overhang, Front
857 mm (33.7 in)
Overhang, Rear
792 mm (31.2 in)
Turning Circle
11.4 m
Ground Clearance
153 mm (6.0 in)

Interior

Head Room, Front
1,019 mm (40.1 in)
Head Room, Rear
956 mm (37.6 in)
Shoulder Room, Front
1,442 mm (56.8 in)
Shoulder Room, Rear
1,430 mm (56.3 in)

Weight

Gross Weight
2,000 kg (4,409 lb)
Cargo Capacity
555 kg (1,224 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
990 kg (2,183 lb)
Permitted Axle Load, rear
1,085 kg (2,392 lb)

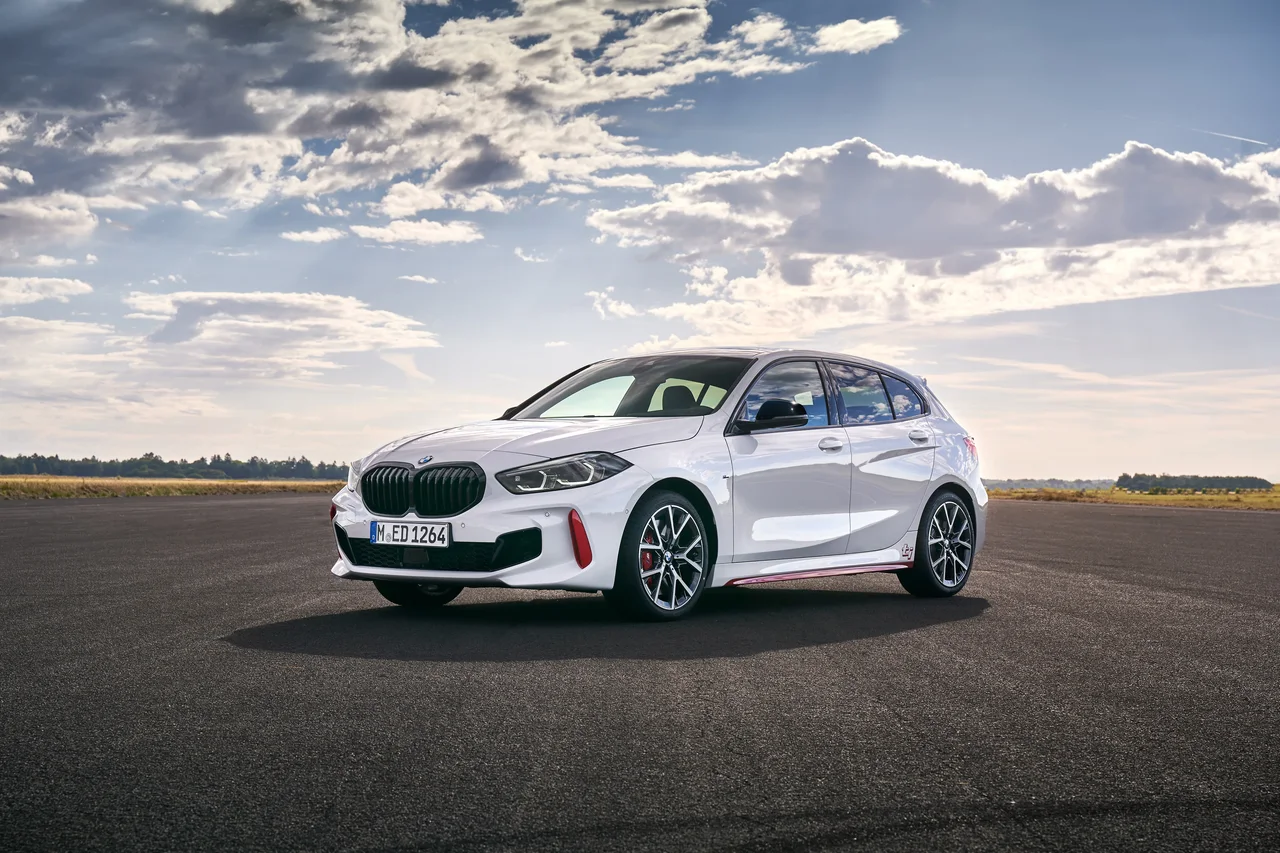

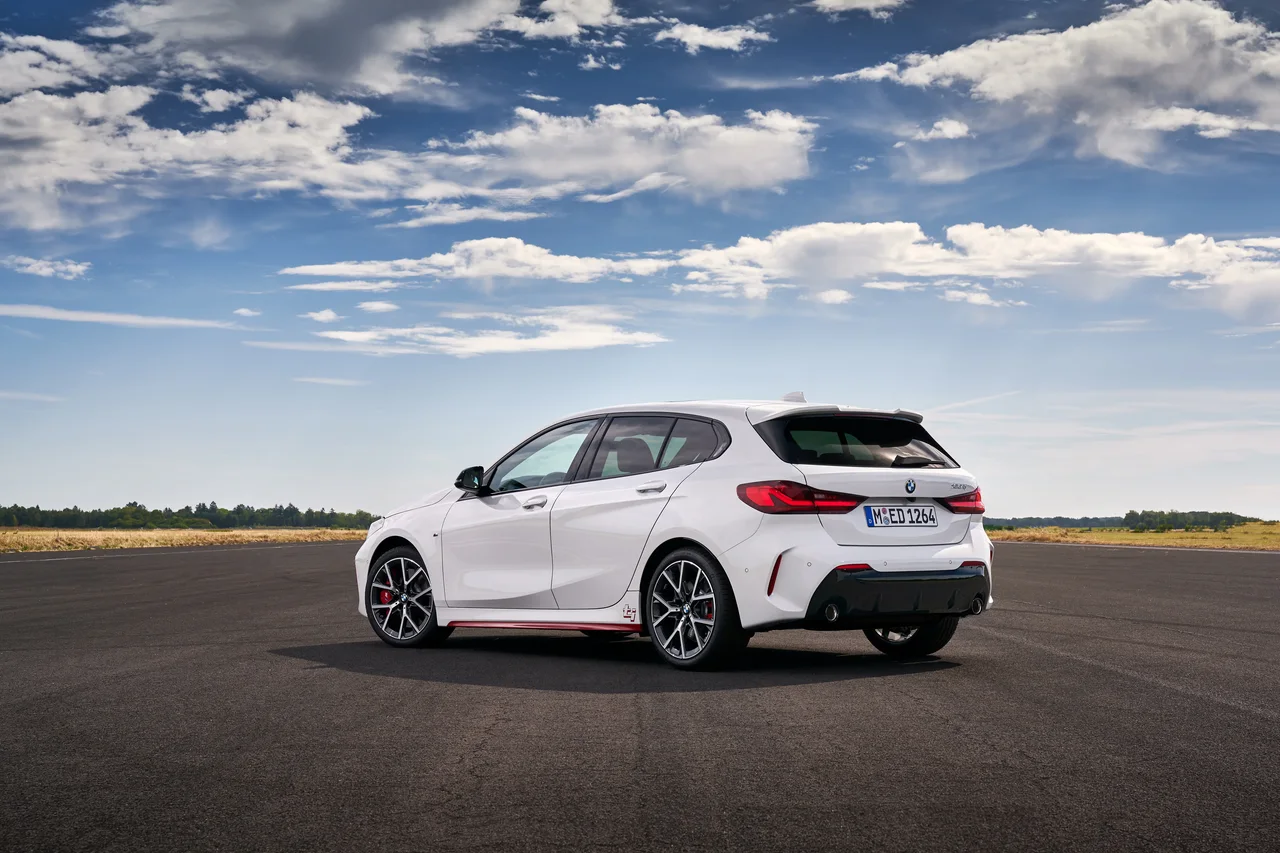

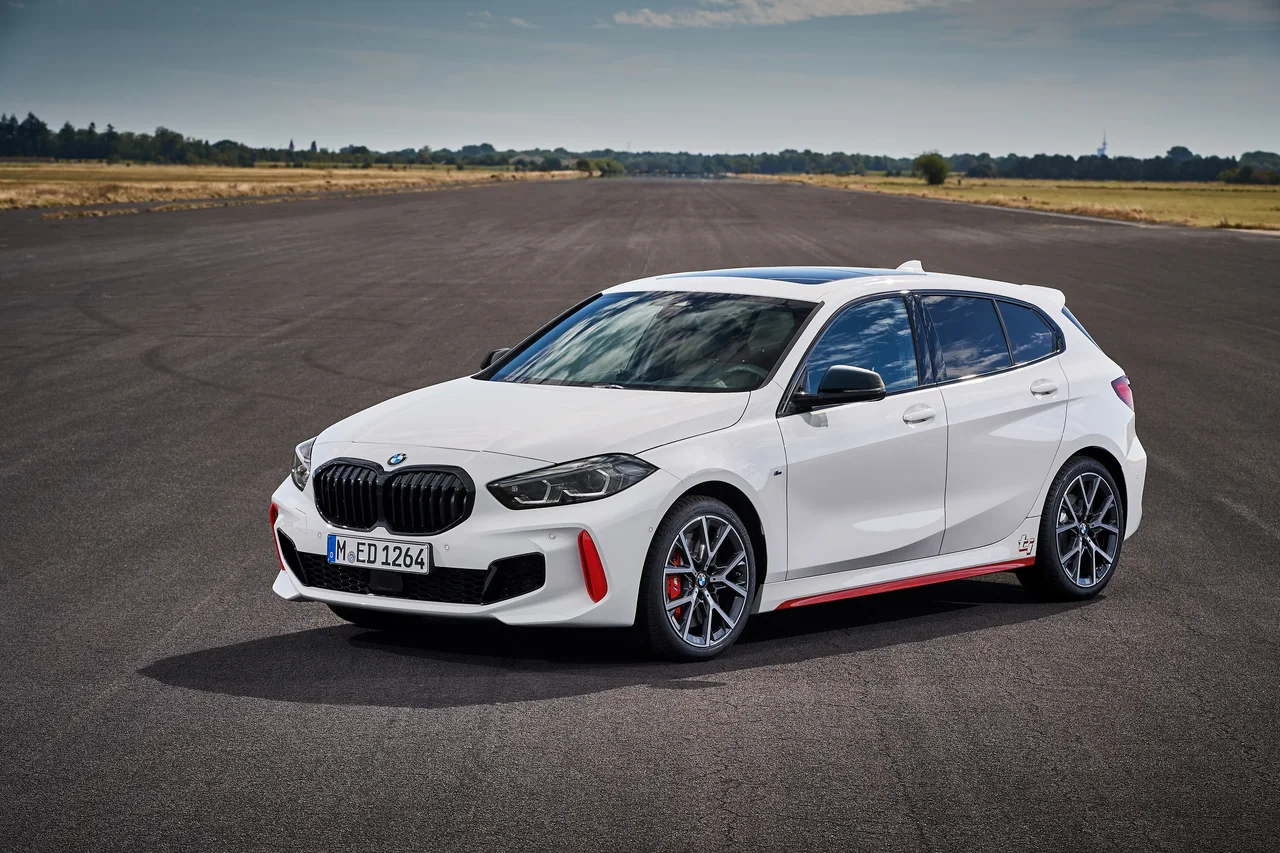

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Optional
Turning Signal
Yes
House Colour
Black
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Convex
Side Mirrors › Adjustments
Driver side
Optional
Windscreen Wipers
Heated Washer Nozzles
Yes
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Spoiler
Fixed
Antenna
Shark Fin
Number of Exhaust Pipes
1
Mud Flaps
  • Front
  • Rear
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional

Lights

Main Beam
  • Halogen
  • LED
Low Beam
  • Halogen
  • LED
Rear Lights
  • Halogen
  • LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Adaptive Headlights
Fog Lights
Rear
LED
Special Features
Main Beam Assist
Optional
Headlight Range Adjustment
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Silver
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
5.1 - 10.25"
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Outside Temperature Indicator
Yes
Controls
Buttons
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • DAB+
  • RDS
Media Format
MP3
Bluetooth
  • Phone
  • Audio
Cellular Network
  • 4G
  • 3G
WiFi
Optional
Connectivity › Media Inputs
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
Armrest Hatch/Mid-console
Displays
Center Display
8.8 - 10.25"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Gesture Control
Optional
Speakers
Total Number of Speakers
6 - 16 pcs
Tweeters
0 - 5 pcs
Midrange Speakers
4 - 7 pcs
Bass Speakers
2 pcs
Speakers Max. Watt
100 - 464 W
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Armrest Hatch
Back
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
  • Side Mirrors
  • Door Handles (Exterior)
Ambient Light
Yes
Selectable Light Colour
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Ratio
15 :1
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Speed Up/Down (Scrolling Wheel)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Hatch Through Rear Seats
Optional
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
380 litres
Volume, Back Seat Collapsed
1,200 litres
Automatic Open
Button on Trunk Door
Optional
From Inside Car
Optional
Key Button
Optional
Motion Activated
Optional

Design

Interior Decor Colour
Black
Transmission Knob Material
Leather
Pedals
Aluminium
Colour
Silver
Colour
Brown
Optional
Orange
Optional

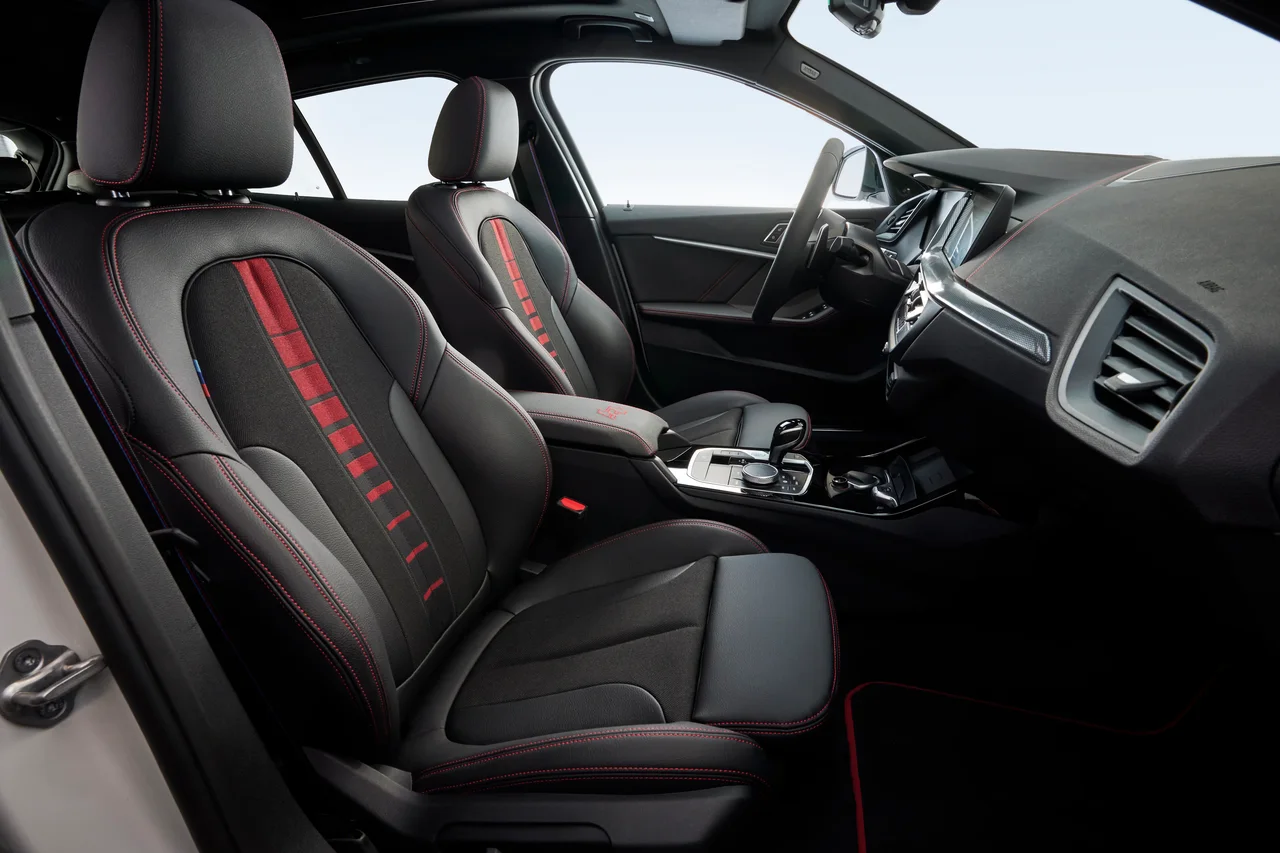

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Tilt
Manual
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Manual
Cushion Tilt
Manual
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Type of Seat
Sport Seats
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Outer Seats
Foldable
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Optional
Speed Limiter
Optional
Cameras
Optional
Rear Camera Preparation
Yes
Voice Control
Optional
Wireless Phone Charger
Optional
Cruise Control
Active Cruise Control
Optional
Cameras
Rear
Optional
Voice Control
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
GPS Preparation
Yes
Start & Stop
Yes
Launch Control
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Sport
Smartphone App
Yes
Horn
Dual Note
GPS
Internet
Optional
GPS › Internet
USB
Optional

Accessories

Tire Repair Kit
Optional
Compressor
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Rear Collision Warning (RCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Yes
Trailer Stability Assist (TSA)
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Speed Assist
Dead Reckoning
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Active Bonnet
Yes
Emergency Call
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
83 %
Child Occupant
87 %
Vulnerable Road Users
76 %
Safety Assist
72 %
Overall
5/5 stars
Adult Occupant
Total Points
31.8 /38
Lateral Impact
16 /16
Rear Impact
1.5 /4
Child Occupant
Total Points
43 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
36.5 /49
Pedestrian
  • 17.3
  • 2.9
  • 5.6
AEB Vulnerable Road Users
10.7 /18
AEB Pedestrian
5.5 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
5.2 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.5 /3
Speed Assistance (assesment)
Good
Seat Belt Reminder (assesment)
Good
Lane Support (points)
1.8 /4
Lane Support (assesment)
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Warranty

Manufacturer
2 years

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H7
Turn Indicators, Front
BAU15s (PY21W)

ACRISS

Type
4-5 Doors (D)

Awards

Golden Steering Wheel
Compact
2019

Similar hatchbacks

Suggested vehicles
