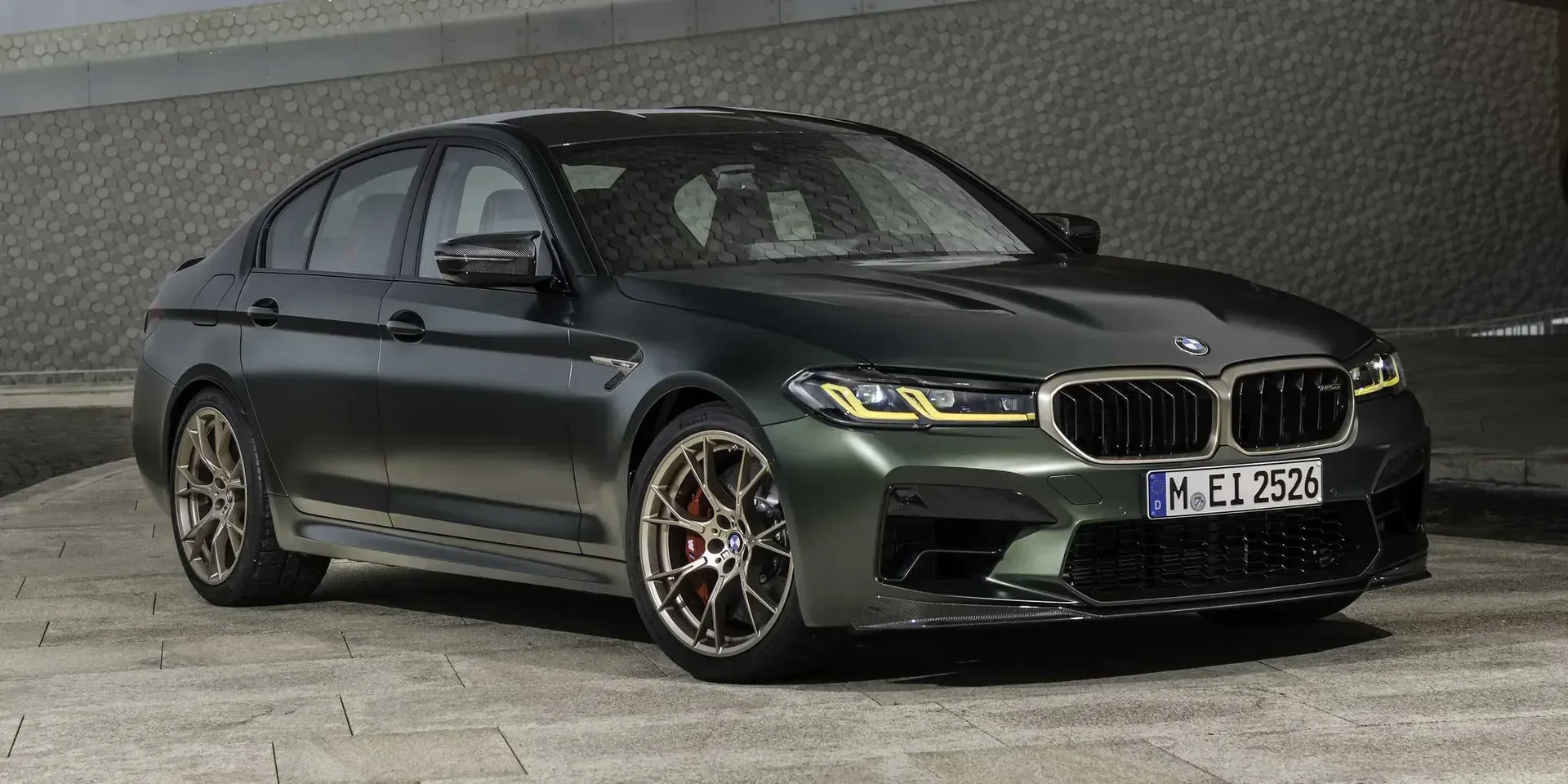

2021 BMW 5 Series M5 CS

GermanyGasolineAWDSedan

Photos

Specifications

Vehicle Details

Year
2021
Make
BMW
Model
5 Series
Variant
M5 CS
Body Style
Sedan
Generation
G30 LCI
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
M5 CS Steptronic
Engine Configuration
V
Power (hp)
635 hp
Power (kW)
467 kW
Torque
750 Nm (553 lb-ft)
Top speed
305 km/h (190 mph)
0–60 mph
2.9 seconds (estimated)
0–100 km/h
3 seconds
Displacement
4,395 cc

Dimensions

Length
5,001 mm (196.9 in)
Width
1,903 mm (74.9 in)
Height
1,468 mm (57.8 in)
Wheelbase
2,982 mm (117.4 in)
Curb weight
1,825 kg (4,023 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
1,800 - 5,950 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
10 litres
Engine Configuration
Bore
89 mm (3.5 in)
Stroke
88.3 mm (3.5 in)
Compression Ratio
10 :1
Engine Configuration
V-Engine
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Service Intervals
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km (37,282 mi)
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
80,000 km / 5 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (6)
  • Rear (1)
Brakes Material
Carbon Ceramic
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
Double Wishbone
Active/Adaptive Suspension
Yes
Suspension, Rear
Independent
Multi-link
Active/Adaptive Suspension
Yes

Fuel

General
Tank Volume
68 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d
WLTP Consumption
Combined (l/100km)
10.9 - 11.3 litres / 100 km
Fuel Consumption NEDC
City
16.6 - 16.9 litres / 100 km
Highway
7.7 - 8.1 litres / 100 km
Combined
11.1 - 11.3 litres / 100 km
Emission WLTP
CO₂, Combined
248 - 257 g/km
Emission NEDC
CO₂, Combined
253 - 258 g/km

Dimensions & Weight

Exterior

Track, Front
1,625 mm (64.0 in)
Track, Rear
1,594 mm (62.8 in)
Turning Circle
12.6 m
Ground Clearance
119 mm (4.7 in)

Interior

Head Room, Front
1,034 mm (40.7 in)
Head Room, Rear
977 mm (38.5 in)
Leg Room, Front
1,052 mm (41.4 in)
Leg Room, Rear
927 mm (36.5 in)
Hip Room, Front
1,491 mm (58.7 in)
Hip Room, Rear
1,420 mm (55.9 in)
Shoulder Room, Front
1,523 mm (60.0 in)
Shoulder Room, Rear
1,487 mm (58.5 in)

Weight

Gross Weight
2,290 kg (5,049 lb)
Cargo Capacity
390 - 465 kg (860 - 1,025 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
90 kg (198 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
First Row
Optional
Second Row
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Adaptive Headlights
Fog Lights
Rear
LED
Special Features
Main Beam Assist
Optional
Dynamic Turn Signal
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic | Semi-Static)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Inputs
USB
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Armrest Hatch
Back
Optional
Interior Storage
Cup Holders
Yes
Phone/Tablet Holder
Optional
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Yes
Selectable Light Colour
Yes
Lights › Guide Light
Side Mirrors
Optional
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Ratio
14.3 :1
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
530 litres
Volume, Back Seat Collapsed
1,700 litres
Depth
1,118 mm (44.0 in)
Width
965 mm (38.0 in)
Height
533 mm (21.0 in)

Seats

Colour & Material
Upholstery
Textile
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Yes
Cushion Tilt
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Yes
Cushion Tilt
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Massage
Optional
Ventilated Seats
Optional
Type of Seat
Sport Seats
Easy Entry
Optional
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Massage
Driver
Optional
Passenger
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Voice Control
  • Climate Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
View Location
Center Display
Voice Control
Navigation
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Dynamic
  • Eco
  • Individual
  • Sport
  • Auto
Dynamic Chassis Control (DCC)
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional
Portable Cooling Box
Optional
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Automatic Locking Retractor
Yes
Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Dynamic Torque Vectoring (DTV)
Yes
Forward Collision Warning (FCW)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Crosswind Assist
Optional
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Night Vision
Optional
Parking Sensors
Front
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Electrical
Active Bonnet
Yes
Active Headrests
Yes
Speed Sensitive
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2017
Adult Occupant
91 %
Child Occupant
85 %
Vulnerable Road Users
81 %
Safety Assist
59 %
Overall
5/5 stars
Adult Occupant
Total Points
34.8 /38
Lateral Impact
15.8 /16
Rear Impact
2.7 /4
Child Occupant
Total Points
42 /49
Crash Test Performance
  • 15
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
34.1 /49
Pedestrian
  • 22.7
  • 0
  • 6
AEB Pedestrian
5.3 /9
Safety Assist
Speed Assistance (points)
1.5 /3
Lane Support (points)
0 /4
IIHS
Test Year
2020
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car

Spare Parts BETA

Bulb Types
Reversing Light
BAY9s (H21W)
Turn Indicators, Front
BAU15s (PY21W)

Similar sedans

Suggested vehicles
