2021 Kia Stonic

South KoreaMild Hybrid GasolineFWDCrossover

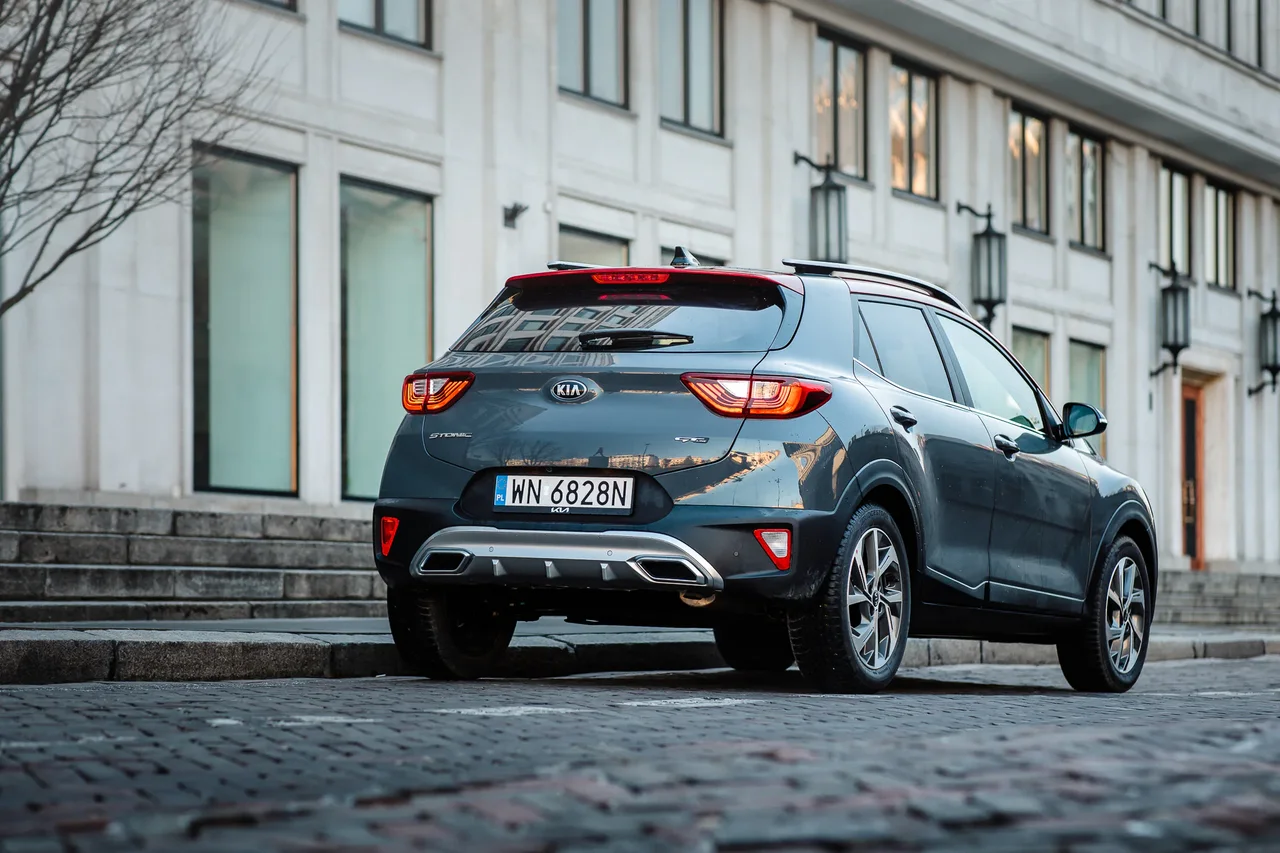

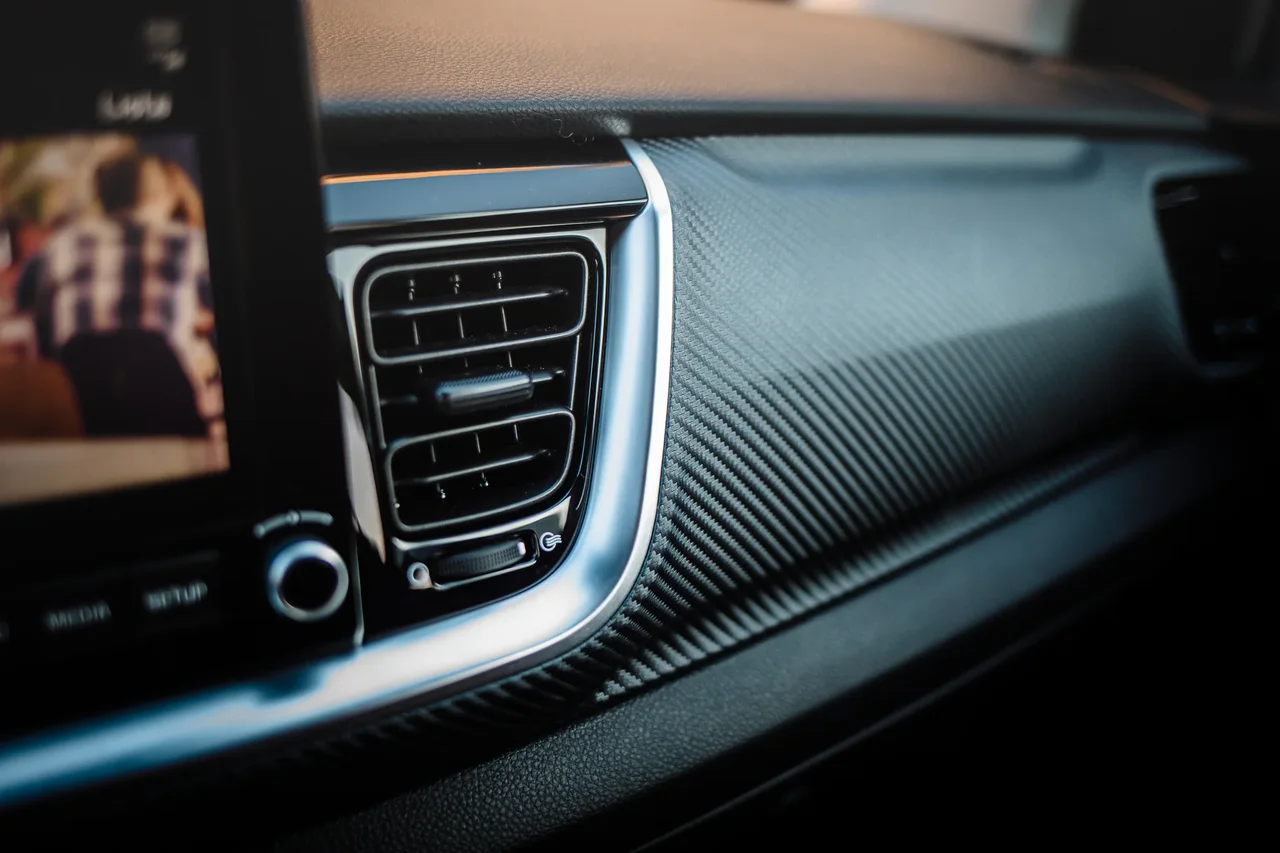

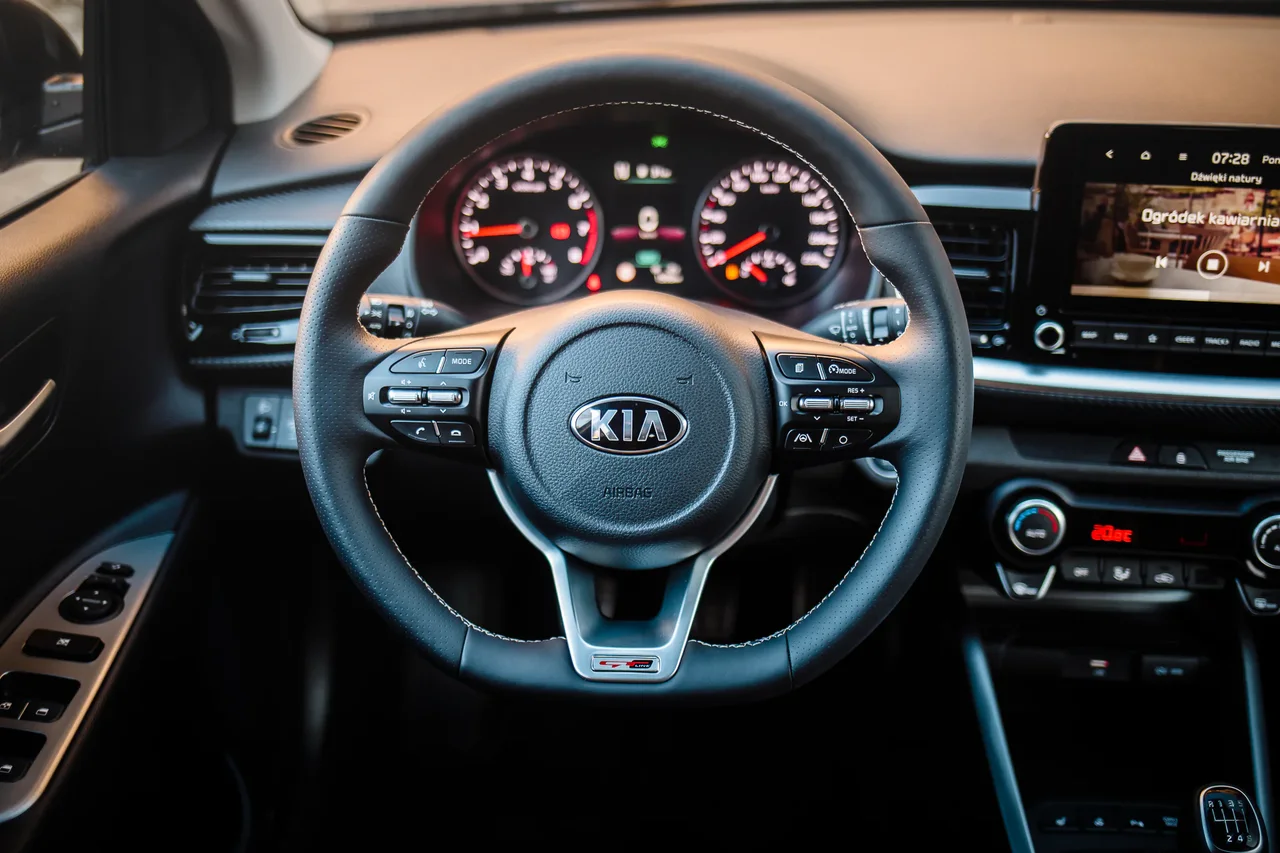

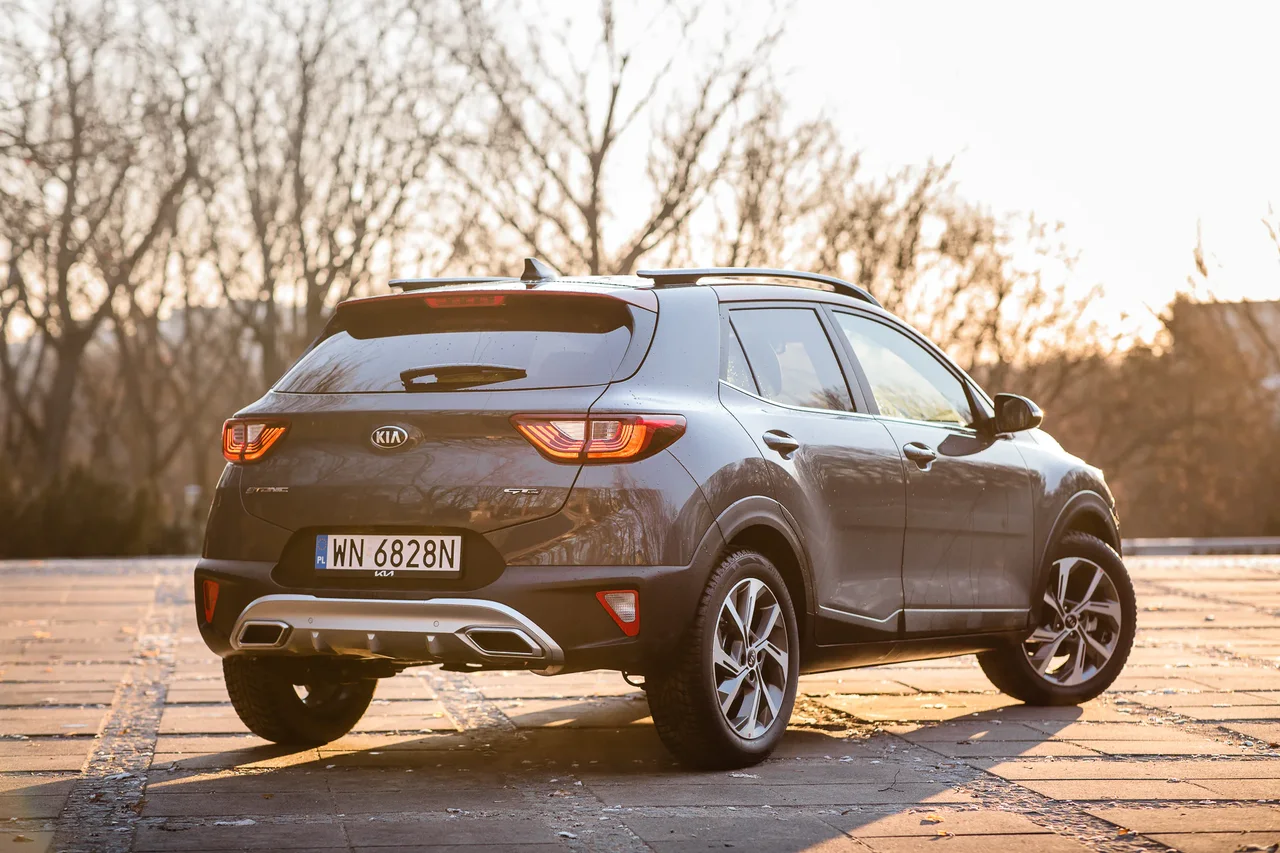

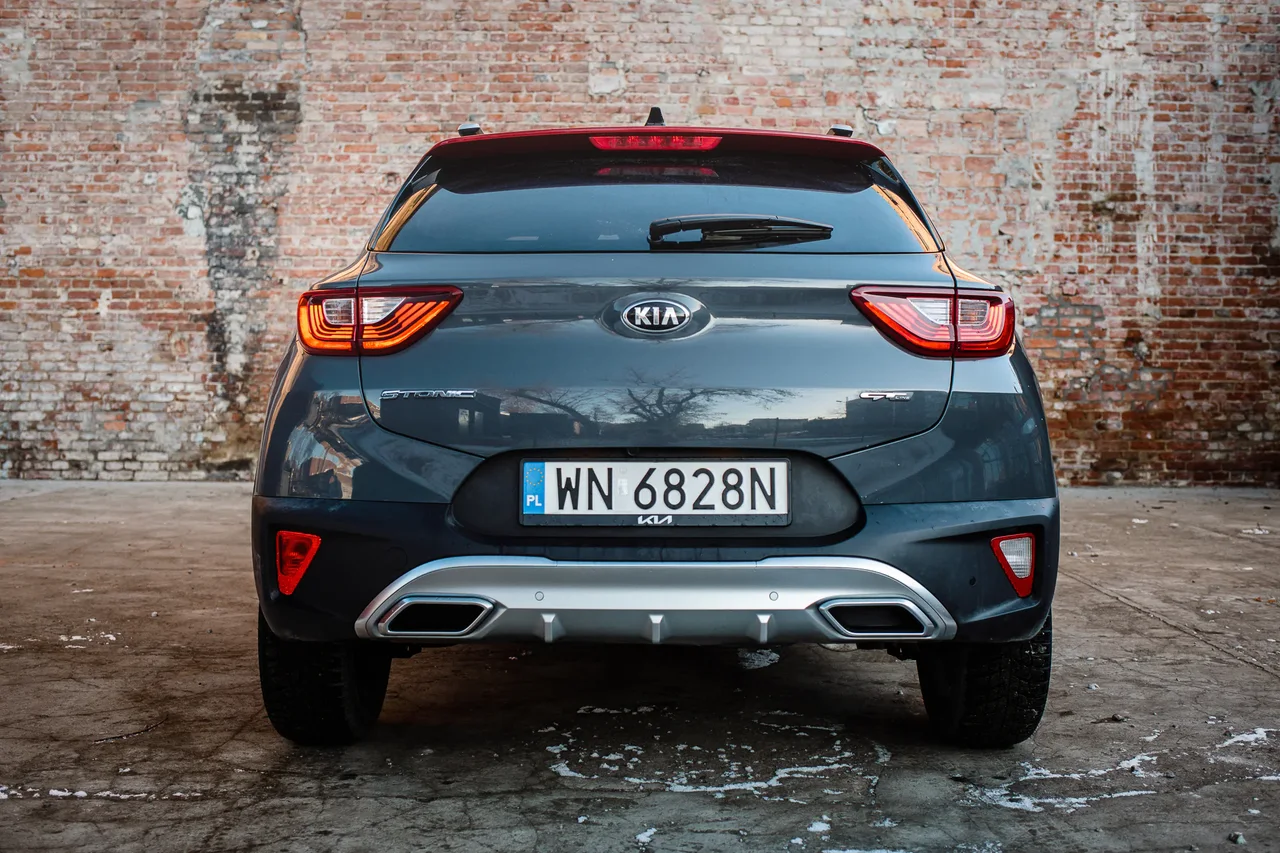

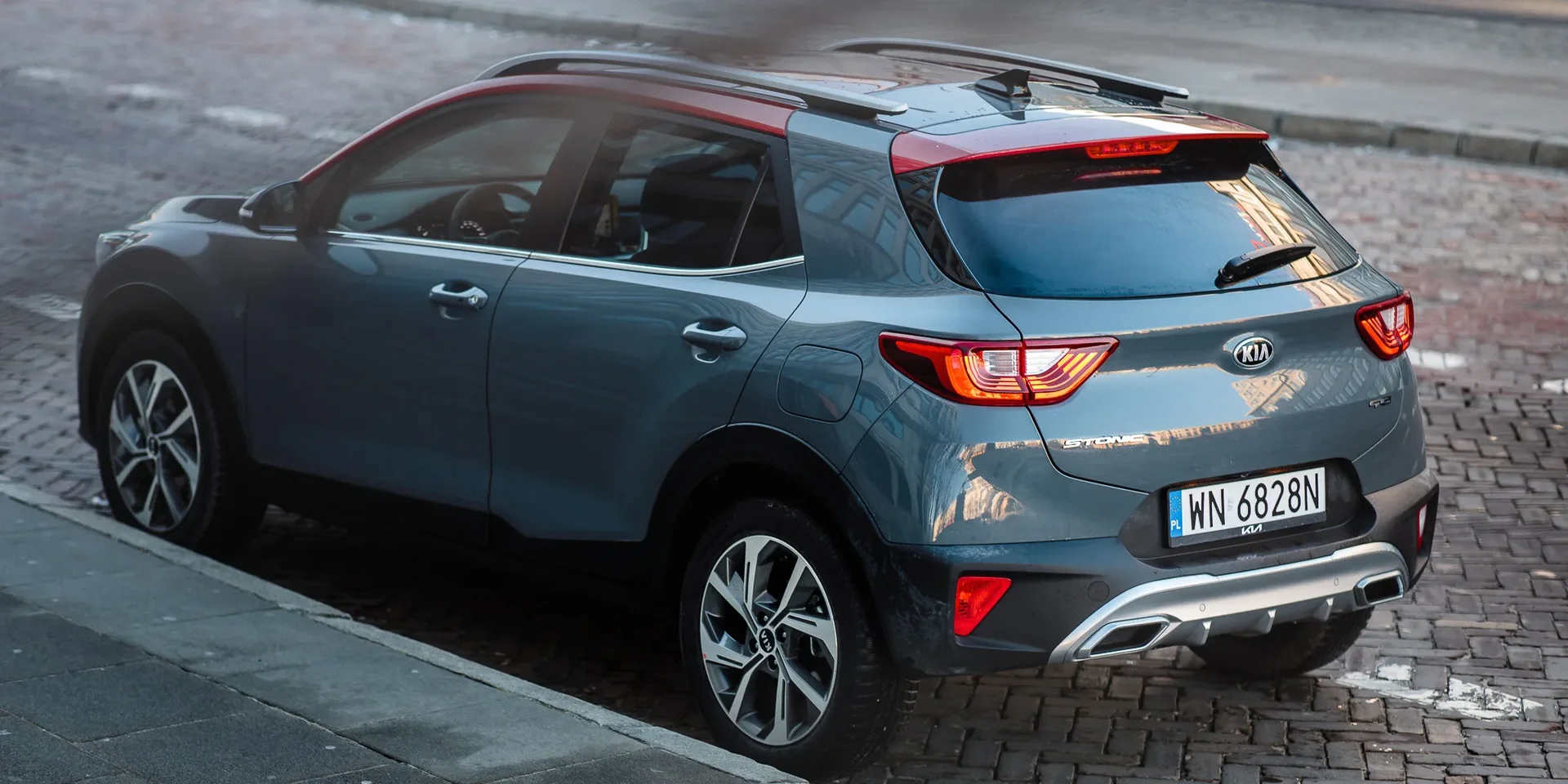

Photos

Specifications

Vehicle Details

Year
2021
Make
Kia
Model
Stonic
Body Style
Crossover
Generation
YB 1st Facelift
Seats
5
Doors
5
Fuel
Mild Hybrid Gasoline
Drivetrain
FWD
Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Powertrain

Engine Name
1.0 T-GDI
Engine Configuration
Inline
Power (hp)
100 hp
Power (kW)
74 kW
Torque
172 Nm (127 lb-ft)
Top speed
175 km/h (109 mph)
0–60 mph
10.1 seconds (estimated)
0–100 km/h
10.6 seconds
Displacement
998 cc

Dimensions

Length
4,140 mm (163.0 in)
Width
1,760 mm (69.3 in)
Height
1,505 mm (59.3 in)
Wheelbase
2,580 mm (101.6 in)
Curb weight
1,195 kg (2,635 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,500 - 6,000 rpm
Rev. at Max Torque
1,500 - 4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
3.6 litres
Engine Configuration
Bore
71 mm (2.8 in)
Stroke
84 mm (3.3 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Mild-Hybrid
Yes
Service Intervals
Air Filter
60,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
210,000 km / 10 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
45 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 6d
WLTP Consumption
Combined (l/100km)
4.8 – 4.9 litres / 100 km
Emission WLTP
CO₂, Combined
109 – 111 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,025 mm (79.7 in)
Track, Front
1,531 - 1,537 mm (60.3 - 60.5 in)
Track, Rear
1,539 - 1,544 mm (60.6 - 60.8 in)
Overhang, Front
830 mm (32.7 in)
Overhang, Rear
730 mm (28.7 in)
Ground Clearance
183 mm (7.2 in)

Interior

Head Room, Front
996 mm (39.2 in)
Head Room, Rear
975 mm (38.4 in)
Leg Room, Front
1,070 mm (42.1 in)
Leg Room, Rear
850 mm (33.5 in)
Hip Room, Front
1,344 mm (52.9 in)
Hip Room, Rear
1,330 mm (52.4 in)
Shoulder Room, Front
1,375 mm (54.1 in)
Shoulder Room, Rear
1,355 mm (53.3 in)

Weight

Gross Weight
1650 – 1680 kg (3,638 – 3,704 lb)
Max Trailer Load, braked 12%
900 kg (1,984 lb)
Max Trailer Load, unbraked
450 kg (992 lb)
Cargo Capacity
455 kg (1,003 lb)
Max Roof Load
70 kg (154 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon (Crossover)
Pillars
A-C
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Roof Railing
Yes
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Tightening Torque
107 - 127 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Connectivity
Radio
  • AM
  • FM
Media Inputs
USB
Bluetooth
Yes
Displays
Center Display
Yes
Displays › Center Display
Type
Colour
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Rear
Yes
Lights
Read Light
Front
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
Front

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
352 litres
Volume, Back Seat Collapsed
1,155 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Heated Seats
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Optional
Speed Assist
Optional
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Optional
Emergency Stop Signal (ESS)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2017
Adult Occupant
85 %
Child Occupant
84 %
Vulnerable Road Users
62 %
Safety Assist
25 %
Overall
3/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment
Car.info Classification
Small SUV

Spare Parts BETA

Bulb Types
Low Beam
  • H4
  • HB3
Main Beam
  • H4
  • HB3
Datyime Running Light
BA15s (P21W)
Fog Light, Front
HB4
Fog Light, Rear
BA15s (P21W)
Cornering Light
H7
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
License Plate Light
W2.1×9.5d (W5W)
