2021 Toyota RAV4 Hybrid AWD-i

JapanHybrid GasolineIWDSUV

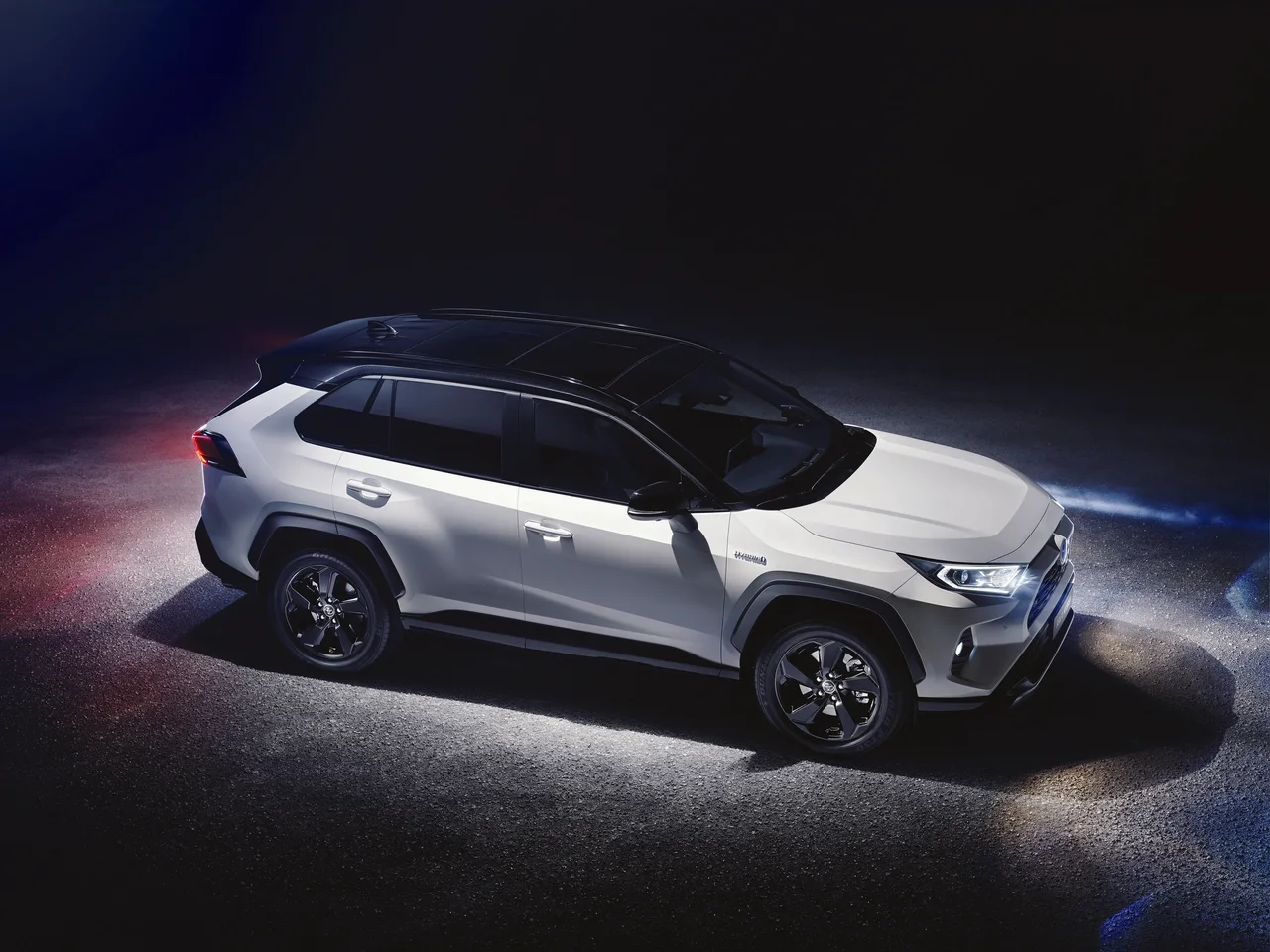

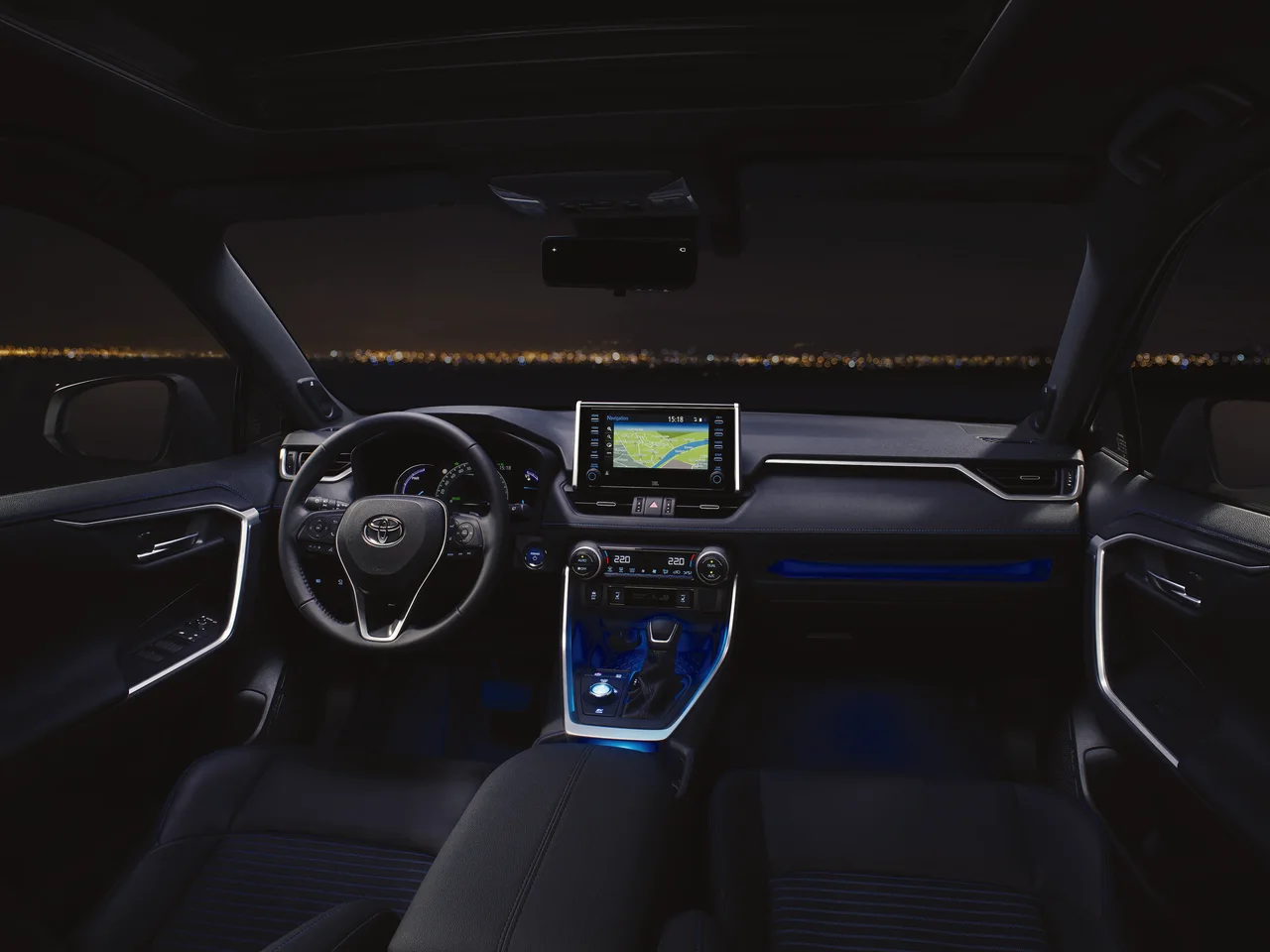

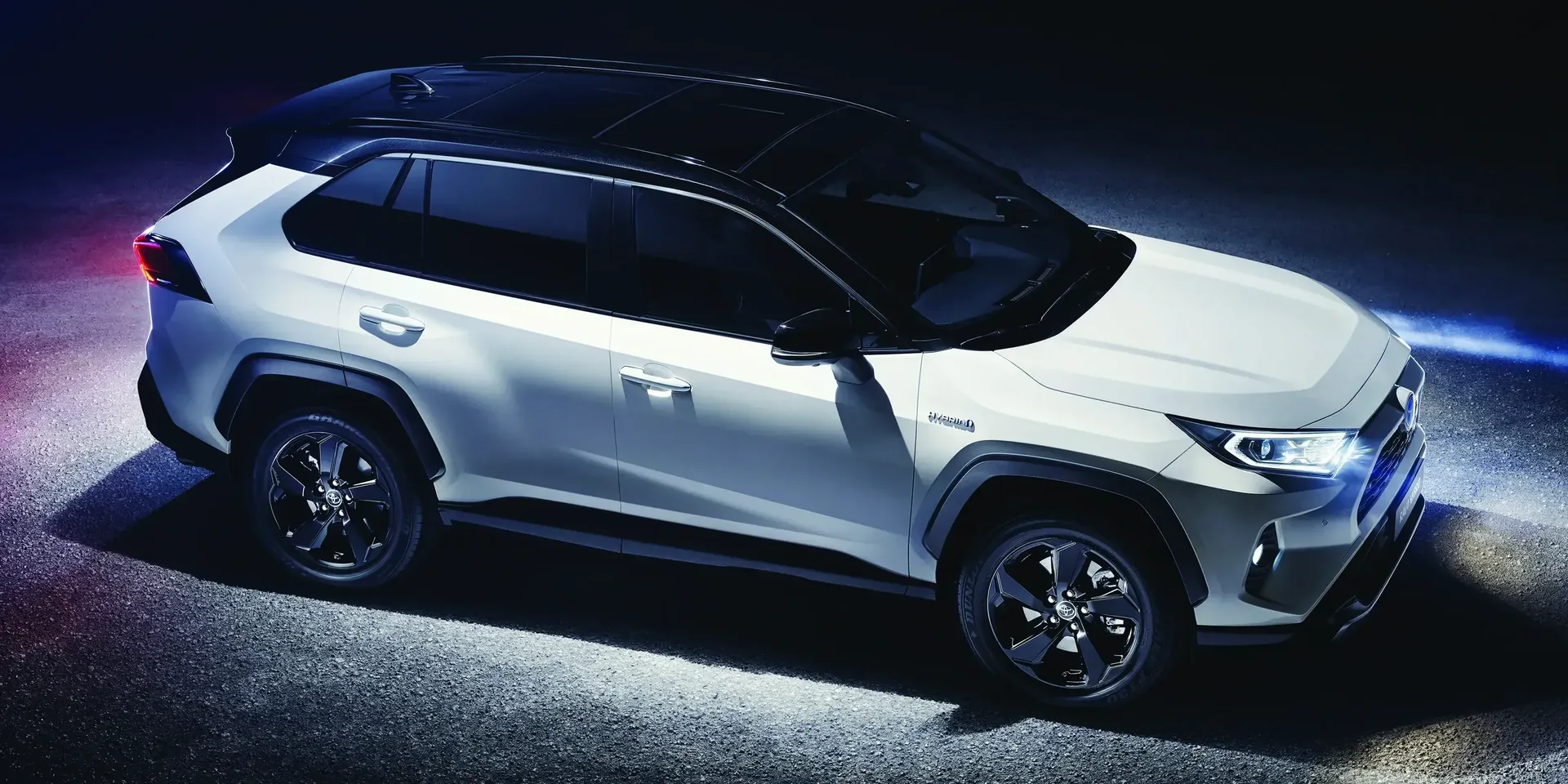

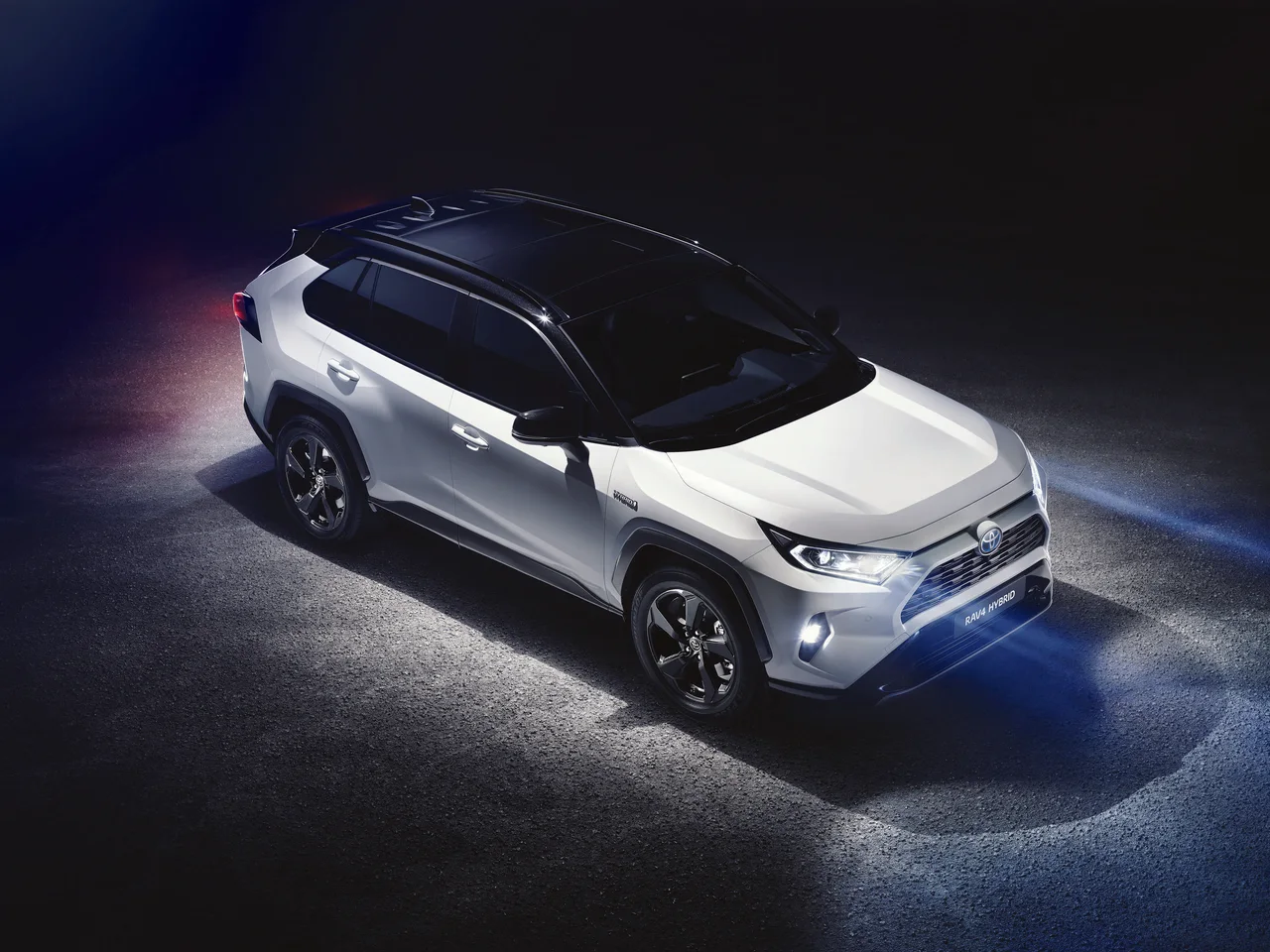

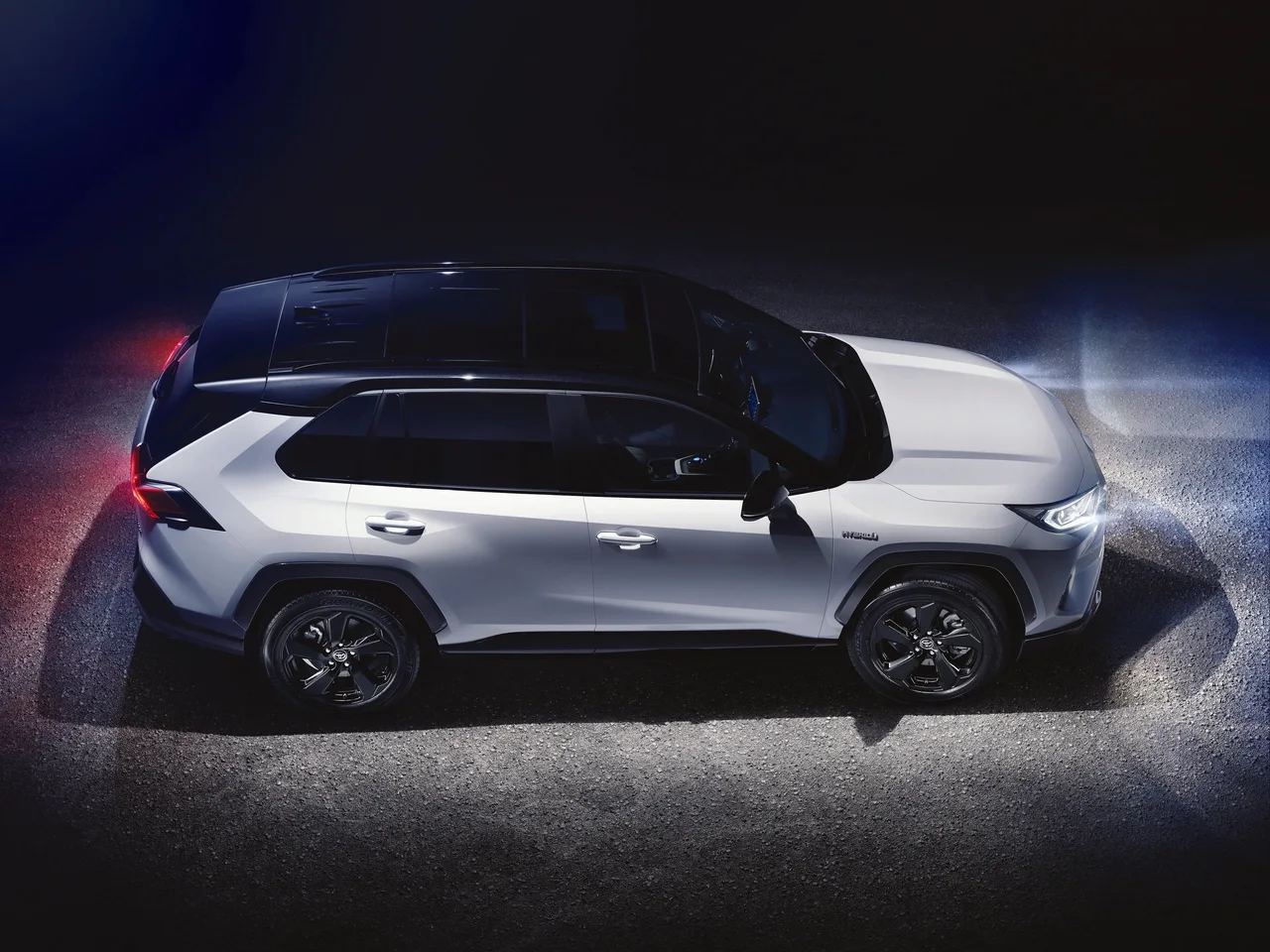

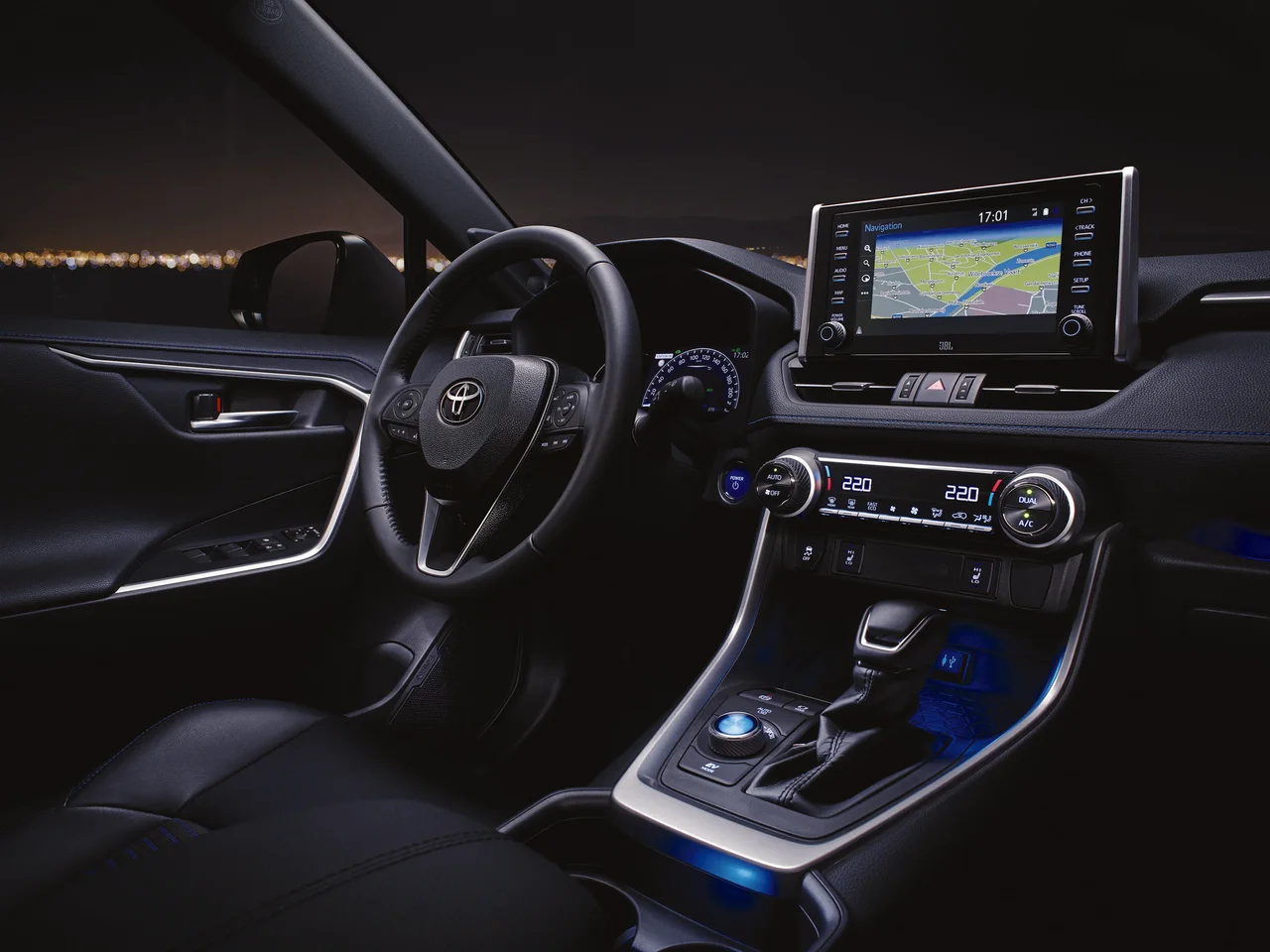

Photos

Specifications

Vehicle Details

Year
2021
Make
Toyota
Model
RAV4
Variant
Hybrid AWD-i
Body Style
SUV
Generation
XA50
Seats
5
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
IWD
Transmission
Automatic (Continuously variable)

Powertrain

Engine Name
Hybrid AWD-i E-CVT
Engine Configuration
Inline
Power (hp)
222 hp
Power (kW)
163 kW
Torque
221 Nm (163 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
7.7 seconds (estimated)
0–100 km/h
8.1 seconds
Displacement
2,487 cc

Dimensions

Length
4,600 mm (181.1 in)
Width
1,855 mm (73.0 in)
Height
1,685 mm (66.3 in)
Wheelbase
2,690 mm (105.9 in)
Curb weight
1,725 kg (3,803 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Torque
3,600 - 5,200 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 5W-20
  • 5W-30
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
  • 15W-40
Engine Oil, Volume
4.4 litres
Configuration Combustion
Bore
87.5 mm (3.4 in)
Stroke
103.48 mm (4.1 in)
Compression Ratio
14 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Configuration Combustion › ICE Specifications
Power
130 kW
Horsepower (Metric)
177 hp (174 bhp)
Torque
221 Nm (163 lb-ft)
Configuration Electric
Type of Electric Car
Hybrid
Electric Engine Power
88 kW
Electric Engine Horsepower (Metric)
120 hp (172 bhp)
Front Engines
Yes
Rear Engines
Yes
Configuration Electric › Front Engines
Power (kW)
88 kW
Number of Engines
1
Configuration Electric › Rear Engines
Electric Power (kW)
40 kW
Number of Engines
1
Service Intervals
Air Filter
45,000 km / 3 years
Spark Plug
90,000 km / 6 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
150,000 km (93,206 mi)
Interior Filter
30,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Continuously variable)

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
304.8 mm (12.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
281.9 mm (11.1 in)

Fuel

General
Tank Volume
55 litres
Emission
Emission Standard
Euro 6d
Emission Class
A+
WLTP Consumption
Combined (l/100km)
5.6 - 5.8 litres / 100 km
Fuel Consumption NEDC
City
4.4 - 4.5 litres / 100 km
Highway
4.6 litres / 100 km
Combined
4.4 - 4.5 litres / 100 km
Emission WLTP
CO₂, Combined
128 - 131 g/km
Emission NEDC
CO₂, Combined
100 - 102 g/km

Dimensions & Weight

Exterior

Track, Front
1,610 mm (63.4 in)
Track, Rear
1,640 mm (64.6 in)
Overhang, Front
925 mm (36.4 in)
Overhang, Rear
985 mm (38.8 in)
Turning Circle
11 m
Ground Clearance
190 mm (7.5 in)

Interior

Head Room, Front
958 - 1,003 mm (37.7 - 39.5 in)
Head Room, Rear
958 - 1,003 mm (37.7 - 39.5 in)
Leg Room, Front
960 - 1,041 mm (37.8 - 41.0 in)
Leg Room, Rear
960 - 1,041 mm (37.8 - 41.0 in)
Hip Room, Front
1,379 mm (54.3 in)
Hip Room, Rear
1,212 mm (47.7 in)
Shoulder Room, Front
1,468 mm (57.8 in)
Shoulder Room, Rear
1,433 mm (56.4 in)

Weight

Gross Weight
2,225 kg (4,905 lb)
Max Trailer Load, braked 12%
1,650 kg (3,638 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
500 kg (1,102 lb)
Max Roof Load
70 kg (154 lb)
Max Towbar Download
70 kg (154 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Toyota Platform
TNGA Platform (TNGA-K)

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Electrical
Heated
Optional
Turning Signal
Optional
Windscreen Wipers
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Spoiler
Yes
Antenna
Shark Fin
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Black

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Optional
Fog Lights
Automatic Headlight Activation
Optional
Main Beam Assist
Optional
Adaptive Headlights
Optional

Colour

Finish
Solid

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Tightening Torque
103 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
4.2 - 7"
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Optional
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Inputs
USB
App-Connect
Optional
Bluetooth
  • Phone
  • Siri Eyes Free
Connectivity › Radio
HD Radio
Optional
Connectivity › Media Inputs
AUX
Yes
Connectivity › App-Connect
Apple CarPlay
Optional
Displays
Center Display
7 - 8"
Center Display Controls
Touchscreen
Speakers
Total Number of Speakers
6 - 11 pcs
Subwoofer
Optional
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
Yes
Lights
Read Light
  • Front
  • Rear
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
  • Front
  • Rear
Carpets
Yes
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › 12V Outlet
Trunk
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Adjustments
  • Tilt
  • Telescope
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Release Button
Yes
Carpet
Optional
Rear Trunk
Volume
490 litres
Volume, Back Seat Collapsed
1,604 litres
Depth
1,090 mm (42.9 in)
Width
1,335 mm (52.6 in)
Height
995 mm (39.2 in)
Automatic Open
Motion Activated
Optional
Carpet
Rug
Optional

Design

Interior Decor Material
Textile
Colour
Black
Colour
Blue
Optional
Brown
Optional
Silver
Optional

Seats

Front Seats
Power Seat, Driver
Optional
Heated Seats
Optional
Ventilated Seats
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Adaptive Cruise Control
Cameras
Rear
Wireless Phone Charger
Optional
Phone
Yes

Other Features

GPS
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Front Seats
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Yes
Trailer Stability Assist (TSA)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes
Inter-urban
Yes

Sensors

Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Yes
Collision Avoidance System
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
93 %
Child Occupant
87 %
Vulnerable Road Users
85 %
Safety Assist
77 %
Overall
5/5 stars
IIHS
Test Year
2019
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Front Crash Prevention: Vehicle-to-pedestrian
Superior
Latch Ease of Use
Good
Teknikens Världs Moose Test
Test Year
2019
Speed
68 km/h (42 mph)

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years
Hybrid Components
240,000 km / 10 years
EV Battery
160,000 km / 8 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV

Spare Parts BETA

Bulb Types
Fog Light, Front
H16
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Rear
WX3×16d (WY21W)
Trunk
W2.1×9.5d (W5W)
