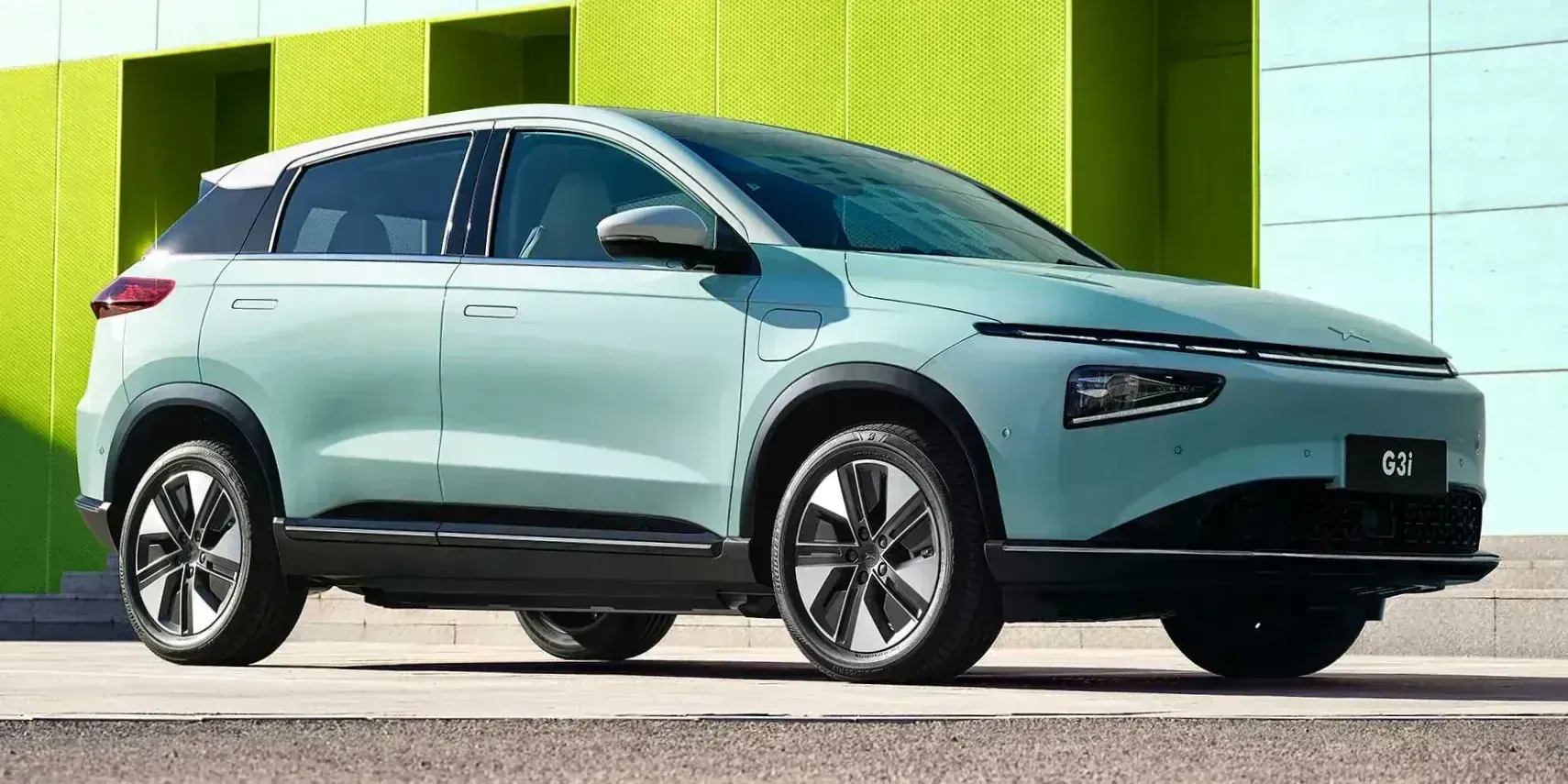

2021 Xpeng G3

ChinaElectricFWDSUV

Photos

Specifications

Vehicle DetailsPowertrainDimensionsEngine & PerformanceDimensions & WeightExteriorInteriorFeaturesSafety & SecurityOther

Vehicle Details

Year
2021
Make
Xpeng
Model
G3
Body Style
SUV
Generation
1st Generation Facelift
Seats
5
Doors
5
Fuel
Electric
Drivetrain
FWD
Transmission
Automatic (Fixed), 1-speed

Powertrain

Engine Name
i 520 Single Speed
Engine Configuration
Electric
Power (hp)
197 hp
Power (kW)
145 kW
Torque
300 Nm (221 lb-ft)
Top speed
170 km/h (106 mph)
0–60 mph
8.2 seconds (estimated)
0–100 km/h
8.6 seconds

Dimensions

Length
4,495 mm (177.0 in)
Width
1,820 mm (71.7 in)
Height
1,610 mm (63.4 in)
Wheelbase
2,625 mm (103.3 in)
Curb weight
1,655 kg (3,649 lb)

Engine & Performance

Engine

Engine Fluids
Transmission Fluid, Volume
1.4 litres
Engine Coolant, Volume
3.37 litres
Battery Coolant, Volume
6.48 litres
Car Battery
Voltage
12 V
Engine Configuration
Electric range
520 km (323 mi)
Battery
66.2 kWh
Type of Electric Car
Electric
Electric Engine Power
145 kW
Electric Engine Horsepower (Metric)
197 hp (194 bhp)
Torque
300 Nm (221 lb-ft)
Front Engines
Yes
Battery Capacity, Gross
66.2 kWh
Type of Battery
Li-ion
Charging Plugs
Type 2 (CCS)
Engine Configuration › Front Engines
Power (kW)
145 kW
Horsepower
197 hp
RPM at Max Power
12,000 rpm
Number of Engines
1
Engine Configuration › Charge AC
Charge Time
5.5 h
Charge Power
11 kW
Engine Configuration › Charge DC
Charge Time, to 80%
35 min
Charge Power
175 kW
Charge Percentage
50 %
Service Intervals
Oil Change & Engine Filter
40,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Fixed), 1-speed
Gear Selector
Stalk
Gear Selector Location
Steering Column
Gear Ratio
Final Drive
8.28 :1

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Front
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Semi-dependent
Twist-Beam

Energy & Range

General › Charging Socket Position
Front
  • Left
  • Right
Fuel Consumption NEDC
Energy consumption
14 kWh/100km
Electric Range
520 km (323 mi)

Performance

Drag Coefficient
0.3

Dimensions & Weight

Exterior

Track, Front
1,546 mm (60.9 in)
Track, Rear
1,551 mm (61.1 in)
Overhang, Front
985 mm (38.8 in)
Overhang, Rear
885 mm (34.8 in)
Approach Angle
16 °
Departure Angle

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Chassis Construction
Unibody
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Bottom-Strip

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Instrument Cluster › Trip Computer
Display
12.3"
Instrument Cluster › Trip Computer › Display
Navigation

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Optional
Parking Heater
Yes
Cameras
Rear
Voice Control

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Driver
Passenger
Rear
Seat Belt Reminder

Other

Warranty

Manufacturer
100,000 km / 4 years
12V Battery
20,000 km / 1 years
EV Battery
150,000 km / 8 years

Identification

VIN Location
Left Side Casing of Window
Yes
Passenger Seat
Xpeng emblem
24 °
Turning Circle
10.7 m
Ground Clearance
130 mm (5.1 in)

Interior

Head Room (est.), Front
1,000 mm (39.4 in)
Head Room (est.), Rear
960 mm (37.8 in)
Leg Room (est.), Rear
600 - 700 mm (23.6 - 27.6 in)

Weight

Gross Weight
2,080 kg (4,586 lb)
Cargo Capacity
435 kg (959 lb)
Max Roof Load
75 kg (165 lb)
Permitted Axle Load, front
1,100 kg (2,425 lb)
Permitted Axle Load, rear
980 kg (2,161 lb)
Weight Distribution, front
58 %
Weight Distribution, rear
42 %
Rear
Bottom-Strip
Sides
Bottom-Strip
Wheel Arches
Yes
Colour
Non-Painted
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pop-out
Platform
Xiaopeng Platform
David

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Optional
Turning Signal
Yes
House Colour

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Dynamic Turn Signal
  • Come Home/Leaving Lights
Fog Lights
Front

Colour

Finish
Metallic

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.25
Central Bore (CB), front
60.1
Central Bore (CB), rear
60.1
Fastening Type
Lug Nuts
Rim Material
Aluminium
Yes
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Number of Vents, Rear
1 pcs
Controls
Touchscreen
Fragrance System
Climate Control › Air Condition
Refrigerant
R1234yf
Refrigerant, Capacity
525 g
Connectivity
Radio
  • AM
  • FM
  • DAB
Bluetooth
  • Phone
  • Audio
Cellular Network
4G
WiFi
Yes
Connectivity › Media Format
Hard Drive
128 GB
Connectivity › Media Inputs
USB
USB-A
Connectivity › Media Inputs › USB
Placement
  • Armrest Hatch/Mid-console
  • Rear
Number of Ports
4 pcs
Displays
Center Display
15.6"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Buttons
Yes
Displays › Center Display Controls › Buttons
Buttons Middle Console
6 pcs
Speakers
Total Number of Speakers
8 pcs
Midrange Speakers
8 pcs
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
Tilt
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel

Trunk

Rear Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • From Inside Car
  • Key Button
Automatic Close
Yes
Release Button
Yes
Cover
Foldable
Carpet
Optional
Second Trunk Compartment
Yes
Light
Yes

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black
Accent
Aluminium
Transmission Knob Material
Plastic
Transmission Knob Material
Blue
Optional
White
Optional

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Optional
Front Seats
Number of Driver Seat Adjustments, Powered
  • Climate Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Type
Cabin Heater
Power Source
Battery-operated
Controls
Phone Application
Cameras
View Location
Center Display
Wireless Phone Charger
Front
Optional

Other Features

GPS
Navigation
Driving Mode Selection
  • Comfort
  • Dynamic
  • Eco
  • Sport
Smartphone App
Yes
Over-the-Air Updates
Yes
Remote Vehicle Diagnostic
Yes
Multifunction Camera
Yes
Sound Generator, External
Yes
GPS

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Warning Triangle
Yes
DriverYes
PassengerYes
RearYes
Belt Pretensioner
DriverYes
PassengerYes
RearYes
Belt Load Limiter
DriverYes
PassengerYes
RearOptional
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Forward Collision Warning (FCW)
Optional
Rear Collision Warning (RCW)
Optional
Forward Distance Monitoring (FDM)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Optional
Lane Assist System

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Optional
Driver Alertness Warning (DAW)
Optional
Light Sensor
Optional
Parking Sensors
Front
Optional
Side
Optional

Other Features

Central Locking
Remote
Child Safety Locks
Manual
Type of Keys
  • Keycards (NFC)
  • Smartphone as a Key
Number of Remote Keys
1
Number of Standard Keys
1
Total Number of Keys
2
Key Features
Bluetooth
Speed Sensitive

Airbags

Feature
Driver
Passenger
Rear
Frontal Airbag
DriverYes
PassengerYes
Rear-
Side Chest Airbag
Driver

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes
in Front of
Trunk
Yes
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Subcompact SUV
British Classification
Compact SUV
Australian Classification
Small SUV
European Segment
J-Segment
Car.info Classification
Small SUV
G3
8.9

€67,000

MSRP · EUR

Body
Same as Car
Mirror Shape, Passenger side
Convex
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Volume Water Tank
1.5 litres
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Roof Railing
Optional
Spoiler
Fixed
Antenna
Spoiler-integrated
LED
Rear
LED
Special Features
Headlight Range Adjustment
Manual (Electric)
Rim Type
Disc Wheel
Optional
Menu Navigation
  • Buttons
  • Scrolling Wheel
Media
Yes
Number of Buttons
8 pcs
Multifunction Steering Wheel › Media
Voice Command
Yes
Volume
Scrolling Wheel
Hatch Opening Type
From Roof
Rear Trunk
Volume
380 litres
Volume, Back Seat Collapsed
760 litres
Carpet
Rubber
Optional
6
Number of Driver Seat Adjustments, Total
6
Number of Passenger Seat Adjustments, Powered
4
Number of Passenger Seat Adjustments, Total
4
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Easy Entry
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Backrest Angle
Powered
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Yes
Map-update
Internet
Optional
Speed Assist
Optional
Hill Descent Control (HDC)
Yes
Parking Assist
Optional
Sign Assist
Optional
Yes
Yes
PassengerYes
Rear-
Curtain Airbag
DriverOptional
PassengerOptional
Rear-
SUV
Variant
G3 SUV Generations2 of 2
Year
Powertrain
Horsepower
197 hp
Drivetrain
FWD
Fuel
Electric
Transmission
Automatic (Fixed), 1-speed

Similar suvs

Suggested vehicles

View all
2021 Skywell ET5
2021–2024
2021 Skywell ET5 exterior main image
Skywell emblem

2021 Skywell ET5

2021 SsangYong Korando e-Motion
2019–2024
2021 SsangYong 2021-ssangyong-korando-e-motion-single-speed main image
2021 Hyundai Kona
2021–2023
2021 Hyundai Kona exterior main image
2021 Volkswagen ID.4 Pro Performance
2021–2024
2021 Volkswagen 2021-volkswagen-id4-pro-performance-single-speed main image
2021 MG Marvel R
2021–2024
2021 MG 2021-mg-marvel-r main image
2021 Weltmeister W6
2021–2023
2021 Weltmeister 2021-weltmeister-w6-620-single-speed main image
2021 Weltmeister EX6 Plus
2021–2023
2021 Weltmeister 2021-weltmeister-ex6-plus-500-6-seater-single-speed main image
2022 Honda e:NS1
2022–2026
2022 Honda e:NS1
2022 BYD Atto 3
2022–2026
2022 BYD 2022-byd-atto-3-extended-range-single-speed main image
2022 Volkswagen ID.5 Pro Performance
2022–2024
2022 Volkswagen 2022-volkswagen-id5-pro-performance-single-speed main image
2021 Mercedes-Benz EQA
2021–2024
2021 Mercedes-Benz EQA exterior main image
2020 Buick Velite 7
2020–2021
2020 Buick Velite 7 exterior main image
SsangYong emblem

2021 SsangYong Korando e-Motion

Hyundai emblem

2021 Hyundai Kona

Volkswagen emblem

2021 Volkswagen ID.4 Pro Performance

MG emblem

2021 MG Marvel R

Weltmeister emblem

2021 Weltmeister W6

Weltmeister emblem

2021 Weltmeister EX6 Plus

Honda emblem

2022 Honda e:NS1

BYD emblem

2022 BYD Atto 3

Volkswagen emblem

2022 Volkswagen ID.5 Pro Performance

Mercedes-Benz emblem

2021 Mercedes-Benz EQA

Buick emblem

2020 Buick Velite 7
