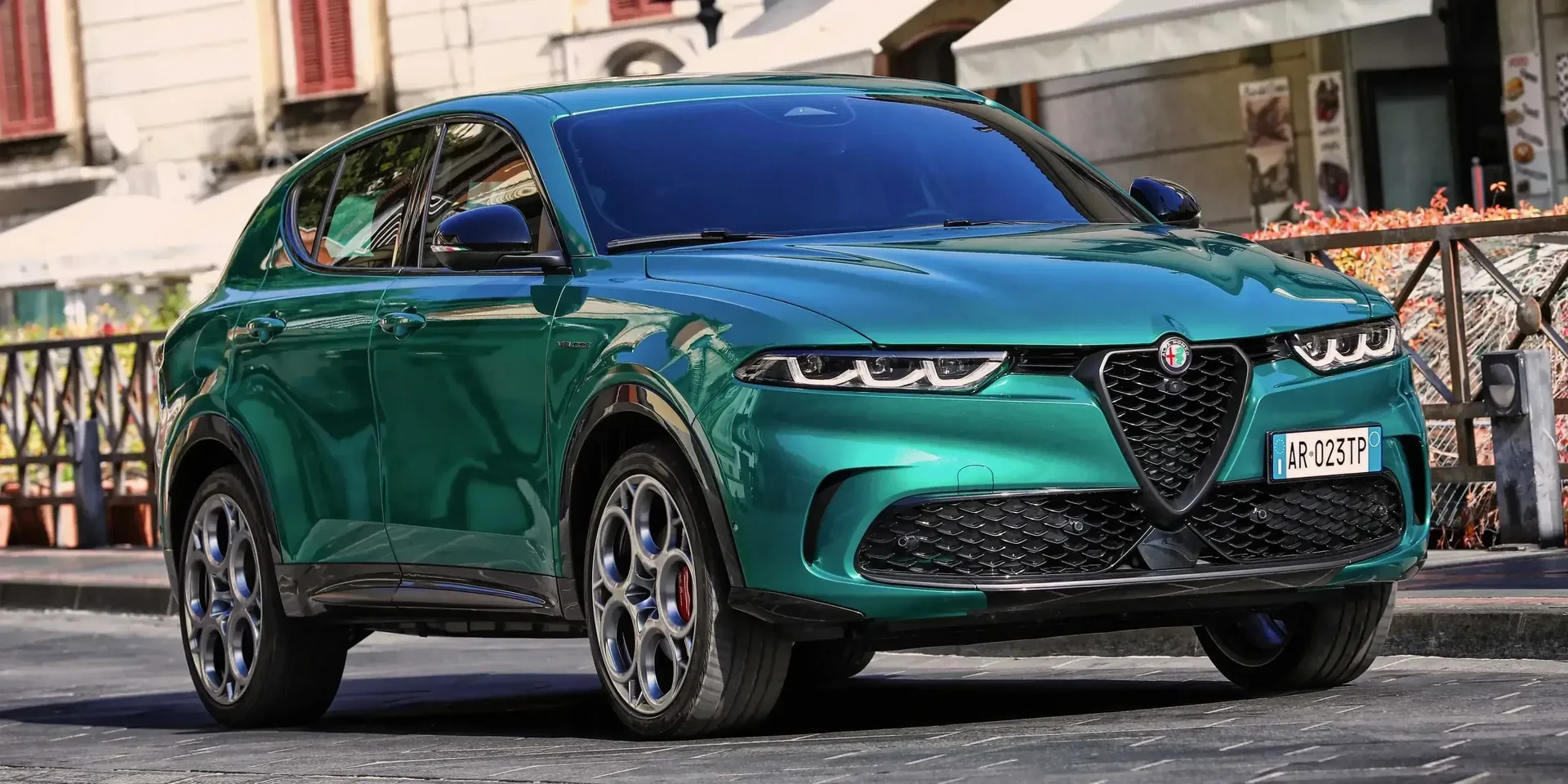

2022 Alfa Romeo Tonale Plug-in-Hybrid

ItalyPlug In Hybrid GasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2022
Make
Alfa Romeo
Model
Tonale
Variant
Plug-in-Hybrid
Body Style
SUV
Generation
965
Seats
4
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic, 6-speed

Powertrain

Engine Name
Plug-in-Hybrid Automatic
Engine Configuration
Inline
Power (hp)
275 hp
Power (kW)
206 kW
Torque
270 Nm (199 lb-ft)
Top speed
206 km/h (128 mph)
0–60 mph
5.9 seconds (estimated)
0–100 km/h
6.2 seconds
Electric range
61 km (38 mi)
Battery
15.5 kWh
Displacement
1,332 cc

Dimensions

Length
4,528 mm (178.3 in)
Width
1,835 mm (72.2 in)
Height
1,614 mm (63.5 in)
Wheelbase
2,636 mm (103.8 in)
Curb weight
1,910 kg (4,211 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,750 rpm
Rev. at Max Torque
1,850 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-30
Engine Oil, Volume
4.5 litres
Configuration Combustion
Bore
70 mm (2.8 in)
Stroke
86.5 mm (3.4 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
OHC
Engine Cooling
Liquid Cooling
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
90 kW
Electric Engine Horsepower (Metric)
122 hp
Torque
270 Nm (199 lb-ft)
Battery Capacity, Gross
15.5 kWh
Battery Capacity, Net
12 kWh
Type of Battery
Li-ion
AC Charge Type
Single-phase
Configuration Electric › Charge AC
Charge Time
2.5 h
Charge Ampere
32 A
Service Intervals
Oil Change & Engine Filter
15,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic, 6-speed
Gear Ratio
Final Drive
3.68 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
330 mm (13.0 in)
Width
28 mm (1.1 in)
Cooling
Ventilated
Rear Brakes
Diameter
305 mm (12.0 in)
Width
12 mm (0.5 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil

Fuel

General
Tank Volume
42.5 litres
Emission
Emission Standard
Euro 6
WLTP Consumption
Weighted, Combined
1.13 - 1.48 litres / 100 km
Combined
16.8 - 18.7 kWh/100km
Electric Range
60.6 - 68.6 km (38 - 43 mi)
Electric Range, City
70.4 - 82.1 km (44 - 51 mi)
Emission WLTP
CO₂, Weighted, Combined
26 - 34 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,082 mm (82.0 in)
Track, Front
1,580 - 1,581 mm (62.2 - 62.2 in)
Track, Rear
1,542 - 1,543 mm (60.7 - 60.7 in)
Overhang, Front
951 mm (37.4 in)
Overhang, Rear
941 mm (37.0 in)
Turning Circle
11.57 m
Ground Clearance
156 - 157 mm (6.1 - 6.2 in)

Interior

Head Room, Front
972 mm (38.3 in)
Head Room, Rear
970 mm (38.2 in)
Leg Room, Front
1,059 mm (41.7 in)
Leg Room, Rear
965 mm (38.0 in)
Hip Room, Front
1,379 mm (54.3 in)
Hip Room, Rear
1,358 mm (53.5 in)
Shoulder Room, Front
1,414 mm (55.7 in)
Shoulder Room, Rear
1,391 mm (54.8 in)

Weight

Gross Weight
2,420 kg (5,335 lb)
Max Trailer Load, braked 12%
1,250 kg (2,756 lb)
Max Trailer Load, unbraked
700 kg (1,543 lb)
Cargo Capacity
510 kg (1,124 lb)
Max Roof Load
50 kg (110 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Automatic Anti-glare
  • Driver side
  • Passenger side
Heated
Yes
Turning Signal
Yes
House Colour
Black
Windscreen Wipers
Heated Washer Nozzles
Optional
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Tinted Windows
  • Yes
  • Optional
Windows › Tinted Windows
Second Row
  • Yes
  • Optional
Rear Window
  • Yes
  • Optional
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Roof Railing
Optional
Spoiler
Yes
Number of Exhaust Pipes
2

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Adaptive Headlights
  • Dynamic Cornering Lights
Fog Lights
Front
Yes
Fog Lights › Front
Cornering Lights
Yes

Colour

Finish
Solid

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
110
Nut/Bolt Dimensions
M12x1.25
Central Bore (CB), front
65.1
Central Bore (CB), rear
65.1
Fastening Type
Lug Bolts
Tightening Torque
120 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Instrument Cluster › Trip Computer
Display
12.3"
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Controls
Buttons
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
  • DAB
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
  • Phone
  • Audio
WiFi
Yes
Connectivity › Media Inputs
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
Front
Displays
Center Display
10.25"
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
6 - 14 pcs
Speakers Max. Watt
40 - 465 W
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
  • Automatic
  • Manual
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Rear
Yes
Lights
Read Light
Front
Ambient Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
  • Front
  • Trunk
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Ratio
14.8 :1
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Scrolling Wheel)
Media
Yes
Multifunction Steering Wheel › Media
Volume
Buttons

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
385 litres
Volume, Back Seat Collapsed
1,430 litres
Depth
810 mm (31.9 in)
Depth, Back Seat Collapsed
1,625 mm (64.0 in)
Width
986 mm (38.8 in)
Width, Between Wheel Arches
918 mm (36.1 in)
Height
814 mm (32.0 in)
Sill Height
787 mm (31.0 in)

Design

Aluminium
  • Yes
  • Optional
Aluminium
Sport
  • Yes
  • Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Front Seats
Number of Driver Seat Adjustments, Manual
6
Number of Driver Seat Adjustments, Powered
8
Power Seat, Driver
Optional
Heated Seats
Optional
Ventilated Seats
Optional
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
  • 60/40
  • 40/20/40

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Adaptive Cruise Control
Cameras
Rear
Voice Control
Yes
Wireless Phone Charger
Yes

Other Features

Start & Stop
Yes
Driving Mode Selection
  • Dynamic
  • Normal

Accessories

Tire Repair Kit
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Front Cross-Traffic Alert (FCTA)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Yes
Trailer Stability Assist (TSA)
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2022
Adult Occupant
83 %
Child Occupant
85 %
Vulnerable Road Users
67 %
Safety Assist
85 %
Overall
5/5 stars
Adult Occupant
Total Points
31.6 /38
Frontal Impact
13.8 /16
Lateral Impact
13.4 /16
Rear Impact
3.4 /4
Rescue and Extrication
1 /2
Child Occupant
Total Points
41.9 /49
Crash Test Performance
  • 14.9
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
36.2 /49
Pedestrian
  • 12.8
  • 2.5
  • 6
AEB Vulnerable Road Users
15 /18
AEB Pedestrian
6.5 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
8.5 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.8 /3
Speed Assistance (assesment)
Good
Occupant Status Monitoring (points)
2 /3
Occupant Status Monitoring (assesment)
Adequate
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Marginal
Driver Monitoring (points)
1
Driver Monitoring (assesment)
Good
Lane Support (points)
3.5 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
5.3 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 5 years
EV Battery
160,000 km / 8 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
100,000 km / 5 years

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV

Similar suvs

Suggested vehicles
