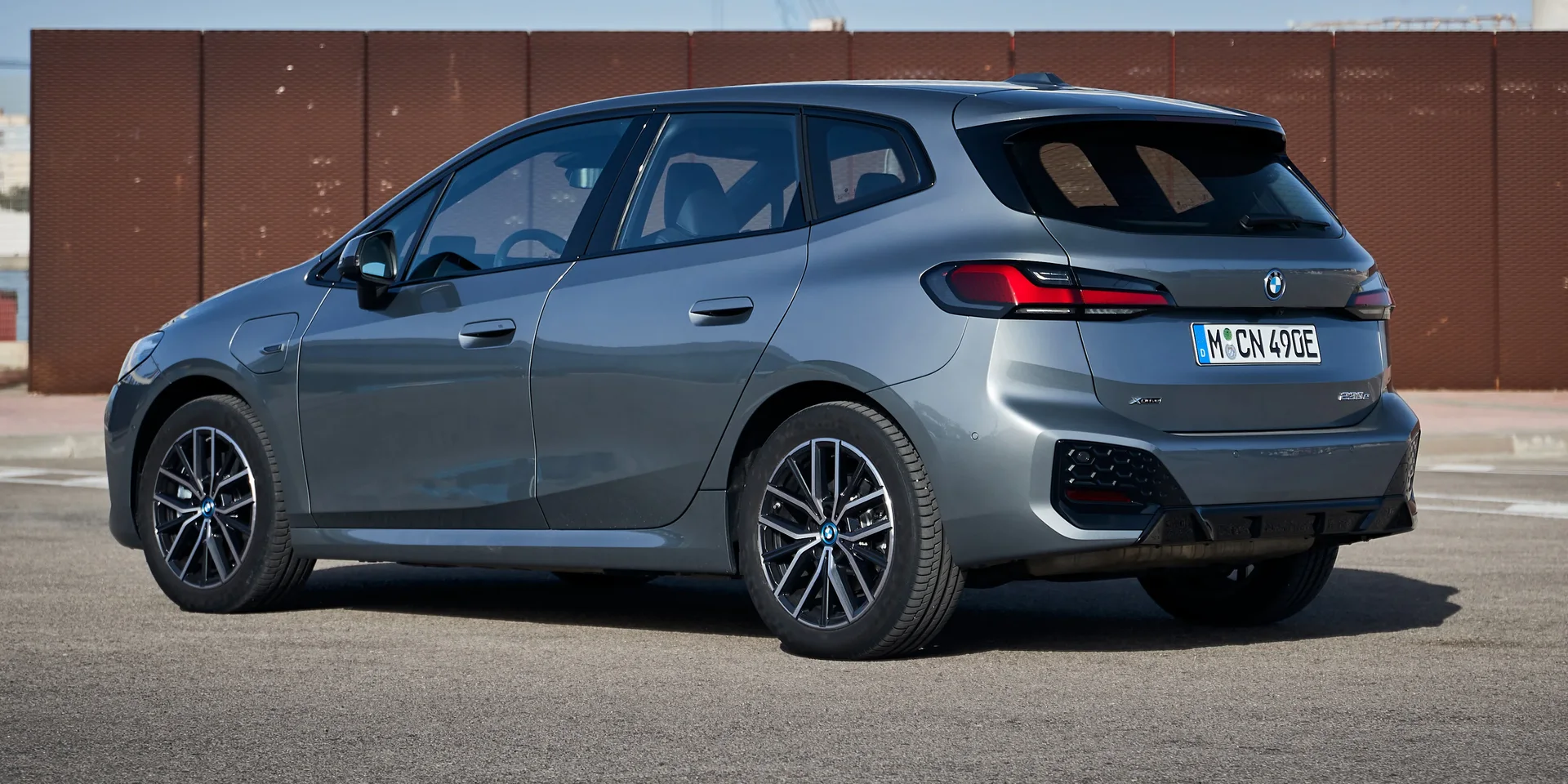

2022 BMW 2 Series

GermanyPlug In Hybrid GasolineAWDMinivan

Photos

Specifications

Vehicle Details

Year
2022
Make
BMW
Model
2 Series
Body Style
Minivan
Generation
U06
Seats
5
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 7-speed

Powertrain

Engine Name
230e xDrive Active Tourer Steptronic
Engine Configuration
Inline
Power (hp)
326 hp
Power (kW)
240 kW
Torque
230 Nm (170 lb-ft)
Top speed
205 km/h (127 mph)
0–60 mph
5.2 seconds
0–100 km/h
5.5 seconds
Electric range
82 km (51 mi)
Battery
16.3 kWh
Displacement
1,499 cc

Dimensions

Length
4,386 mm (172.7 in)
Width
1,824 mm (71.8 in)
Height
1,576 mm (62.0 in)
Wheelbase
2,670 mm (105.1 in)
Curb weight
1,920 kg (4,233 lb)

Engine & Performance

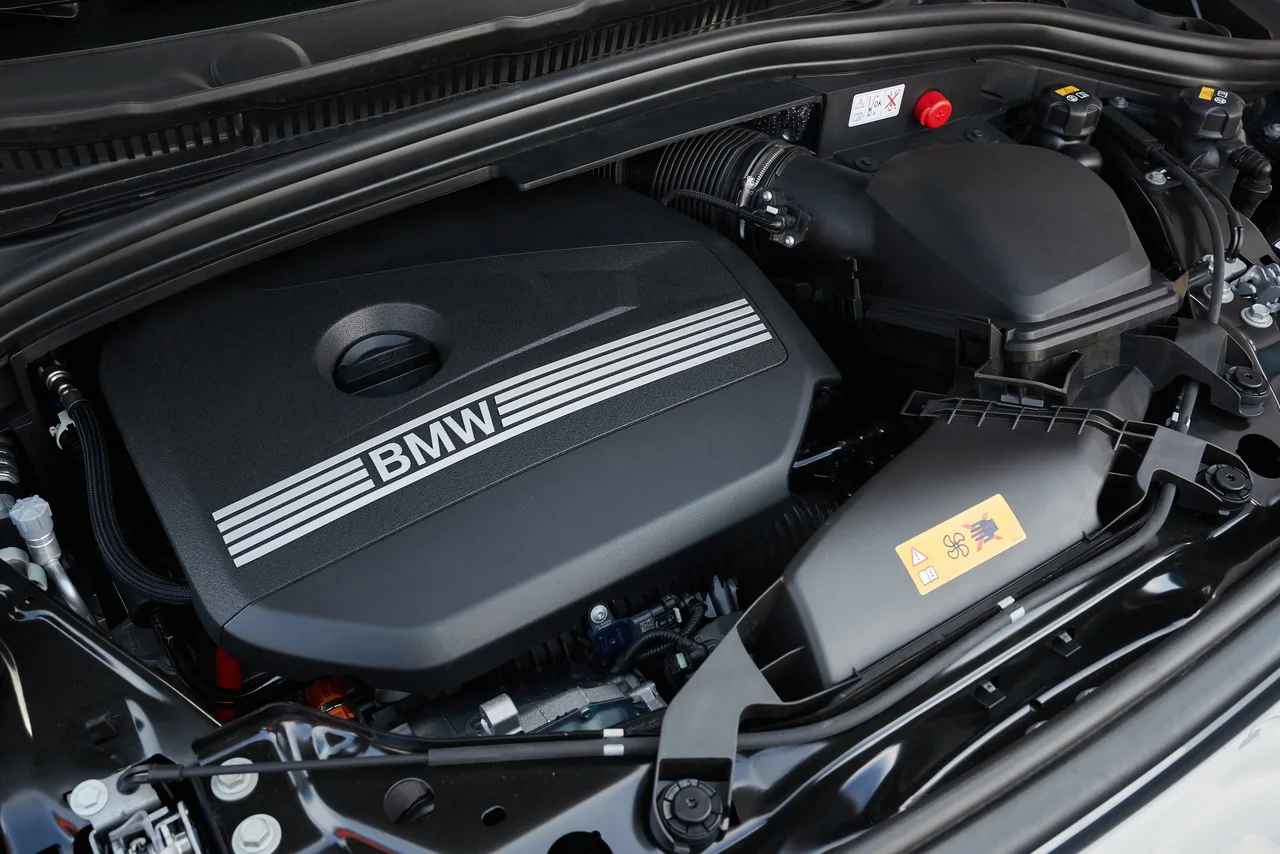

Engine

Engine Specification
Rev. at Max Power
4,700 - 6,500 rpm
Rev. at Max Torque
1,500 - 4,400 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 0W-30
  • 5W-30
  • 5W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
Engine Oil, Volume
4.5 litres
Car Battery
Voltage
12 V
Configuration Combustion
Bore
82 mm (3.2 in)
Stroke
94.6 mm (3.7 in)
Compression Ratio
11.1 :1
Engine Configuration
Inline
Turbocharger
Yes
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
130 kW
Electric Engine Horsepower (Metric)
177 hp
Torque
230 Nm (170 lb-ft)
Rear Engines
Yes
Battery Capacity, Gross
16.3 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Charging Plugs
Type 2
Service Intervals
Air Filter
60,000 km / 3 years
Oil Change & Engine Filter
30,000 km / 2 years
Interior Filter
30,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 7-speed
Transmission
Paddles
Optional

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (1)
  • Rear (1)
Front Brakes
Diameter
335 mm (13.2 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
300 mm (11.8 in)
Width
20 mm (0.8 in)

Fuel

General
Tank Volume
47 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d
Emission Class
B
WLTP Consumption
Weighted, Combined
0.6 - 0.8 litres / 100 km
Combined
16.9 - 20 kWh/100km
Electric Range
82 - 93 km (51 - 58 mi)
Emission WLTP
CO₂, Weighted, Combined
14 - 30 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,102 mm (82.8 in)
Track, Front
1,586 mm (62.4 in)
Track, Rear
1,587 mm (62.5 in)
Overhang, Front
861 mm (33.9 in)
Overhang, Rear
855 mm (33.7 in)
Turning Circle
11.4 m
Ground Clearance
171 mm (6.7 in)

Interior

Head Room, Front
1,044 mm (41.1 in)
Head Room, Rear
986 mm (38.8 in)
Leg Room, Front
840 - 1,100 mm (33.1 - 43.3 in)
Leg Room, Rear
610 - 960 mm (24.0 - 37.8 in)
Shoulder Room, Front
1,460 mm (57.5 in)
Shoulder Room, Rear
1,457 mm (57.4 in)

Weight

Curb Weight (DIN)
1,845 kg (4,068 lb)
Gross Weight
2,420 kg (5,335 lb)
Max Trailer Load, braked 12%
1,400 kg (3,086 lb)
Max Trailer Load, braked 8%
1,400 kg (3,086 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
575 kg (1,268 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Camera
Adjustments
Electrical
Automatic Anti-glare
Driver side
User Memory
Yes
Heated
Yes
Turning Signal
Yes
Windscreen Wipers
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Tinted Windows
Rear Window
Optional
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Antenna
Whip

Lights

Main Beam
LED
Rear Lights
LED
Special Features
Adaptive Headlights
Special Features
Main Beam Assist
Optional

Colour

Finish
Solid

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Shift Indicator
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • DAB+
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Displays
Center Display
Yes
Displays › Center Display
Type
Colour
Rear-view Mirror
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Rear
Yes
Lights
Read Light
Front
Guide Light
Side Mirrors

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Sport
Optional
Number of Spokes
3
Colour
Black
Steering Ratio
15.6 :1
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
Speed Up/Down
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons

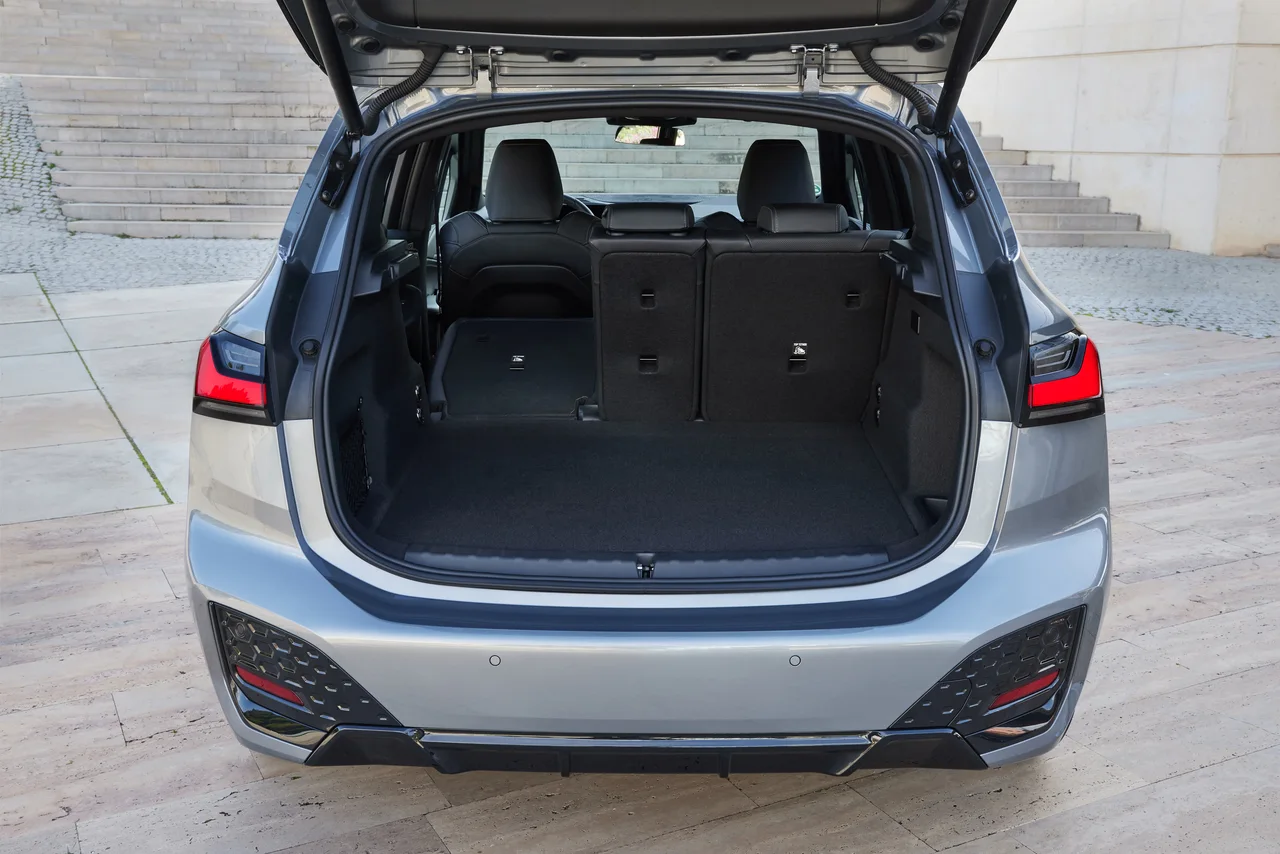

Trunk

Rear Trunk
Yes
Automatic Open
Yes
Automatic Close
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
470 litres
Volume, Back Seat Collapsed
1,455 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40

Features

Comfort Features

Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Wireless Phone Charger
Yes

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
  • Individual
  • Sport

Accessories

Tire Repair Kit
Optional
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Yes
Trailer Stability Assist (TSA)
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Electrical
Active Bonnet
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2022
Adult Occupant
88 %
Child Occupant
81 %
Vulnerable Road Users
79 %
Safety Assist
92 %
Overall
5/5 stars
Adult Occupant
Total Points
33.7 /38
Frontal Impact
12.3 /16
Lateral Impact
15.7 /16
Rear Impact
3.7 /4
Rescue and Extrication
2 /2
Child Occupant
Total Points
40 /49
Crash Test Performance
  • 12
  • 8 /16
Safety Features
8 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
42.8 /49
Pedestrian
  • 17.9
  • 3.2
  • 6
AEB Vulnerable Road Users
15.7 /18
AEB Pedestrian
7 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
8.7 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.8 /3
Speed Assistance (assesment)
Good
Occupant Status Monitoring (points)
3 /3
Occupant Status Monitoring (assesment)
Good
Seat Belt Reminder (points)
2 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
1
Driver Monitoring (assesment)
Good
Lane Support (points)
3.5 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
5.5 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Yes
  • Rear: Yes

Other

Warranty

EV Battery
100,000 km / 6 years

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Medium MPV

Similar minivans

Suggested vehicles
