2022 Citroën C4 Picasso

FranceGasolineFWDMinivan

Specifications

Vehicle Details

Year
2022
Make
Citroën
Model
C4
Variant
Picasso
Body Style
Minivan
Generation
2nd Generation Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 6
  • 8-speed

Powertrain

Engine Name
1.2 e-THP
Engine Configuration
Inline
Power (hp)
130 hp
Power (kW)
96 kW
Torque
230 Nm (170 lb-ft)
Top speed
200 km/h (124 mph)
0–60 mph
9.7 seconds (estimated)
0–100 km/h
10.2 seconds
Displacement
1,198 cc

Dimensions

Length
4,438 mm (174.7 in)
Width
1,826 mm (71.9 in)
Height
1,610 mm (63.4 in)
Wheelbase
2,785 mm (109.6 in)
Curb weight
1,298 kg (2,862 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,500 rpm
Rev. at Max Torque
1,750 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-30
Engine Oil, Volume
3.5 litres
Engine Configuration
Bore
75 mm (3.0 in)
Stroke
90.5 mm (3.6 in)
Compression Ratio
11.1 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Service Intervals
Timing Interval
175,000 km / 5 years
Air Filter
50,000 km / 4 years
Spark Plug
50,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
20,000 km / 1 years
Interior Filter
50,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 6
  • 8-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Suspension, Front
Independent
Pseudo MacPherson
Suspension, Rear
Independent
Yes

Fuel

General
Tank Volume
57 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d -TEMP
Emission Class
A
Emission WLTP
CO₂, Combined
144 – 154 - 144 – 156 g/km
Emission NEDC
CO₂, Combined
115 – 119 g/km
Fuel Consumption NEDC
City
6 – 6.4 litres / 100 km
Highway
4.4 – 4.6 litres / 100 km
Combined
5.1 – 5.2 litres / 100 km

Dimensions & Weight

Exterior

Width, with Mirrors
2,117 mm (83.3 in)
Track, Front
1,587 mm (62.5 in)
Track, Rear
1,590 mm (62.6 in)
Overhang, Front
889 mm (35.0 in)
Overhang, Rear
764 mm (30.1 in)
Turning Circle
10.8 - 11 m
Ground Clearance
150 mm (5.9 in)

Weight

Gross Weight
1318 – 1910 kg (2,906 – 4,211 lb)
Max Trailer Load, braked 12%
1270 – 1500 kg (2,800 – 3,307 lb)
Max Trailer Load, unbraked
640 – 695 kg (1,411 – 1,532 lb)
Cargo Capacity
412 – 620 - 555 – 620 kg (1,224 – 1,367 lb)
Max Roof Load
70 kg (154 lb)
Max Towbar Download
70 kg (154 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D + Extra Pillar(s)
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
PSA Platforms
EMP2

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Spoiler
Fixed
Antenna
Whip
Mud Flaps
Optional
Electric
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Fog Lights
Front
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.25
Central Bore (CB), front
65.1
Central Bore (CB), rear
65.1
Fastening Type
Lug Bolts
Tightening Torque
100 Nm
Rim Type
Disc Wheel
Spare Wheel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Fuel Gauge
Digital
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Number of Climate Zones
2
Air Condition
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
Bluetooth
Phone
Connectivity › Radio
DAB
Optional
Connectivity › Media Format
CD
Optional
DVD
Optional
Connectivity › Media Inputs
USB
USB-A
Displays
Center Display
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
1
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Rear
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
4
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
537 litres
Volume, Back Seat Collapsed
1,710 litres

Seats

Colour & Material
Seat Colour
Grey
Stitching Colour
Grey
Front Seats › Adjustments, Driver
Seat Depth
Manual
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Backrest Angle
Yes
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
  • Driver
  • Passenger
Front Seats › Heated Seats
Cushion
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Height Adjustment
Yes
Second Seat Row › Collapsible
Backrest Release
From Trunk
Split Fold Ratio
35/30/35
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Lane Assist System
Optional
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2013
Adult Occupant
86 %
Child Occupant
88 %
Vulnerable Road Users
68 %
Safety Assist
81 %
Overall
5/5 stars
Test Year
2014
Overall Score
34.53
ANCAP Safety Rating
5
Adult Occupant
Total Points
31.1 /38
Frontal Impact
13.5 /16
Lateral Impact
14.5 /16
Rear Impact
3.1 /4
Frontal Offset
13.53
Side Impact
16
Pole
2
Whiplash Protection (Assessment)
Good
Child Occupant
Total Points
43.5 /49
Safety Features
8 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
24.6 /49
Pedestrian
  • 15.3
  • 3.3
  • 6
Safety Assist
Speed Assistance (points)
1.3 /3
Lane Support (points)
0 /4
Seat Belt Reminders
3
Pedestrian
Protection (Assessment)
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Body Protection
3 years
Paintwork
100,000 km / 3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left

Car Classification

American Classification
MPV
British Classification
Compact MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Medium MPV

ACRISS

Category
Intermediate (I)
Type
Monoscape (M)

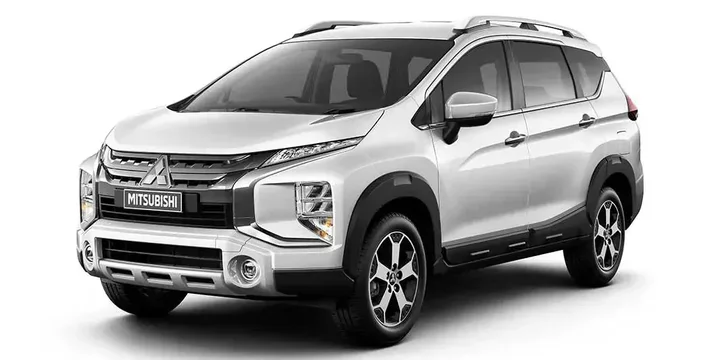

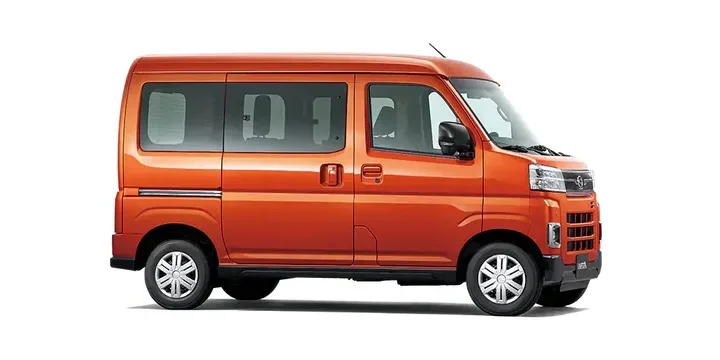

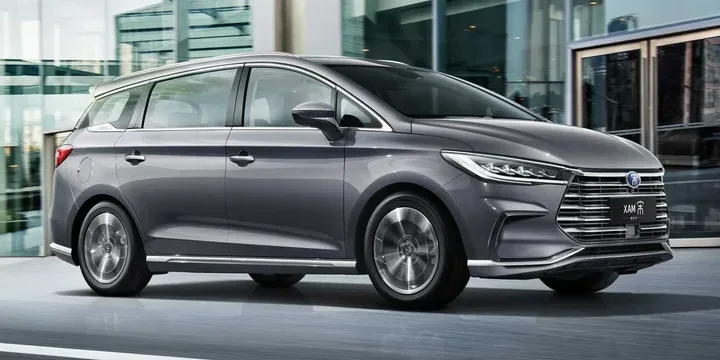

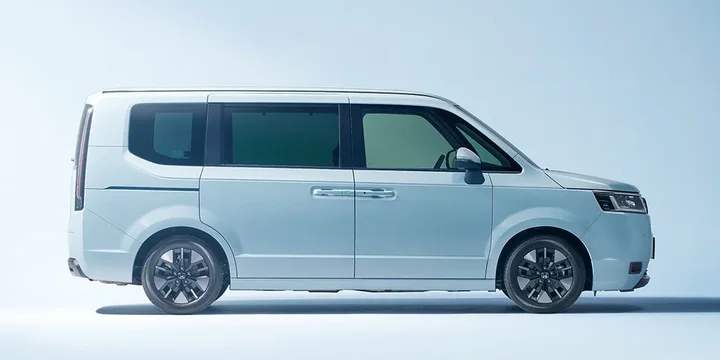

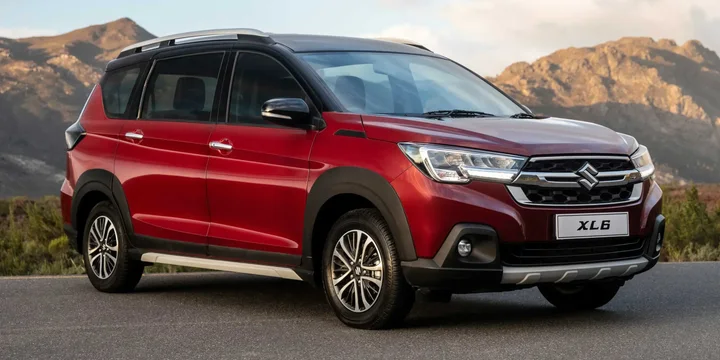

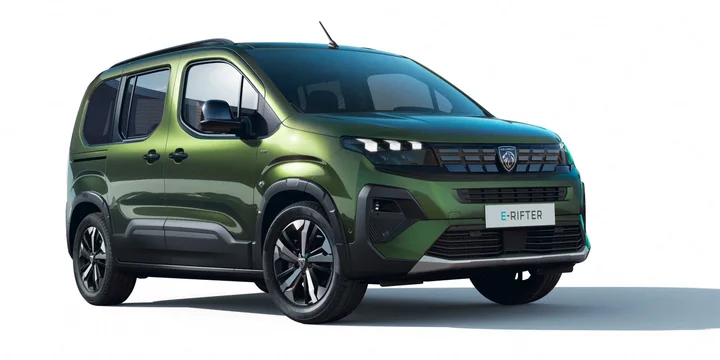

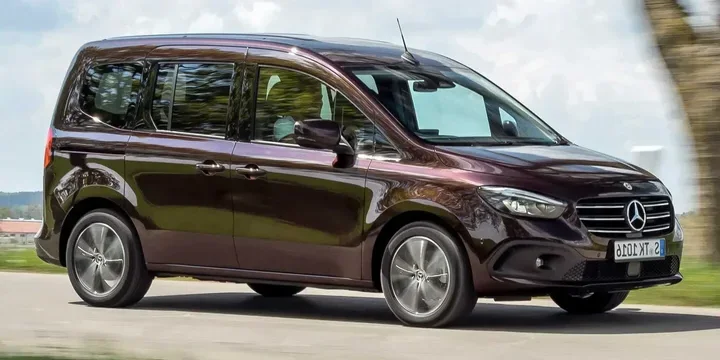

Similar minivans

Suggested vehicles
