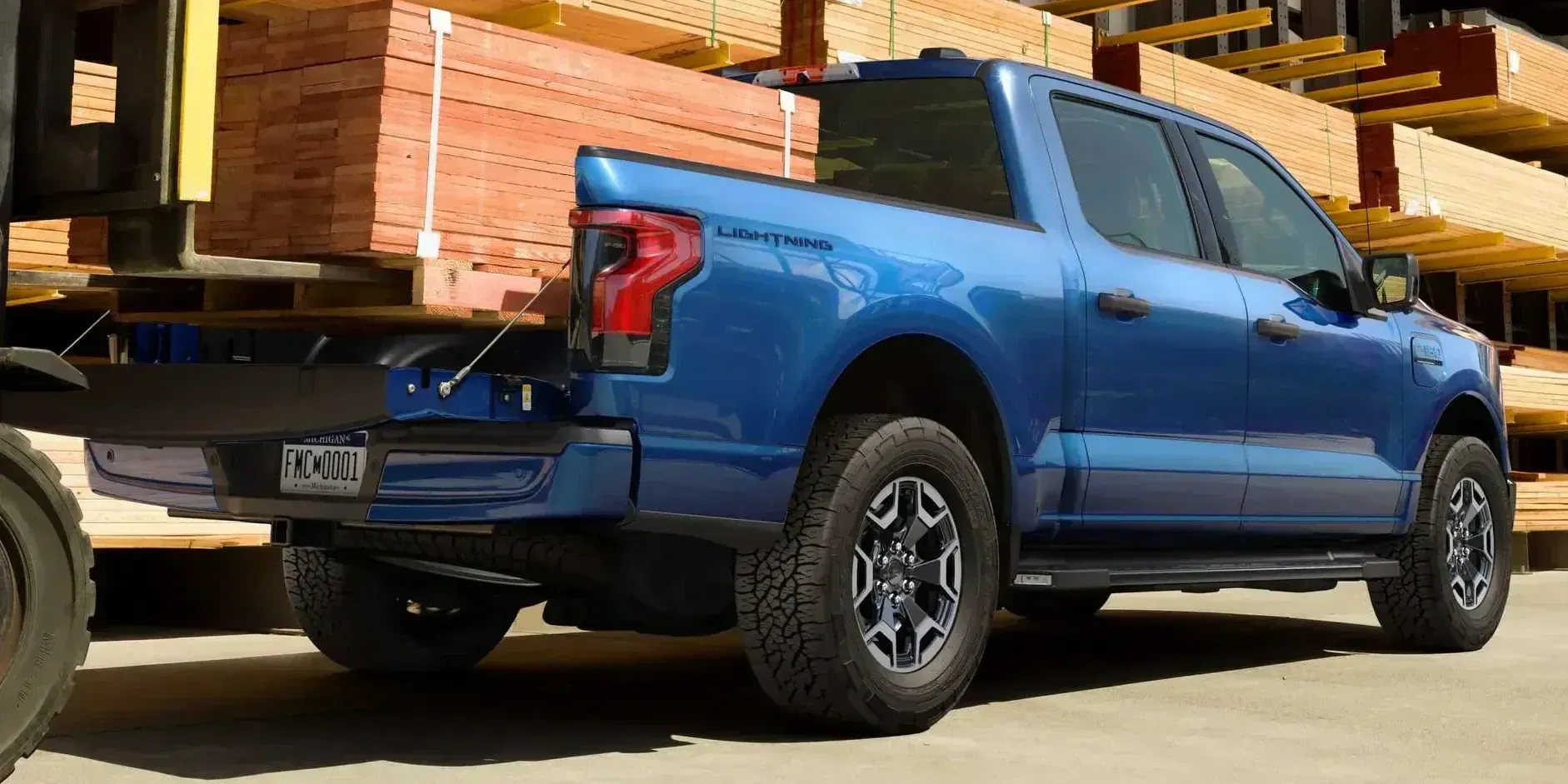

2022 Ford F-Series F-150 Lightning Standard Range

United StatesElectric4WDPickup

Specifications

Vehicle Details

Year
2022
Make
Ford
Model
F-Series
Variant
F-150 Lightning Standard Range
Body Style
Pickup
Generation
14th Generation (P702)
Seats
5
Doors
4
Fuel
Electric
Drivetrain
4WD
Transmission
Automatic (Fixed)

Powertrain

Engine Name
F-150 Lightning Standard Range Single Speed
Engine Configuration
Electric
Power (hp)
432 hp
Power (kW)
318 kW
Torque
775 Nm (572 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
3.8 seconds (estimated)
0–100 km/h
4 seconds
Electric range
386 km (240 mi)
Battery
98 kWh

Dimensions

Length
5,885 mm (231.7 in)
Width
2,030 mm (79.9 in)
Height
1,920 mm (75.6 in)
Wheelbase
3,693 mm (145.4 in)
Curb weight
2,731 kg (6,021 lb)

Engine & Performance

Engine

Engine Configuration
Type of Electric Car
Electric
Electric Engine Power
318 kW
Electric Engine Horsepower (Metric)
432 hp
Torque
775 Nm (572 lb-ft)
Front Engines
Yes
Rear Engines
Yes
Battery Capacity, Gross
98 kWh
Vehicle to Load (V2L)
Yes
Engine Configuration › Charge AC
Charge Time
14 h / 840 min
Charge Power
11 kW
Charge Ampere
32 A
Engine Configuration › Charge DC
Charge Time, to 80%
40 min
Charge Power
150 kW
Engine Configuration › Vehicle to Load (V2L)
Max Discharge Power
9.6 kW
Service Intervals
Air Filter
48,000 km (29,826 mi)
Fuel Filter
48,000 km (29,826 mi)
Brake Fluid
3 years
Oil Change & Engine Filter
16,000 km / 1 years
Engine Coolant
322,000 km / 10 years
Interior Filter
16,000 km / 1 years
Accessory Belt
160,000 km (99,419 mi)

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil

Energy & Range

General
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Left
WLTP Consumption
Energy consumption
25.3 kWh/100km
Electric Range
386 km (240 mi)
Fuel Consumption NEDC
Combined
0 litres / 100 km
Emission WLTP
CO₂, Combined
0 g/km
Emission NEDC
CO₂, Combined
0 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,431 - 2,690 mm (95.7 - 105.9 in)
Track, Front
1,725 mm (67.9 in)
Track, Rear
1,735 mm (68.3 in)
Overhang, Front
955 mm (37.6 in)
Overhang, Rear
1,232 - 1,234 mm (48.5 - 48.6 in)
Turning Circle
15.5 m
Ground Clearance
216 - 239 mm (8.5 - 9.4 in)

Interior

Head Room, Front
1,036 mm (40.8 in)
Head Room, Rear
1,026 mm (40.4 in)
Leg Room, Front
1,115 mm (43.9 in)
Leg Room, Rear
1,107 mm (43.6 in)
Hip Room, Front
1,588 mm (62.5 in)
Hip Room, Rear
1,590 mm (62.6 in)
Shoulder Room, Front
1,694 mm (66.7 in)
Shoulder Room, Rear
1,676 mm (66.0 in)

Weight

Gross Weight
3,744 kg (8,254 lb)
Cargo Capacity
1,014 kg (2,235 lb)

Exterior

Chassis & Body

Chassis
Chassis
Pickup
Pillars
A-C
Chassis Construction
Body-on-Frame
Protective Moldings
Optional
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
User Memory
Optional
Heated
Optional
Ground Light
Optional
Turning Signal
Optional
Side Mirrors › Adjustments
Driver side
Optional
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Optional
Heat-Insulating Windows
  • Front
  • First Row
  • Rear
Tinted Windows
Optional
Windows › Window Lifts, Features
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Rear
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Tow Hook
Front
Antenna
Bumper-integrated
Mud Flaps
Optional
Side Steps
Stationary
Other Equipment › Sunroof
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Fog Lights
Optional
Fog Lights
Automatic Headlight Activation
Optional
Main Beam Assist
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
6 pcs
Bolt Distance
135
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
87.1
Central Bore (CB), rear
87.1
Tightening Torque
204 Nm
Rim Type
Disc Wheel
Spare Wheel
Full-size (Steel)

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
  • Analogue
  • Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
4 - 12"
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
  • AM
  • FM
Media Format
  • MP3
  • WMA
App-Connect
  • Android Auto
  • Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
Cellular Network
  • 4G
  • 3G
WiFi
Yes
Connectivity › Radio
XM
Optional
HD Radio
Optional
Connectivity › Media Inputs
AUX
Yes
USB
USB-A
Displays
Center Display
8 - 12"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
6 - 18 pcs
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable
Armrest Hatch
Front
Back Pocket
Optional
Sunglass Compartment
Yes
Coin Holder
Optional
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Rear
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Entry Guard
Ambient Light
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
Driver
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Number of Spokes
4
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes
Adjustments
Tilt
Yes
Telescope
Yes
User Memory
Optional

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Cover
Optional
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Light
Yes
Rear Trunk
Volume
2,192 litres
Depth
2,479 mm (97.6 in)
Width, Between Wheel Arches
1,285 mm (50.6 in)
Height
544 mm (21.4 in)
Automatic Open
Key Button
Optional
Cover
Foldable
Optional
Carpet
Rubber
Optional

Design

Pedals
Standard
Pedals
Beige
Optional
Brown
Optional
Red
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Remote Engine Start
Optional
Garage Remote Control
Optional
Cruise Control
Yes
Cameras
Rear
Voice Control
Optional
Wireless Phone Charger
Optional
Cameras
View Location
Center Display
Voice Control
Media
Optional
Navigation
Optional
Phone
Optional

Other Features

GPS
Optional
GPS Preparation
Yes
Start & Stop
Optional
Horn
Dual Note
GPS
Internet
Optional
GPS › Internet
USB
Optional

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Portable Cooling Box
Optional
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Optional
Parking Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Anti-theft Alarm
Yes
Central Locking
Remote

Safety Testing

General
Not Tested by Euro NCAP
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Curtain Airbag
Airbag cut-off Switch

Other

Warranty

EV Battery
160,000 km / 8 years

Car Classification

American Classification
Full-Size Pickup Truck
British Classification
Pick-up
Australian Classification
Pickup
European Segment
J-Segment JE-Segment
Car.info Classification
Pickup

Tests

Motor.no
Electric Range, Winter
337.4 km (210 mi)
Deviation, Winter
21.4 %

Similar pickups

Suggested vehicles
