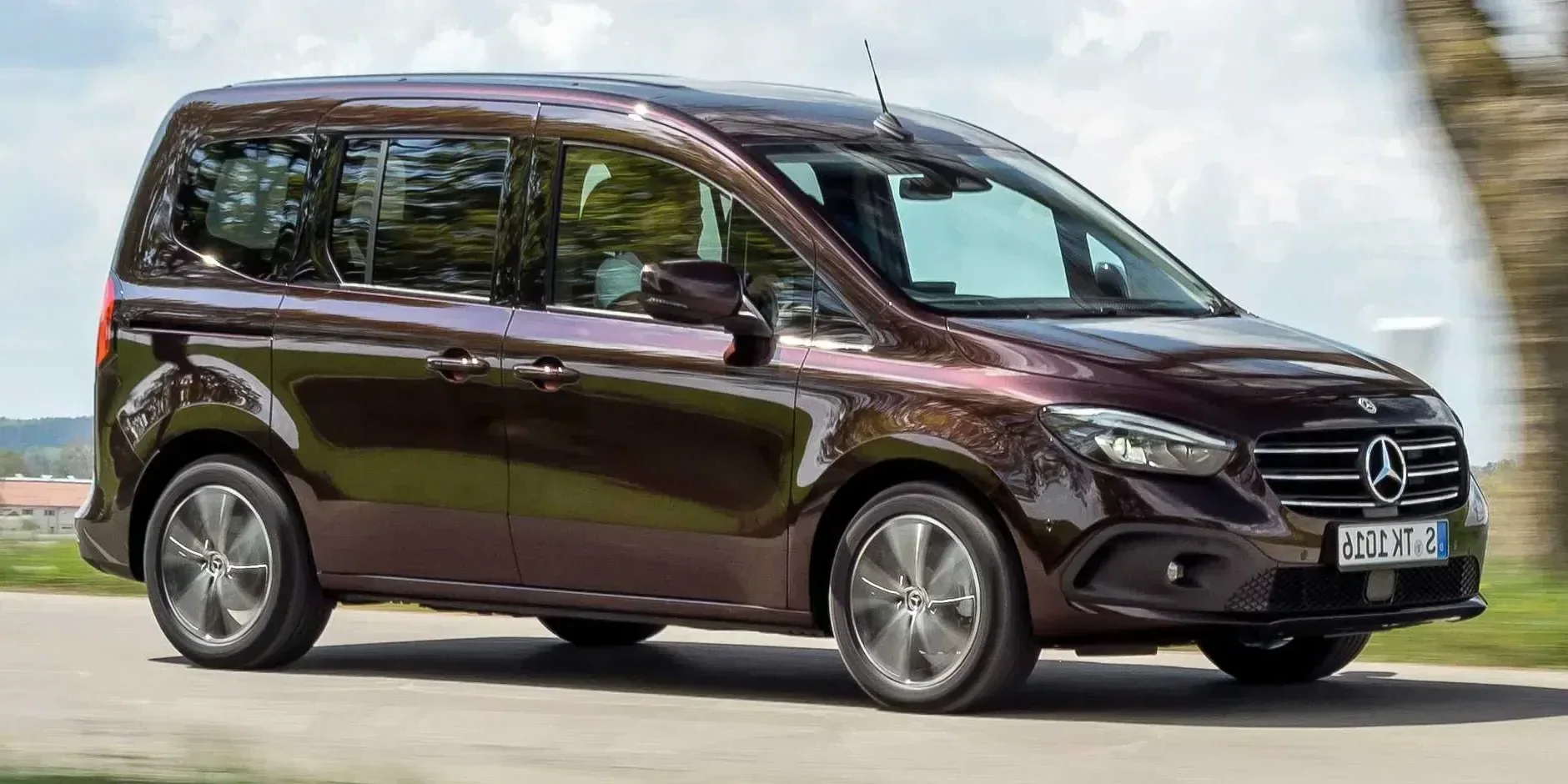

2022 Mercedes-Benz Citan

GermanyDieselFWDMinivan

Photos

Specifications

Vehicle Details

Year
2022
Make
Mercedes-Benz
Model
Citan
Body Style
Minivan
Generation
W420
Seats
5
Doors
5
Fuel
Diesel
Drivetrain
FWD
Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Powertrain

Engine Name
T 180 d
Engine Configuration
Inline
Power (hp)
116 hp
Power (kW)
85 kW
Torque
270 Nm (199 lb-ft)
Top speed
177 km/h (110 mph)
0–60 mph
12.6 seconds (estimated)
0–100 km/h
13.2 seconds
Displacement
1,461 cc

Dimensions

Length
4,498 mm (177.1 in)
Width
1,859 mm (73.2 in)
Height
1,852 mm (72.9 in)
Wheelbase
2,716 mm (106.9 in)
Curb weight
1,696 kg (3,739 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
3,750 rpm
Rev. at Max Torque
1,750 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-30
Semi-synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
5.9 litres
Engine Configuration
Compression Ratio
15.1 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Service Intervals
Oil Change & Engine Filter
30,000 km / 1 years

Transmission & Drivetrain

Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Trailing Arm

Fuel

General
Tank Volume
54 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d
WLTP Consumption
Combined (l/100km)
5.5 – 5.6 - 5.9 litres / 100 km
Emission WLTP
CO₂, Combined
144 – 147 - 154 g/km

Dimensions & Weight

Exterior

Track, Front
1,584 mm (62.4 in)
Track, Rear
1,596 mm (62.8 in)
Turning Circle
11.75 m
Ground Clearance
153 mm (6.0 in)

Weight

Gross Weight
2176 – 2199 kg (4,797 – 4,848 lb)
Cargo Capacity
478 – 480 kg (1,054 – 1,058 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Antenna
Whip
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Daytime Running Light
LED
Fog Lights
Yes
Special Features
Automatic Headlight Activation
Fog Lights
Rear
Yes
Special Features
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic | Semi-Static)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
66.1
Central Bore (CB), rear
66.1
Fastening Type
Lug Bolts
Tightening Torque
110 Nm
Rim Type
Disc Wheel

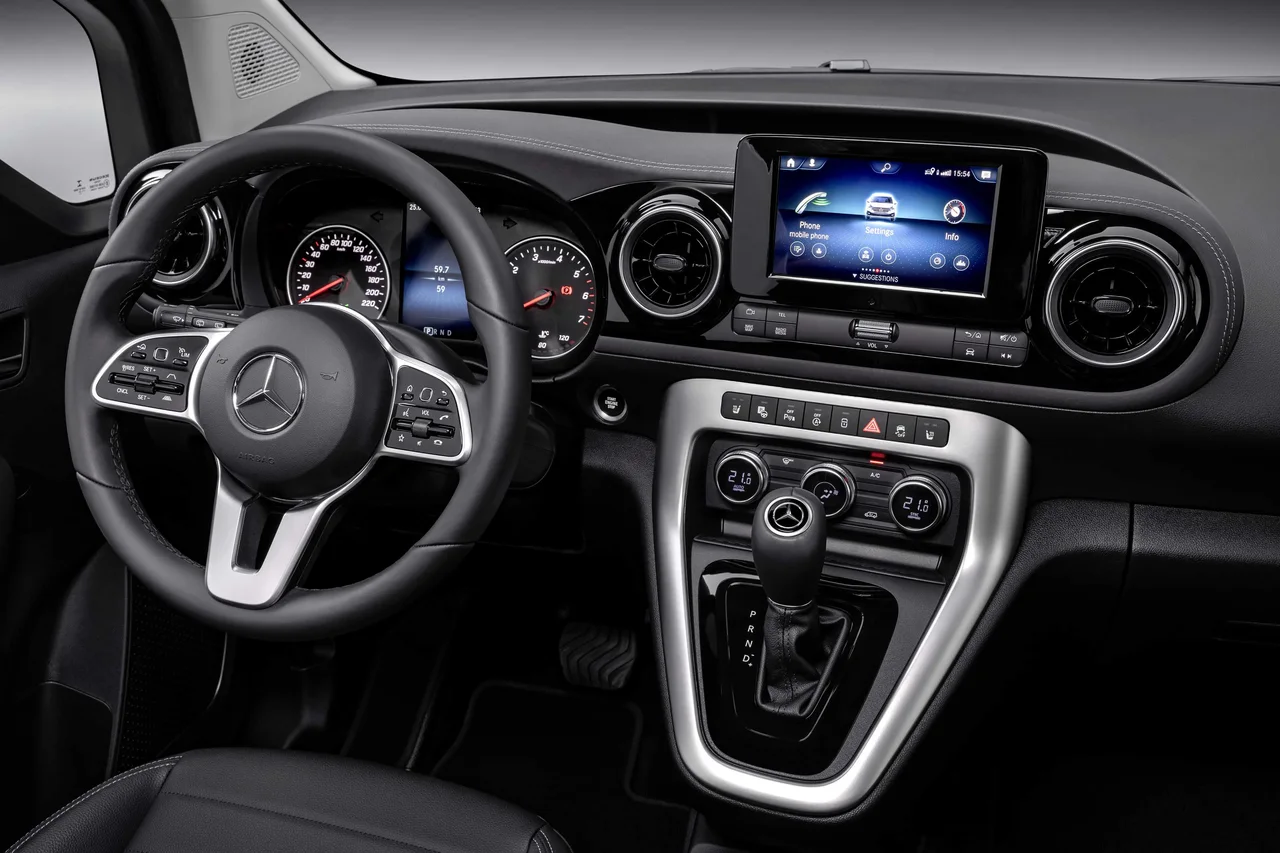

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
Media Inputs
USB
App-Connect
Optional
Bluetooth
Optional
Connectivity › Radio
DAB
Optional
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Bluetooth
Phone
Optional
Audio
Optional
Displays
Center Display
Yes
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Optional
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
Yes
Interior Storage › Cup Holders › Front
Placement
Middle of Media Center
Interior Storage › Cup Holders › Rear
Armrest
Optional
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Bottom of the Doors
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
230V Outlet
Optional
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 230V Outlet
Front
Optional
Rear
Optional
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
  • Leather
  • Plastic
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Cruise Control
Speed Up/Down (Scrolling Wheel)
Media
Yes
Multifunction Steering Wheel › Cruise Control
Activate/Deactivate
Optional
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Volume
Scrolling Wheel
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
520 litres
Volume, Back Seat Collapsed
2,127 litres

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black

Seats

Colour & Material
Upholstery
Textile
Seat Colour
Black
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Parking Heater Preparation
Optional
Cameras
Optional
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Cameras
Rear
Optional
Wireless Phone Charger
Front
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Optional
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Yes
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2022
Adult Occupant
91 %
Child Occupant
93 %
Vulnerable Road Users
69 %
Safety Assist
90 %
Overall
5/5 stars
Adult Occupant
Total Points
34.7 /38
Frontal Impact
14.2 /16
Lateral Impact
15.9 /16
Rear Impact
3.6 /4
Rescue and Extrication
1 /2
Child Occupant
Total Points
45.8 /49
Crash Test Performance
  • 15.8
  • 8 /16
Safety Features
10 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
37.7 /49
Pedestrian
  • 14.5
  • 3.8
  • 6
AEB Vulnerable Road Users
13.5 /18
AEB Pedestrian
6.2 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
7.3 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.4 /3
Speed Assistance (assesment)
Good
Occupant Status Monitoring (points)
3 /3
Occupant Status Monitoring (assesment)
Good
Seat Belt Reminder (points)
2 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
1
Driver Monitoring (assesment)
Good
Lane Support (points)
3.8 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
5.4 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

European Segment
M-Segment
Car.info Classification
Passenger Van

Similar minivans

Suggested vehicles
