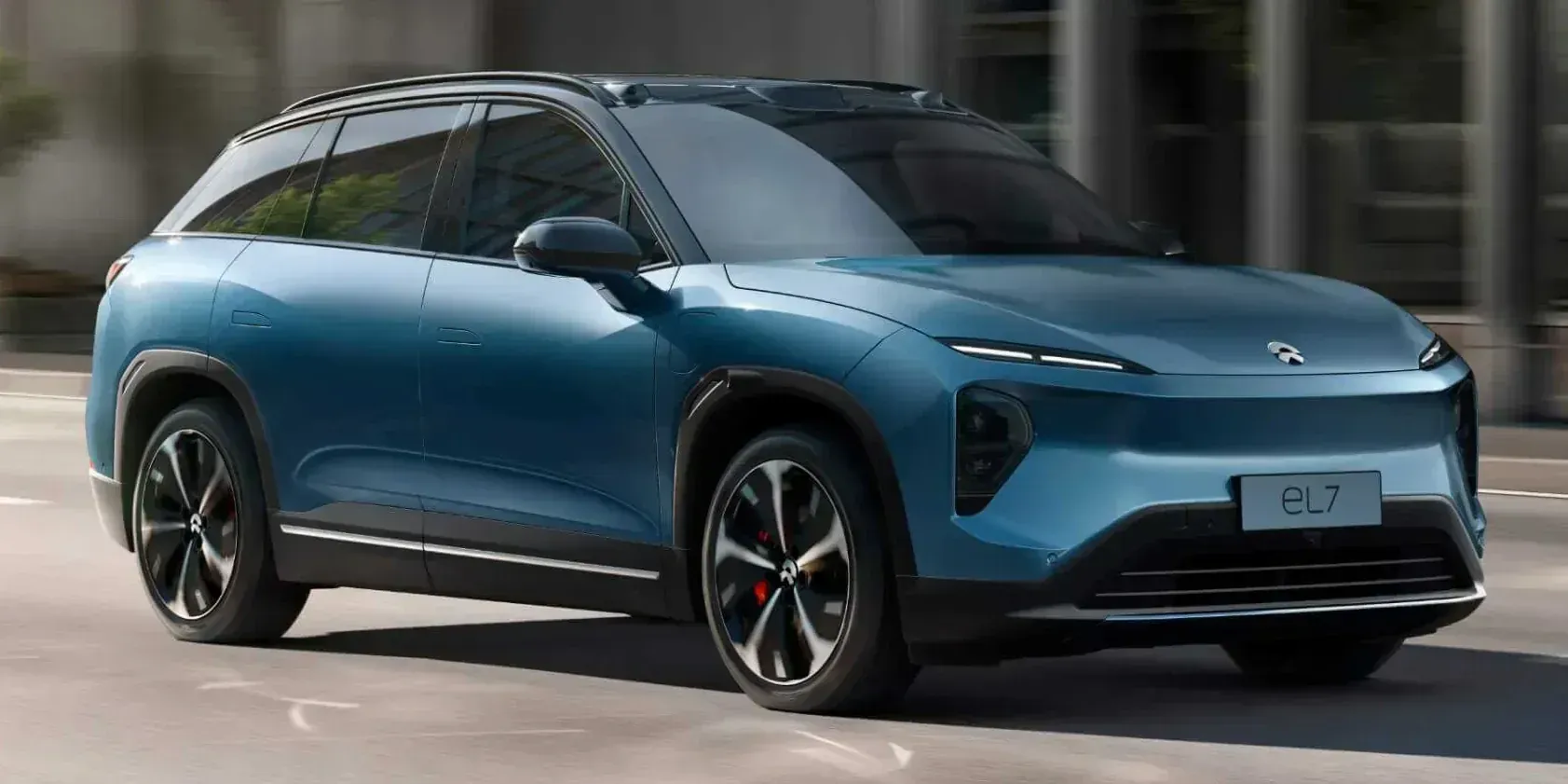

2022 Nio EL7

ChinaElectricIWDSUV

Photos

Specifications

Vehicle Details

Year
2022
Make
Nio
Model
EL7
Body Style
SUV
Generation
1st Generation
Seats
5
Doors
5
Fuel
Electric
Drivetrain
IWD
Transmission
Automatic (Fixed), 1-speed

Powertrain

Engine Name
Long Range Single Speed
Engine Configuration
Electric
Power (hp)
653 hp
Power (kW)
480 kW
Torque
850 Nm (627 lb-ft)
Top speed
200 km/h (124 mph)
0–60 mph
3.7 seconds (estimated)
0–100 km/h
3.9 seconds
Electric range
513 km (319 mi)
Battery
100 kWh

Dimensions

Length
4,912 mm (193.4 in)
Width
2,104 mm (82.8 in)
Height
1,720 mm (67.7 in)
Wheelbase
2,960 mm (116.5 in)
Curb weight
2,381 kg (5,249 lb)

Engine & Performance

Engine

Engine Fluids
Transmission Fluid, Volume
2.6 litres
Engine Coolant, Volume
14.5 litres
Car Battery
Voltage
12 V
Engine Configuration
Type of Electric Car
Electric
Electric Engine Power
480 kW
Electric Engine Horsepower (Metric)
653 hp (644 bhp)
Torque
850 Nm (627 lb-ft)
Front Engines
Yes
Rear Engines
Yes
Battery Capacity, Gross
100 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Charging Plugs
Type 2 (CCS)
Vehicle to Load (V2L)
Yes
Engine Configuration › Front Engines
Power (kW)
180 kW
Horsepower
245 hp
Number of Engines
1
Engine Configuration › Rear Engines
Electric Power (kW)
300 kW
Horsepower
408 hp
Number of Engines
1
Engine Configuration › Charge AC
Charge Time
9.45 h / 585 min
Charge Power
11 kW
Engine Configuration › Charge DC
Charge Time, to 80%
40 min
Charge Power
127 kW
Engine Configuration › Vehicle to Load (V2L)
Vehicle to X (V2X)
Yes
Max Discharge Power
3.3 kW

Transmission & Drivetrain

Transmission
Automatic (Fixed), 1-speed
Gear Selector
Joystick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
Front (4)
Brake Caliper Colour
Black
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated
Brake Caliper Colour
Orange
Optional

Suspensions

Spring, Front
Pneumatic Air
Spring, Rear
Pneumatic Air
Anti-roll Bar
Front
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Independent
Multi-link

Energy & Range

General › Charging Socket Position
Front
Right
Emission
Emission Class
A (+++)
WLTP Consumption
Energy consumption
22.1 - 23.9 kWh/100km
Electric Range
513 km (319 mi)
Fuel Consumption NEDC
Combined
0 litres / 100 km
Energy consumption
17.6 kWh/100km
Electric Range
575 - 620 km (357 - 385 mi)
Emission WLTP
CO₂, Combined
0 g/km

Performance

Braking
100-0 km/h
33.9 m
Drag Coefficient
0.26

Dimensions & Weight

Exterior

Width, with Mirrors
2,271 mm (89.4 in)
Track, Front
1,668 mm (65.7 in)
Track, Rear
1,672 mm (65.8 in)
Overhang, Front
935 mm (36.8 in)
Overhang, Rear
1,017 mm (40.0 in)
Approach Angle
17 °
Departure Angle
22 °
Turning Circle
12.5 m
Ground Clearance
158 mm (6.2 in)

Interior

Head Room (est.), Rear
1,010 - 1,040 mm (39.8 - 40.9 in)
Leg Room (est.), Rear
1,000 - 1,040 mm (39.4 - 40.9 in)

Weight

Gross Weight
2,850 kg (6,283 lb)
Max Trailer Load, braked 12%
2,000 kg (4,409 lb)
Cargo Capacity
450 - 469 kg (992 - 1,034 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
100 kg (220 lb)
Permitted Axle Load, front
1,304 kg (2,875 lb)
Permitted Axle Load, rear
1,546 kg (3,408 lb)
Weight Distribution, front
50 %
Weight Distribution, rear
50 %

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Body Material
  • Aluminium
  • Carbon
  • Steel
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Bottom-Strip
Rear
Bottom-Strip
Sides
Bottom-Strip
Wheel Arches
Yes
Colour
Non-Painted
Doors
Front Doors
Conventional
Rear Doors
Conventional
Soft Close
Yes
Door Handles
Pop-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
Automatic Anti-glare
  • Driver side
  • Passenger side
User Memory
Yes
Heated
Yes
Automatic Tilt Down
Yes
Ground Light
Yes
Turning Signal
Yes
House Colour
Black
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Volume Water Tank
3 litres
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Noise Reducing Windows
  • First Row
  • Second Row
Tinted Windows
  • Second Row
  • Rear Window
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Panoramic (Openable (Electric))
Tow Hook
Front
Roof Railing
Yes
Antenna
Shark Fin
Other Equipment › Sunroof
Material
Glass
Shading
Sun Blind
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Black

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Dynamic Turn Signal
  • Come Home/Leaving Lights
Fog Lights
Front
LED
Rear
LED
Fog Lights › Front
Cornering Lights
Yes
Special Features
Headlight Range Adjustment
Automatic

Colour

Finish
Metallic
Roof Colour
Black

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
64.1
Central Bore (CB), rear
64.1
Fastening Type
Lug Nuts
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Yes
Speedometer
Digital
Instrument Cluster › Trip Computer
Display
10.2"
Instrument Cluster › Trip Computer › Display
Navigation
Yes
Type
Colour
Shape
Cockpit
Instrument Cluster › Head-up Display (HUD)
Navigation
Yes
User Memory
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
3
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Rear
2 pcs
Controls
Touchscreen
Back Seat Controls
Touchscreen
Fragrance System
Optional
Climate Control › Air Condition
Refrigerant
R1234yf
Refrigerant, Capacity
1,000 g
Connectivity › Media Inputs
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
  • Armrest Hatch/Mid-console
  • Rear
Number of Ports
4 pcs
Connectivity
Bluetooth
  • Phone
  • Audio
Cellular Network
5G
WiFi
Yes
Displays
Center Display
12.8"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
23 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Side Mirrors
  • Door Handles
  • Bottom of the Doors
Ambient Light
Yes
Selectable Light Colour
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Material
Textile
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Electric
Adjustments
User Memory
Sport
Yes
Number of Spokes
3
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
Speed Up/Down (Buttons)
Media
Yes
Number of Buttons
10 pcs
Adjustments
Tilt
Powered
Telescope
Powered

Trunk

Rear Trunk
Yes
Automatic Open
  • From Inside Car
  • Key Button
  • Motion Activated
Automatic Close
Yes
Release Button
Yes
Cargo Hooks
Yes
Second Trunk Compartment
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
658 litres
Volume, Back Seat Collapsed
1,880 litres
Depth
970 mm (38.2 in)
Depth, Back Seat Collapsed
1,880 mm (74.0 in)
Width
1,102 mm (43.4 in)
Width, Between Wheel Arches
1,055 mm (41.5 in)
Height
835 mm (32.9 in)
Sill Height
787 mm (31.0 in)

Design

Transmission Knob Material
Plastic
Entry Guard Material
Stainless steel

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats
Number of Driver Seat Adjustments, Powered
14
Number of Driver Seat Adjustments, Total
14
Number of Passenger Seat Adjustments, Powered
14
Number of Passenger Seat Adjustments, Total
14
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Massage
  • Driver
  • Passenger
Ventilated Seats
  • Driver
  • Passenger
Easy Entry
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Headrest, Tilt
Manual
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Power Seat, Passenger
User Memory
Yes
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Second Seat Row
Armrest
Yes
Collapsible
Manual
Features
  • Heated Seats
  • Powered Seats
Adjustments
  • Backrest Angle
  • Lumbar Support, outer seats (Powered)
Number of Seats
3
Type of Seat
Adult
Headrests, Centre Seat, Foldable: Type
Manual
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Remote Engine Start
Yes
Cruise Control
Yes
Autonomous Driving
Optional
Parking Heater
Yes
Cameras
  • Front
  • Sides
  • Rear
Voice Control
  • Climate Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Front
Cruise Control
Adaptive Cruise Control
Queue Assist
Parking Heater
Type
Cabin Heater
Power Source
Battery-operated
Controls
Phone Application
Cameras
360° Camera
Yes
View Location
Center Display

Other Features

GPS
Navigation
Driving Mode Selection
  • Comfort
  • Eco
  • Individual
  • Sand
  • Snow
  • Sport
  • Wet
Smartphone App
Yes
Over-the-Air Updates
Yes
Multifunction Camera
Yes
Sound Generator, External
Yes
GPS
Map-update
Internet

Accessories

Compressor
Yes
Warning Triangle
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Dynamic Torque Vectoring (DTV)
Yes
Forward Collision Warning (FCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Front Cross-Traffic Alert (FCTA)
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Yes
Sign Assist
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes
Active Lane Change
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Yes
Door Open Warning
Yes
Pedestrian/Bicycle Detection
Yes
Obstacle Detection Sensor
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Electrical
Emergency Call
Yes
Type of Keys
  • Keycards (NFC)
  • Smartphone as a Key
Number of Remote Keys
1
Number of Standard Keys
1
Total Number of Keys
2
Key Features
Bluetooth
Speed Sensitive
Yes

Safety Testing

General
Test Year
2023
Adult Occupant
93 %
Child Occupant
85 %
Vulnerable Road Users
80 %
Safety Assist
79 %
Overall
5/5 stars
Adult Occupant
Total Points
37.3 /38
Frontal Impact
13.7 /16
Lateral Impact
16 /16
Rear Impact
3.6 /4
Rescue and Extrication
4 /2
Child Occupant
Total Points
42 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
6 /13
CRS Installation Check
12 /12
Vulnerable Road Users
AEB Pedestrian
7.2 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
7.4 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.3 /3
Speed Assistance (assesment)
Good
Occupant Status Monitoring (points)
2.6 /3
Occupant Status Monitoring (assesment)
Good
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
1.6
Driver Monitoring (assesment)
Good
Lane Support (points)
2.3 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Adequate
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
7.1 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

EV Battery
160,000 km / 8 years

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Right Side Casing of Window
Yes
Passenger Seat
in Front of
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV

Similar suvs

Suggested vehicles
