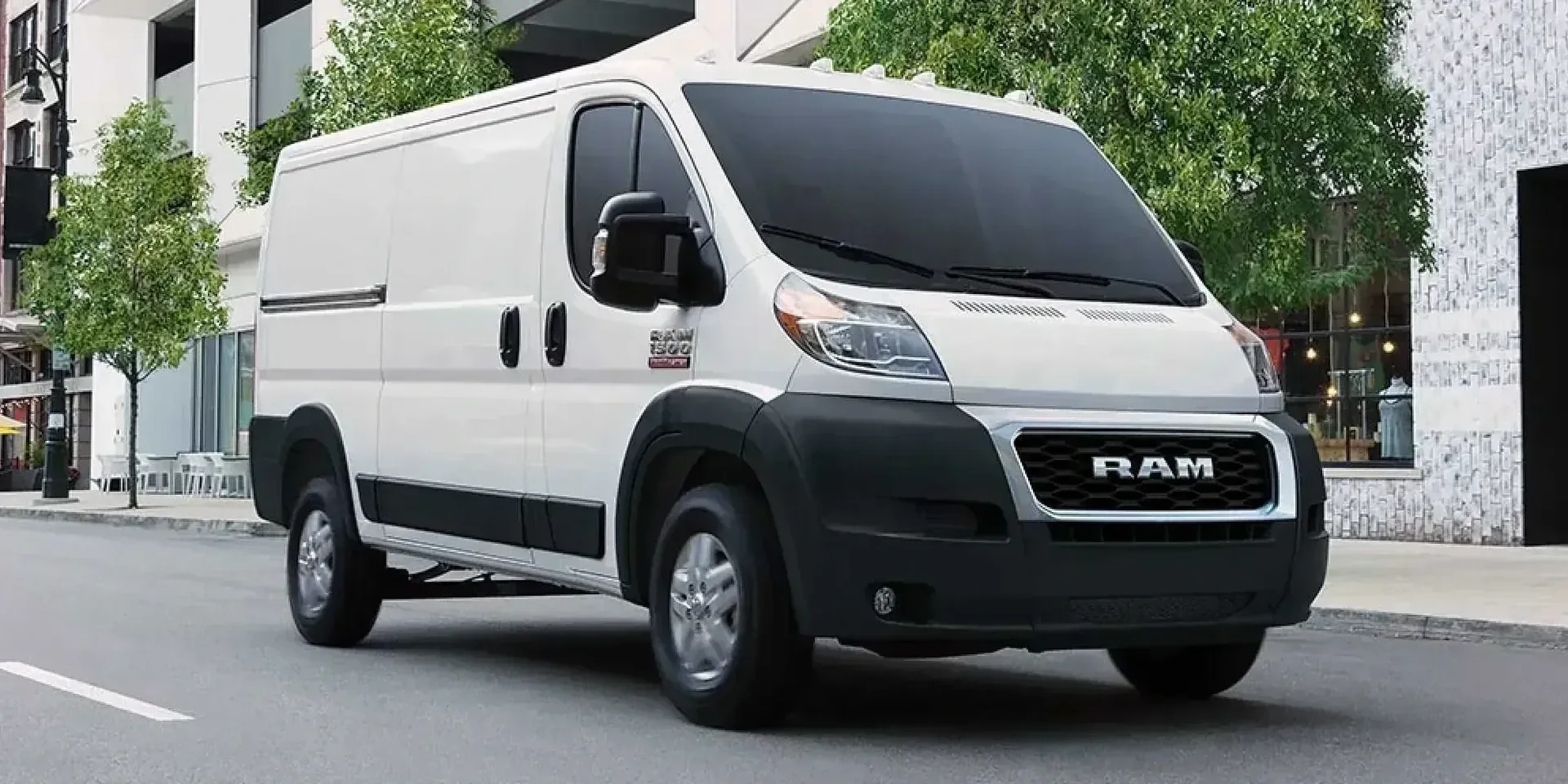

2022 Ram ProMaster

United StatesGasolineFWDLCV

Photos

Specifications

Vehicle Details

Year
2022
Make
Ram
Model
ProMaster
Body Style
LCV
Generation
VF 1st Facelift
Seats
1
Doors
4
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic (Electrohydraulic), 6-speed

Powertrain

Engine Name
3.6 V6 Automatic
Engine Configuration
V
Power (hp)
284 hp
Power (kW)
209 kW
Torque
353 Nm (260 lb-ft)
Displacement
3,604 cc

Dimensions

Width
2,065 mm (81.3 in)
Curb weight
2,066 kg (4,555 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,400 rpm
Rev. at Max Torque
4,175 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-20
Engine Oil, Volume
5.6 litres
Engine Coolant, Volume
10 litres
Engine Fluids › Engine Coolant
OAT
Mopar OEM Coolant (red)
Car Battery
Voltage
12 V
Battery Capacity
95 Ah
Alternator Charge Current
180 - 220 A
Alternator Voltage
14 V
Engine Configuration
Bore
96 mm (3.8 in)
Stroke
83 mm (3.3 in)
Compression Ratio
10.2 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
48,000 km / 3 years
Spark Plug
160,000 km (99,419 mi)
Oil Change & Engine Filter
16,000 km / 1 years
Engine Coolant
240,000 km / 10 years
Transmission, Fluid
96,000 km / 6 years
Transmission, Fluid Filter
96,000 km / 6 years
Interior Filter
32,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 6-speed
Overdrive
Yes
Gear Ratio
1st Gear
3.9 :1
2nd Gear
2.69 :1
3rd Gear
2.16 :1
4th Gear
1.37 :1
5th Gear
0.95 :1
6th Gear
0.65 :1
Final Drive
3.16 :1
Reverse
3.04 :1

Fuel

General
Tank Volume
90 litres
General › Fuel Cap Position
B-Pillar
Left
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
300 mm (11.8 in)
Width
32 mm (1.3 in)
Cooling
Ventilated
Rear Brakes
Diameter
279 mm (11.0 in)
Width
16 mm (0.6 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf (Longitudinal Spring)
Anti-roll Bar
Front
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Dependent
Beam Axle (Dead Axle)

Dimensions & Weight

Exterior

Width, with Mirrors
2,850 mm (112.2 in)

Weight

Max Trailer Load, braked 12%
3,039 kg (6,700 lb)
Max Trailer Load, unbraked
453 kg (999 lb)
Gross Train Weight
5,443 kg (12,000 lb)
Cargo Capacity
1,705 - 1,814 kg (3,759 - 3,999 lb)
Permitted Axle Load, front
2,100 kg (4,630 lb)
Permitted Axle Load, rear
2,400 kg (5,291 lb)

LCV Specific

General
Version
  • L1H1
  • L2H1
  • L2H2
Dimensions › Length
L1
4,963 mm (195.4 in)
L2
5,415 mm (213.2 in)
Dimensions › Height
L1H1
2,329 mm (91.7 in)
Dimensions › Wheel Base
L1
2,997 mm (118.0 in)
Dimensions › Turning Circle
L1
11.06 m
Side Door › Side Door Height
H1
1,486 mm (58.5 in)
H2
1,755 mm (69.1 in)
Side Door › Side Door Width
L1
1,250 mm (49.2 in)
Rear Doors › Rear Doors Height
L1H1
1,519 mm (59.8 in)
L2H1
1,519
H2
1,791 mm (70.5 in)
Rear Doors
Rear Doors Width
1,610 mm (63.4 in)
Cargo Space › Cargo Volume
L1H1
7,340 litres
L2H1
8,600 litres
L2H2
9,993 litres
Cargo Space › Depth
L1
2,619 mm (103.1 in)
L2
3,063 mm (120.6 in)
Cargo Space › Height
H1
1,699 mm (66.9 in)
Cargo Space
Space Width
1,920 mm (75.6 in)
Cargo Space › Space Width, Between Wheel Arches
L1
1,422 mm (56.0 in)
L2
1,422 mm (56.0 in)
Weight
Curb Weight
  • 2066
  • 2115
  • 2171 kg (4,786 lb)
Weight › Gross Weight
L1H1
3,878 kg (8,550 lb)
L2H1
3,878 kg (8,550 lb)
L2H2
3,878 kg (8,550 lb)

Exterior

Chassis & Body

Chassis
Chassis
LCV (Panel Van)
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Heated
Optional
Turning Signal
Yes
House Colour
Non-painted
Mirror Shape, Driver side
  • Flat
  • Spheric
Mirror Shape, Passenger side
  • Flat
  • Spheric
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Optional
Tinted Windows
Optional
Windows › Heated Windows
Rear
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Tow Hook
Front
Antenna
Whip
Air Intakes
1-port
Number of Exhaust Pipes
1
Mud Flaps
Optional
Side Steps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional
Other Equipment › Side Steps
Stationary
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
  • Halogen
  • LED
Fog Lights
Optional
Special Features
Come Home/Leaving Lights

Colour

Non-painted
Bumper (Front | Rear)
Door Handles
Non-painted

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Nut/Bolt Dimensions
M16x1.5
Fastening Type
Lug Nuts
Tightening Torque
197 Nm
Rim Type
Disc Wheel
Spare Wheel
Full-size (Steel)

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Air Condition
Optional
Number of Vents, Front
4 pcs
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Format
MP3
Bluetooth
Phone
Connectivity › Radio
XM
Optional
Connectivity › Media Inputs
AUX
Yes
USB
USB-A
Connectivity › Media Inputs › USB
Number of Ports
2 pcs
Displays
Center Display
5"
Center Display Controls
  • Touchscreen
  • Rotary Dial
Equalizer
Yes
Displays › Center Display
Type
Colour
Displays › Center Display Controls
Buttons
Yes
Displays › Center Display Controls › Buttons
Side of Screen
9 pcs
Speakers
Total Number of Speakers
4 pcs
Rear-view Mirror
Anti-glare
Manual
Interior Storage › Storage Compartments
Glove Compartment
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Total Number of Compartments
8 pcs
Interior Storage › Storage Compartments › Glove Compartment
Lockable
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
  • 3
  • 4
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Other Equipment
Clock
Yes
12V Outlet
Front
Carpets
Optional
Other Equipment › Clock
Digital
Center Display
Other Equipment › 12V Outlet
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Hydraulic
Adjustments
Telescope
Number of Spokes
4
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Media
Yes
Number of Buttons
6 pcs
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Release Button
Yes
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Light
Yes
Hatch Opening Type
Two-parted Doors
Carpet
Rug
Optional

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black
Transmission Knob Material
Plastic
Entry Guard Material
Plastic

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Number of Driver Seat Adjustments, Manual
4 - 6
Number of Driver Seat Adjustments, Powered
4 - 6
Number of Driver Seat Adjustments, Total
4 - 6
Number of Passenger Seat Adjustments, Manual
4 - 6
Number of Passenger Seat Adjustments, Powered
4 - 6
Number of Passenger Seat Adjustments, Total
4 - 6
Heated Seats
Optional
Armrest
Optional
Dual Passenger Seat
Optional
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Heated Seats
Cushion
Optional
Number of Heat Levels
1
Front Seats › Heated Seats › Cushion
Backrest
Optional
Colour & Material
Seat Colour
Black

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Optional
Cruise Control
Optional
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Rear
Voice Control
Phone
Parking Heater
Engine Heater
Optional

Other Features

GPS
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional

Safety & Security

Seat Belt

Emergency Locking Retractor
Yes
Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats
Type of Belt › Three-Point-Belt
Centre Rear Seat
Optional

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Optional
Hill Start Assist (HSA)
Yes
Trailer Stability Assist (TSA)
Yes
Emergency Assist
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Optional
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Emergency Call
Yes
Reversing Alarm
Optional

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Curtain Airbag

Other

Identification

VIN Location
Left Side Casing of Window
Yes
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Cargo Van
British Classification
Van
Australian Classification
Van
European Segment
M-Segment
Car.info Classification
Cargo Van

Similar lcvs

Suggested vehicles
