2022 Toyota Corolla

JapanHybrid GasolineFWDHatchback

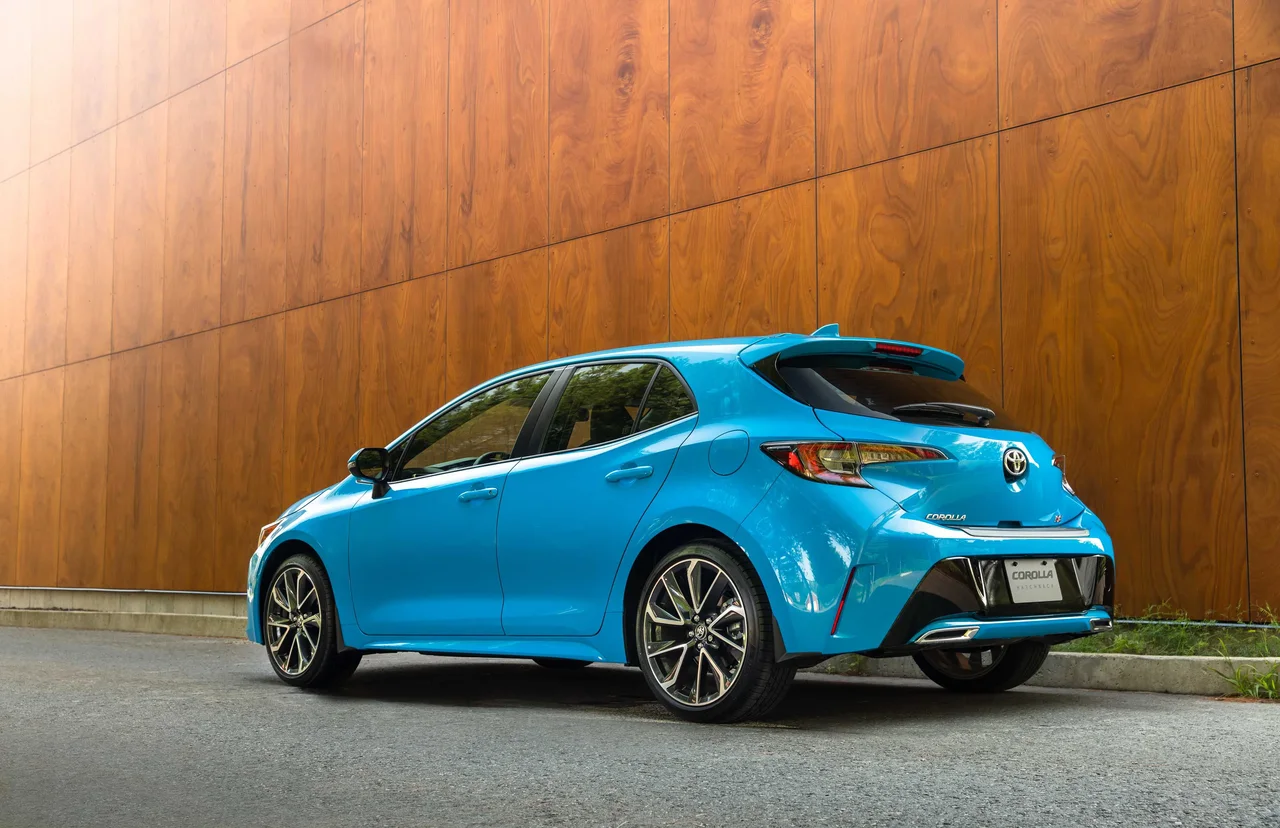

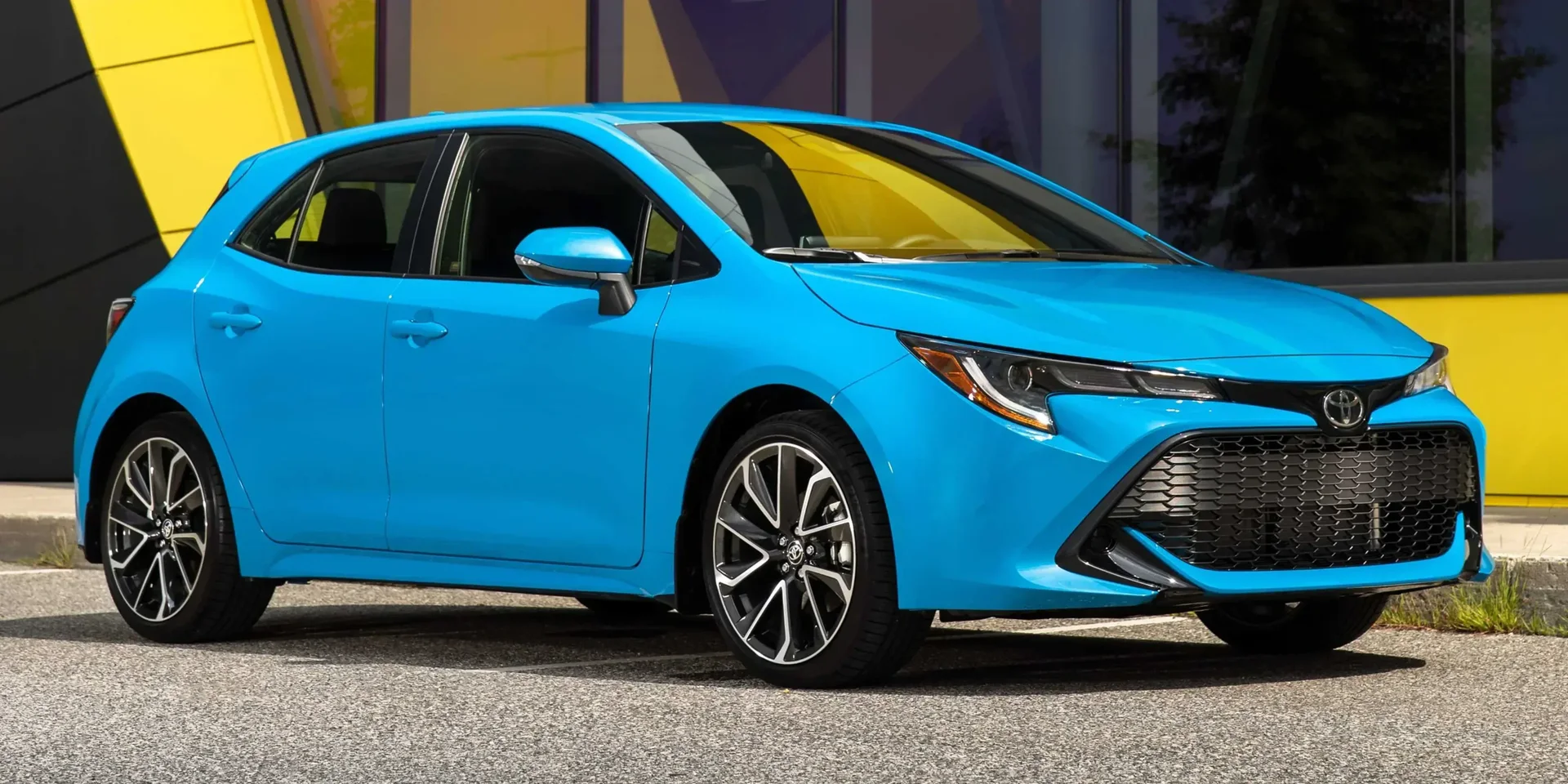

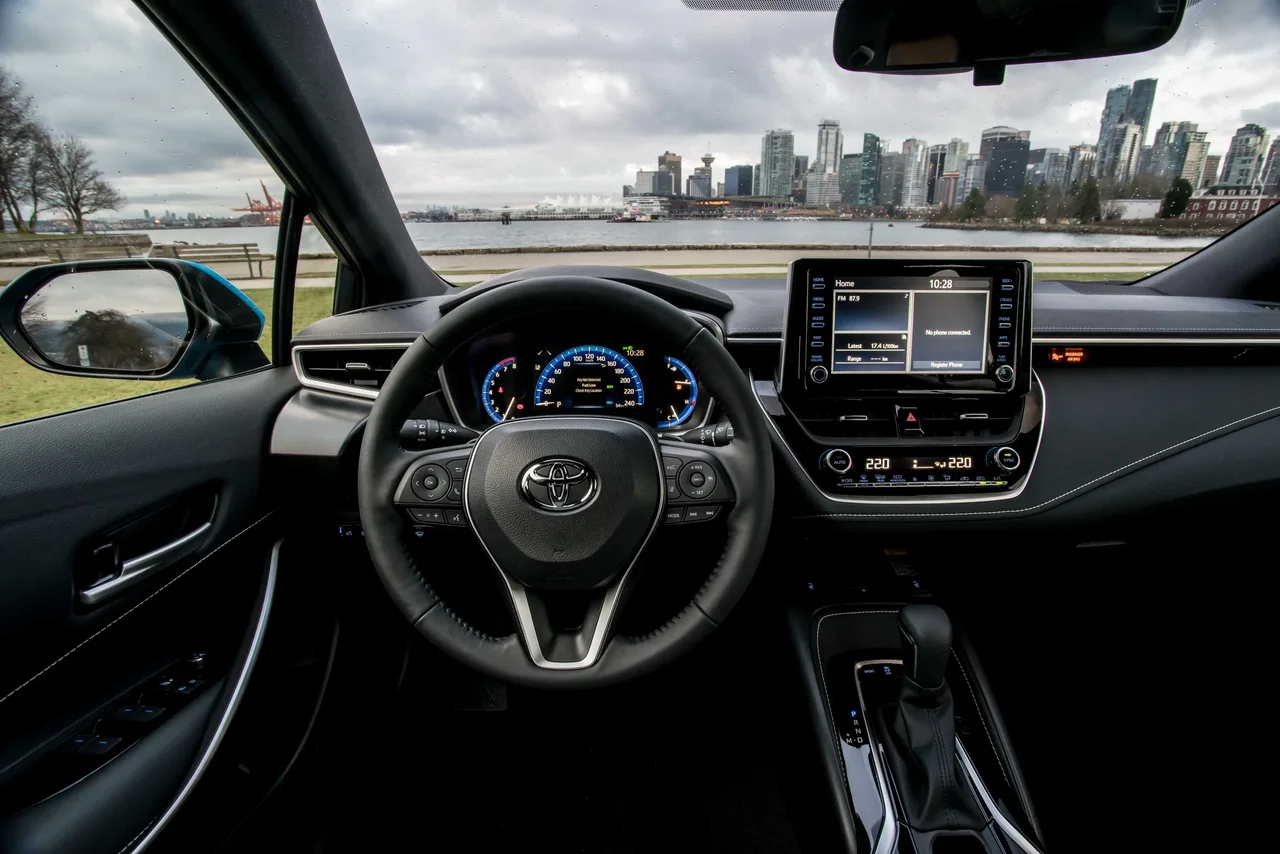

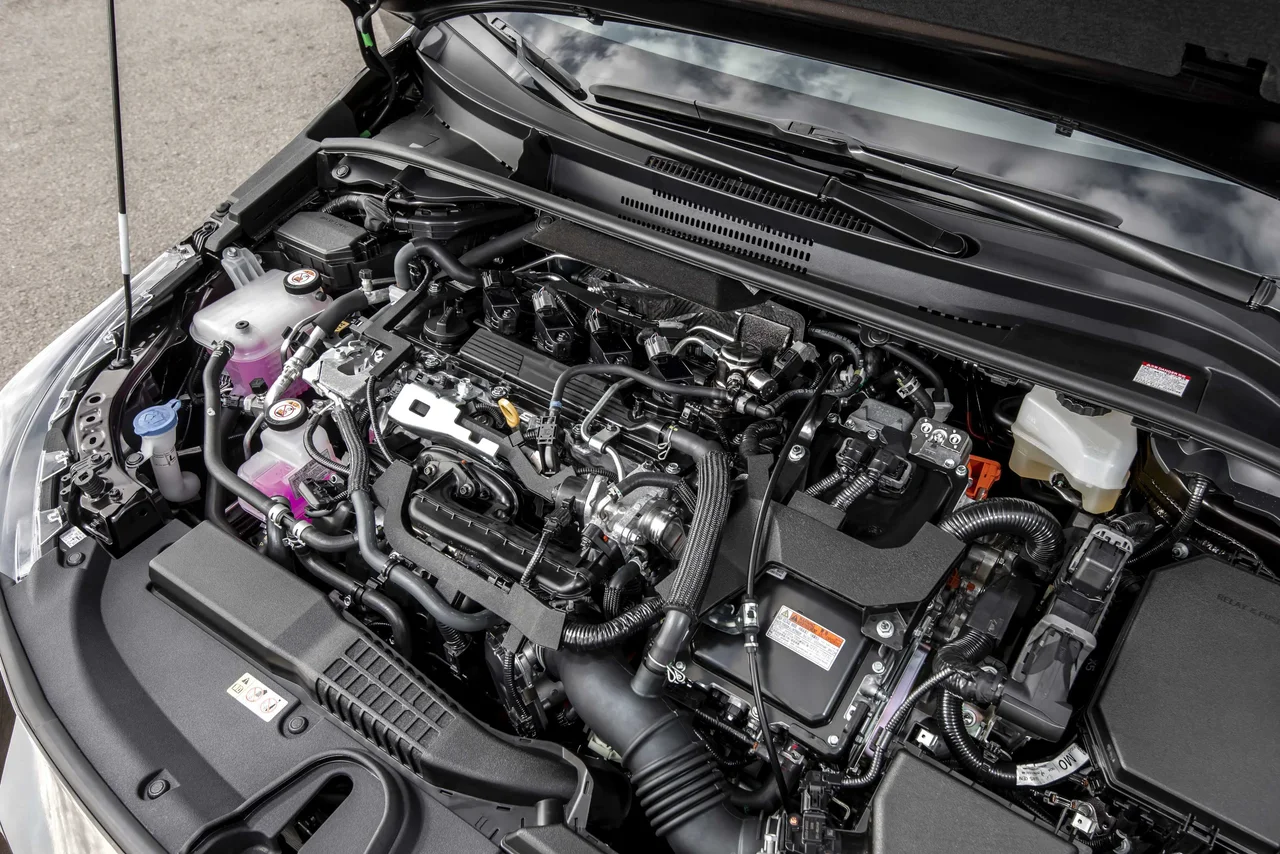

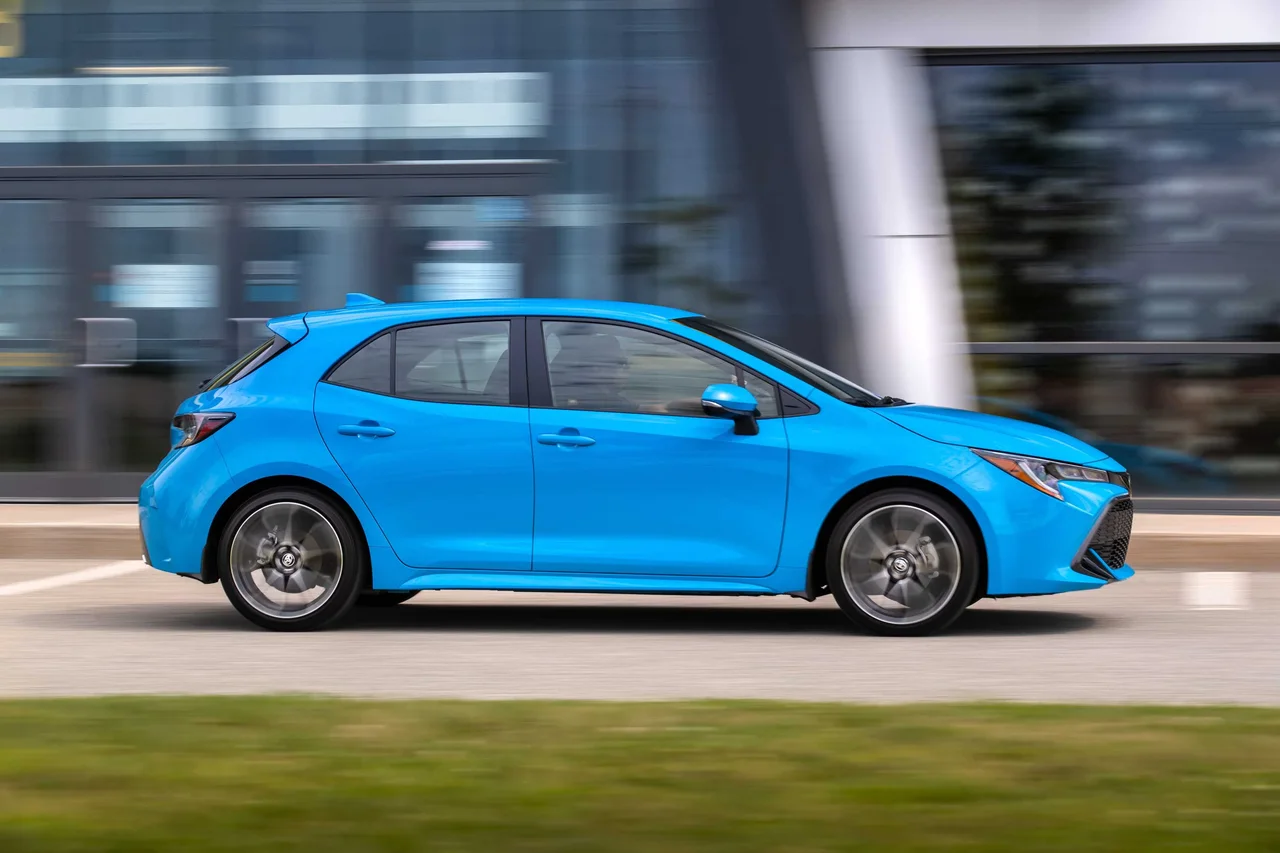

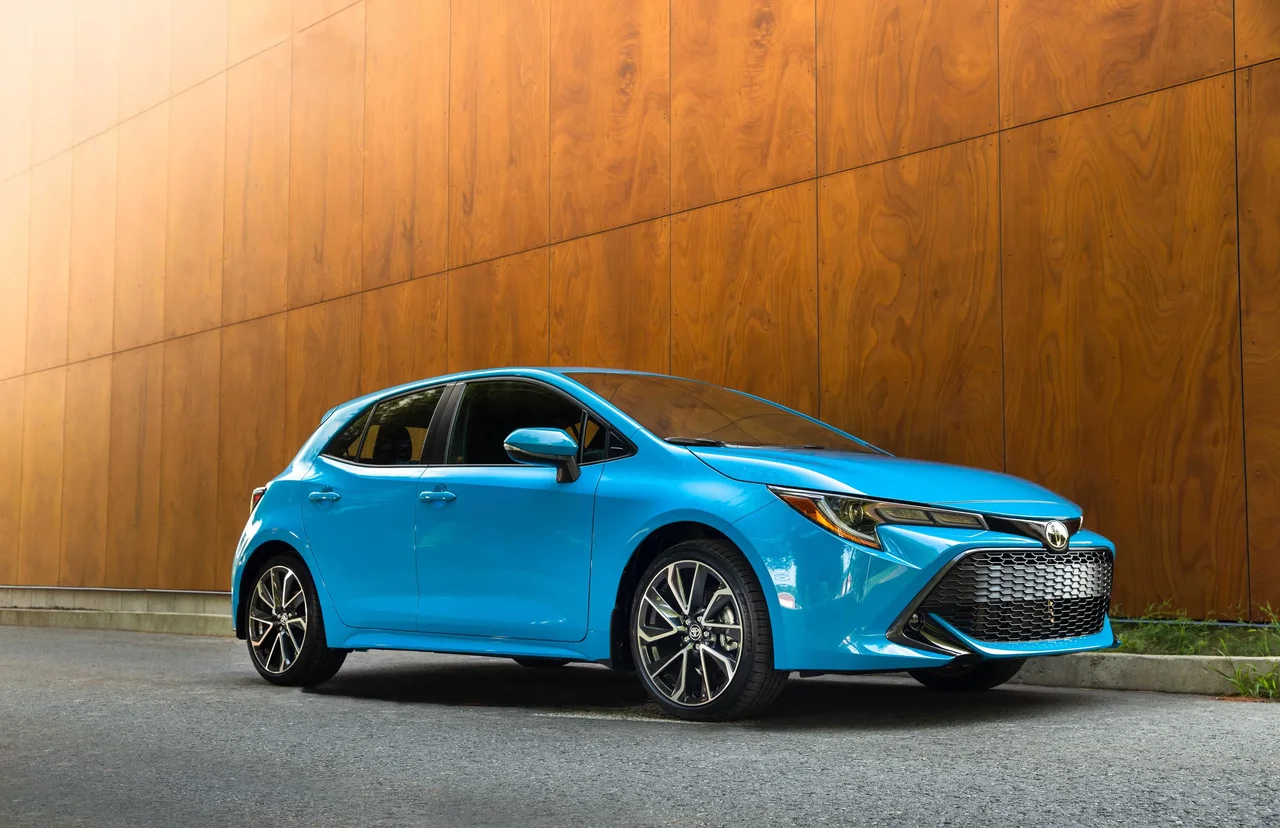

Photos

Specifications

Vehicle Details

Year
2022
Make
Toyota
Model
Corolla
Body Style
Hatchback
Generation
E210
Seats
5
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic (Continuously variable)

Powertrain

Engine Name
Hybrid e-CVT
Engine Configuration
Inline
Power (hp)
122 hp
Power (kW)
90 kW
Torque
142 Nm (105 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
10.4 seconds (estimated)
0–100 km/h
10.9 seconds
Displacement
1,798 cc

Dimensions

Length
4,370 mm (172.0 in)
Width
1,790 mm (70.5 in)
Height
1,435 mm (56.5 in)
Wheelbase
2,640 mm (103.9 in)
Curb weight
1,285 kg (2,833 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,200 rpm
Rev. at Max Torque
3,600 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-16
  • 0W-20
  • 5W-30
  • 10W-30
  • 15W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
  • 15W-40
Engine Oil, Volume
4.3 litres
Configuration Combustion
Bore
80.5 mm (3.2 in)
Stroke
88.3 mm (3.5 in)
Compression Ratio
13 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Configuration Electric
Type of Electric Car
Hybrid
Electric Engine Power
53 kW
Torque
142 Nm (105 lb-ft)
Front Engines
Yes
Configuration Electric › Front Engines
Power (kW)
53 kW
Service Intervals
Oil Change & Engine Filter
15,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Continuously variable)

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
43 litres
Emission
Emission Standard
Euro 6d -ISC-FCM
Emission Class
A
WLTP Consumption
Low (l/100km) (WLTP)
3.9 - 4.5 litres / 100 km
Medium (l/100km)
3.7 - 4.3 litres / 100 km
High (l/100km)
3.9 - 4.5 litres / 100 km
Extra High (l/100km)
5.5 - 6.3 litres / 100 km
Combined (l/100km)
4.5 - 5.1 litres / 100 km
Fuel Consumption NEDC
City
3.2 litres / 100 km
Highway
3.6 litres / 100 km
Combined
3.3 litres / 100 km
Emission WLTP
CO₂, Low
89 - 103 g/km
CO₂, Medium
84 - 98 g/km
CO₂, High
89 - 102 g/km
CO₂, Extra High
125 - 143 g/km
CO₂, Combined
101 - 116 g/km
Emission NEDC
CO₂, Combined
76 g/km

Dimensions & Weight

Exterior

Track, Front
1,531 mm (60.3 in)
Track, Rear
1,544 mm (60.8 in)
Overhang, Front
935 mm (36.8 in)
Overhang, Rear
795 mm (31.3 in)
Turning Circle
10.4 - 10.8 m
Ground Clearance
135 mm (5.3 in)

Interior

Head Room, Front
975 mm (38.4 in)
Head Room, Rear
940 mm (37.0 in)
Leg Room, Front
1,067 mm (42.0 in)
Leg Room, Rear
736 mm (29.0 in)
Hip Room, Front
1,346 mm (53.0 in)
Hip Room, Rear
1,143 mm (45.0 in)
Shoulder Room, Front
1,346 mm (53.0 in)
Shoulder Room, Rear
1,371 mm (54.0 in)

Weight

Gross Weight
1,820 kg (4,012 lb)
Max Trailer Load, braked 12%
750 kg (1,653 lb)
Max Trailer Load, braked 8%
750 kg (1,653 lb)
Max Trailer Load, unbraked
450 kg (992 lb)
Cargo Capacity
420 - 535 kg (926 - 1,179 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Toyota Platform
TNGA Platform (TNGA-C)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
House Colour
Same as Car
Windscreen Wipers
Rear Wiper
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
Optional
Tinted Windows
Optional
Windows › Heat-Insulating Windows
Second Row
Optional
Rear
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Spoiler
Yes

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Main Beam Assist
  • Come Home/Leaving Lights
Fog Lights
Front
Yes
Special Features
Headlight Range Adjustment
Manual

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Yes
Tightening Torque
103 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Speedometer
Digital
Tachometer
Digital
Climate Control
Air Condition
Yes
Climate Control › Air Condition
Refrigerant
R134A
Connectivity
Radio
  • AM
  • FM
Media Format
  • CD
  • MP3
Media Inputs
USB
Bluetooth
Phone
Speakers
Total Number of Speakers
4 - 8 pcs
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Interior Storage
Cup Holders
Yes
Phone/Tablet Holder
Optional
Interior Storage › Cup Holders
Front
Yes
Lights
Read Light
  • Front
  • Rear
Guide Light
Yes
Other Equipment
Make-up Mirror
Passenger Side
Clock
Digital
12V Outlet
Front
Carpets
Optional
Ashtray
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Adjustments
  • Tilt
  • Telescope
Colour
Black
Steering Mechanism
Rack and Pinion
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
Yes

Trunk

Rear Trunk
Yes
Cover
Yes
Barrier Net/Grid
Yes
Cargo Hooks
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
361 litres
Volume, Back Seat Collapsed
1,024 litres
Depth
1,050 mm (41.3 in)
Depth, Back Seat Collapsed
1,795 mm (70.7 in)
Width
1,395 mm (54.9 in)

Design

Accent
Chrome
Colour
Silver

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional

Features

Comfort Features

Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • EcoPlus
  • Normal
  • Sport
  • Auto
Dynamic Chassis Control (DCC)
Optional
Horn
Dual Note

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Forward Collision Warning (FCW)
Yes
Rear Collision Warning (RCW)
Optional
Front Cross-Traffic Alert (FCTA)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Traffic Light Recognition
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes
Inter-urban
Yes

Sensors

Parking Sensors
Optional
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Yes
Obstacle Detection Sensor
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
95 %
Child Occupant
84 %
Vulnerable Road Users
86 %
Safety Assist
77 %
Overall
5/5 stars
Adult Occupant
Total Points
36.1 /38
Frontal Impact
14.6 /16
Lateral Impact
16 /16
Rear Impact
1.6 /4
Child Occupant
Total Points
41.6 /49
Crash Test Performance
  • 15.6
  • 8 /16
Safety Features
6 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
41.4 /49
Pedestrian
  • 18.1
  • 6
  • 6
AEB Vulnerable Road Users
11.3 /18
AEB Pedestrian
6 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
5.3 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.4 /3
Speed Assistance (assesment)
Good
Seat Belt Reminder (points)
2 /2
Seat Belt Reminder (assesment)
Good
Lane Support (points)
2.3 /4
Lane Support (assesment)
Adequate
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Adequate
IIHS
Test Year
2019
Award
Top Safety Pick
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Latch Ease of Use
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
Passenger Seat
in Front of

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car

Spare Parts BETA

Bulb Types
Positioning-/Parking Lights, Front Side
W2.1×9.5d (W5W)
Rear/Brake Light
W3×16d (W21W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Side
W2.1×9.5d (W5W)
Turn Indicators, Rear
WX3×16d (WY21W)
Trunk
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)

ACRISS

Type
4-5 Doors (D)

Similar hatchbacks

Suggested vehicles
