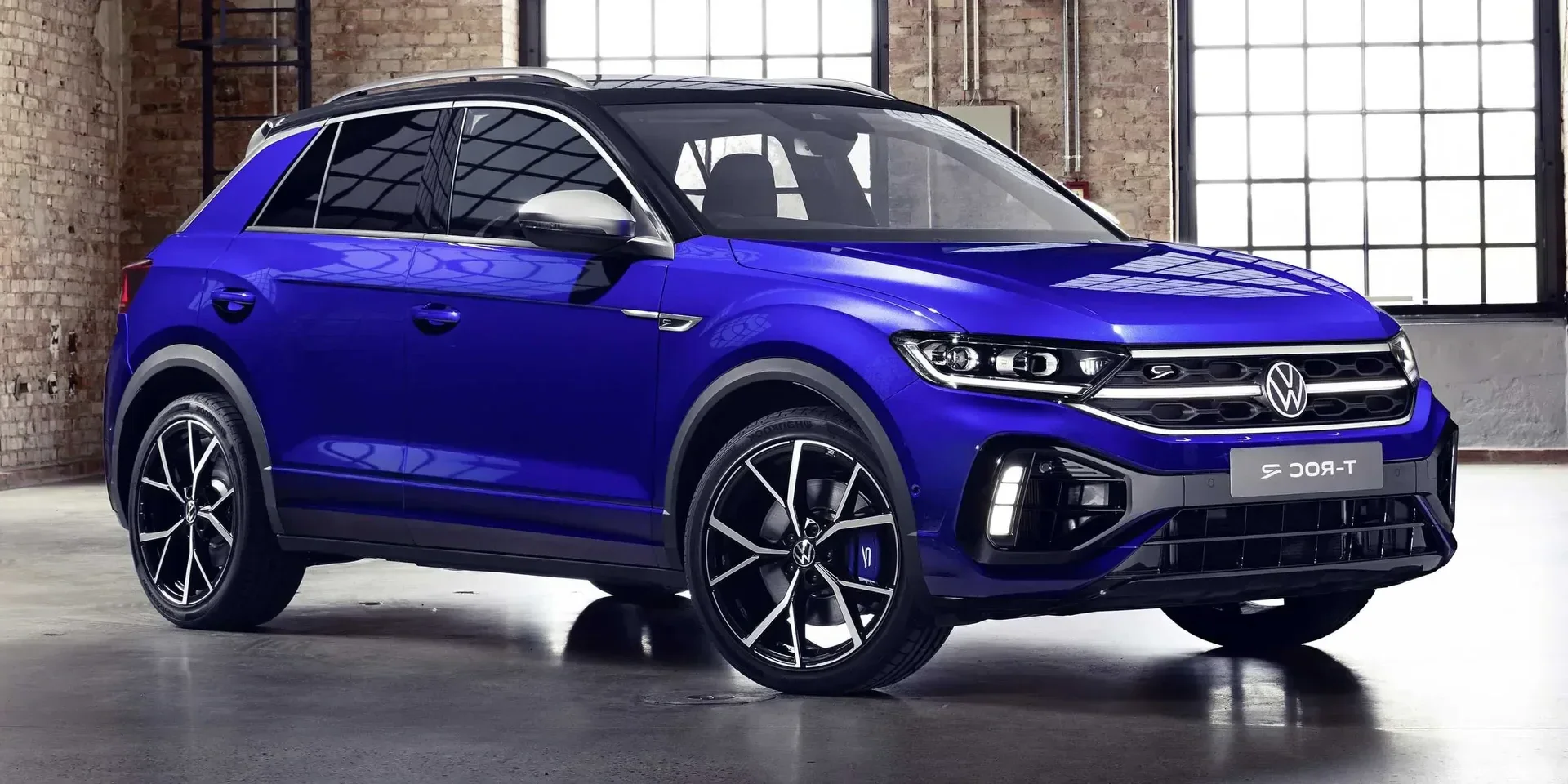

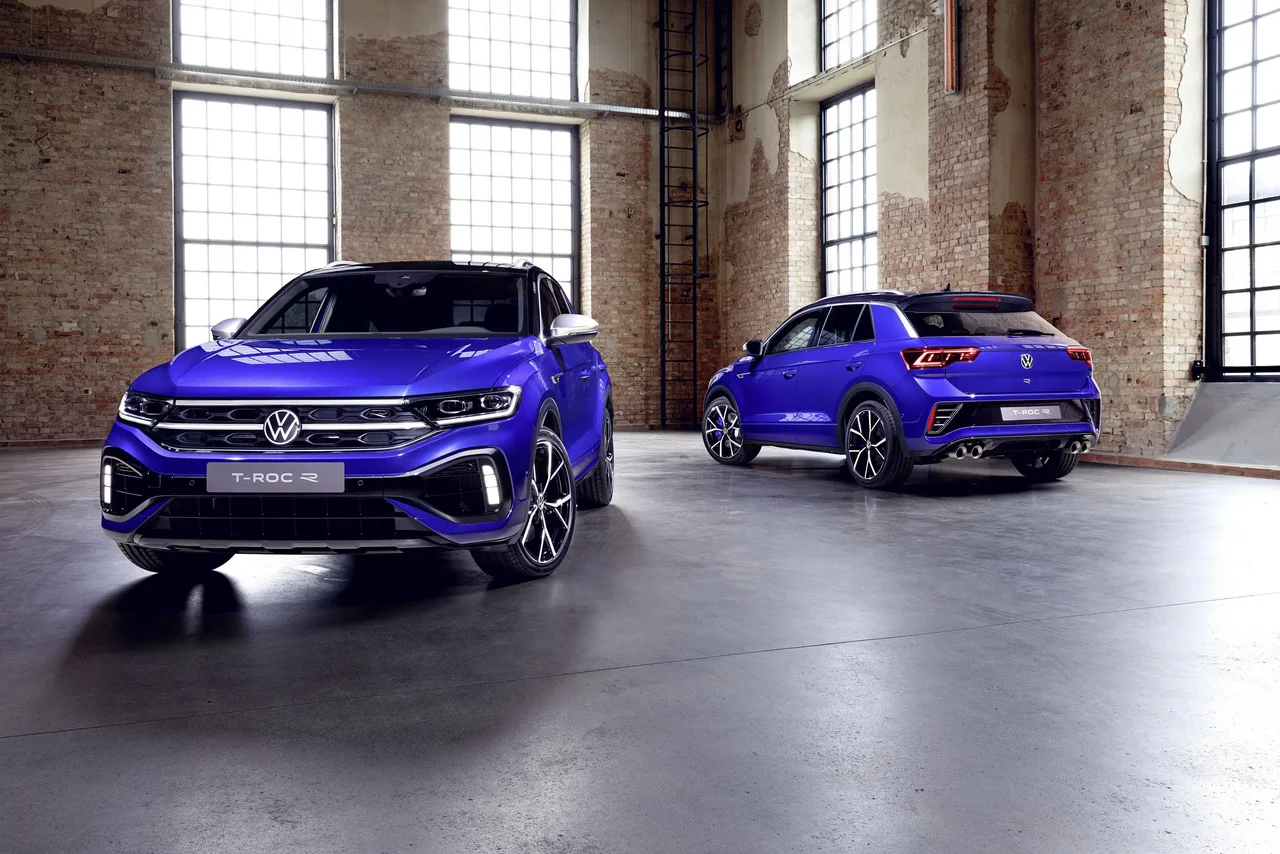

2022 Volkswagen T-Roc R

GermanyGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2022
Make
Volkswagen
Model
T-Roc
Variant
R
Body Style
SUV
Generation
Type D1
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
R DSG Sequential
Engine Configuration
Inline
Power (hp)
300 hp
Power (kW)
221 kW
Torque
400 Nm (295 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.7 seconds (estimated)
0–100 km/h
4.9 seconds
Displacement
1,984 cc

Dimensions

Length
4,236 mm (166.8 in)
Width
1,819 mm (71.6 in)
Height
1,559 mm (61.4 in)
Wheelbase
2,594 mm (102.1 in)
Curb weight
1,568 kg (3,457 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,300 - 6,600 rpm
Rev. at Max Torque
2,000 - 5,200 rpm
Engine Fluids
Engine Oil, Volume
5.7 litres
Engine Configuration
Bore
82.5 mm (3.2 in)
Stroke
92.8 mm (3.7 in)
Compression Ratio
9.3 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
90,000 km / 6 years
Spark Plug
60,000 km / 4 years
Brake Fluid
2 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
60,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Brakes Material
Steel
Brake Caliper Colour
Blue
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
55 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d -ISC-FCM
Emission Control
  • Catalyst
  • Particle Filter
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
WLTP Consumption
Low (l/100km) (WLTP)
11.9 litres / 100 km
Medium (l/100km)
8.3 litres / 100 km
High (l/100km)
7.3 litres / 100 km
Extra High (l/100km)
8.5 litres / 100 km
Combined (l/100km)
8.5 litres / 100 km
Fuel Consumption NEDC
City
9.3 litres / 100 km
Highway
6.8 litres / 100 km
Combined
7.8 litres / 100 km
Emission WLTP
CO₂, Combined
194 g/km
Emission NEDC
CO₂, Combined
194 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
1,992 mm (78.4 in)
Track, Front
1,541 - 1,549 mm (60.7 - 61.0 in)
Track, Rear
1,550 - 1,558 mm (61.0 - 61.3 in)
Approach Angle
16 °
Breakover Angle
13.9
Departure Angle
17.1 °
Turning Circle
11 - 11.3 m
Ground Clearance
161 mm (6.3 in)

Interior

Head Room, Front
993 - 1,042 mm (39.1 - 41.0 in)
Head Room, Rear
961 - 982 mm (37.8 - 38.7 in)
Shoulder Room, Front
1,471 mm (57.9 in)
Shoulder Room, Rear
1,474 mm (58.0 in)

Weight

Gross Weight
2,060 kg (4,542 lb)
Max Trailer Load, braked 12%
1,700 kg (3,748 lb)
Max Trailer Load, braked 8%
1,900 kg (4,189 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
482 - 492 kg (1,063 - 1,085 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
80 kg (176 lb)
Permitted Axle Load, front
1,090 kg (2,403 lb)
Permitted Axle Load, rear
1,020 kg (2,249 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volkswagen Group
MQB A1

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
User Memory
Yes
Heated
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Convex
Windscreen Wipers
Heated Washer Nozzles
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
  • Second Row
  • Rear Window
Safety Glass
Yes
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Roof Railing
Yes
Spoiler
Fixed
Antenna
Shark Fin
Other Equipment › Roof Railing
Roof Railing Type
Raised Rails (Open Rails)

Lights

Main Beam
LED
Low Beam
LED

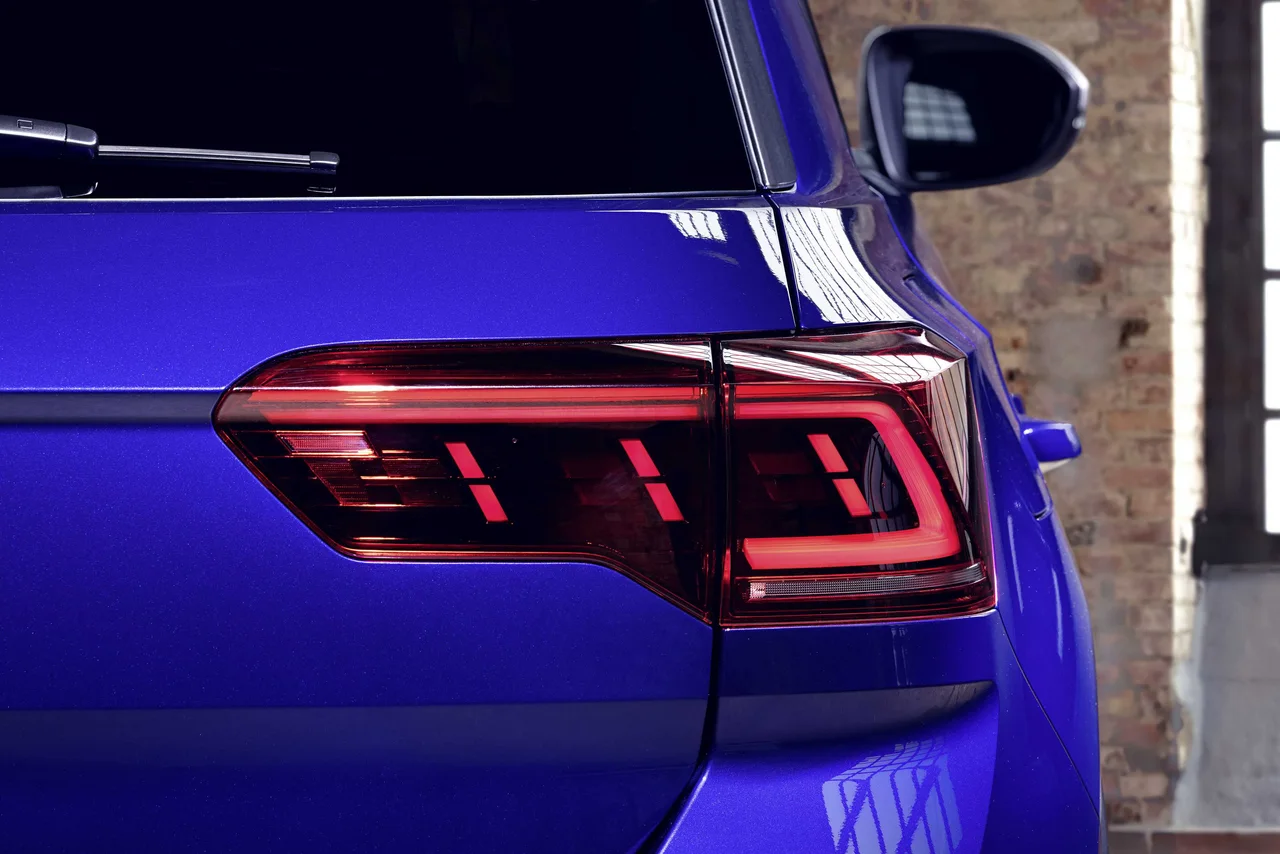

Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Come Home/Leaving Lights
Fog Lights
Front
LED
Fog Lights › Front
Cornering Lights
Yes
Special Features
Headlight Range Adjustment
Automatic (Dynamic)

Colour

Door Handles
Same as Car

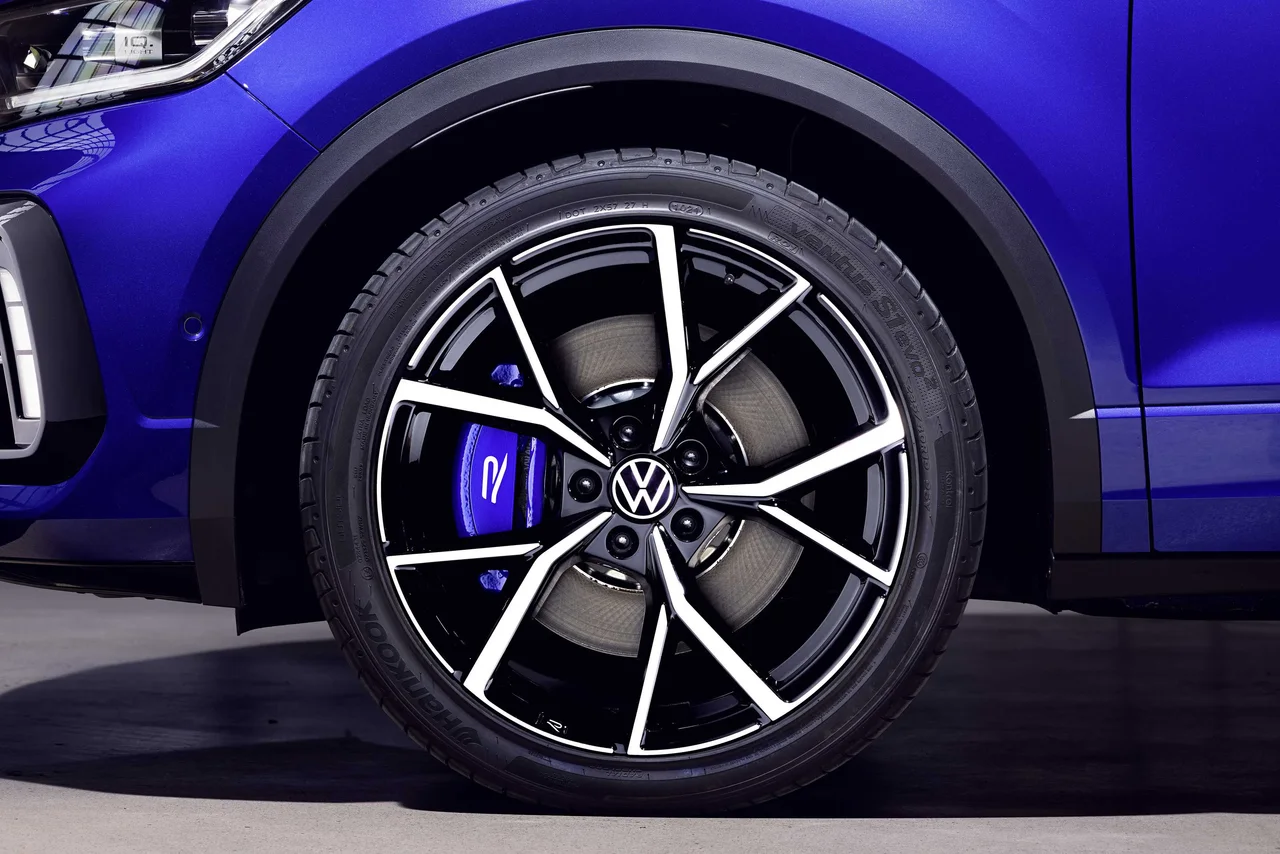

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Indirect
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Central Bore (CB), rear
57.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
120 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

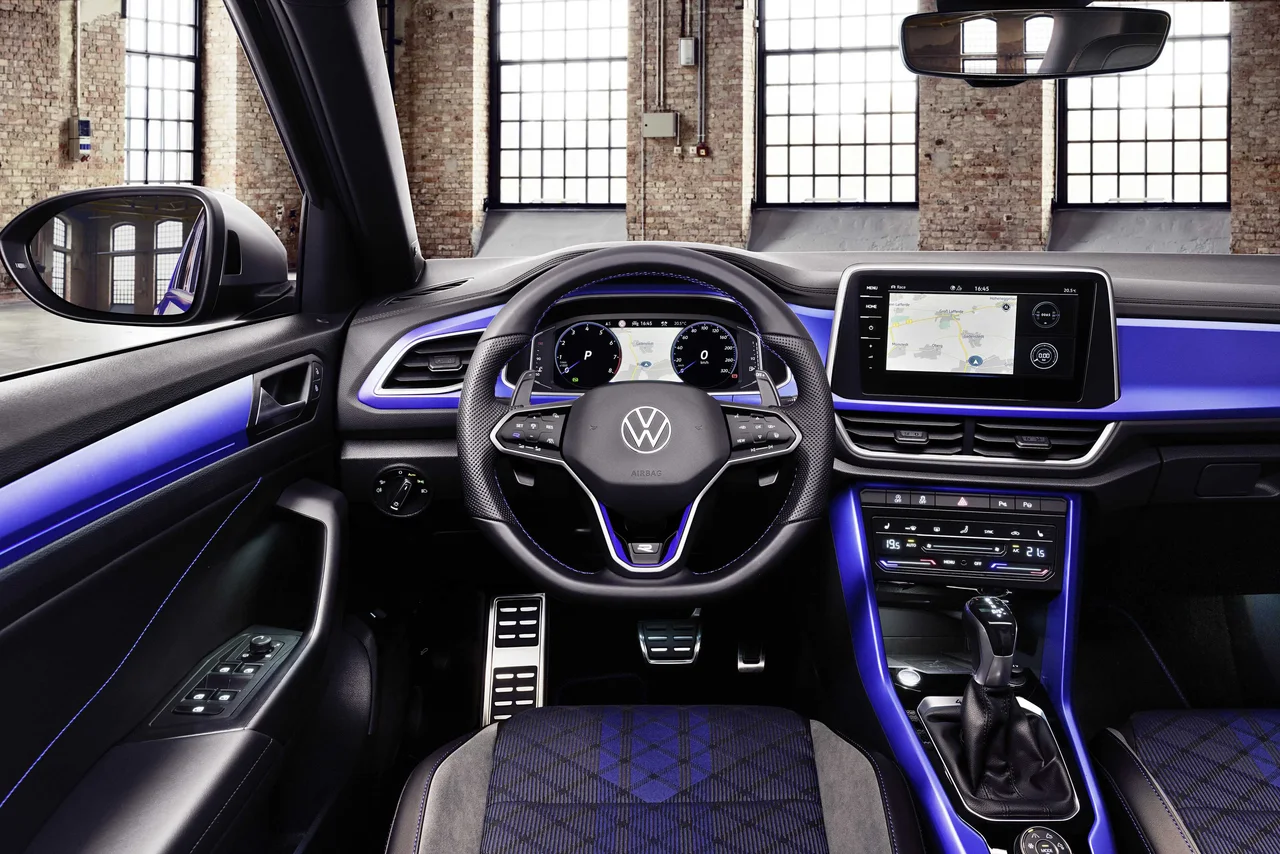

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Oil Temperature
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
10.25"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • DAB+
Media Format
  • MP3
  • WMA
App-Connect
  • Android Auto
  • Apple CarPlay (Wireless)
  • MirrorLink
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
Front
Rear
Optional
Connectivity › Cellular Network
5G
Optional
Connectivity › Cellular Network › 5G
4G
Optional
3G
Optional
Displays
Center Display
8"
Center Display Controls
  • Touchscreen
  • Buttons
  • Rotary Dial
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
6 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable
Armrest Hatch
Front
Back Pocket
Yes
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
Ambient Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Material
Textile
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Channels
Yes
Volume
Buttons

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
445 litres
Volume, Back Seat Collapsed
1,290 litres
Depth
830 mm (32.7 in)
Depth, Back Seat Collapsed
1,532 mm (60.3 in)
Width
1,127 mm (44.4 in)
Width, Between Wheel Arches
1,011 mm (39.8 in)
Trunk Door Opening Height
2,089 mm (82.2 in)

Design

Interior Decor Colour
Black
Transmission Knob Material
Leather
Pedals
Stainless Steel
Colour
Black

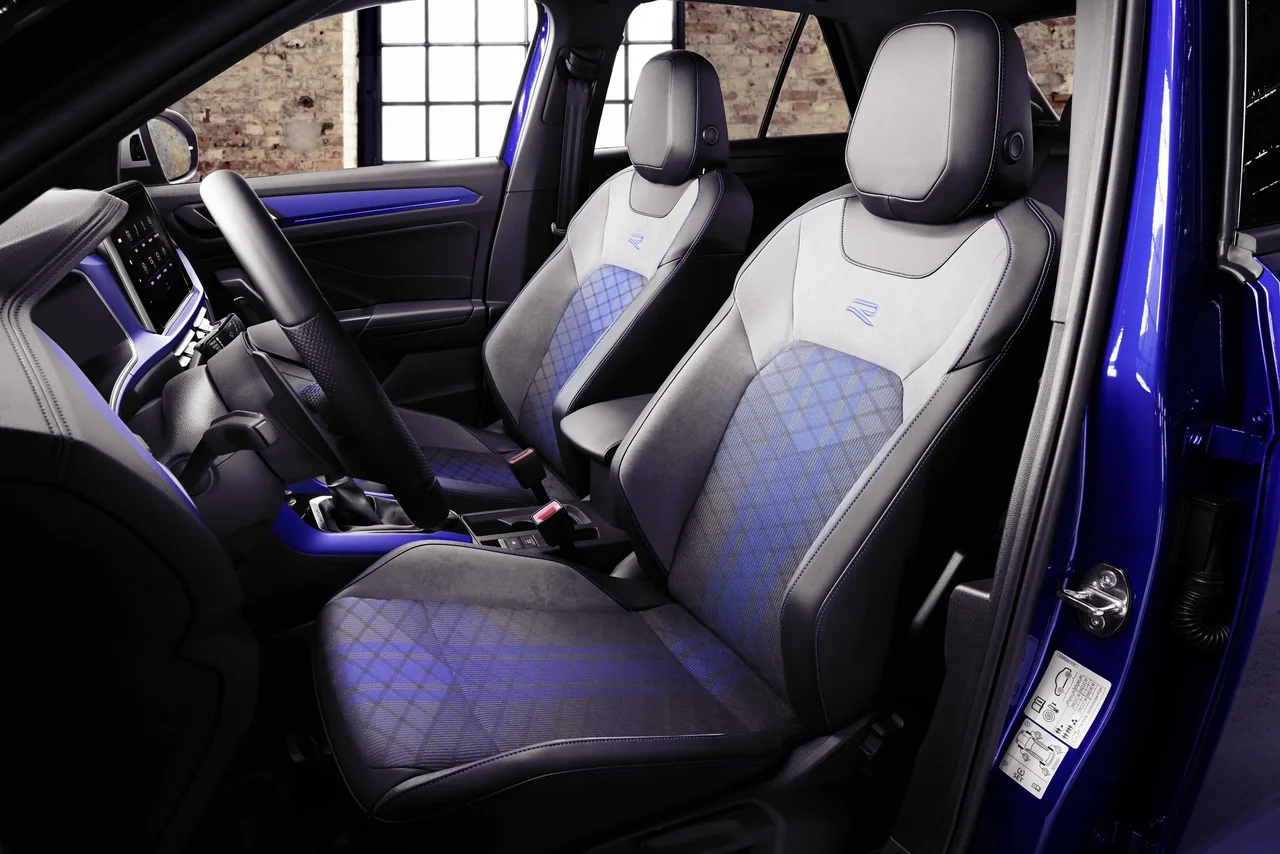

Seats

Colour & Material
Stitching Colour
Blue
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Lumbar Support
Powered
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Lumbar Support
Powered
Headrest, Height
Manual
Collapsible
Yes
Front Seats
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Type of Seat
Sport Seats
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Cruise Control
Yes

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
  • Eco
  • Individual
  • Normal
  • Race
Horn
Single Note
GPS
Map-update
  • Internet
  • USB

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Yes
Sign Assist
Optional
Trailer Assist
Yes
Trailer Stability Assist (TSA)
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Optional
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Central Locking
Remote
Emergency Call
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2017
Adult Occupant
96 %
Child Occupant
87 %
Vulnerable Road Users
79 %
Safety Assist
71 %
Overall
5/5 stars
Adult Occupant
Total Points
36.6 /38
Frontal Impact
15.2 /16
Lateral Impact
16 /16
Rear Impact
2.4 /4
Child Occupant
Total Points
43 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
33.5 /49
Pedestrian
  • 17.3
  • 4.4
  • 6
AEB Pedestrian
5.8 /9
Safety Assist
Lane Support (points)
2.7 /4

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Paintwork
3 years
Rust Damage
12 years

Identification

VIN Location
Engine Compartment, Bulkhead
Yes
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Subcompact SUV
European Segment
  • J-Segment JB-Segment
  • JC-Segment
Car.info Classification
Small SUV

Similar suvs

Suggested vehicles
