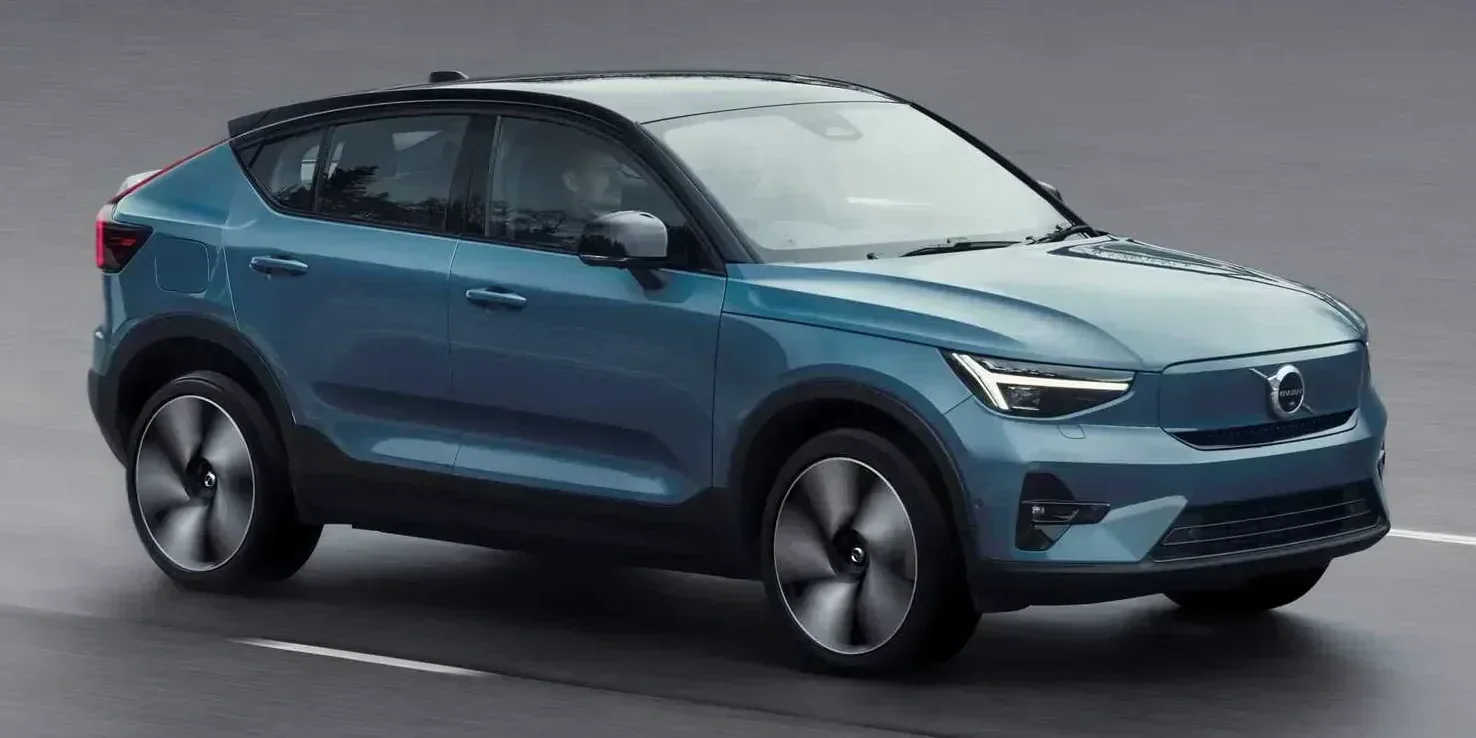

2022 Volvo EC40

SwedenElectricAWDSUV

Photos

Specifications

Vehicle Details

Year
2022
Make
Volvo
Model
EC40
Body Style
SUV
Generation
1st Generation (XK)
Seats
5
Doors
5
Fuel
Electric
Drivetrain
AWD
Transmission
Automatic (Fixed)

Powertrain

Engine Name
Recharge Twin Single Speed
Engine Configuration
Electric
Power (hp)
408 hp
Power (kW)
300 kW
Torque
660 Nm (487 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
4.5 seconds
0–100 km/h
4.7 seconds
Electric range
415 km (258 mi)
Battery
78 kWh

Dimensions

Length
4,440 mm (174.8 in)
Width
1,873 mm (73.7 in)
Height
1,591 mm (62.6 in)
Wheelbase
2,702 mm (106.4 in)
Curb weight
2,132 kg (4,700 lb)

Engine & Performance

Engine

Engine Configuration
Type of Electric Car
Electric
Electric Engine Power
300 kW
Electric Engine Horsepower (Metric)
408 hp
Torque
660 Nm (487 lb-ft)
Battery Capacity, Gross
78 kWh
Battery Capacity, Net
75 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Engine Configuration › Charge AC
Charge Time
12 h / 720 min
Charge Ampere
32 A
Engine Configuration › Charge DC
Charge Time, to 80%
32 min
Charge Power
150 kW

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (1)
  • Rear (1)
Front Brakes
Diameter
366 mm (14.4 in)
Cooling
Ventilated
Rear Brakes
Diameter
340 mm (13.4 in)
Cooling
Solid

Energy & Range

Emission
Emission Standard
Euro 6d
WLTP Consumption
Energy consumption
20.7 - 22.3 kWh/100km
Electric Range
415 - 444 km (258 - 276 mi)
Fuel Consumption NEDC
Combined
0 litres / 100 km
Emission WLTP
CO₂, Combined
0 g/km
Emission NEDC
CO₂, Combined
0 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,034 mm (80.1 in)
Track, Front
1,598 mm (62.9 in)
Track, Rear
1,603 mm (63.1 in)
Overhang, Front
870 mm (34.3 in)
Overhang, Rear
868 mm (34.2 in)
Turning Circle
11.4 m
Ground Clearance
171 mm (6.7 in)

Interior

Head Room, Front
1,002 - 1,040 mm (39.4 - 40.9 in)
Head Room, Rear
932 mm (36.7 in)
Leg Room, Front
1,040 mm (40.9 in)
Leg Room, Rear
917 mm (36.1 in)
Shoulder Room, Front
1,440 mm (56.7 in)
Shoulder Room, Rear
1,429 mm (56.3 in)

Weight

Gross Weight
2,620 kg (5,776 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
435 - 488 kg (959 - 1,076 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV

Equipment

Side Mirrors
Mirror Type
Conventional
Automatic Anti-glare
  • Driver side
  • Passenger side
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Black
Windscreen Wipers
Integrated Water Nozzles in Wipers
Yes
Number of Windscreen Wipers, Front
2
Windows
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Normal Roof
Yes
Roof Railing
Optional
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Optional
Special Features
Come Home/Leaving Lights
Special Features
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Indirect
Number of Bolts
5 pcs
Bolt Distance
4.25
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Central Bore (CB), rear
63.4
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Instrument Cluster › Trip Computer
Display
12.3"
Instrument Cluster › Trip Computer › Display
Navigation
Yes
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Controls
Touchscreen
Connectivity
Radio
  • AM
  • FM
  • DAB+
App-Connect
Apple CarPlay
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Number of Ports
4 pcs
Displays
Center Display
9"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
8 - 13 pcs
Tweeters
2 pcs
Midrange Speakers
4 pcs
Speakers Max. Watt
250 - 660 W
Subwoofer
Optional
Speakers › Subwoofer
Number of Subwoofers
1 - 2 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
  • Front
  • Back
Back Pocket
Yes
Sunglass Compartment
Optional
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
Lights › Guide Light
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
  • Front
  • Rear
Ashtray
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Material
Textile

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leatherette
Colour
Black
Multifunction Steering Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Volume
Buttons

Trunk

Total Trunk Volume
520 litres
Rear Trunk
Yes
Front Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Barrier Net/Grid
Optional
Second Trunk Compartment
Optional
Light
Optional
Rear Trunk
Volume
489 litres
Volume, Back Seat Collapsed
1,205 litres
Depth
896 mm (35.3 in)
Depth, Back Seat Collapsed
1,685 mm (66.3 in)
Width, Between Wheel Arches
1,005 mm (39.6 in)
Opening Width
1,020 mm (40.2 in)
Height
629 mm (24.8 in)
Sill Height
741 mm (29.2 in)
Front Trunk
Volume
31 litres
Automatic Open
Motion Activated
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Cushion Edge
Optional
Cushion Tilt
Manual
Backrest Angle
Manual
Lumbar Support
Powered
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Front Seats
Power Seat, Driver
Optional
Heated Seats
Optional
Armrest
Middle
Type of Seat
Comfort Seat (Driver | Passenger)
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Keyless Entry
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear
Voice Control
Phone
Wireless Phone Charger
Front
Cruise Control
Adaptive Cruise Control
Optional
Cameras
View Location
Center Display

Other Features

Horn
Single Note

Accessories

Tire Repair Kit
Yes
Bicycle Holder
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Torque Vectoring (DTV)
Yes
Rear Collision Warning (RCW)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Sign Assist
Yes
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Optional
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Pedestrian/Bicycle Detection
Yes
Driver Alertness Warning (DAW)
Yes
Rain Sensors
Yes
Parking Sensors
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Child Safety Locks
Yes
Collision Avoidance System
Yes
Emergency Call
Yes
Immobiliser
Electronic
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Small SUV
