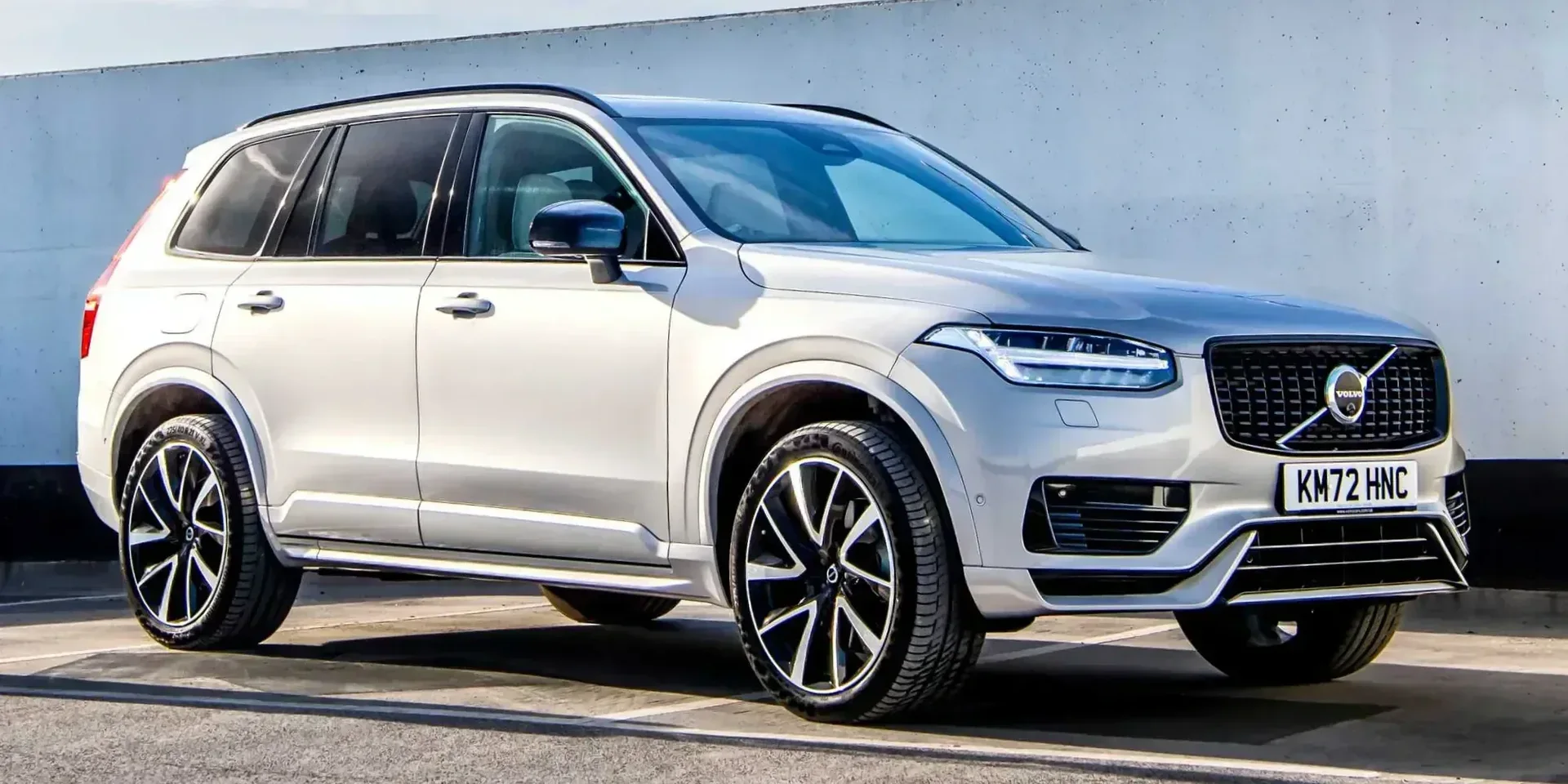

2022 Volvo XC90

SwedenPlug In Hybrid GasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2022
Make
Volvo
Model
XC90
Body Style
SUV
Generation
2nd Generation 1st Facelift
Seats
5
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
Recharge T8 AWD Geartronic
Engine Configuration
Inline
Power (hp)
456 hp
Power (kW)
335 kW
Torque
400 Nm (295 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
5.0 seconds (estimated)
0–100 km/h
5.3 seconds
Electric range
64 km (40 mi)
Battery
18.8 kWh
Displacement
1,969 cc

Dimensions

Length
4,953 mm (195.0 in)
Width
2,008 mm (79.1 in)
Height
1,776 mm (69.9 in)
Wheelbase
2,984 mm (117.5 in)
Curb weight
2,227 kg (4,910 lb)

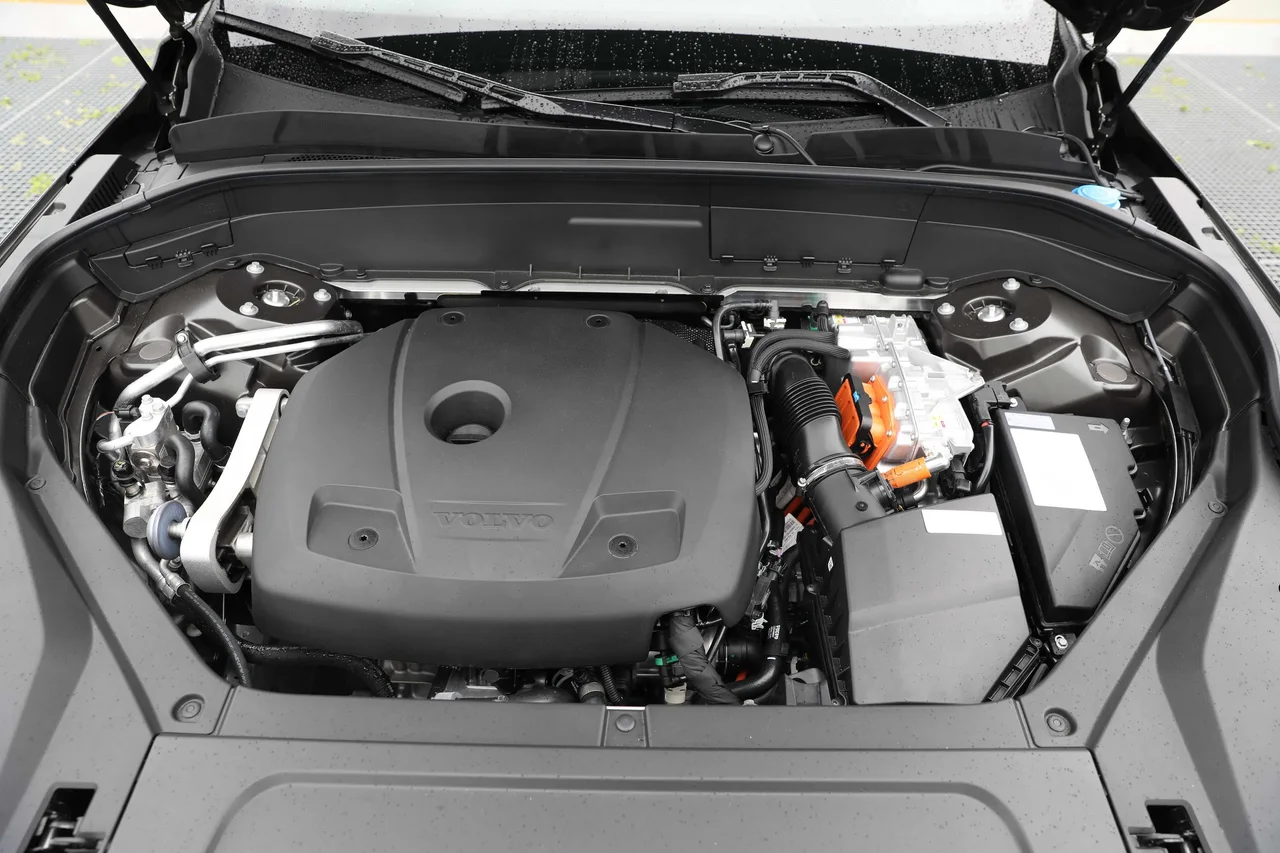

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
3,000 - 4,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
5.6 litres
Configuration Combustion
Bore
82 mm (3.2 in)
Stroke
93.2 mm (3.7 in)
Compression Ratio
10.3 :1
Engine Configuration
Inline
Turbocharger
Yes
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
107 kW
Electric Engine Horsepower (Metric)
145 hp
Torque
400 Nm (295 lb-ft)
Battery Capacity, Gross
18.8 kWh
Battery Capacity, Net
14.9 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Charging Plugs
Type 2
Configuration Electric › Charge AC
Charge Time, to 80%
3 h
Charge Ampere
16 A
Service Intervals
Oil Change & Engine Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Diameter
366 mm (14.4 in)
Cooling
Ventilated
Rear Brakes
Diameter
340 mm (13.4 in)
Cooling
Ventilated

Suspensions

Suspension, Front
Independent
Yes
Suspension, Rear
Independent
Yes

Fuel

General
Tank Volume
71 litres
General › Fuel Cap Position
Rear
Right
General › Charging Socket Position
Front
Left
Emission
Emission Standard
Euro 6d
Emission Class
A+
WLTP Consumption
Weighted, Combined
1.2 - 1.6 litres / 100 km
Combined
20.5 - 22.6 kWh/100km
Electric Range
64 - 73 km (40 - 45 mi)
Electric Range, City
81 - 92 km (50 - 57 mi)

Dimensions & Weight

Exterior

Width, with Mirrors
2,140 mm (84.3 in)
Track, Front
1,665 mm (65.6 in)
Track, Rear
1,667 mm (65.6 in)
Overhang, Front
890 mm (35.0 in)
Overhang, Rear
1,079 mm (42.5 in)
Approach Angle
23.8 °
Departure Angle
23.3 °
Turning Circle
11.8 m
Ground Clearance
217 - 223 mm (8.5 - 8.8 in)
Wading Depth
450 mm (17.7 in)

Interior

Head Room, Front
998 mm (39.3 in)
Head Room, Rear
997 mm (39.3 in)
Head Room, Third Row
923 mm (36.3 in)
Leg Room, Front
1,038 mm (40.9 in)
Leg Room, Rear
940 mm (37.0 in)
Leg Room, Third Row
811 mm (31.9 in)
Shoulder Room, Front
1,465 mm (57.7 in)
Shoulder Room, Rear
1,435 mm (56.5 in)
Shoulder Room, Third Row
1,192 mm (46.9 in)

Weight

Gross Weight
2,950 kg (6,504 lb)
Max Trailer Load, braked 12%
2,400 kg (5,291 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
723 kg (1,594 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
110 kg (243 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Volvo
SPA

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
Automatic Anti-glare
  • Driver side
  • Passenger side
Heated
Yes
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Integrated Water Nozzles in Wipers
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Slim Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
First Row
Optional
Second Row
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Spoiler
Fixed
Antenna
Shark Fin
Windblocker
Optional
Other Equipment › Sunroof
Tinted Glass
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Adaptive Headlights
  • Headlight Washers
Fog Lights
Front
Yes
Rear
LED
Special Features
Dynamic Cornering Lights
Optional
Headlight Range Adjustment
Manual (Electric)

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Central Bore (CB), rear
63.4
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Digital
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Controls
Touchscreen
Air Ionizer
Optional
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
  • Internet Radio
Media Format
  • AAC
  • FLAC
  • MP3
  • WMA
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
  • Phone
  • Audio
Cellular Network
  • 4G
  • 3G
WiFi
Yes
Connectivity › Radio
DAB
Optional
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Armrest Hatch/Mid-console
  • Rear
Number of Ports
4 pcs
Displays

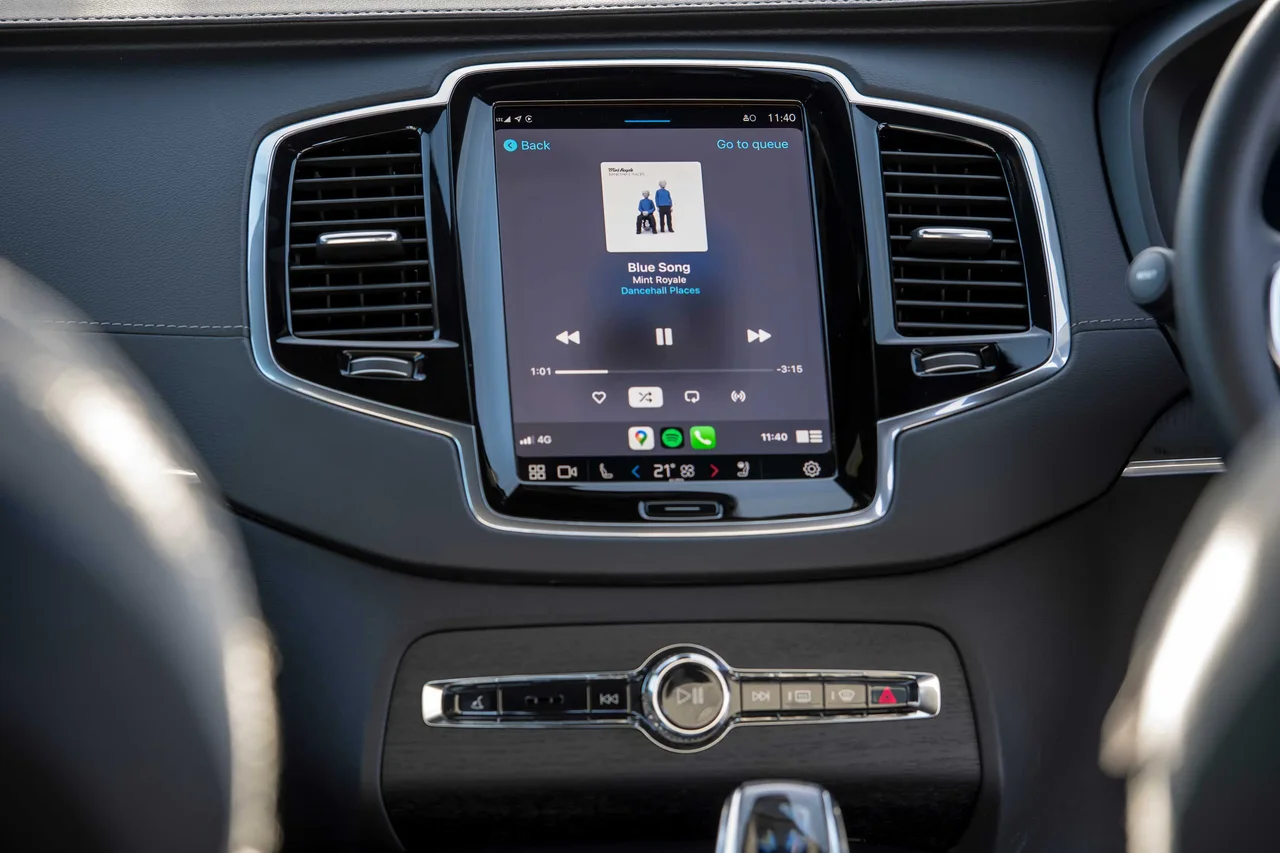

Center Display
9"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
10 - 19 pcs
Midrange Speakers
1 pcs
Speakers Max. Watt
330 - 1,400 W
Subwoofer
Optional
Speakers › Subwoofer
Number of Subwoofers
1 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Compass
Optional
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Electrical)
Armrest Hatch
Front
Sunglass Compartment
Optional
Card Holder
Yes
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Ambient Light
Yes
Selectable Light Colour
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Digital
12V Outlet
  • Front
  • Rear
  • Trunk
230V Outlet
Optional
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Carpets
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons

Trunk

Rear Trunk
Yes
Automatic Open
  • From Inside Car
  • Key Button
Automatic Close
Yes
Barrier Net/Grid
Yes
Carpet
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
262 litres
Volume, Back Seat Collapsed
1,005 litres
Volume (third seat row)
692 litres
Depth
1,220 mm (48.0 in)
Depth, Back Seat Collapsed
2,040 mm (80.3 in)
Width
1,204 mm (47.4 in)
Height
889 mm (35.0 in)
Sill Height
782 mm (30.8 in)
Automatic Open
Motion Activated
Optional
Carpet
Rug
Optional

Design

Transmission Knob Material
Leather
Entry Guard Material
Aluminium
Pedals
Standard

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Headrest, Height
Yes
Front Seats
Number of Driver Seat Adjustments, Manual
6
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Armrest
Middle
Massage
Optional
Ventilated Seats
  • Driver
  • Passenger
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Headrest, Height
Yes
Front Seats › Massage
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Adjustments
Backrest Angle
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
  • Height Adjustment
  • Foldable
Centre Seat
Yes
Second Seat Row › Headrests › Outer Seats
Tilt Adjustment
Optional
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes
Third/Fourth Seat Row
Third Seat Row
Yes
Third/Fourth Seat Row › Third Seat Row
Number of Seats
2
Seat Angle
Front Facing
Colour & Material
Upholstery
Leather (Perforated)

Features

Comfort Features

Keyless Start
Yes
Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes
Parking Heater
Optional
Voice Control
  • Media
  • Phone
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional
Voice Control
Navigation
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Individual
Smartphone App
Yes
Horn
Dual Note

Accessories

Tool Kit and Jack
Optional
Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional
Portable Cooling Box
Optional
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Forward Collision Warning (FCW)
Yes
Front Cross-Traffic Alert (FCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Optional
Sign Assist
Yes
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Optional
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
Rear
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote (Panic Button)
Child Safety Locks
Manual
Emergency Call
Yes
Alcohol Ignition Interlock Device
Optional
Type of Keys
Remote Keys
Immobiliser
Electronic
Yes
Child Safety Locks
Electrical
Optional

Safety Testing

General
Test Year
2015
Adult Occupant
97 %
Child Occupant
87 %
Vulnerable Road Users
72 %
Safety Assist
94 %
Overall
5/5 stars
Test Year
2015
ANCAP Safety Rating
5
Adult Occupant
Protection
97 %
Protection
37
Frontal Offset
7.81
Side Impact
8
Whiplash Protection (Front)
2.85
AEB (City)
3
Child Occupant
Protection
87 %
Protection
43
Pedestrian
Protection
72 %
Protection
25.9
Safety Assist
Safety Assist
73 %
Safety Assist
10.3
Speed Assistance System
0.3
ESC
3
Seat Belt Reminders
3
Lane Support System
1
AEB (Interurban)
3
NHTSA
Test Year
2020
Overall Safety Rating
5/5 stars
Overall Frontal Rating
5/5 stars
Overall Side Rating
5/5 stars
Rollver
4/5 stars
IIHS
Test Year
2020
Award
Top Safety Pick+
Small Overlap Front: Driver Side
Good
Small Overlap Front: Passenger Side
Good
Moderate Overlap Front
Good
Side
Good
Roof Strength
Good
Head Restraints & Seats
Good
Front Crash Prevention: Vehicle-to-vehicle
Superior
Front Crash Prevention: Vehicle-to-pedestrian
Advanced
Headlight
Acceptable
Latch Ease of Use
Acceptable

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Warranty

Manufacturer
100,000 km / 2 years
Body Protection
3 years
Paintwork
3 years
Rust Damage
12 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right
Passenger Seat
in Front of
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
  • Medium SUV
  • Large SUV

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
H9
Positioning-/Parking Lights, Front
W3×16q (W21/5W)
Turn Indicators, Front
  • PGU20 (PGU20/4 - PY24W)
  • WP3.3×14.5 (PWY24W)

Production

Statistics › Production Number (Model)
1st Generation
621,552
Statistics › Production Number (Year)
2002
487
2003
21,886
2004
106,891
2005
88,879
2006
85,064
2007
79,140
2008
52,872
2009
32,754
2010
37,597
2011
39,631
2012
31,290
2013
23,784
2014
17,869
2015
44,029
2016
91,522
2017
87,518
2018
94,182

Similar suvs

Suggested vehicles
