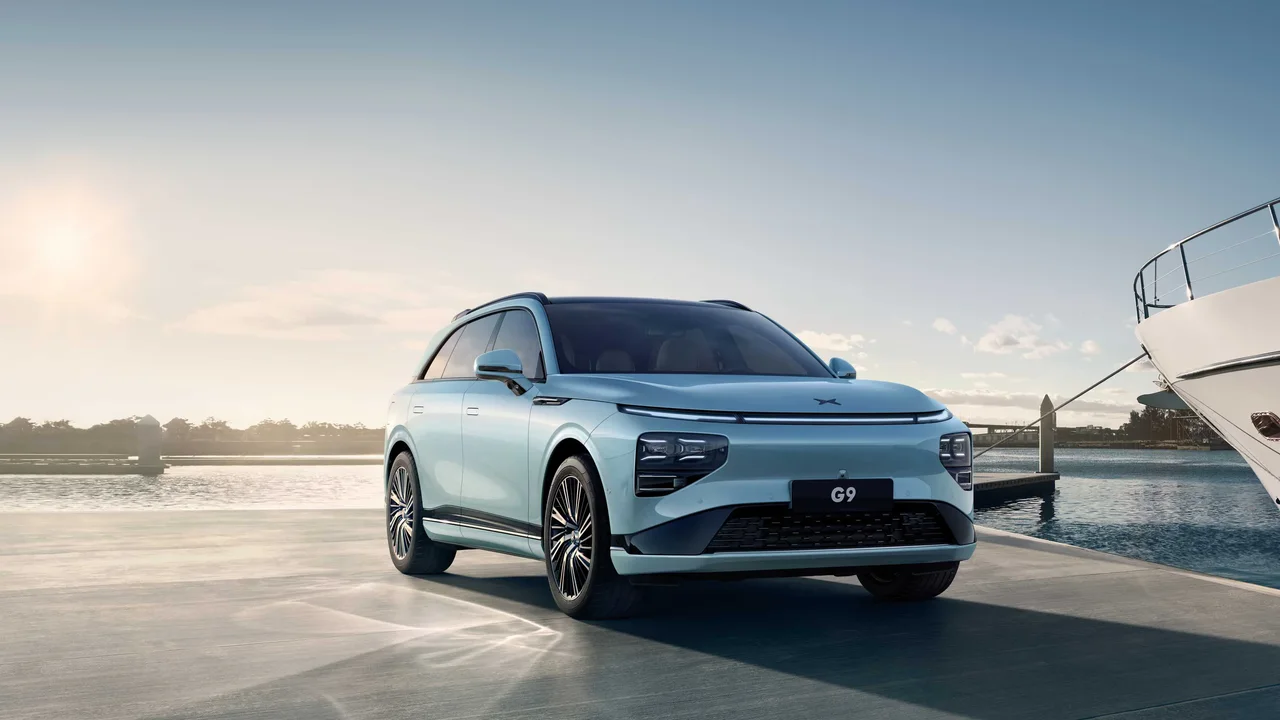

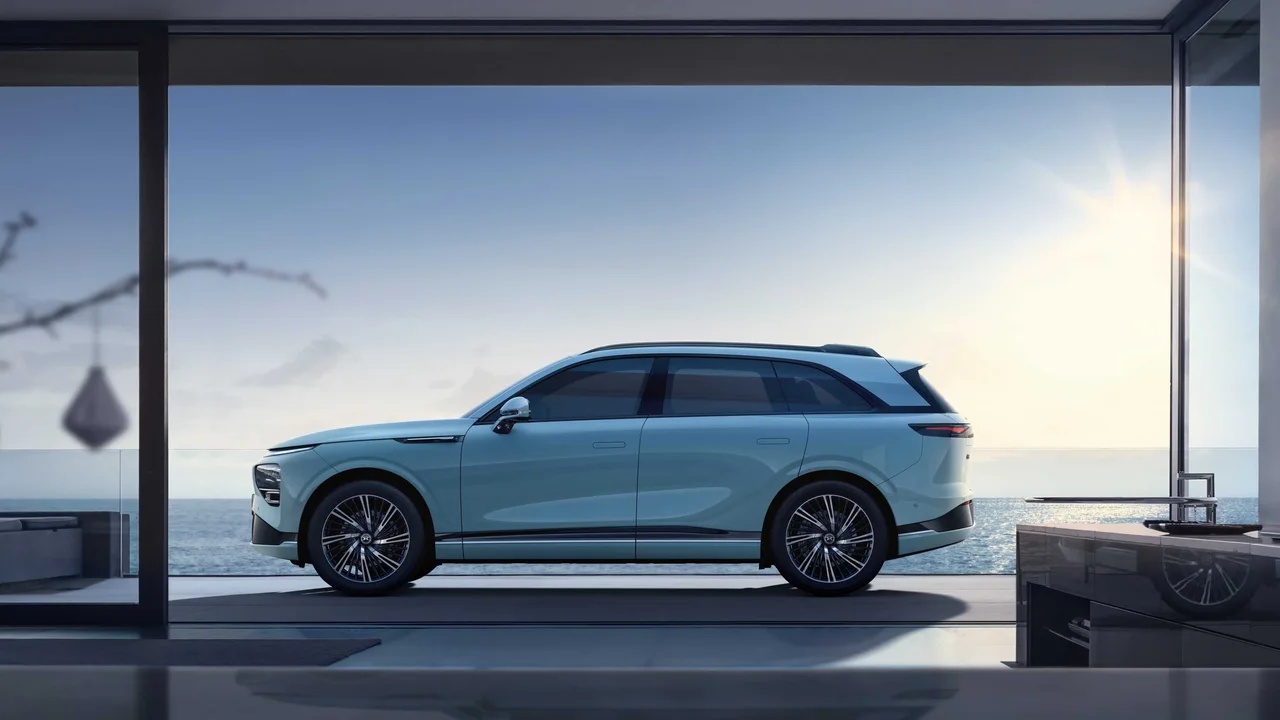

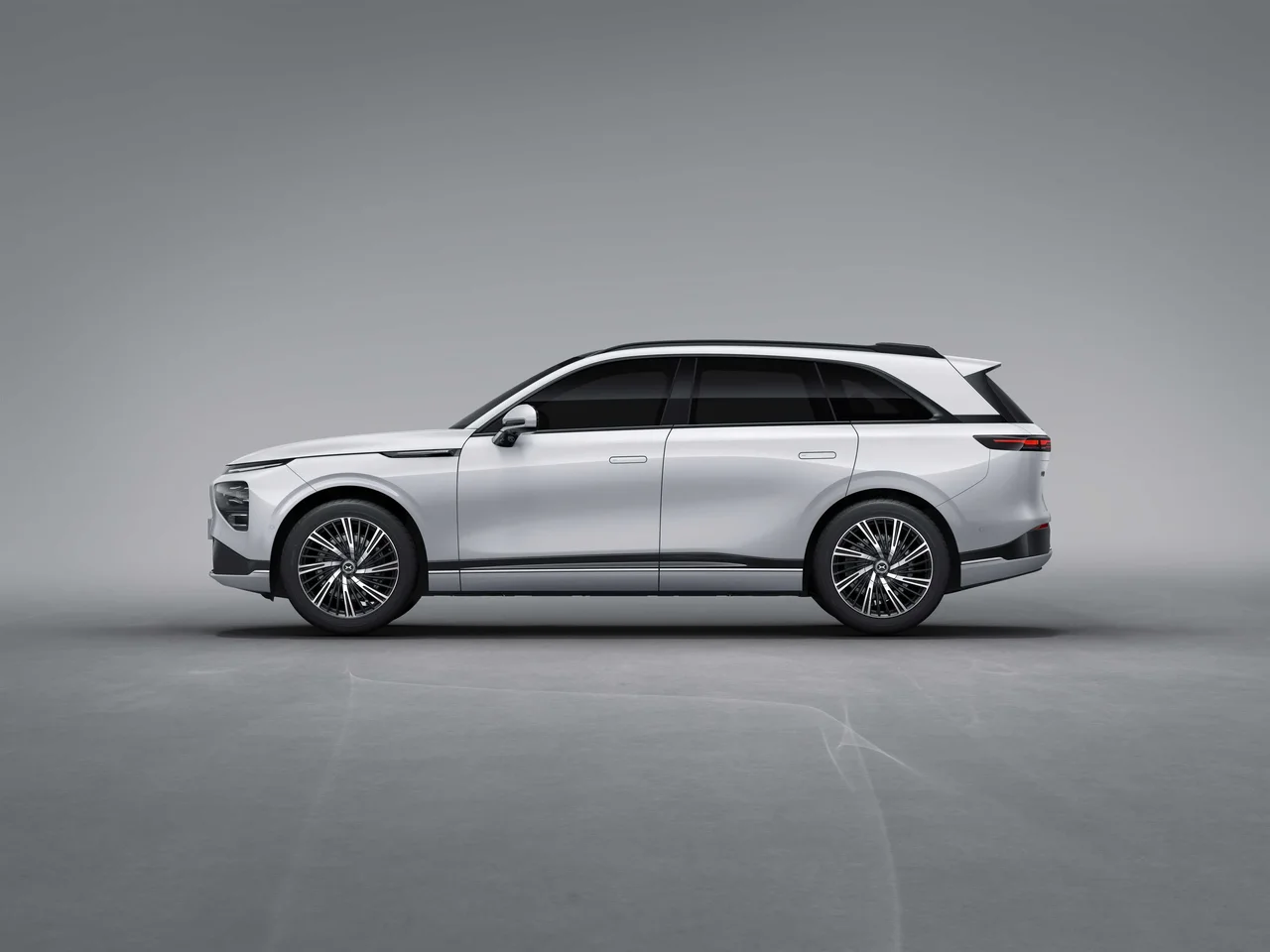

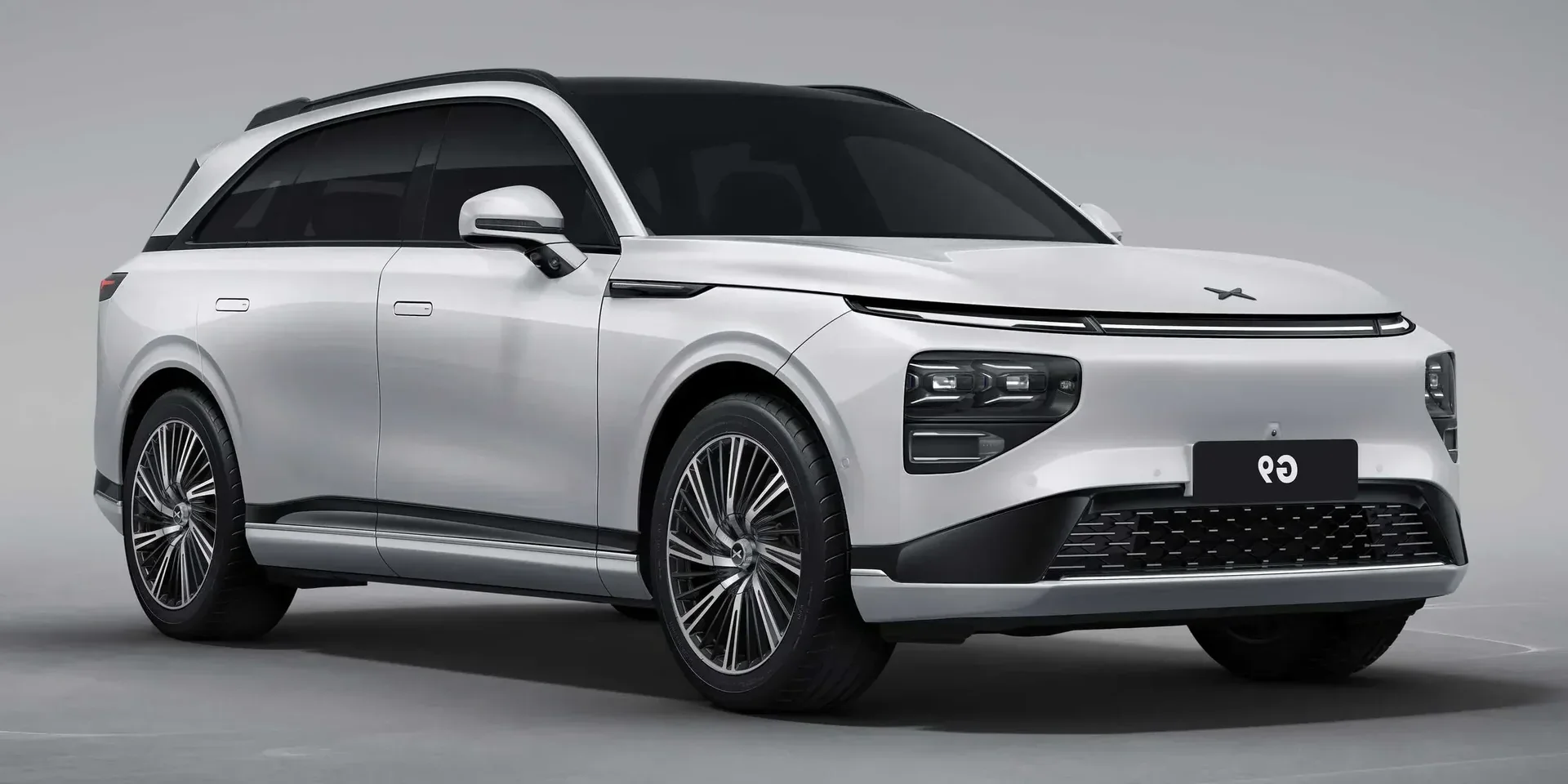

2022 Xpeng G9 Performance

ChinaElectricAWDSUV

Photos

Specifications

Vehicle Details

Year
2022
Make
Xpeng
Model
G9
Variant
Performance
Body Style
SUV
Generation
1st Generation
Seats
5
Doors
5
Fuel
Electric
Drivetrain
AWD
Transmission
Automatic (Fixed), 1-speed

Powertrain

Engine Name
Performance Single Speed
Engine Configuration
Electric
Power (hp)
551 hp
Power (kW)
405 kW
Torque
717 Nm (529 lb-ft)
Top speed
200 km/h (124 mph)
0–60 mph
3.7 seconds (estimated)
0–100 km/h
3.9 seconds
Electric range
520 km (323 mi)
Battery
98 kWh

Dimensions

Length
4,891 mm (192.6 in)
Width
1,937 mm (76.3 in)
Height
1,680 mm (66.1 in)
Wheelbase
2,998 mm (118.0 in)
Curb weight
2,285 kg (5,038 lb)

Engine & Performance

Engine

Car Battery
Voltage
12 V
Engine Configuration
Type of Electric Car
Electric
Electric Engine Power
405 kW
Electric Engine Horsepower (Metric)
551 hp (543 bhp)
Torque
717 Nm (529 lb-ft)
Front Engines
Yes
Rear Engines
Yes
Battery Capacity, Gross
98 kWh
Battery Capacity, Net
93.1 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Charging Plugs
  • GB/T
  • Type 2 (CCS)
Vehicle to Load (V2L)
Yes
Engine Configuration › Front Engines
Power (kW)
175 kW
Horsepower
235 hp
Number of Engines
1
Engine Configuration › Rear Engines
Electric Power (kW)
230 kW
Horsepower
313 hp
Number of Engines
1
Engine Configuration › Charge AC
Charge Time
10 h / 600 min
Charge Power
11 kW
Charge Ampere
16 A
Engine Configuration › Charge DC
Charge Time, to 80%
20 min
Charge Power
300 kW
Engine Configuration › Vehicle to Load (V2L)
Max Discharge Power
2.2 kW

Transmission & Drivetrain

Transmission
Automatic (Fixed), 1-speed
Gear Selector
Stalk
Gear Selector Location
Steering Column

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Pneumatic Air
Spring, Rear
Pneumatic Air
Anti-roll Bar
Front
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Independent
Multi-link

Energy & Range

Emission
Emission Class
A+
WLTP Consumption
Energy consumption
21.3 kWh/100km
Electric Range
520 km (323 mi)
Fuel Consumption NEDC
Energy consumption
16 kWh/100km
Electric Range
650 km (404 mi)
Emission WLTP
CO₂, Combined
0 g/km

Performance

Drag Coefficient
0.27

Dimensions & Weight

Exterior

Track, Front
1,656 - 1,663 mm (65.2 - 65.5 in)
Turning Circle
11.8 m

Interior

Head Room, Front
718 mm (28.3 in)
Head Room, Rear
690 mm (27.2 in)
Leg Room, Front
1,003 mm (39.5 in)
Leg Room, Rear
974 mm (38.3 in)

Weight

Gross Weight
2,680 kg (5,908 lb)
Cargo Capacity
395 kg (871 lb)
Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pop-out
Platform
Xiaopeng Platform
Edward

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
Heated
Yes
Automatic Tilt Down
Yes
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Passenger side
Convex
Side Mirrors › Folding
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Frameless Windows
  • First Row
  • Second Row
Tinted Windows
  • Second Row
  • Rear Window
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
  • Panoramic (Not Openable)
  • Glass Roof
Roof Railing
Yes
Spoiler
Fixed
Other Equipment › Sunroof
Material
Glass
Shading
Tinted Glass
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Black

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Auxiliary Lights
LED Bar
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Dynamic Turn Signal
  • Dynamic Cornering Lights
Fog Lights
Front
LED
Rear
Yes
Special Features
Headlight Range Adjustment
Automatic

Colour

Finish
Metallic

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
60.1
Central Bore (CB), rear
60.1
Fastening Type
Lug Bolts
Tightening Torque
110 Nm
Rim Material
Aluminium
Rim Type
Disc Wheel

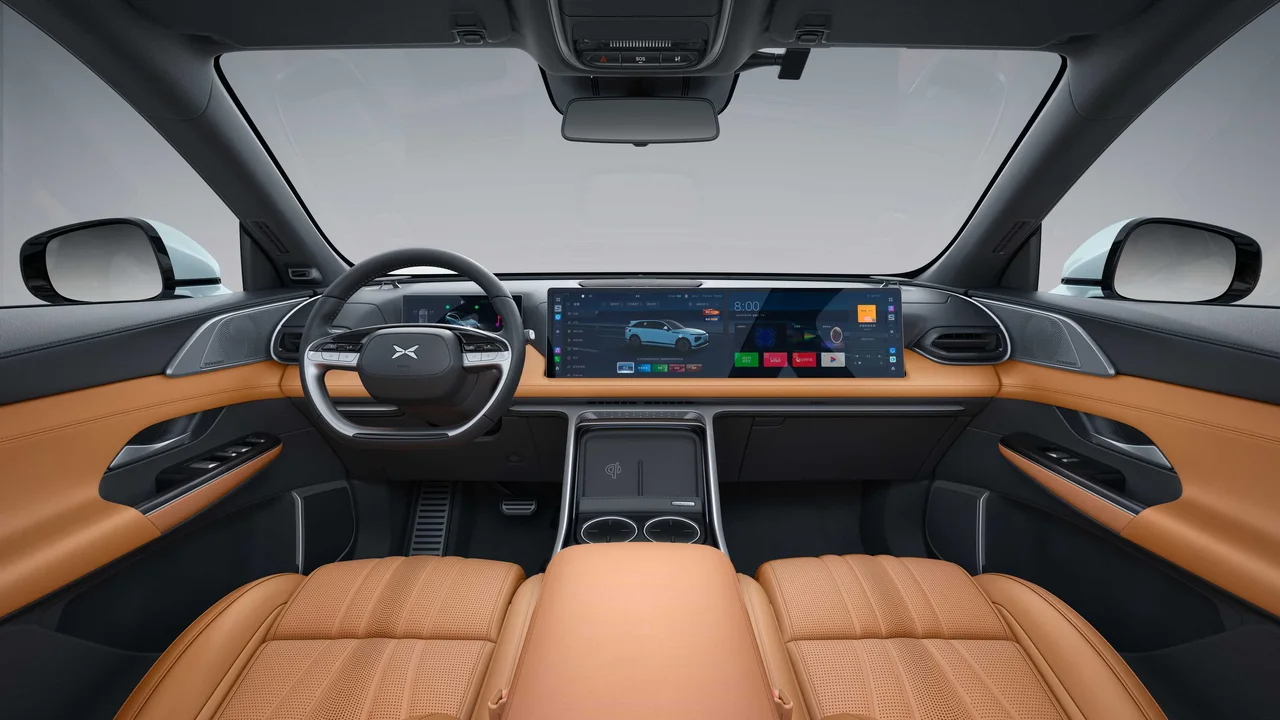

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Instrument Cluster › Trip Computer
Display
10.25"
Instrument Cluster › Trip Computer › Display
Navigation
Yes
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Touchscreen
Fragrance System
Optional
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity › Media Format
Hard Drive
256 GB
Connectivity › Media Inputs
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
  • Armrest Hatch/Mid-console
  • Rear
Number of Ports
5 pcs
Connectivity
Bluetooth
  • Phone
  • Audio
Cellular Network
4G
WiFi
Yes
Displays
Center Display
14.96"
Center Display Controls
Touchscreen
Secondary Display
14.96"
Displays › Center Display
Type
Colour
Displays › Secondary Display
Touchscreen
Yes
Speakers
Total Number of Speakers
22 pcs
Speaker Brand
Dynaudio
Subwoofer
Yes
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
  • Front
  • Cooled
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Armrest
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Ambient Light
Yes
Selectable Light Colour
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Number of Buttons
12 pcs

Trunk

Total Trunk Volume
731 litres
Rear Trunk
Yes
Front Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • From Inside Car
  • Motion Activated
Release Button
Yes
Cover
Foldable
Second Trunk Compartment
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
660 litres
Volume, Back Seat Collapsed
1,576 litres
Depth
1,030 mm (40.6 in)
Depth, Back Seat Collapsed
1,900 mm (74.8 in)
Width
1,040 mm (40.9 in)
Width, Between Wheel Arches
989 mm (38.9 in)
Height
757 mm (29.8 in)
Sill Height
733 mm (28.9 in)
Front Trunk
Volume
71 litres

Design

Interior Decor Material
Leather
Accent
Aluminium
Transmission Knob Material
Plastic

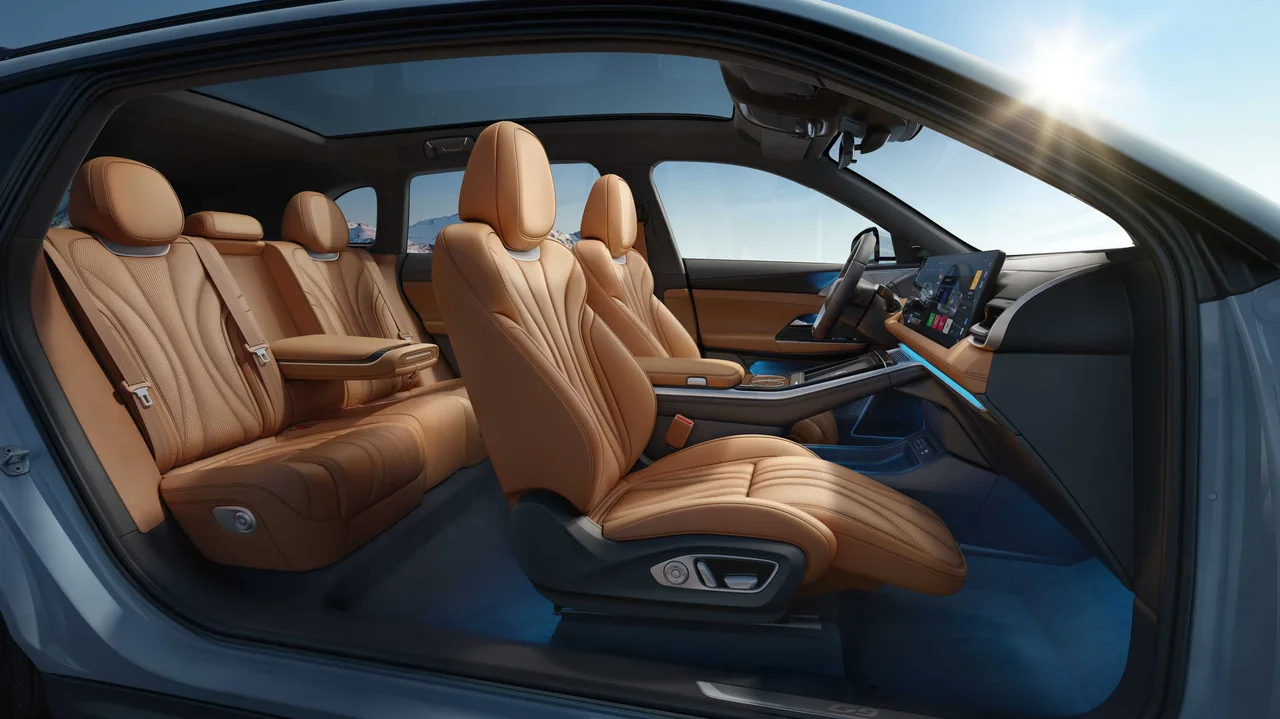

Seats

Colour & Material
Upholstery
Leather
Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Front Seats
Number of Driver Seat Adjustments, Powered
12
Number of Driver Seat Adjustments, Total
12
Number of Passenger Seat Adjustments, Powered
6
Number of Passenger Seat Adjustments, Total
6
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Massage
  • Driver
  • Passenger
Ventilated Seats
  • Driver
  • Passenger
Passenger Seat: Lumbar Support Type
Powered
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Powered
Backrest Angle
Powered
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Power Seat, Passenger
User Memory
Yes
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Second Seat Row
Armrest
Yes
Collapsible
Yes
Features
Powered Seats
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Features
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Remote Engine Start
Yes
Cruise Control
Adaptive Cruise Control
Autonomous Driving
Yes
Parking Heater
Yes
Cameras
  • Front
  • Sides
  • Rear
Voice Control
  • Climate Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Front
Parking Heater
Type
Cabin Heater
Power Source
Battery-operated
Controls
Phone Application
Cameras
360° Camera
Yes
View Location
Center Display

Other Features

GPS
Navigation
Driving Mode Selection
Yes
Smartphone App
Yes
Over-the-Air Updates
Yes
Remote Vehicle Diagnostic
Yes
Multifunction Camera
Yes
Sound Generator, External
Yes
GPS
Map-update
Internet

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Yes
Compressor
Yes
Warning Triangle
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Forward Collision Warning (FCW)
Yes
Rear Collision Warning (RCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Yes
Sign Assist
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes
Active Lane Change
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Reverse
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
  • Front
  • Side
Blind Spot Detection (BLIS)
Yes
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Central Locking
Remote
Child Safety Locks
Electrical
Type of Keys
  • Keycards (NFC)
  • Smartphone as a Key
Number of Remote Keys
1
Number of Standard Keys
1
Total Number of Keys
2
Key Features
Bluetooth
Speed Sensitive
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2023
Adult Occupant
85 %
Child Occupant
85 %
Vulnerable Road Users
78 %
Safety Assist
78 %
Overall
5/5 stars
Adult Occupant
Total Points
34.3 /38
Frontal Impact
12.4 /16
Lateral Impact
15.5 /16
Rear Impact
3.8 /4
Rescue and Extrication
2.5 /2
Child Occupant
Total Points
42 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
6 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 9.3
  • 0.8
  • 4.5
AEB Pedestrian
8.8 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
8 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.5 /3
Speed Assistance (assesment)
Good
Occupant Status Monitoring (points)
1 /3
Occupant Status Monitoring (assesment)
Marginal
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
0
Driver Monitoring (assesment)
Poor
Lane Support (points)
2.5 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
8.1 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
120,000 km / 5 years
Powertrain
160,000 km / 8 years
12V Battery
20,000 km / 1 years
Paintwork
3 years
Rust Damage
12 years
EV Battery
160,000 km / 8 years

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Large SUV

Tests

Motor.no
Electric Range, Winter
451.8 km (281 mi)
Deviation, Winter
13.1 %

Similar suvs

Suggested vehicles
