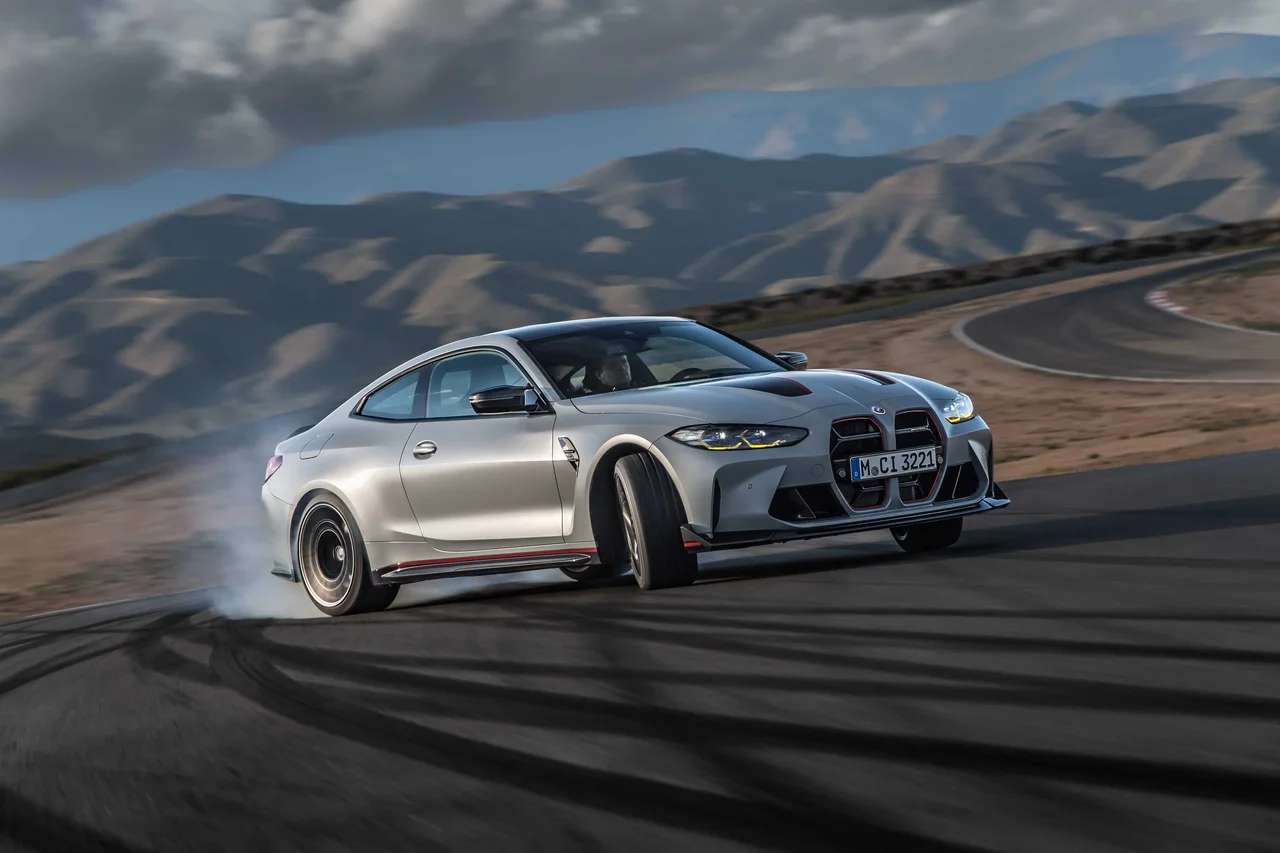

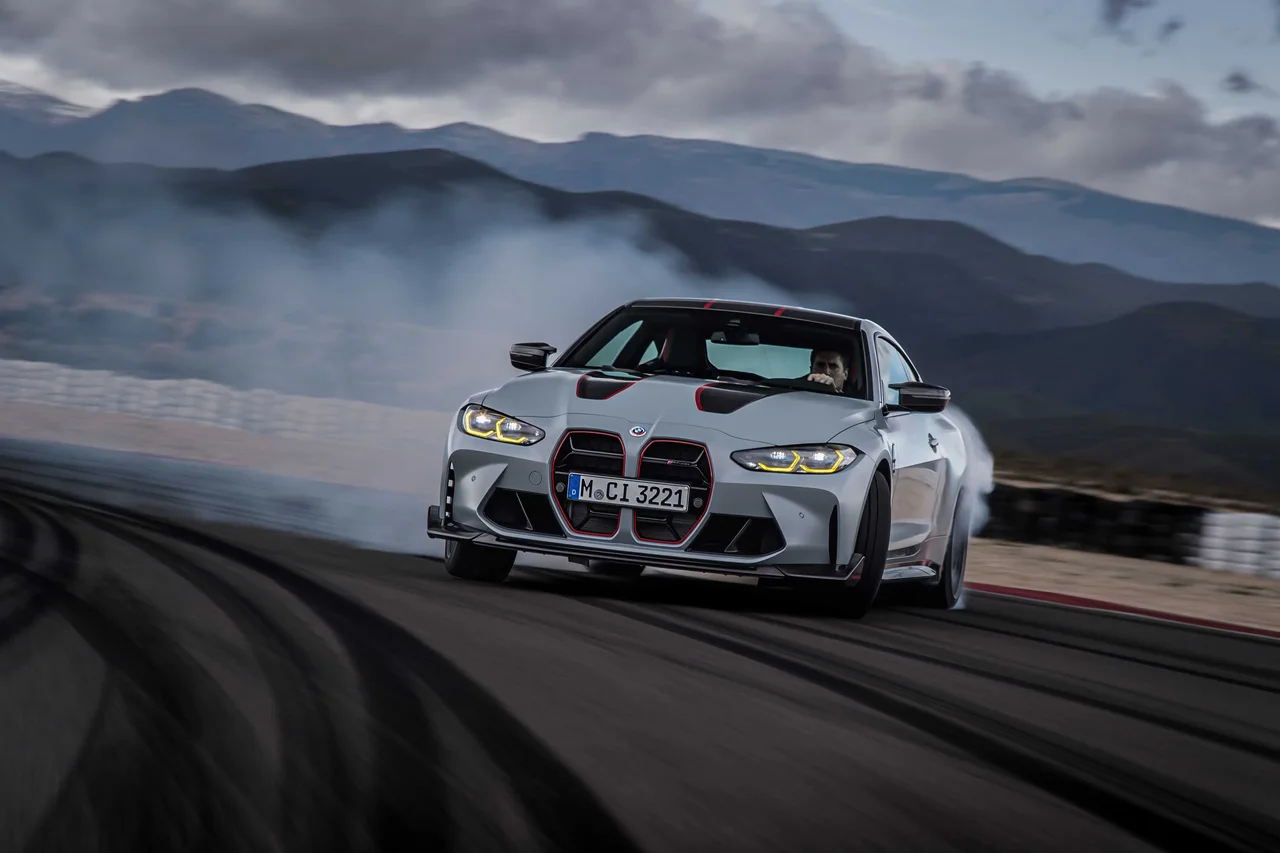

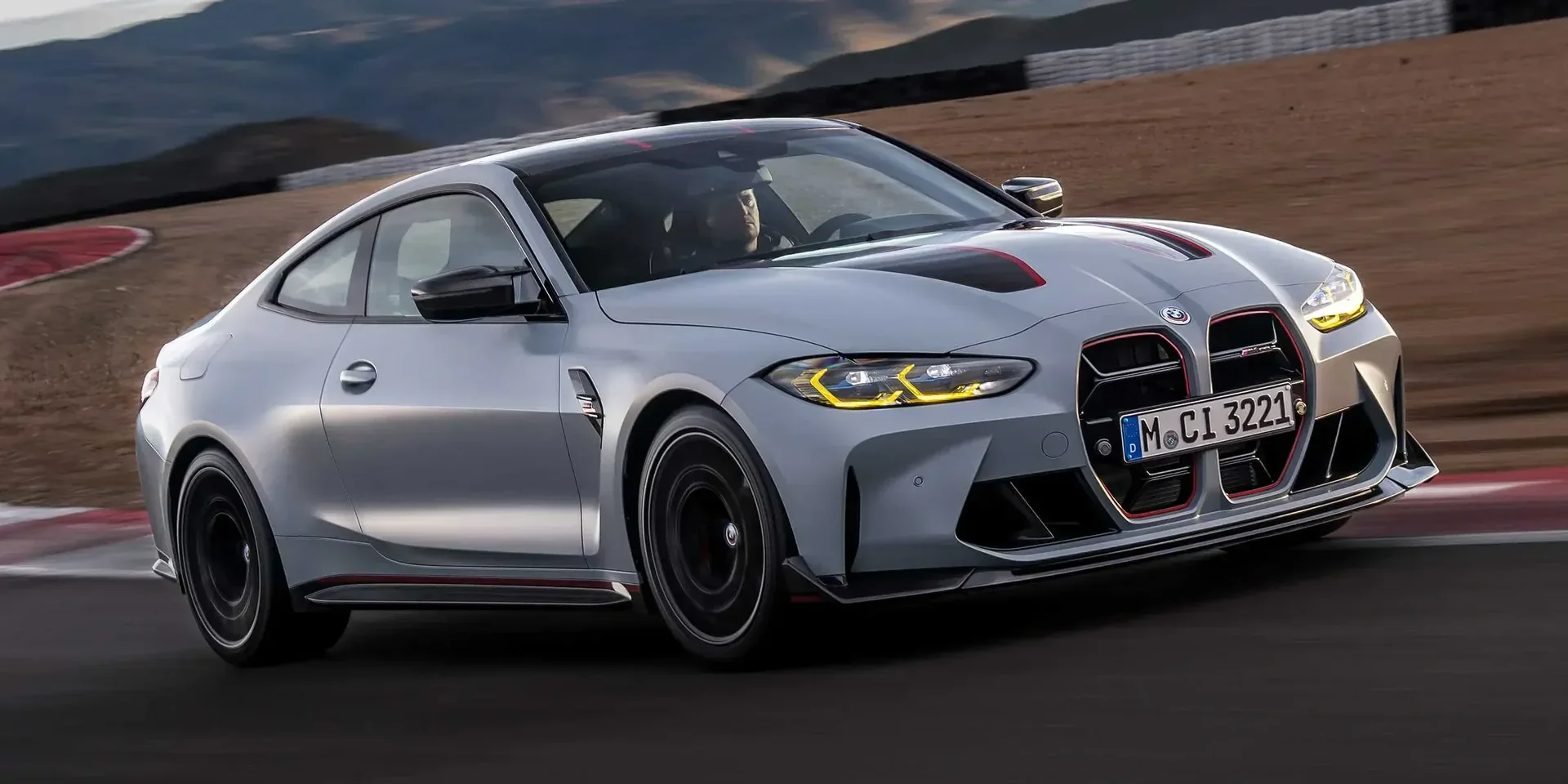

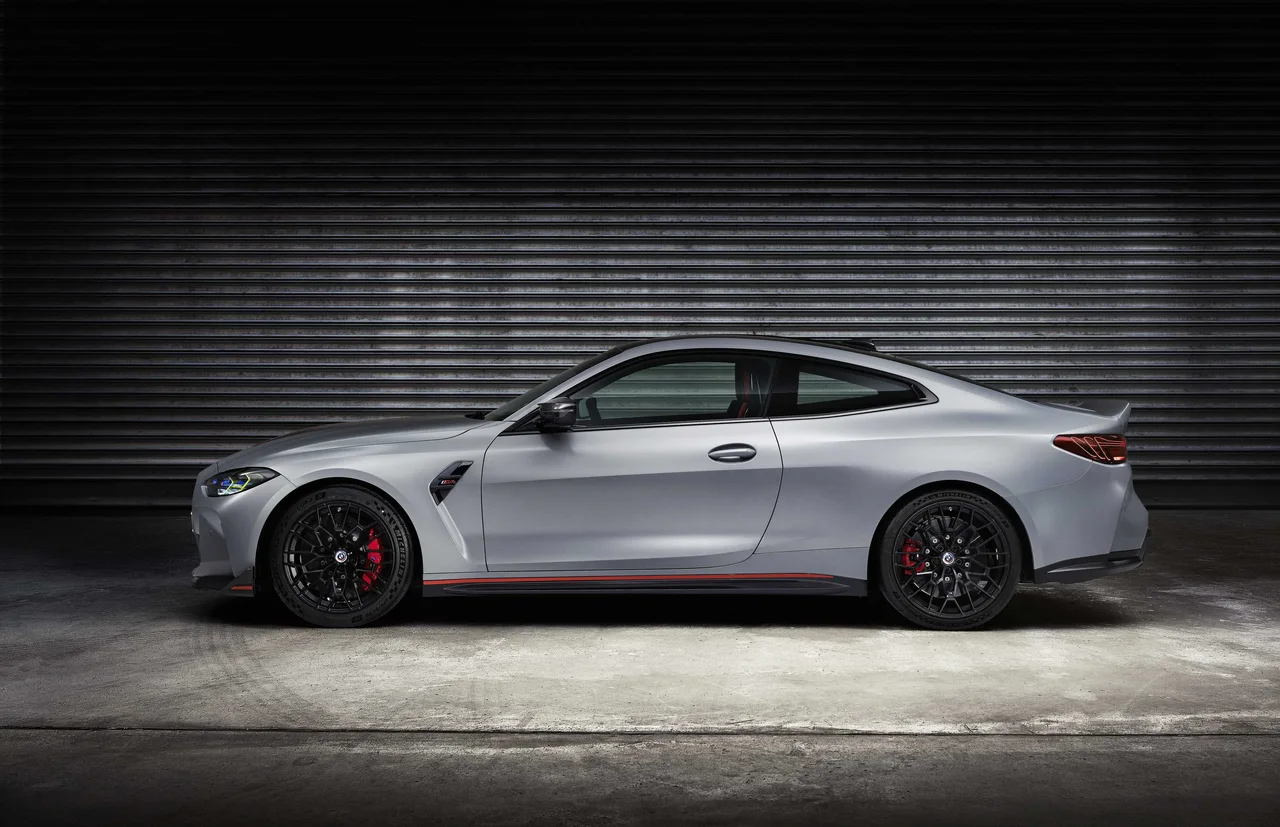

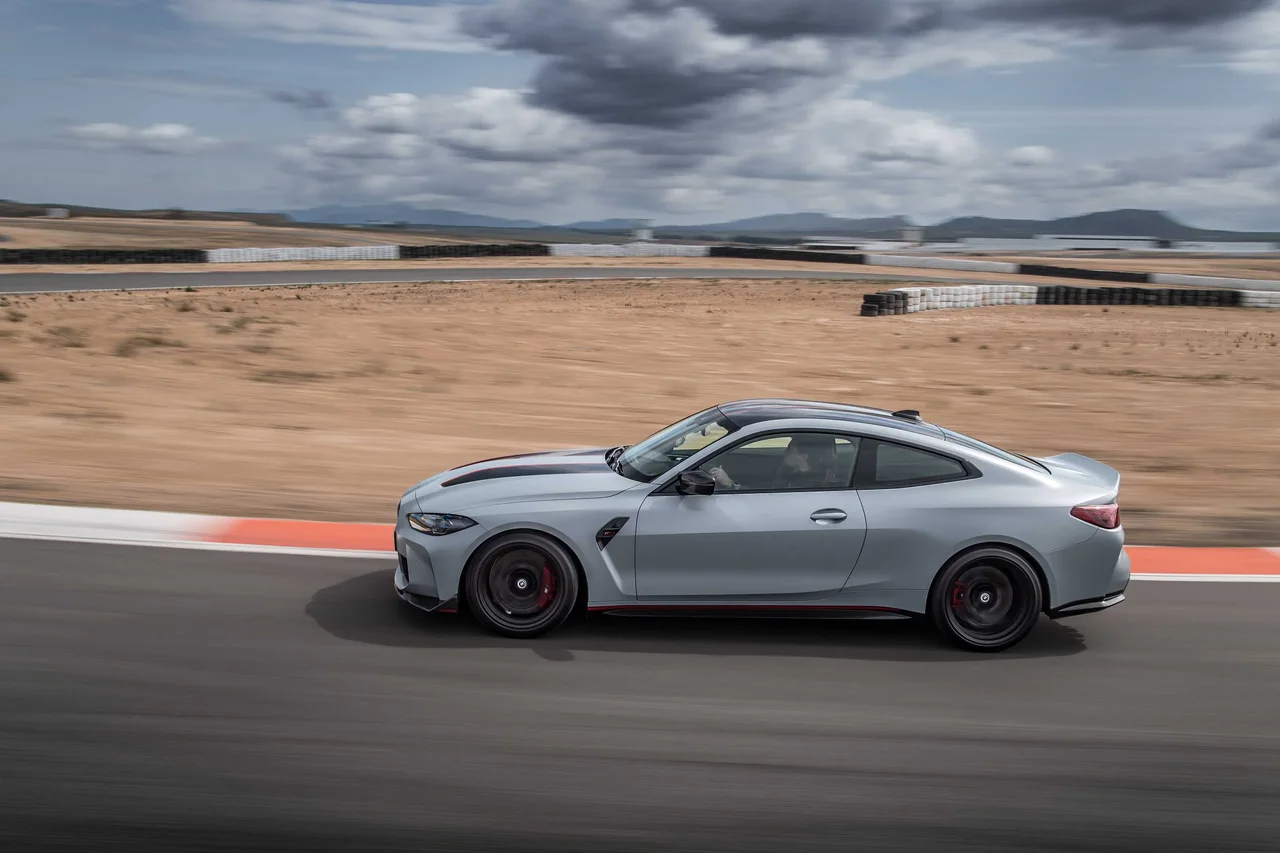

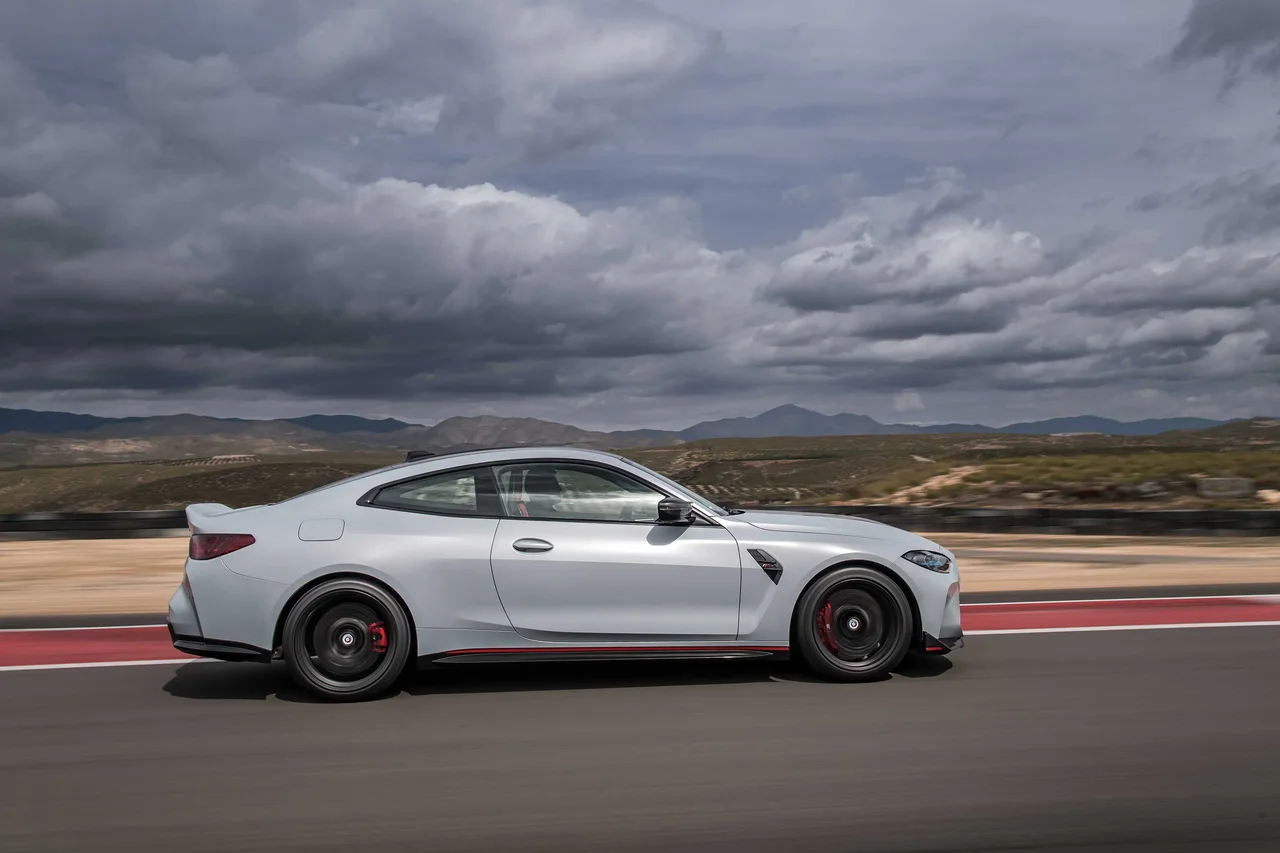

2023 BMW 4 Series M4 CSL

GermanyGasolineRWDCoupe

Photos

Specifications

Vehicle Details

Year
2023
Make
BMW
Model
4 Series
Variant
M4 CSL
Body Style
Coupe
Generation
G22
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
RWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
M4 CSL Steptronic
Engine Configuration
Inline
Power (hp)
550 hp
Power (kW)
405 kW
Torque
650 Nm (479 lb-ft)
Top speed
307 km/h (191 mph)
0–60 mph
3.5 seconds (estimated)
0–100 km/h
3.7 seconds
Displacement
2,993 cc

Dimensions

Length
4,794 mm (188.7 in)
Width
1,852 mm (72.9 in)
Height
1,383 mm (54.4 in)
Wheelbase
2,851 mm (112.2 in)
Curb weight
1,623 kg (3,578 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,250 rpm
Rev. at Max Torque
2,750 - 5,950 rpm
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Compression Ratio
9.3 :1
Engine Configuration
Inline
Turbocharger
Twin-turbo
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km / 4 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (4)
  • Rear (1)
Brakes Material
Carbon Ceramic
Brake Caliper Colour
Red
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated
Brake Caliper Colour
Black
Optional
Blue
Optional
Yellow
Optional

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Active/Adaptive Suspension
Yes
Suspension, Rear
Independent
Multi-link
Active/Adaptive Suspension
Yes

Fuel

General
Tank Volume
59 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d
WLTP Consumption
Combined (l/100km)
9.9 - 10.1 litres / 100 km
Emission WLTP
CO₂, Combined
222 - 227 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,081 mm (81.9 in)
Track, Front
1,579 mm (62.2 in)
Track, Rear
1,592 mm (62.7 in)
Overhang, Front
858 mm (33.8 in)
Overhang, Rear
1,059 mm (41.7 in)
Turning Circle
11.4 m
Ground Clearance
127 mm (5.0 in)

Interior

Head Room, Front
1,023 mm (40.3 in)
Head Room, Rear
909 mm (35.8 in)
Leg Room, Front
1,062 mm (41.8 in)
Leg Room, Rear
876 mm (34.5 in)
Hip Room, Front
1,400 mm (55.1 in)
Hip Room, Rear
1,295 mm (51.0 in)
Shoulder Room, Front
1,466 mm (57.7 in)
Shoulder Room, Rear
1,374 mm (54.1 in)

Weight

Gross Weight
1,970 kg (4,343 lb)
Cargo Capacity
345 kg (761 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé
Pillars
A-B
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Door Handles
Pull-out
Platform
BMW Platform
CLAR Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Automatic Anti-glare
Driver side
User Memory
Yes
Heated
Yes
Automatic Tilt Down
Yes
Turning Signal
Yes
House Colour
Carbon
Windscreen Wipers
Heated Washer Nozzles
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Windscreen Wipers: Connector type, Front
Pinch Tab
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Front
Frameless Windows
First Row
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
Driver
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Spoiler
Fixed
Antenna
Shark Fin
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Optional
Special Features
Automatic Headlight Activation
Special Features
Main Beam Assist
Optional
Dynamic Cornering Lights
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.5
Central Bore (CB), rear
66.5
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
12.3"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
3
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
  • Buttons
  • Touchscreen
Back Seat Controls
Buttons
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • DAB+
  • RDS
Media Format
MP3
App-Connect
  • Android Auto
  • Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
Cellular Network
  • 5G
  • 4G
  • 3G
WiFi
Yes
Connectivity › Media Inputs
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
Armrest Hatch/Mid-console
Displays
Center Display
14.9"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
6 - 16 pcs
Speakers Max. Watt
464 W
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
Front
Guide Light
  • Entry Guard
  • Footwell (Front)
  • Door Handles (Exterior)
Ambient Light
Yes
Selectable Light Colour
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
Front
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Carpets
Colour
Black
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
  • Alcantara
  • Carbon
Colour
Black
Steering Ratio
14.1 :1
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Scrolling Wheel)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
440 litres
Depth
991 mm (39.0 in)
Width
991 mm (39.0 in)
Height
483 mm (19.0 in)
Automatic Open
Button on Trunk Door
Optional
Key Button
Optional

Design

Interior Decor Colour
Black
Entry Guard Material
Carbon
Pedals
  • Aluminium
  • Sport

Seats

Colour & Material
Upholstery
  • Alcantara
  • Leather
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Seat Height
Manual
Front Seats
Armrest
Middle
Type of Seat
Sport Seats

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Garage Remote Control
Optional
Cruise Control
Yes
Speed Limiter
Yes
Cameras
Optional
Voice Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Front
Cruise Control
Active Cruise Control
Optional
Cameras
Rear
Optional

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Sport
Dynamic Chassis Control (DCC)
Yes
Smartphone App
Yes
Over-the-Air Updates
Yes
Horn
Dual Note
GPS
Map-update
Internet

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Collision Warning (RCW)
Optional
Front Cross-Traffic Alert (FCTA)
Optional
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Location Tracking
Yes
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Child Safety Locks
Electrical
Emergency Call
Yes
Immobiliser
Electronic
Yes
Emergency Call
Keycards (NFC)
Optional

Safety Testing

General
Test Year
2022
Adult Occupant
87 %
Child Occupant
87 %
Vulnerable Road Users
71 %
Safety Assist
64 %
Overall
4/5 stars
Adult Occupant
Total Points
33.3 /38
Frontal Impact
14.3 /16
Lateral Impact
14 /16
Rear Impact
4 /4
Rescue and Extrication
1 /2
Child Occupant
Total Points
43 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
38.7 /49
Pedestrian
  • 20.8
  • 0.8
  • 6
AEB Vulnerable Road Users
11 /18
AEB Pedestrian
6 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist (assesment)
Adequate
Safety Assist
Speed Assistance (points)
2.8 /3
Speed Assistance (assesment)
Good
Occupant Status Monitoring (points)
2 /3
Occupant Status Monitoring (assesment)
Adequate
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Marginal
Driver Monitoring (points)
1
Driver Monitoring (assesment)
Good
Lane Support (points)
1.8 /4
Lane Support (assesment)
Marginal
Emergency Lane Keeping (assesment)
Marginal
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
3.8 /6
AEB Car-to-Car (assesment)
Adequate

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Other

Warranty

Manufacturer
2 years
Paintwork
3 years
Rust Damage
12 years

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car

Similar coupes

Suggested vehicles
