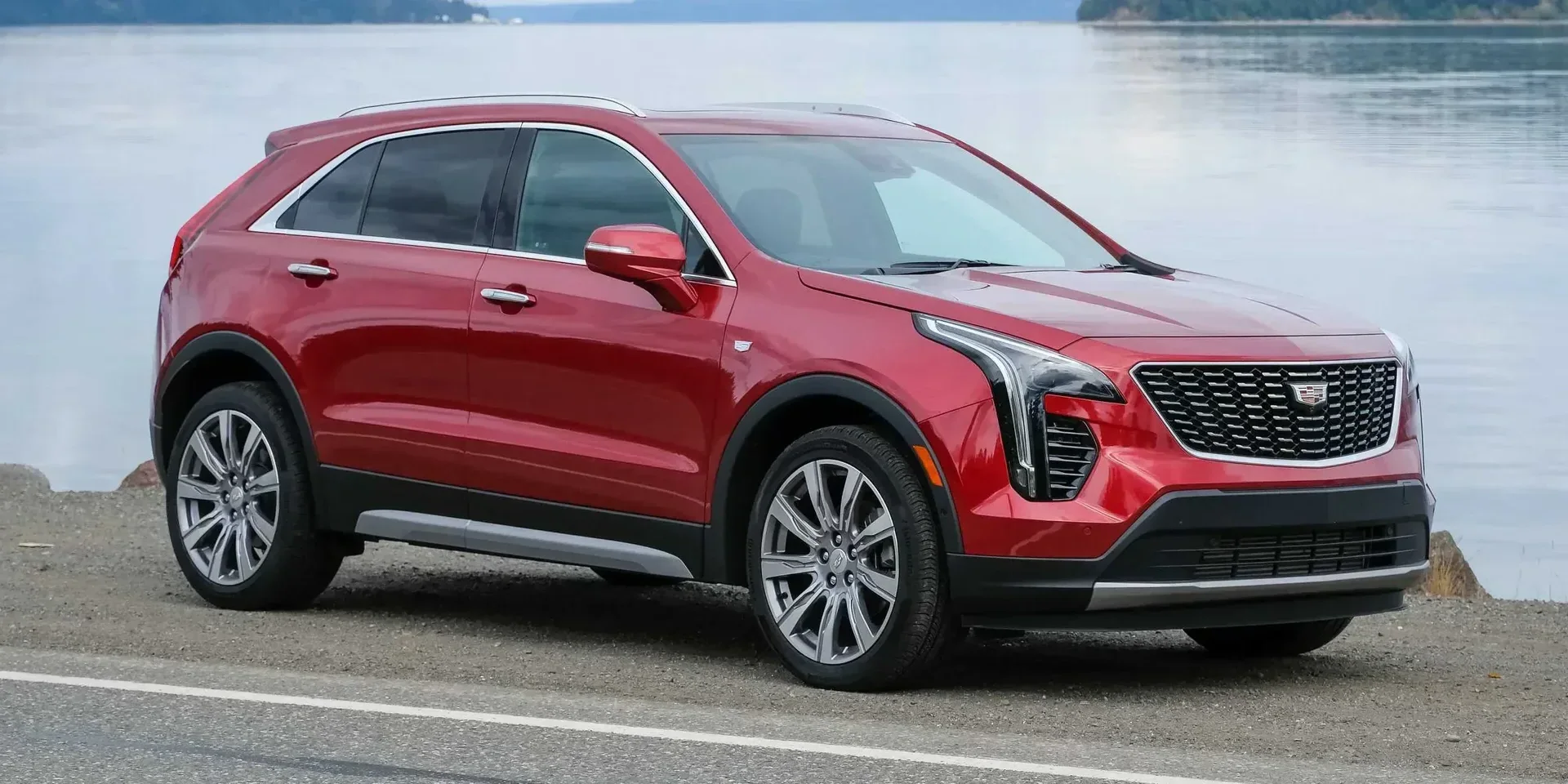

2023 Cadillac XT4

United StatesGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2023
Make
Cadillac
Model
XT4
Body Style
SUV
Generation
1st Generation
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Electrohydraulic), 9-speed

Powertrain

Engine Name
350T AWD Hydra-Matic
Engine Configuration
Inline
Power (hp)
238 hp
Power (kW)
175 kW
Torque
350 Nm (258 lb-ft)
Displacement
1,998 cc

Dimensions

Length
4,593 mm (180.8 in)
Width
1,881 mm (74.1 in)
Height
1,612 mm (63.5 in)
Wheelbase
2,779 mm (109.4 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 rpm
Rev. at Max Torque
1,500 - 4,000 rpm
Engine Fluids
Engine Oil, Volume
5 litres
Engine Coolant, Volume
9.4 litres
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
92.3 mm (3.6 in)
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Direct) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Spark Plug
96,000 km (59,652 mi)
Brake Fluid
5 years
Oil Change & Engine Filter
1 years
Engine Coolant
240,000 km / 5 years
Rear Axle, Oil
240,000 km (149,129 mi)
Interior Filter
36,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 9-speed
Gear Selector
Joystick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
4.69 :1
2nd Gear
3.31 :1
3rd Gear
3.01 :1
4th Gear
2.44 :1
5th Gear
1.92 :1
6th Gear
1.44 :1
7th Gear
1 :1
8th Gear
0.75 :1
9th Gear
0.62 :1
Final Drive
3.47 :1
Reverse
2.96 :1

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
321 mm (12.6 in)
Rear Brakes
Diameter
315 mm (12.4 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
62 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Control
  • Catalyst
  • Adaptive Cylinder Management
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption EPA
City
22 MPG
Highway
29 MPG

Dimensions & Weight

Exterior

Width, with Mirrors
2,120 mm (83.5 in)
Track, Front
1,606 mm (63.2 in)
Track, Rear
1,603 mm (63.1 in)
Overhang, Front
948 mm (37.3 in)
Overhang, Rear
866 mm (34.1 in)
Turning Circle
11.6 m
Ground Clearance
171 mm (6.7 in)

Interior

Head Room, Front
1,000 mm (39.4 in)
Head Room, Rear
973 mm (38.3 in)
Leg Room, Front
1,026 mm (40.4 in)
Leg Room, Rear
1,004 mm (39.5 in)
Hip Room, Front
1,385 mm (54.5 in)
Hip Room, Rear
1,266 mm (49.8 in)
Shoulder Room, Front
1,448 mm (57.0 in)
Shoulder Room, Rear
1,400 mm (55.1 in)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
General Motors Platforms
Epsilon Platform (E2XX)

Equipment

Side Mirrors
Heated
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Other Equipment
Sunroof
Optional
Roof Railing
Optional

Lights

Main Beam
LED
Low Beam
LED
Cornering Lights
Optional

Rims & Tires

Tightening Torque
190 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
  • Analogue
  • Digital
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Square
Climate Control
Climate Control
Automatic
Air Condition
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
Media Inputs
USB
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
Yes
Displays
Center Display
Yes
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Electrical
Interior Storage › Storage Compartments
Glove Compartment
Lockable
Armrest Hatch
Front
Back Pocket
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Rear
Yes
Lights
Read Light
Front

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Number of Spokes
3
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Yes
Media
Yes
Multifunction Steering Wheel › Media
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
637 litres
Volume, Back Seat Collapsed
1,385 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Heated Seats
Optional

Features

Comfort Features

Cruise Control
Yes
Cameras: Camera Position
Rear
Cruise Control
Adaptive Cruise Control
Optional

Other Features

GPS
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes
Lane Departure Warning (LDW)
Optional

Brake Systems

Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Parking Sensors
Front
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes
IIHS
Test Year
2019
Moderate Overlap Front
Good
Side
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Airbag cut-off Switch

Other

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV
