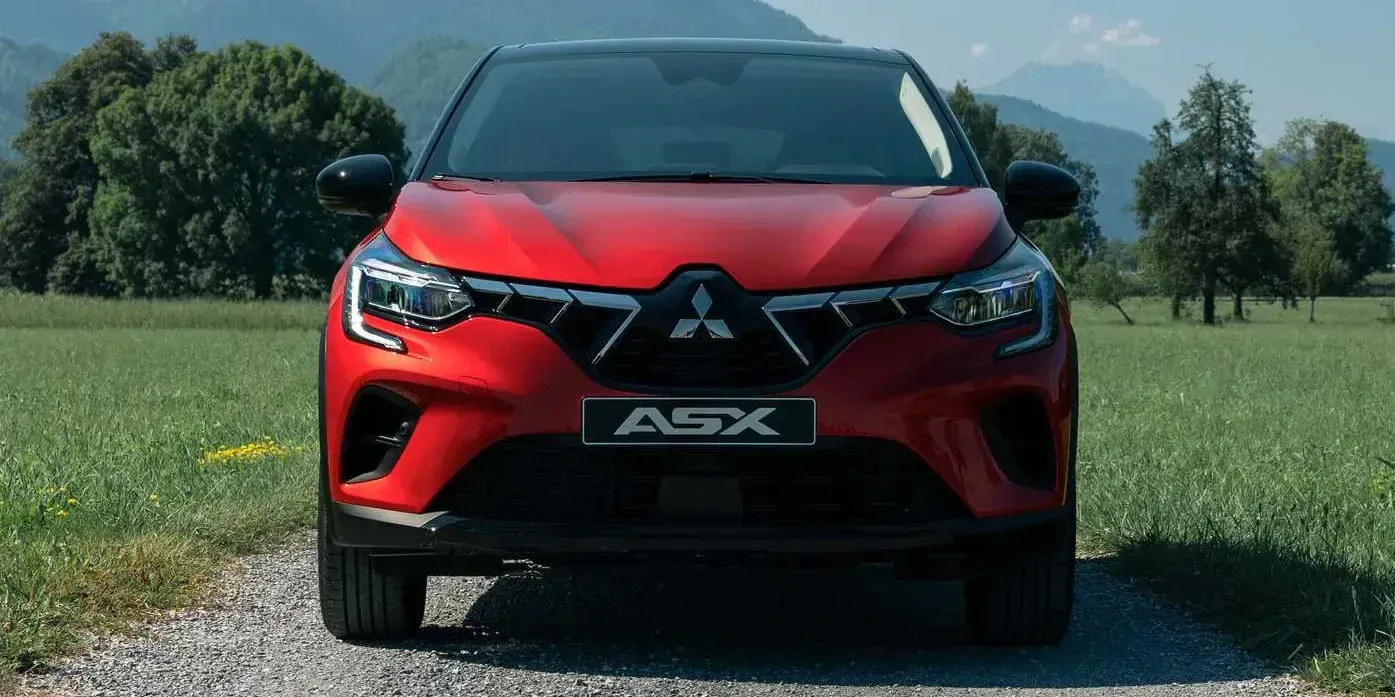

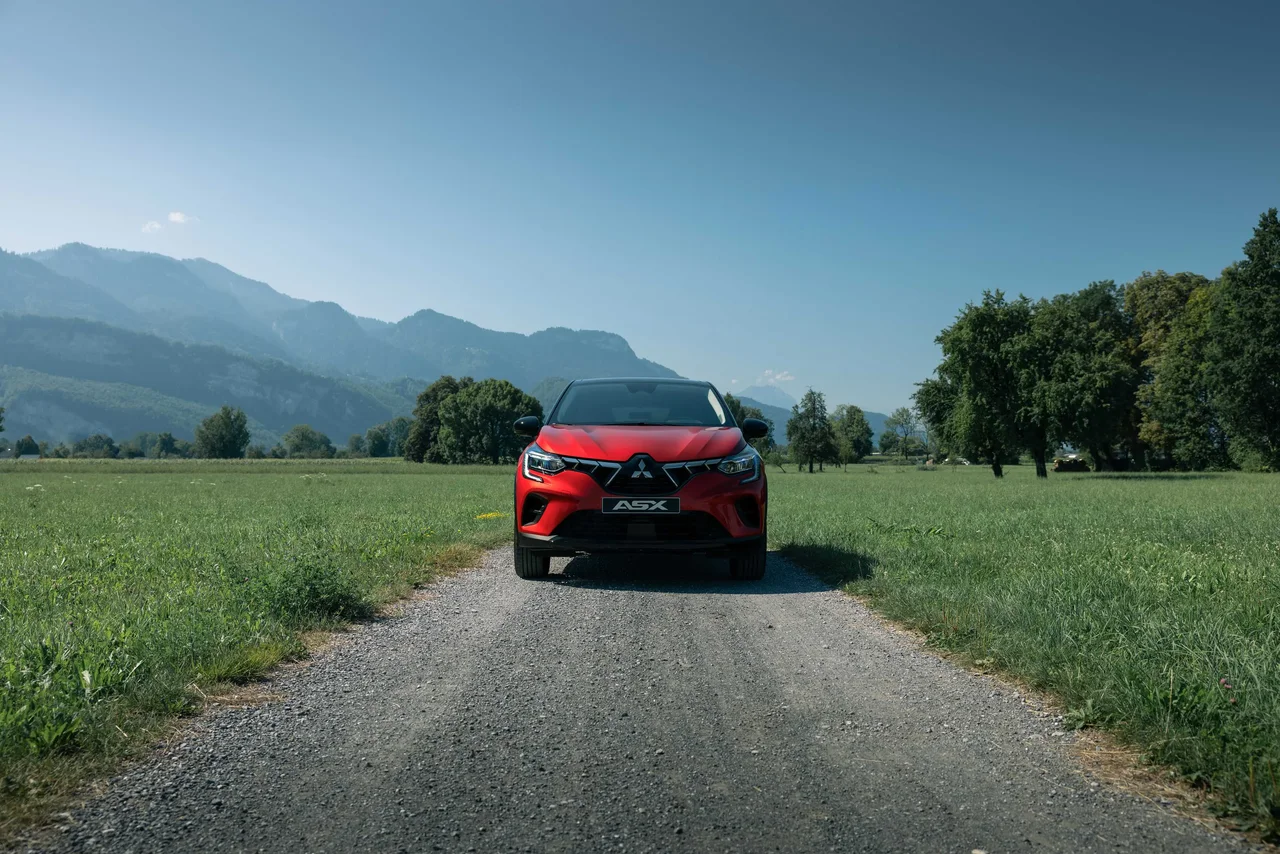

2023 Mitsubishi ASX Hybrid MultiMode

JapanHybrid GasolineFWDSUV

Photos

Specifications

Vehicle Details

Year
2023
Make
Mitsubishi
Model
ASX
Variant
Hybrid MultiMode
Body Style
SUV
Generation
2nd Generation
Seats
5
Doors
5
Fuel
Hybrid Gasoline
Drivetrain
FWD
Transmission
Automatic (Sequential)

Powertrain

Engine Name
Hybrid MultiMode
Engine Configuration
Inline
Power (hp)
143 hp
Power (kW)
105 kW
Torque
148 Nm (109 lb-ft)
Top speed
170 km/h (106 mph)
0–60 mph
9.4 seconds (estimated)
0–100 km/h
9.9 seconds
Battery
1.26 kWh
Displacement
1,598 cc

Dimensions

Length
4,228 mm (166.5 in)
Width
1,797 mm (70.7 in)
Height
1,573 mm (61.9 in)
Wheelbase
2,639 mm (103.9 in)
Curb weight
1,513 kg (3,336 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,600 rpm
Rev. at Max Torque
3,600 rpm
Configuration Combustion
Bore
78 mm (3.1 in)
Stroke
83.6 mm (3.3 in)
Compression Ratio
10.8 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Fuel System
Electronic (Multi-Point) Fuel Injection
Configuration Electric
Type of Electric Car
Hybrid
Electric Engine Power
36 kW
Electric Engine Horsepower (Metric)
49 hp
Battery Capacity, Gross
1.26 kWh
Type of Battery
Li-ion
Service Intervals
Air Filter
30,000 km / 2 years
Spark Plug
60,000 km / 4 years
Brake Fluid
120,000 km / 3 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
150,000 km / 5 years
Accessory Belt
120,000 km (74,565 mi)

Transmission & Drivetrain

Transmission
Automatic (Sequential)

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
  • Disc Brakes
  • Drum Brakes
Front Brakes
Diameter
296 mm (11.7 in)
Width
26 mm (1.0 in)
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Yes

Fuel

General
Tank Volume
48 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6
WLTP Consumption
Low (l/100km) (WLTP)
4.6 - 5.1 litres / 100 km
Medium (l/100km)
4.2 - 4.4 litres / 100 km
High (l/100km)
4.3 - 4.5 litres / 100 km
Extra High (l/100km)
5.6 - 5.9 litres / 100 km
Combined (l/100km)
4.8 - 5.1 litres / 100 km
Emission WLTP
CO₂, Combined
108 - 114 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,003 mm (78.9 in)
Track, Front
1,561 mm (61.5 in)
Track, Rear
1,547 mm (60.9 in)
Overhang, Front
875 mm (34.4 in)
Overhang, Rear
714 mm (28.1 in)
Turning Circle
11.1 m
Ground Clearance
141 - 173 mm (5.6 - 6.8 in)

Interior

Head Room (est.), Rear
990 - 1,010 mm (39.0 - 39.8 in)
Leg Room (est.), Rear
905 - 921 mm (35.6 - 36.3 in)

Weight

Gross Weight
1,896 kg (4,180 lb)
Max Trailer Load, braked 12%
750 kg (1,653 lb)
Max Trailer Load, unbraked
720 kg (1,587 lb)
Cargo Capacity
458 kg (1,010 lb)
Max Roof Load
80 kg (176 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Automatic Tilt Down
Optional
Ground Light
Optional
Turning Signal
Yes
House Colour
Same as Car
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Adjustments
Driver side
Optional
Passenger side
Optional
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Heated Windows
Front
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Spoiler
Optional
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Spoiler
Fixed
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Colour

Finish
Solid

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
67.1
Central Bore (CB), rear
67.1
Fastening Type
Lug Nuts
Tightening Torque
88 - 108 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit

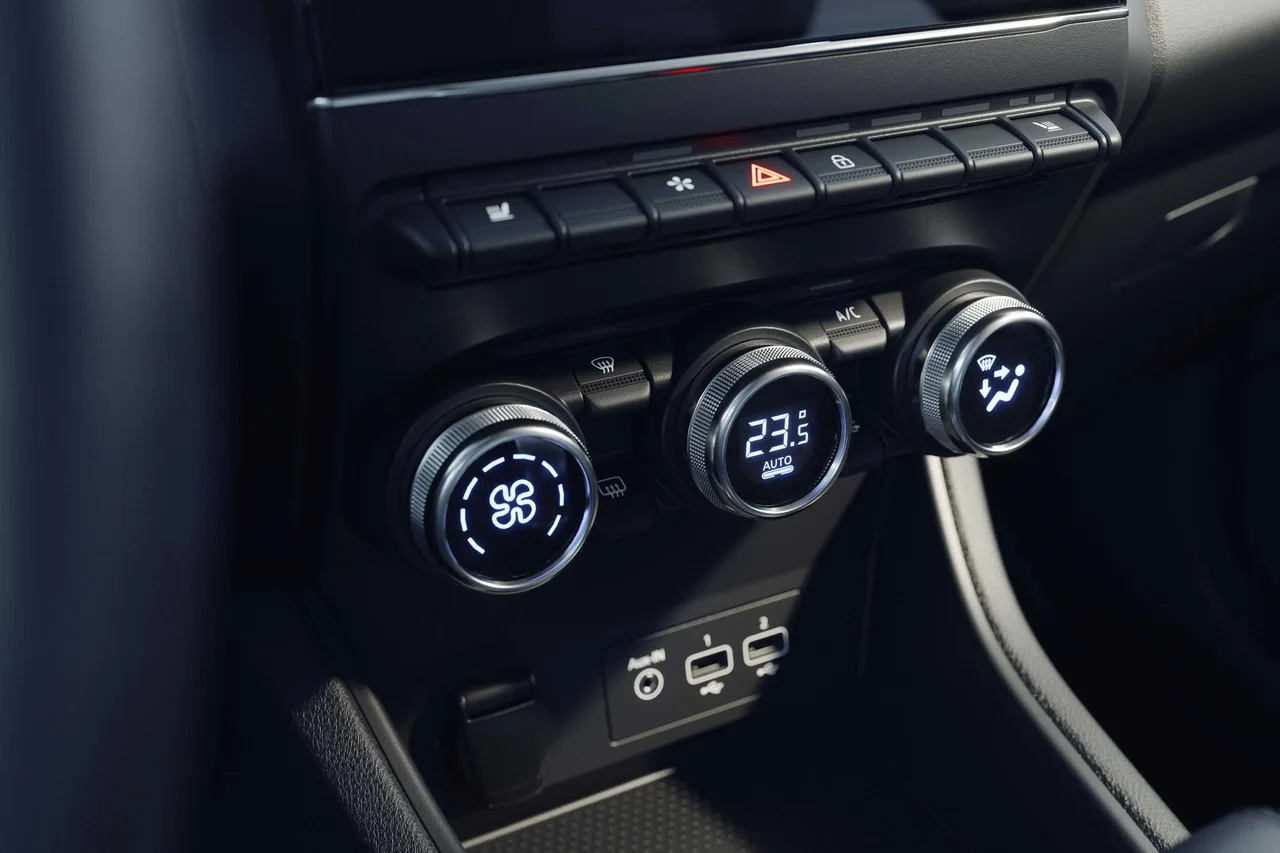

Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
  • Buttons
  • Rotary Dials
Back Seat Controls
Optional
Climate Control › Air Condition
Refrigerant
R1234yf
Climate Control › Back Seat Controls
Buttons
Optional
Connectivity
Radio
  • AM
  • FM
  • DAB+
Media Format
  • FLAC
  • MP3
App-Connect
Optional
Bluetooth
  • Phone
  • Audio
Cellular Network
Optional
WiFi
Optional
Connectivity › Media Inputs
AUX
Front
USB
USB-C
Connectivity › Media Inputs › USB
Placement
Front
Connectivity › App-Connect
Android Auto
Optional
Apple CarPlay
Optional
Connectivity › Cellular Network
5G
Optional
Connectivity › Cellular Network › 5G
4G
Optional
3G
Optional
Displays
Center Display
Yes
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Bottom of the Doors
Ambient Light
Optional
Selectable Light Colour
Optional
Lights › Guide Light
Footwell
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › 12V Outlet
Rear
Optional
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
326 litres
Volume, Back Seat Collapsed
1,149 litres
Depth
769 mm (30.3 in)
Width
1,015 mm (40.0 in)

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Ventilated Seats
Optional
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Collapsible › Backrest Release
From Trunk
Optional
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Optional
Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes
Cameras
Rear
Voice Control
  • Climate Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Cameras
View Location
Center Display
Voice Control
Navigation
Optional
Wireless Phone Charger
Front
Optional

Other Features

GPS
Optional
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Individual
  • Sport
Dynamic Chassis Control (DCC)
Optional
Horn
Dual Note

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Child Safety Locks
Electrical
Immobiliser
Electronic
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Hybrid Components
160,000 km / 8 years
EV Battery
160,000 km / 8 years

Identification

VIN Location
Engine Compartment, Bulkhead
Yes
Pillar
Yes
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Left

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Small SUV

Similar suvs

Suggested vehicles
