2024 Aiways U5

ChinaElectricFWDCrossover

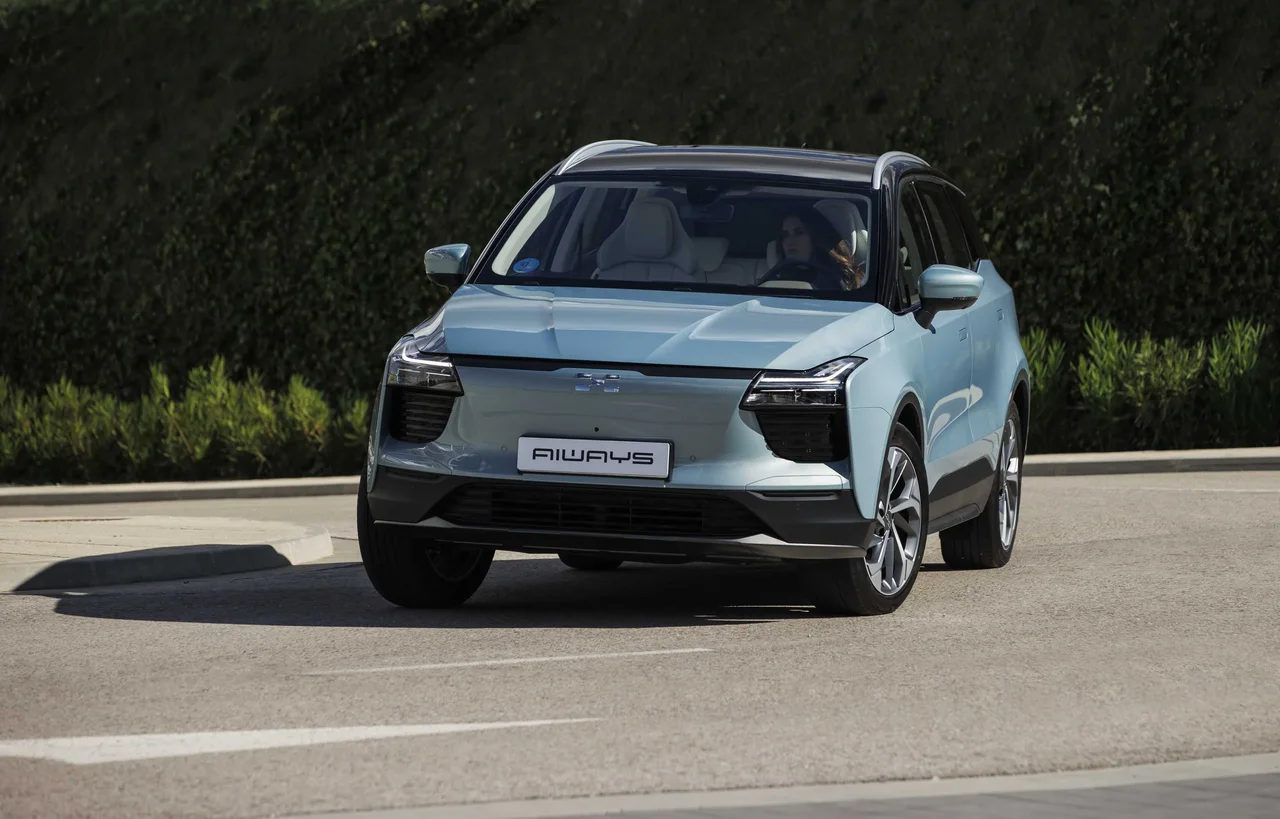

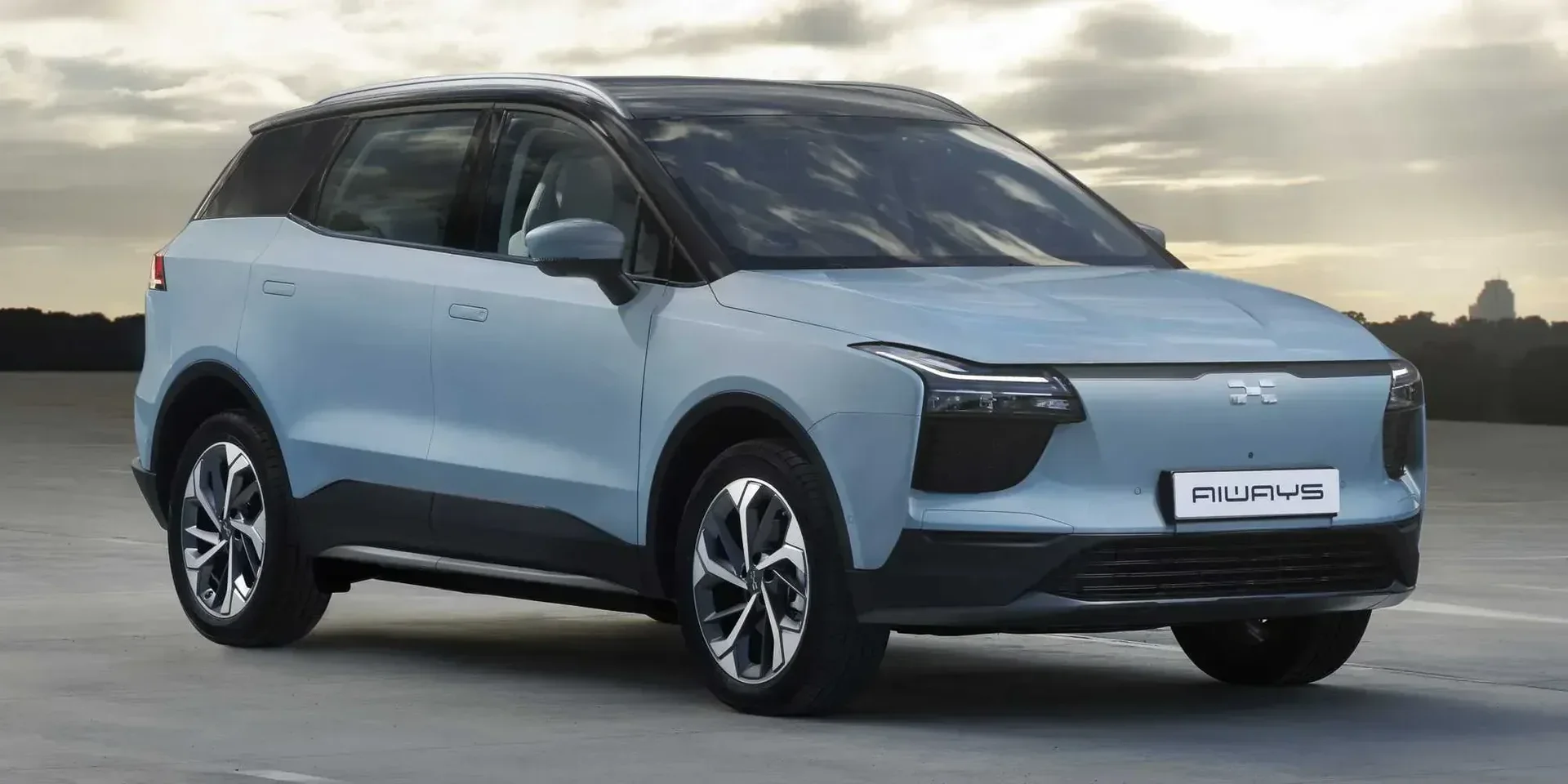

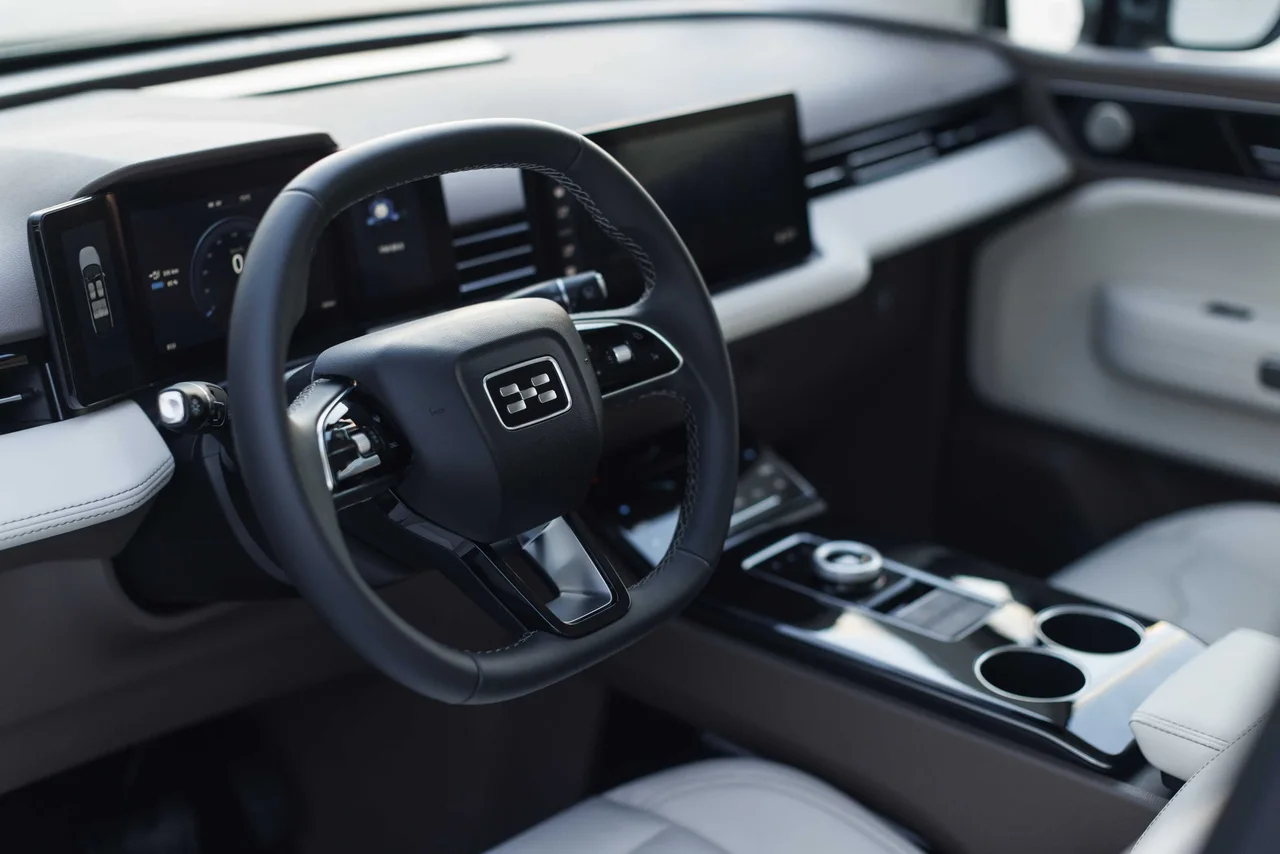

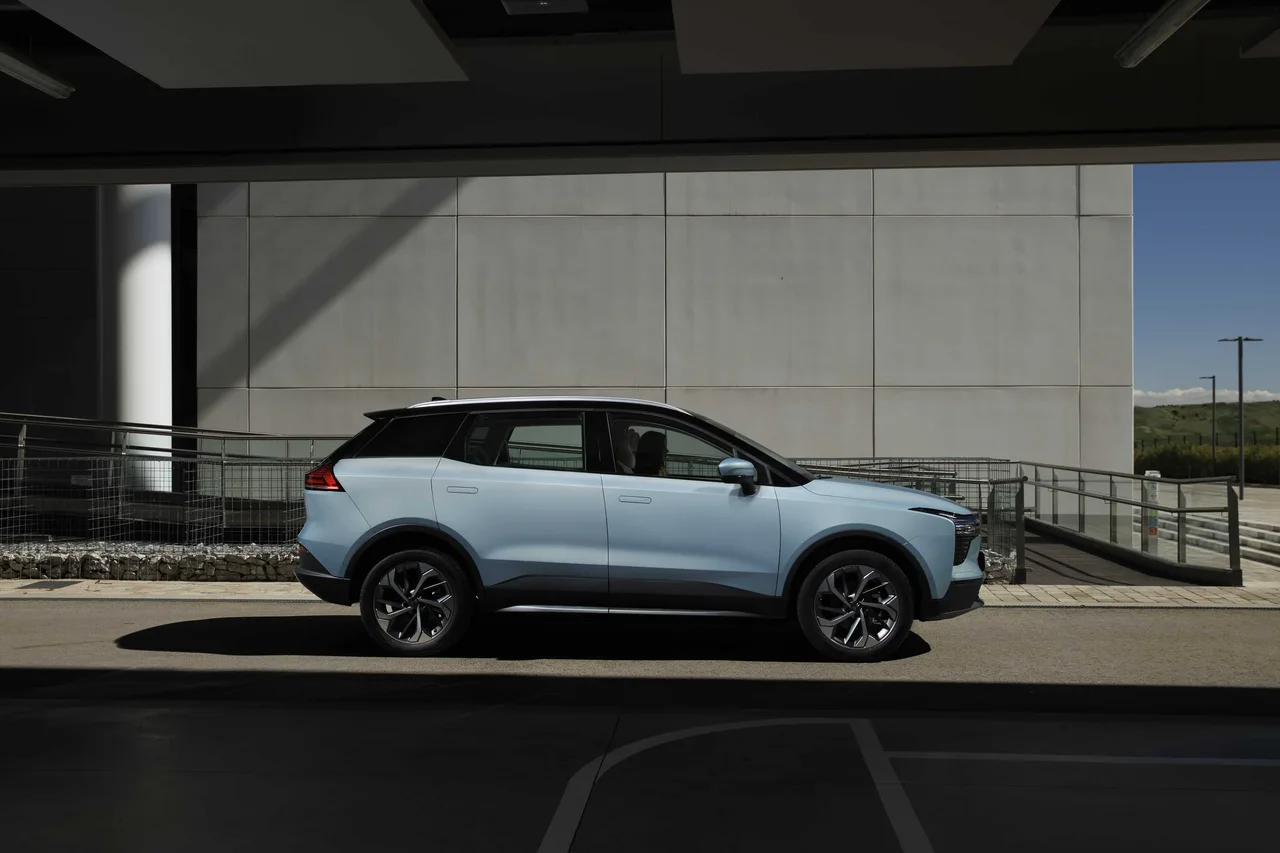

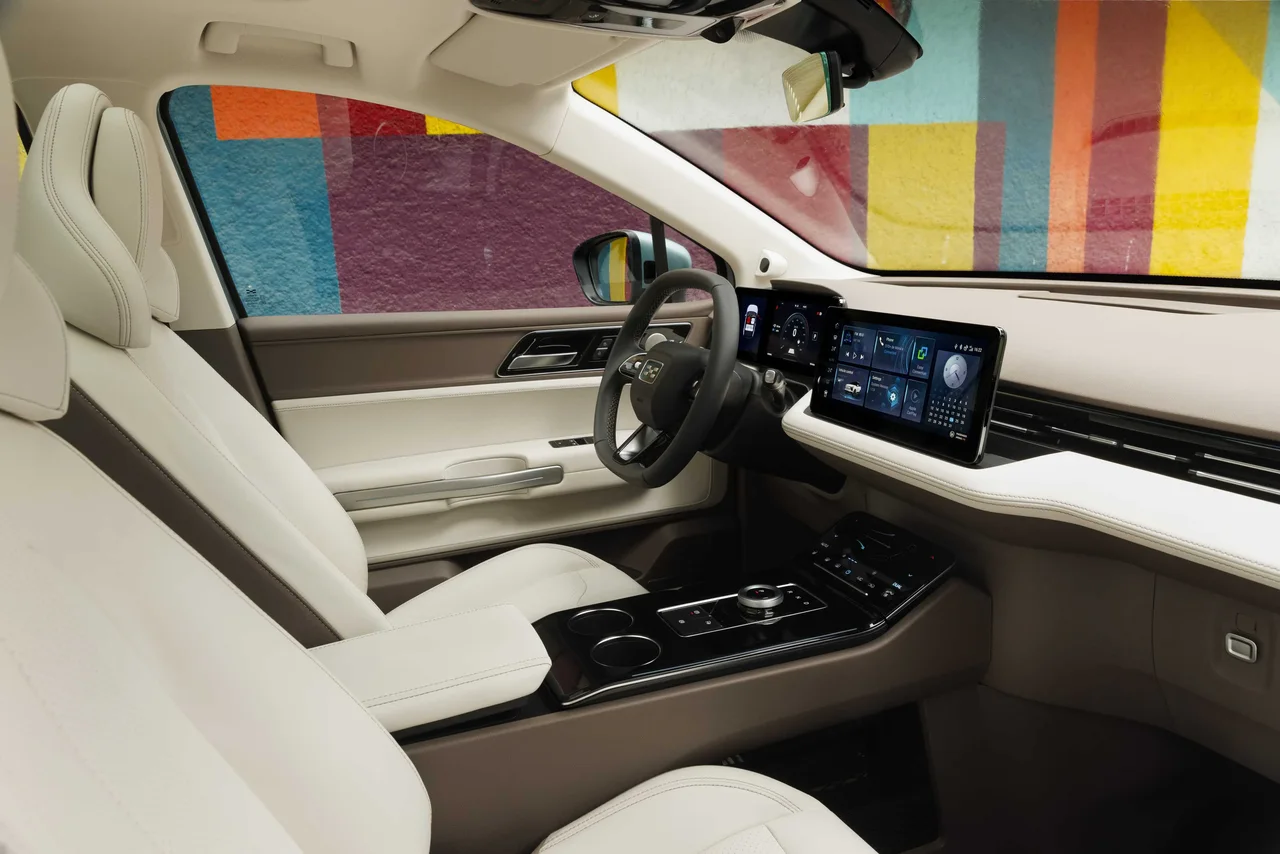

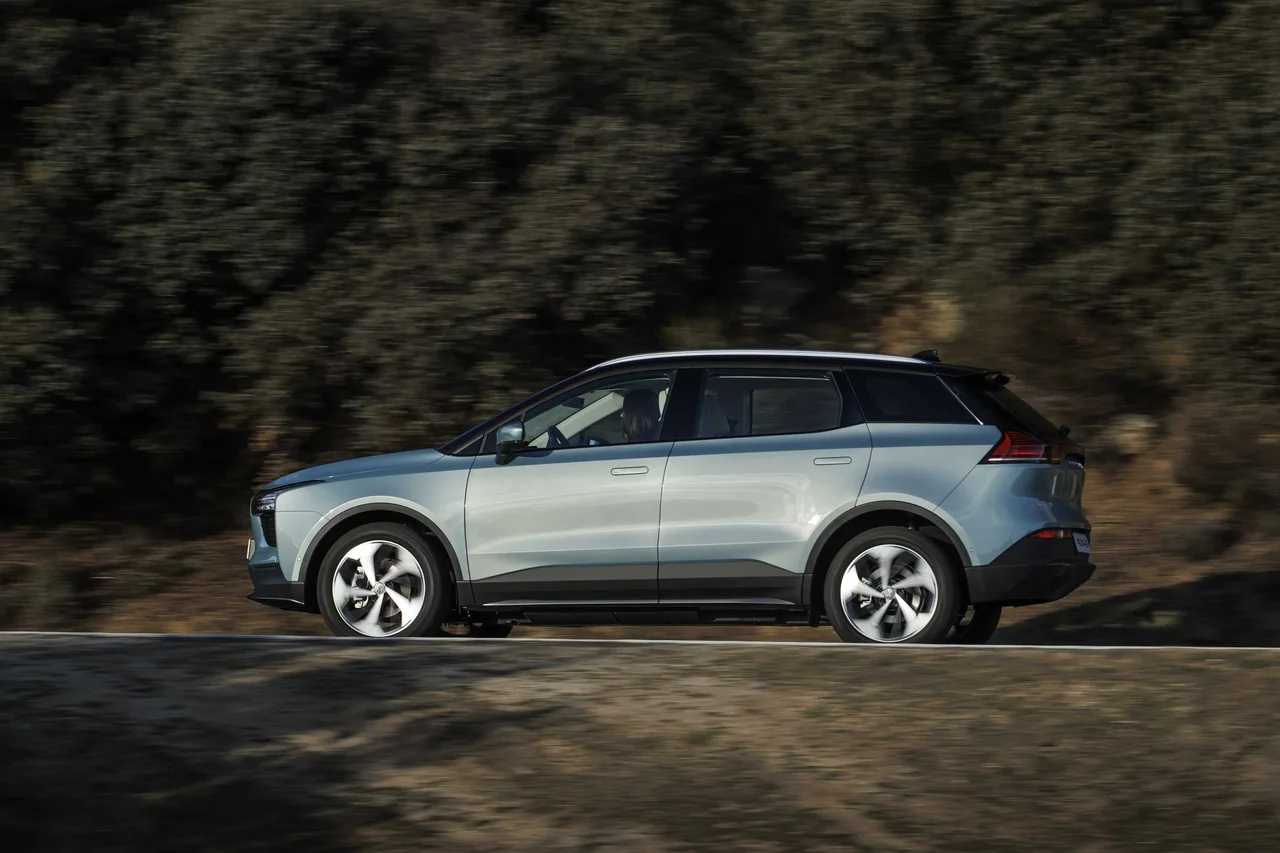

Photos

Specifications

Vehicle Details

Year
2024
Make
Aiways
Model
U5
Body Style
Crossover
Generation
1st Generation
Seats
5
Doors
5
Fuel
Electric
Drivetrain
FWD
Transmission
Automatic (Fixed), 1-speed

Powertrain

Engine Name
63 kWh Single Speed
Engine Configuration
Electric
Power (hp)
204 hp
Power (kW)
150 kW
Torque
310 Nm (229 lb-ft)
Top speed
160 km/h (99 mph)
0–60 mph
7.1 seconds (estimated)
0–100 km/h
7.5 seconds
Electric range
400 km (249 mi)
Battery
63 kWh

Dimensions

Length
4,680 mm (184.3 in)
Width
1,865 mm (73.4 in)
Height
1,700 mm (66.9 in)
Wheelbase
2,800 mm (110.2 in)
Curb weight
1,720 kg (3,792 lb)

Engine & Performance

Engine

Engine Fluids
Engine Oil, Volume
12 litres
Transmission Fluid, Volume
1.8 litres
Car Battery
Voltage
12 V
Engine Configuration
Type of Electric Car
Electric
Electric Engine Power
150 kW
Electric Engine Horsepower (Metric)
204 hp (201 bhp)
Torque
310 Nm (229 lb-ft)
Front Engines
Yes
Battery Capacity, Gross
63 kWh
Type of Battery
Li-ion
AC Charge Type
Single-phase
Charging Plugs
Type 2 (CCS)
Engine Configuration › Front Engines
Power (kW)
150 kW
Horsepower
204 hp
RPM at Max Power
16,000 rpm
Number of Engines
1
Engine Configuration › Charge AC
Charge Time
7.5 h
Engine Configuration › Charge DC
Charge Time, to 80%
0.5 h / 3.5 min
Charge Percentage
50 %
Service Intervals
Brake Fluid
100,000 km / 3 years

Transmission & Drivetrain

Transmission
Automatic (Fixed), 1-speed
Gear Selector
Rotary Knob
Gear Selector Location
Mid-Console

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
314 mm (12.4 in)
Cooling
Ventilated
Rear Brakes
Diameter
314 mm (12.4 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Front
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Energy & Range

General › Charging Socket Position
Front
Left
Emission
Emission Class
A+
WLTP Consumption
Low (l/100km) (WLTP)
0 litres / 100 km
Medium (l/100km)
0 litres / 100 km
High (l/100km)
0 litres / 100 km
Extra High (l/100km)
0 litres / 100 km
Energy consumption
15.4 - 16.4 kWh/100km
Electric Range
400 - 410 km (249 - 255 mi)
Fuel Consumption NEDC
City
0 litres / 100 km
Highway
0 litres / 100 km
Combined
0 litres / 100 km
Energy consumption
13.8 kWh/100km
Electric Range
503 km (313 mi)
Emission WLTP
CO₂, Low
0 g/km
CO₂, Medium
0 g/km
CO₂, High
0 g/km
CO₂, Extra High
0 g/km
CO₂, Combined
0 g/km
Emission NEDC
CO₂, Combined
0 g/km

Performance

Drag Coefficient
0.29

Dimensions & Weight

Exterior

Track, Front
1,592 mm (62.7 in)
Track, Rear
1,590 mm (62.6 in)
Overhang, Front
910 mm (35.8 in)
Overhang, Rear
970 mm (38.2 in)
Approach Angle
19 °
Departure Angle
22.6 °
Turning Circle
11.2 m
Ground Clearance
148 mm (5.8 in)

Interior

Head Room (est.), Front
1,005 - 1,030 mm (39.6 - 40.6 in)
Head Room (est.), Rear
960 - 980 mm (37.8 - 38.6 in)
Leg Room (est.), Front
1,038 - 1,050 mm (40.9 - 41.3 in)
Leg Room (est.), Rear
960 - 1,000 mm (37.8 - 39.4 in)
Shoulder Room (est.), Front
1,430 mm (56.3 in)
Shoulder Room (est.), Rear
1,374 mm (54.1 in)

Weight

Gross Weight
2,155 kg (4,751 lb)
Cargo Capacity
435 kg (959 lb)
Max Roof Load
75 kg (165 lb)
Permitted Axle Load, front
1,080 kg (2,381 lb)
Permitted Axle Load, rear
1,075 kg (2,370 lb)
Weight Distribution, front
53 %
Weight Distribution, rear
47 %

Exterior

Chassis & Body

Chassis
Chassis
  • Station Wagon Crossover
  • SUV
Pillars
A-D
Chassis Construction
Unibody
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Bottom-Strip
Rear
Bottom-Strip
Sides
Bottom-Strip
Wheel Arches
Yes
Colour
Non-Painted
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pop-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Intermittent Control
Yes
Volume Water Tank
3 litres
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Tow Hook
Front
Roof Railing
Yes
Spoiler
Fixed
Antenna
Shark Fin
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Silver

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Come Home/Leaving Lights
  • Headlight Range Adjustment
Fog Lights
Front
LED
Rear
LED
Fog Lights › Front
Cornering Lights
Yes

Colour

Finish
Metallic

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Fastening Type
Lug Nuts
Tightening Torque
120 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Navigation
Yes
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Touchscreen
Climate Control › Air Condition
Refrigerant
R1234yf
Refrigerant, Capacity
645 g
Connectivity
Radio
  • AM
  • FM
App-Connect
Apple CarPlay (Wired)
Bluetooth
  • Phone
  • Audio
Cellular Network
4G
WiFi
Yes
Connectivity › Radio
DAB
Optional
Connectivity › Media Inputs
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Number of Ports
3 pcs
Displays
Center Display
12.3"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
8 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Manual
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Armrest Hatch
Front
Back Pocket
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Ambient Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Scrolling Wheel)
  • Resume
Media
Yes
Mode Selection
Yes
Number of Buttons
10 pcs
Multifunction Steering Wheel › Media
Voice Command
Yes
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • From Inside Car
  • Key Button
Automatic Close
Yes
Release Button
Yes
Cover
Sliding (Manual)
Flat Surface
Yes
Second Trunk Compartment
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
432 litres
Volume, Back Seat Collapsed
1,555 litres
Depth
1,040 mm (40.9 in)
Depth, Back Seat Collapsed
1,855 mm (73.0 in)
Width
1,020 mm (40.2 in)
Width, Between Wheel Arches
1,010 mm (39.8 in)
Height
757 mm (29.8 in)
Sill Height
762 mm (30.0 in)
Automatic Open
Motion Activated
Optional

Design

Interior Decor Material
Plastic
Transmission Knob Material
Plastic
Entry Guard Material
Aluminium

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Front Seats
Number of Driver Seat Adjustments, Powered
6
Number of Driver Seat Adjustments, Total
6
Number of Passenger Seat Adjustments, Powered
4
Number of Passenger Seat Adjustments, Total
4
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
Optional
Armrest
Middle
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Backrest Angle
Powered
Headrest, Height
Manual
Front Seats › Heated Seats
Cushion
Optional
Number of Heat Levels
3
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Remote Engine Start
Yes
Cruise Control
Active Cruise Control
Speed Limiter
Yes
Parking Heater
Yes
Cameras
  • Front
  • Sides
  • Rear
Voice Control
  • Climate Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Optional
Cruise Control
Adaptive Cruise Control
Queue Assist
Parking Heater
Type
Cabin Heater
Power Source
Battery-operated
Controls
Phone Application
Cameras
360° Camera
Yes
View Location
Center Display
Wireless Phone Charger
Front
Optional

Other Features

GPS
Navigation
Driving Mode Selection
  • Eco
  • Normal
  • Sport
Smartphone App
Yes
Over-the-Air Updates
Yes
Multifunction Camera
Yes
Sound Generator, External
Yes
GPS
Map-update
Internet

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Warning Triangle
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Forward Collision Warning (FCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Optional
Sign Assist
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes
Active Lane Change
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Yes
Door Open Warning
Yes
Pedestrian/Bicycle Detection
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional

Other Features

Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes
Type of Keys
  • Keycards (NFC)
  • Smartphone as a Key
Number of Remote Keys
1
Number of Standard Keys
1
Total Number of Keys
2
Key Features
Bluetooth
Speed Sensitive
Yes

Safety Testing

General
Test Year
2019
Adult Occupant
73 %
Child Occupant
70 %
Vulnerable Road Users
45 %
Safety Assist
55 %
Overall
3/5 stars
Adult Occupant
Total Points
28 /38
Frontal Impact
7.9 /16
Lateral Impact
7.5 /16
Rear Impact
1.4 /4
Child Occupant
Total Points
34.4 /49
Crash Test Performance
  • 7.4
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
21.9 /49
Pedestrian
  • 15.9
  • 0
  • 6
AEB Vulnerable Road Users
0 /18
AEB Pedestrian
0 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
0 /9
AEB Cyclist (assesment)
Marginal
Safety Assist
Speed Assistance (points)
0.3 /3
Speed Assistance (assesment)
Weak
Seat Belt Reminder (assesment)
Good
Lane Support (points)
2 /4
Lane Support (assesment)
Marginal
AEB Car-to-Car (points)
2 /6
AEB Car-to-Car (assesment)
Adequate

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
150,000 km / 5 years
Paintwork
150,000 km / 4 years
Rust Damage
10 years
EV Battery
150,000 km / 8 years

Identification

VIN Location
Left Side Casing of Window
Yes

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Medium SUV

Similar crossovers

Suggested vehicles
