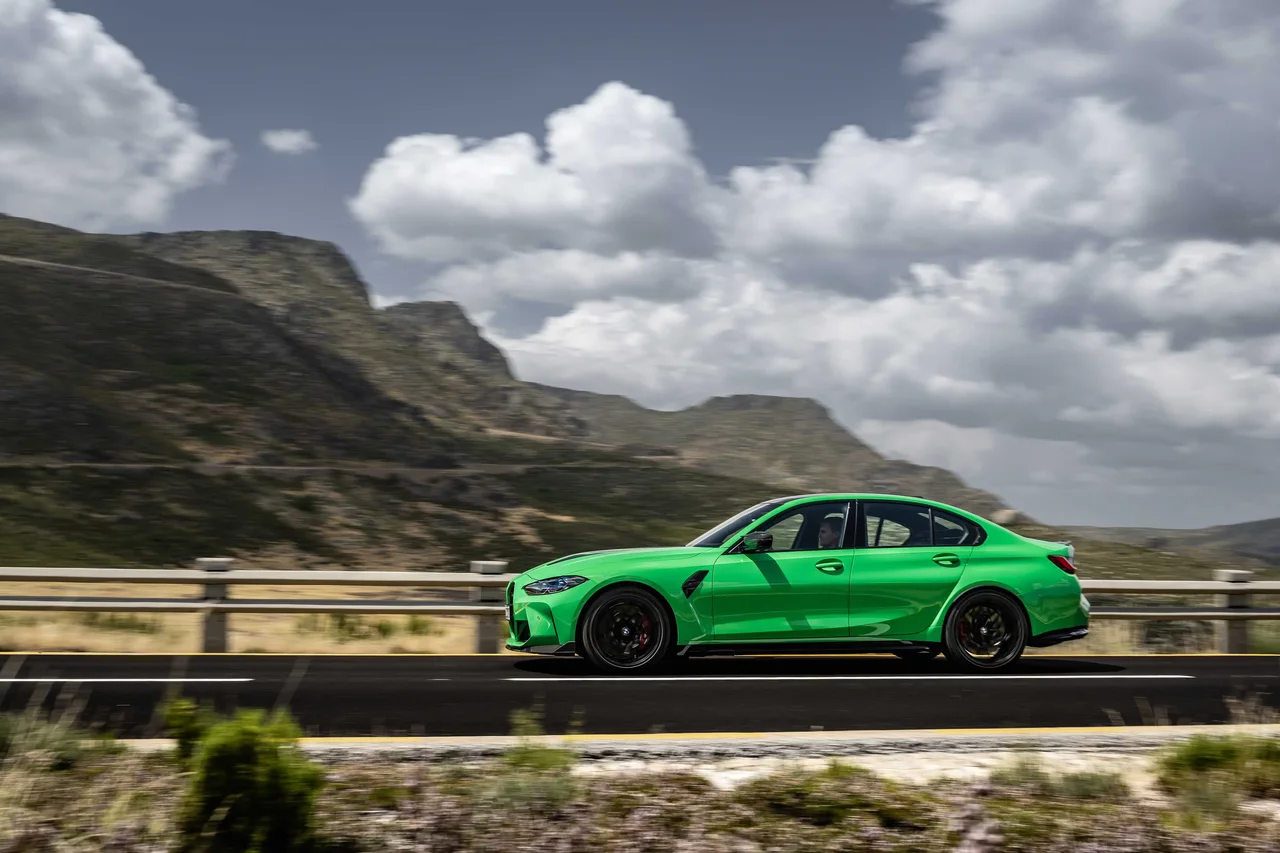

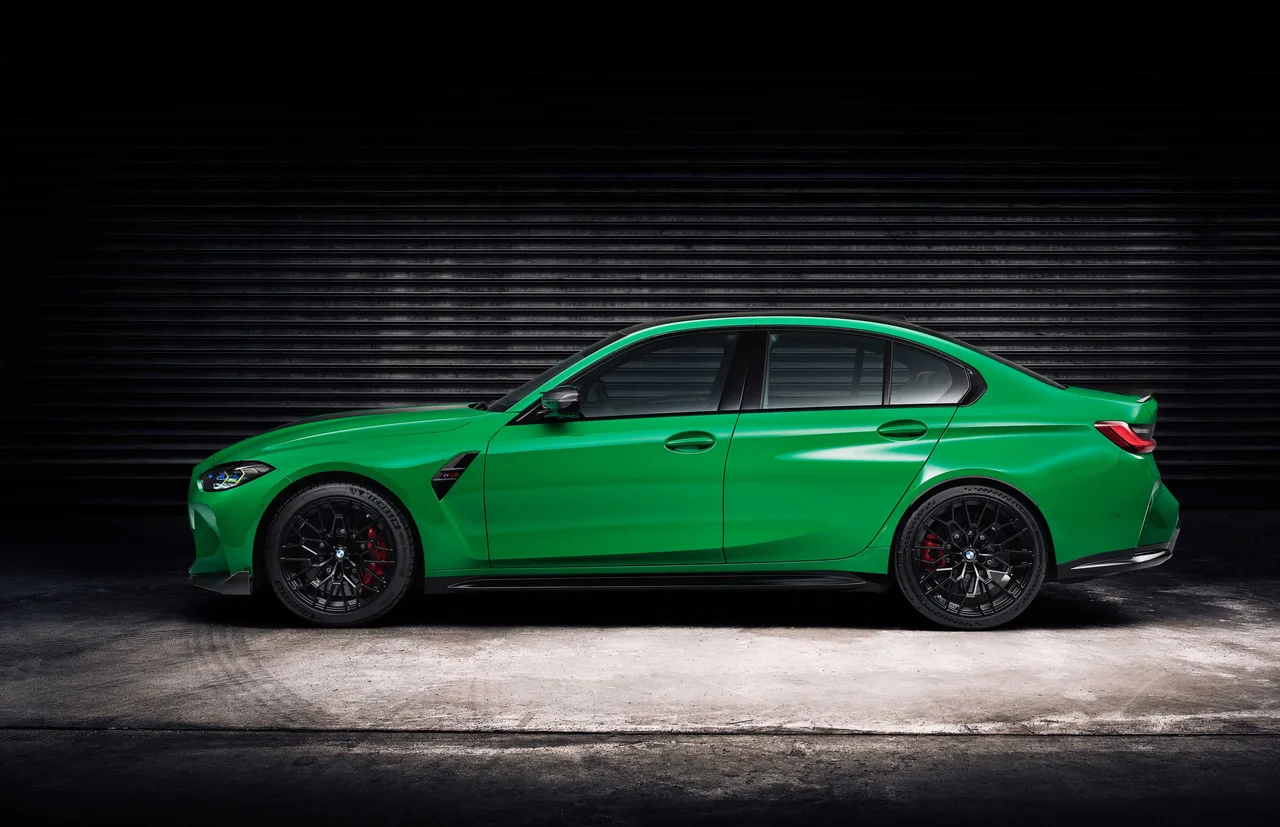

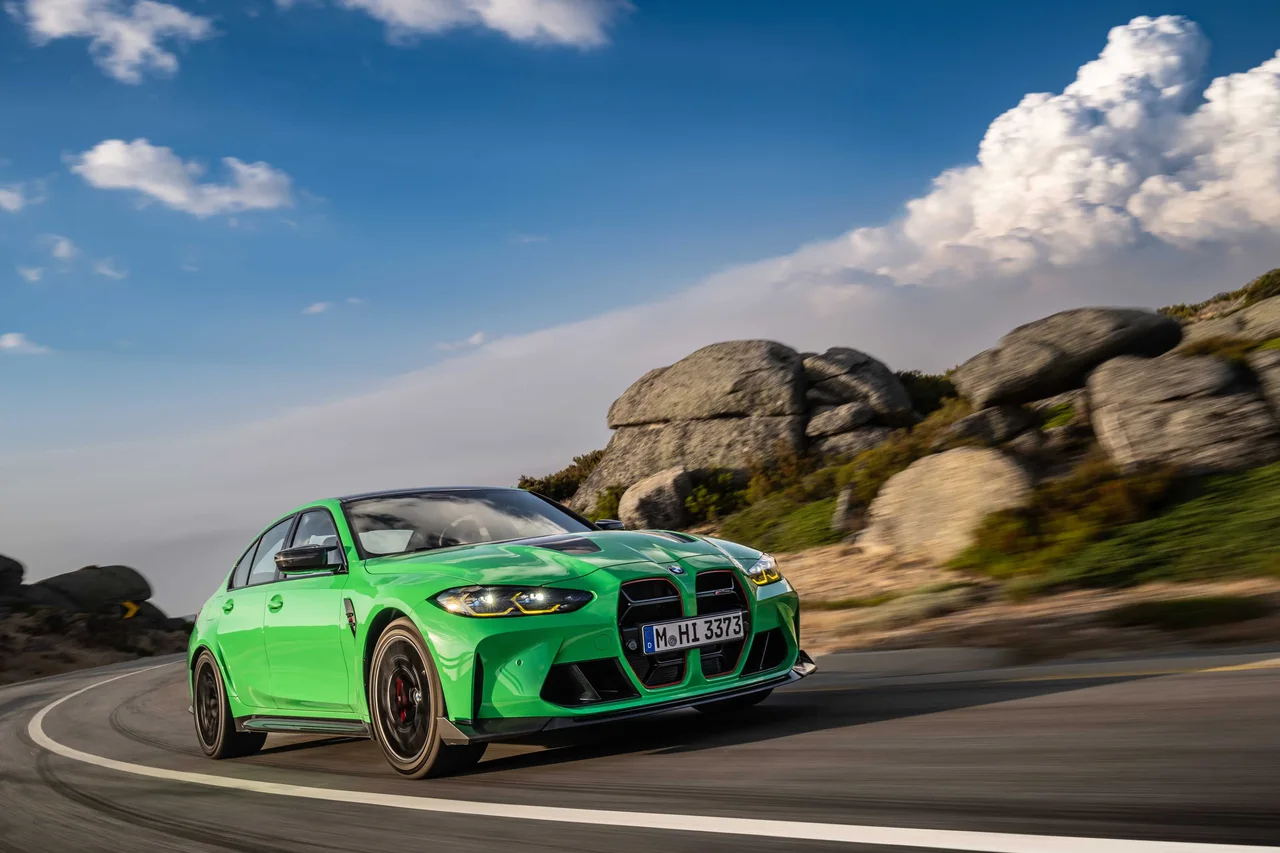

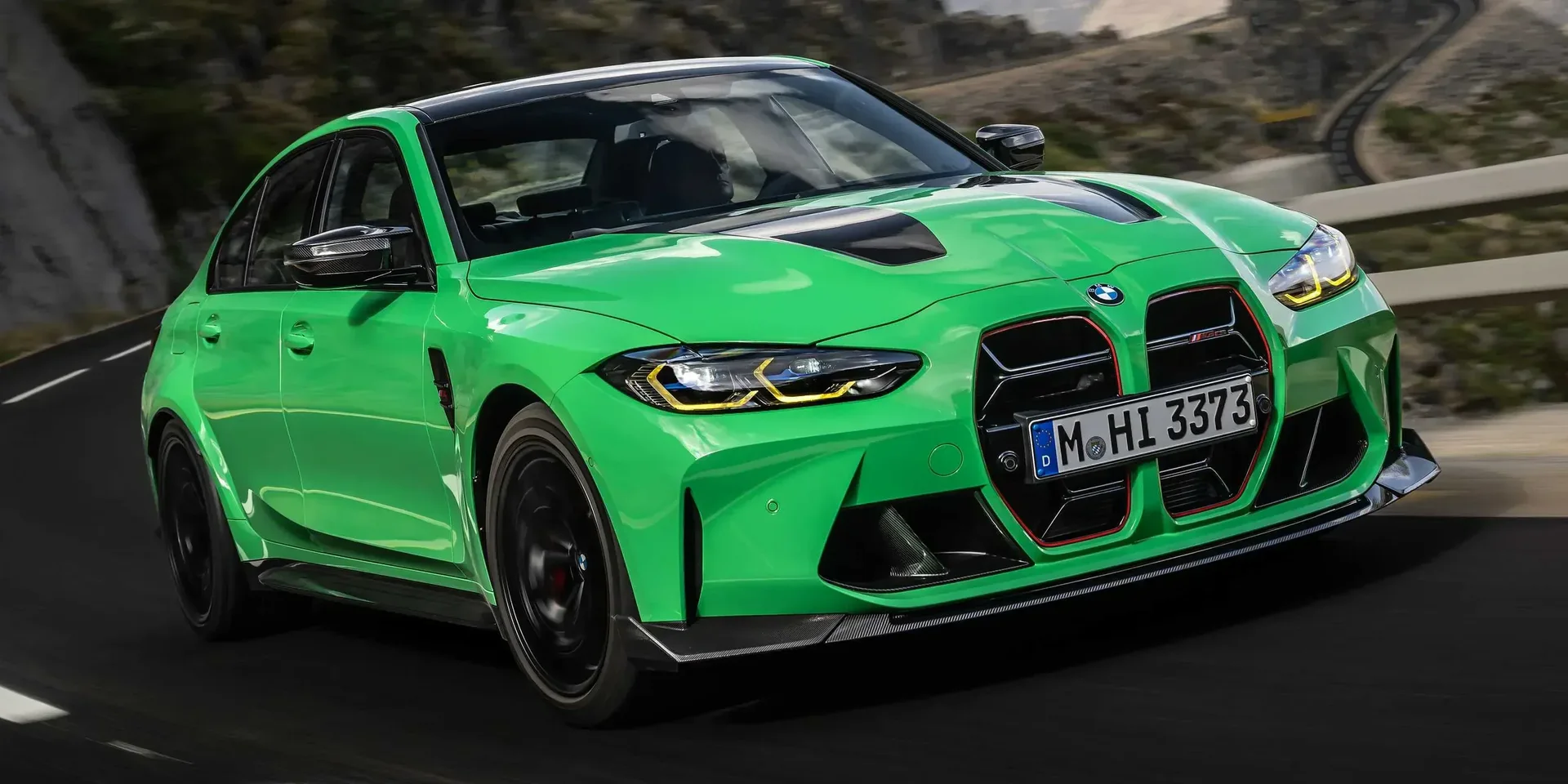

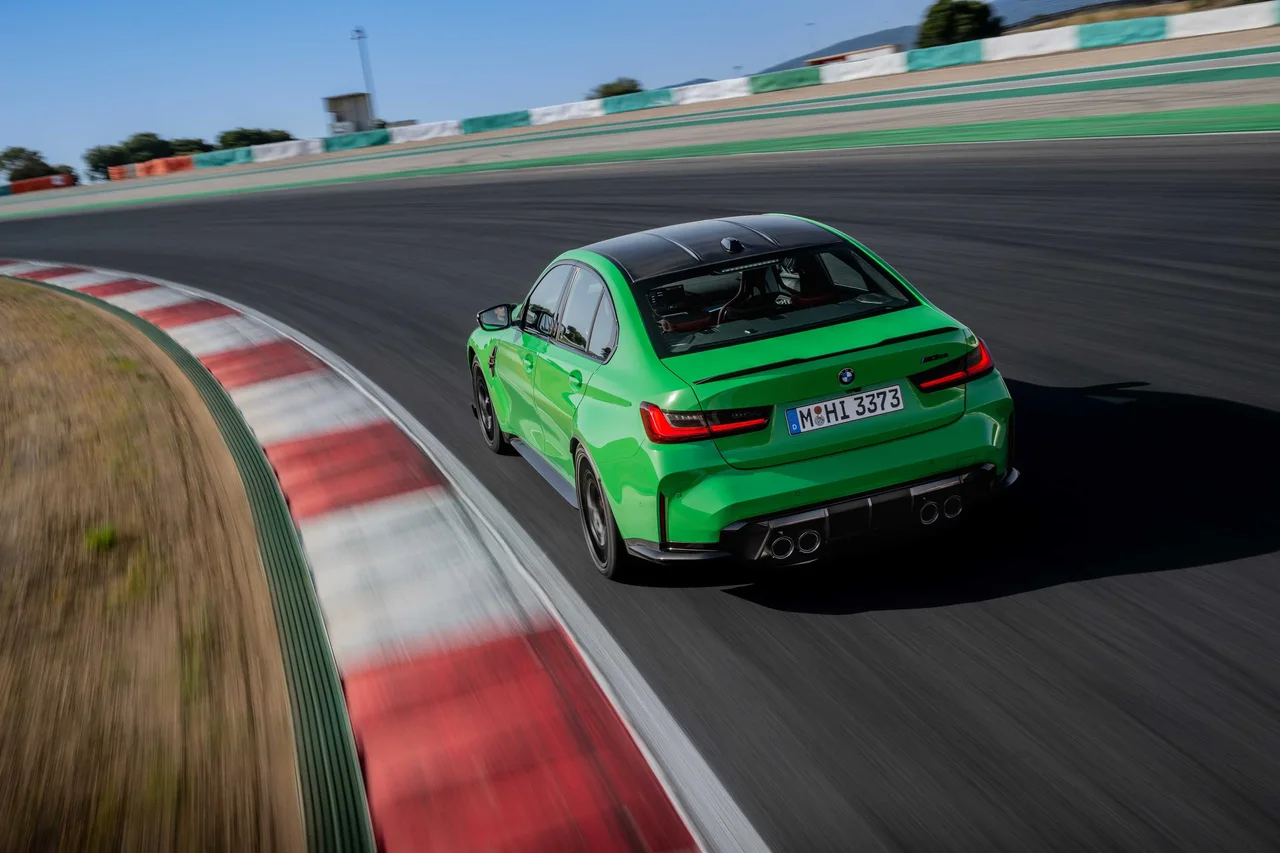

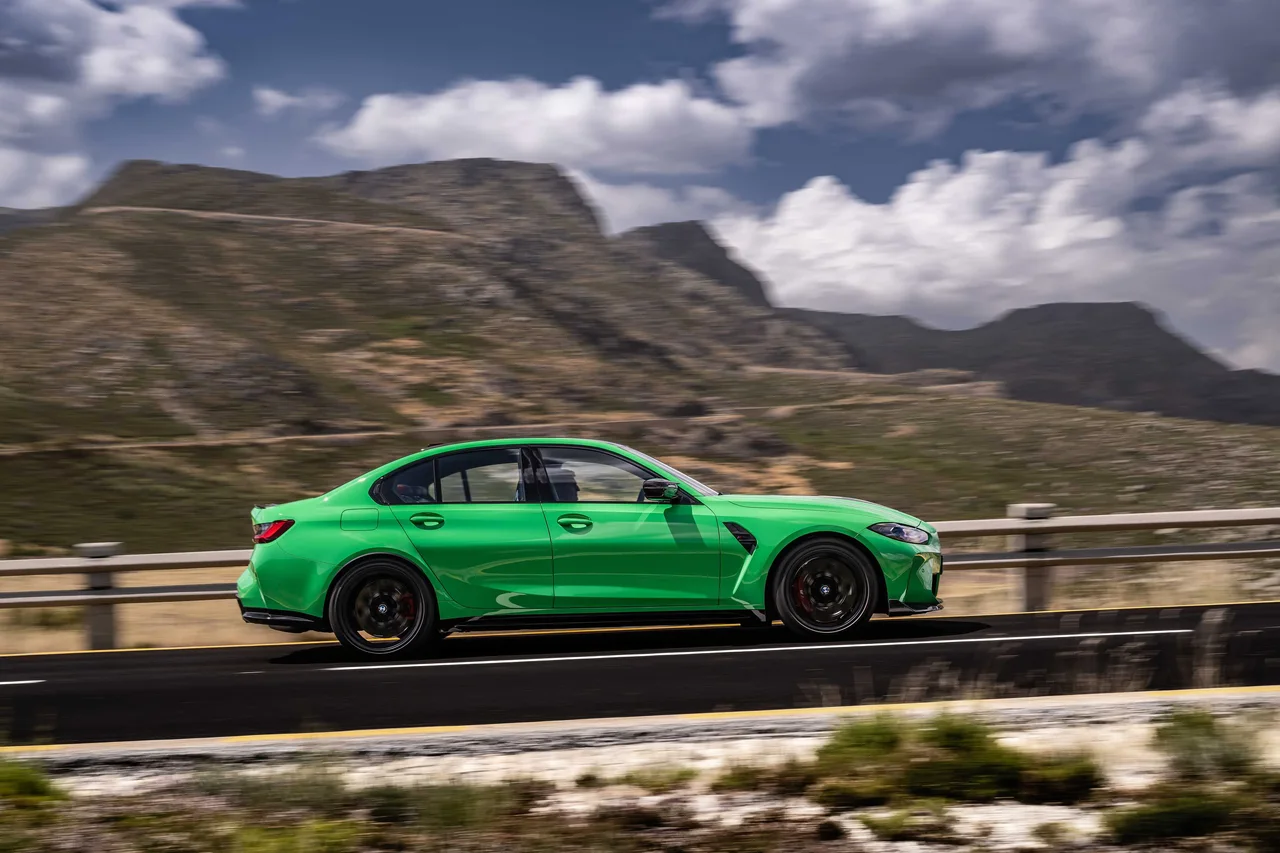

2024 BMW 3 Series M3 CS

GermanyGasolineAWDSedan

Photos

Specifications

Vehicle Details

Year
2024
Make
BMW
Model
3 Series
Variant
M3 CS
Body Style
Sedan
Generation
G20 LCI
Seats
5
Doors
4
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
M3 CS Steptronic
Engine Configuration
Inline
Power (hp)
550 hp
Power (kW)
405 kW
Torque
650 Nm (479 lb-ft)
Top speed
302 km/h (188 mph)
0–60 mph
3.2 seconds (estimated)
0–100 km/h
3.4 seconds
Displacement
2,993 cc

Dimensions

Length
4,795 mm (188.8 in)
Width
1,918 mm (75.5 in)
Height
1,438 mm (56.6 in)
Wheelbase
2,857 mm (112.5 in)
Curb weight
1,840 kg (4,057 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,250 rpm
Rev. at Max Torque
2,750 - 5,950 rpm
Engine Fluids
Engine Oil, Volume
7 litres
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Compression Ratio
9.3 :1
Engine Configuration
Inline
Turbocharger
Twin-scroll
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Service Intervals
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km / 4 years
Brake Fluid
60,000 km (37,282 mi)
Oil Change & Engine Filter
30,000 km / 2 years
Interior Filter
30,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Brakes

Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Brake Caliper Colour
Red
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated
Brake Caliper Colour
Blue
Optional

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Electronic Damper Control (EDC)
Yes
Suspension, Front
Independent
Yes
Active/Adaptive Suspension
Yes
Suspension, Rear
Active/Adaptive Suspension
Yes

Fuel

General
Tank Volume
59 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 6d
WLTP Consumption
Combined (l/100km)
10.1 - 10.4 litres / 100 km
Emission WLTP
CO₂, Combined
229 - 234 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,068 mm (81.4 in)
Track, Front
1,623 mm (63.9 in)
Track, Rear
1,605 mm (63.2 in)
Overhang, Front
861 mm (33.9 in)
Overhang, Rear
1,077 mm (42.4 in)
Turning Circle
12.6 m
Ground Clearance
123 mm (4.8 in)

Interior

Head Room, Front
1,030 mm (40.6 in)
Head Room, Rear
961 mm (37.8 in)
Leg Room, Front
1,067 mm (42.0 in)
Leg Room, Rear
894 mm (35.2 in)
Hip Room, Front
1,422 mm (56.0 in)
Hip Room, Rear
1,387 mm (54.6 in)
Shoulder Room, Front
1,455 mm (57.3 in)
Shoulder Room, Rear
1,461 mm (57.5 in)

Weight

Gross Weight
2,245 kg (4,949 lb)
Max Trailer Load, braked 12%
0 kg (0 lb)
Max Trailer Load, braked 8%
0 kg (0 lb)
Max Trailer Load, unbraked
0 kg (0 lb)
Cargo Capacity
480 kg (1,058 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
0 kg (0 lb)

Exterior

Chassis & Body

Chassis
Chassis
Sedan
Pillars
A-C
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
Automatic Anti-glare
Driver side
User Memory
Optional
Heated
Yes
Automatic Tilt Down
Yes
Ground Light
Optional
Turning Signal
Yes
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Side Mirrors › Automatic Anti-glare
Passenger side
Optional
Windscreen Wipers
Heated Washer Nozzles
Optional
Heated Wiper Blades
Optional
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Heated Water Tank
Optional
Windscreen Wipers: Connector type, Front
Pinch Tab
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered (Safety Lock)
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
Optional
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Heated Windows
Front
Optional
Windows › Noise Reducing Windows
Front
Optional
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Normal Roof
Yes
Antenna
Yes
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Adaptive Headlights
  • Dynamic Cornering Lights
  • Come Home/Leaving Lights
Fog Lights
Rear
LED
Special Features
Main Beam Assist
Optional
Dynamic Turn Signal
Optional
Headlight Washers
Optional
Headlight Range Adjustment
Automatic (Dynamic)

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.5
Central Bore (CB), rear
66.5
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Type
Disc Wheel
Spare Wheel
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Instrument Cluster › Trip Computer
Display
12.3"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
  • 2
  • 3
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
Touchscreen
Back Seat Controls
Yes
Climate Control › Air Condition
Refrigerant
R134A
Climate Control › Back Seat Controls
Buttons
Optional
Connectivity
Radio
  • AM
  • FM
  • DAB+
  • RDS
Media Format
  • FLAC
  • MP3
App-Connect
  • Amazon Alexa
  • Android Auto
  • Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
Cellular Network
4G
WiFi
Yes
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
Front
Rear
Optional
Displays
Center Display
14.9"
Center Display Controls
  • Touchscreen
  • Buttons
  • Rotary Dial
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
16 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Cooled
  • Light
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Yes
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
  • Door Handles
  • Bottom of the Doors
Ambient Light
Yes
Selectable Light Colour
Yes
Lights › Guide Light
Side Mirrors
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Sport
Yes
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Scrolling Wheel)
  • Resume
Media
Yes
Mode Selection
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
Under Rear Window
Rear Trunk
Volume
480 litres
Carpet
Rubber
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Massage
Optional
Ventilated Seats
Optional
Type of Seat
Sport Seats
Easy Entry
Optional
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Front Seats › Massage
Driver
Optional
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Heated Seats
Optional

Features

Comfort Features

Keyless Entry
Optional
Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Optional
Voice Control
  • Climate Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Remote
Optional
Phone Application
Optional
Cameras
Front
Optional
Cameras › Front
Sides
Optional
Rear
Optional
Voice Control
Navigation
Optional
Wireless Phone Charger
Front
Optional

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
  • Comfort
  • Eco
  • Normal
  • Sport
  • Auto
Over-the-Air Updates
Yes
Horn
Dual Note
GPS
Map-update
Internet

Accessories

Tire Repair Kit
Yes
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Dynamic Torque Vectoring (DTV)
Yes
Forward Collision Warning (FCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Optional
Trailer Assist
Optional
Trailer Stability Assist (TSA)
Optional
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Crosswind Assist
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Yes
Active Headrests
Yes
Type of Keys
Remote Keys
Speed Sensitive
Yes
Immobiliser
Electronic
Yes
Type of Keys
Keycards (NFC)
Optional
Smartphone as a Key
Optional

Safety Testing

General
Test Year
2019
Adult Occupant
97 %
Child Occupant
87 %
Vulnerable Road Users
87 %
Safety Assist
76 %
Overall
5/5 stars
Adult Occupant
Total Points
37.1 /38
Lateral Impact
16 /16
Rear Impact
1.6 /4
Child Occupant
Total Points
42.8 /49
Crash Test Performance
  • 15.8
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
42 /49
Pedestrian
  • 22.3
  • 3.3
  • 6
AEB Vulnerable Road Users
10.5 /18
AEB Pedestrian
5.3 /9
AEB Pedestrian (assesment)
Good
AEB Cyclist
5.1 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.5 /3
Speed Assistance (assesment)
Good
Seat Belt Reminder (assesment)
Good
Lane Support (points)
1.8 /4
Lane Support (assesment)
Marginal

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Optional
  • Rear: Yes

Other

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car

Similar sedans

Suggested vehicles
