2024 BMW 5 Series

GermanyMild Hybrid DieselAWDWagon

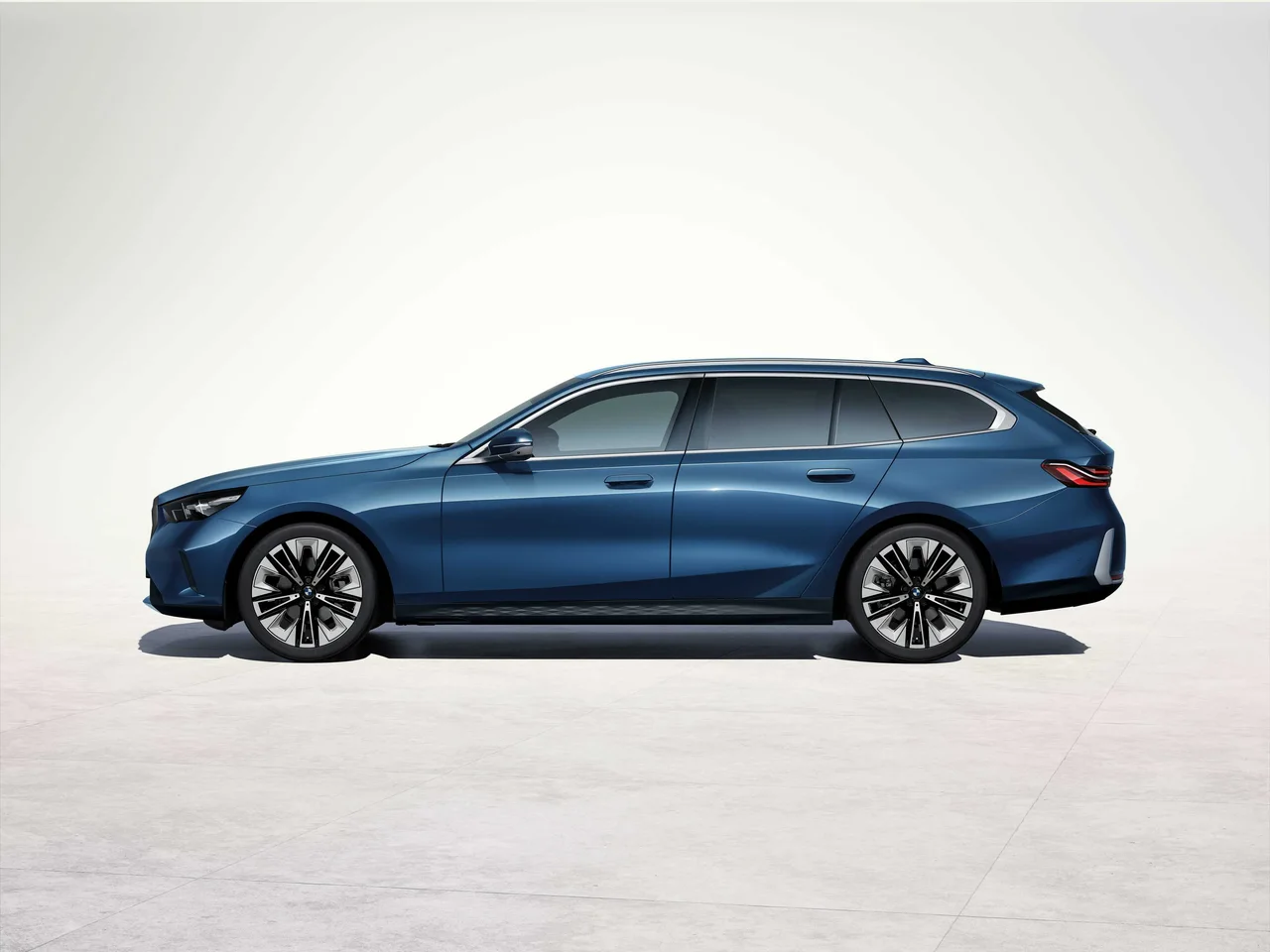

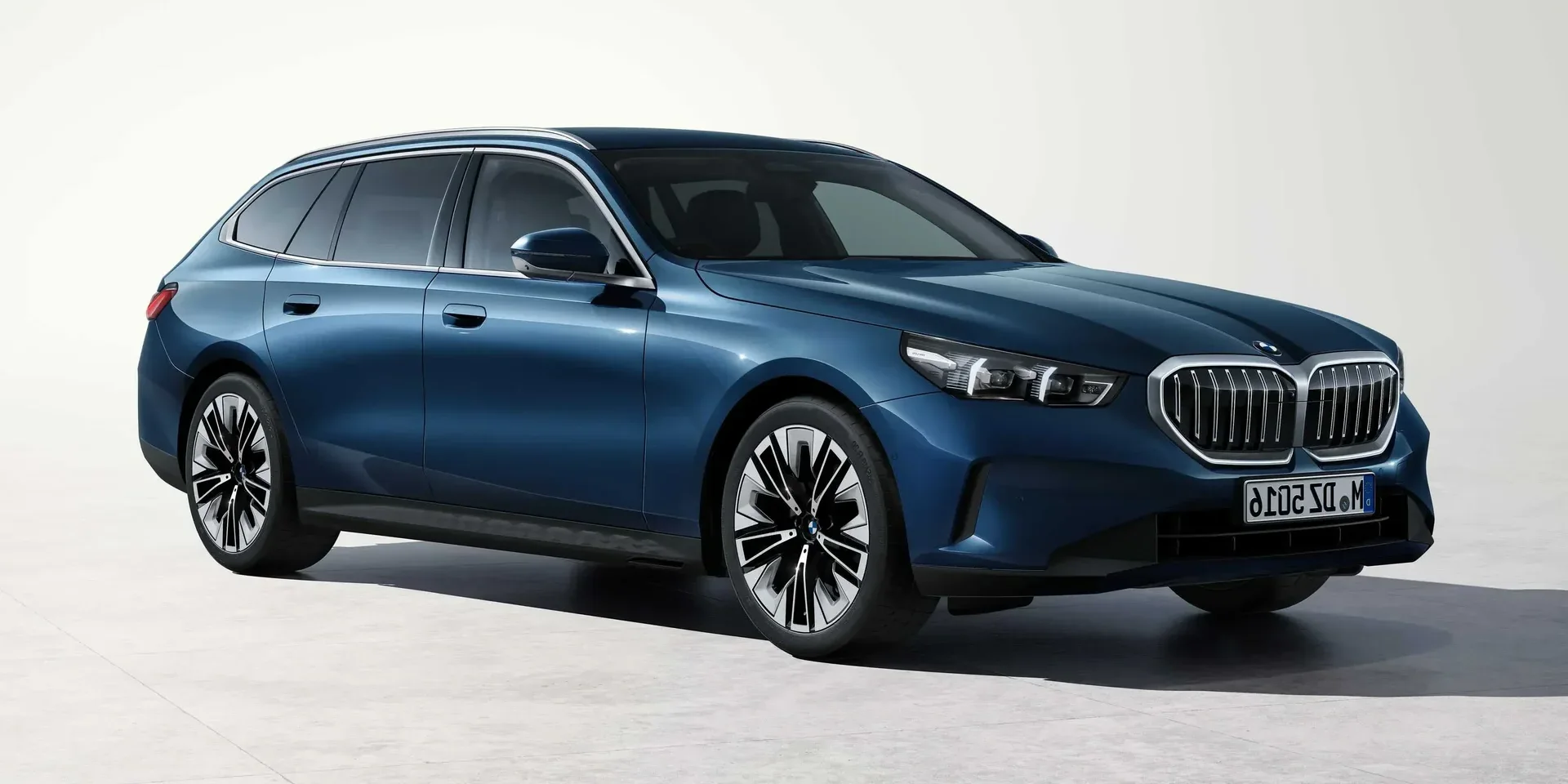

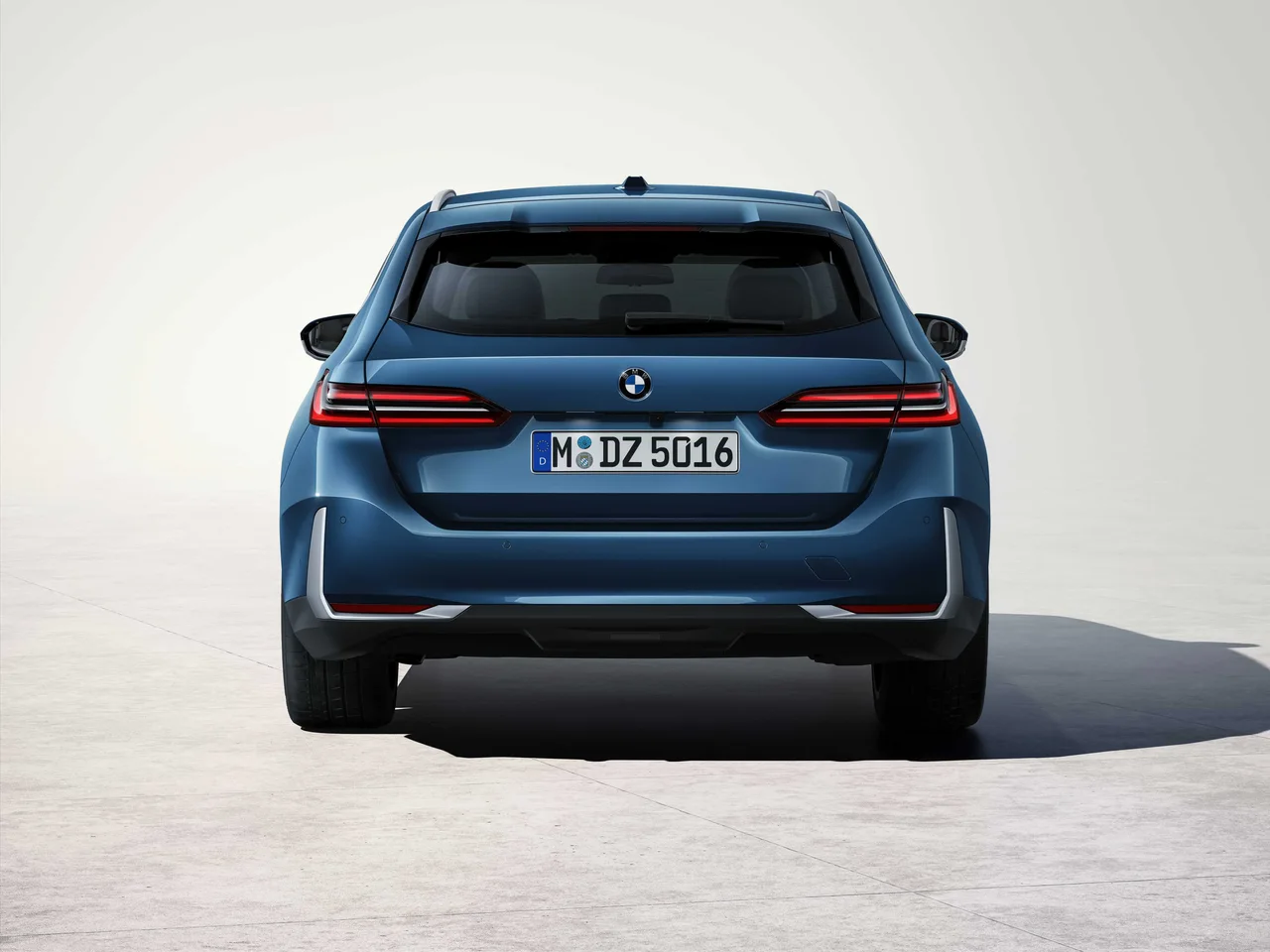

Photos

Specifications

Vehicle Details

Year
2024
Make
BMW
Model
5 Series
Body Style
Wagon
Generation
G60
Seats
5
Doors
5
Fuel
Mild Hybrid Diesel
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
540d xDrive Touring Steptronic
Engine Configuration
Inline
Power (hp)
303 hp
Power (kW)
223 kW
Torque
670 Nm (494 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
5.1 seconds (estimated)
0–100 km/h
5.4 seconds
Displacement
2,993 cc

Dimensions

Length
5,060 mm (199.2 in)
Width
1,900 mm (74.8 in)
Height
1,515 mm (59.6 in)
Wheelbase
2,995 mm (117.9 in)
Curb weight
2,050 kg (4,519 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
1,500 - 2,500 rpm
Engine Configuration
Bore
84 mm (3.3 in)
Stroke
90 mm (3.5 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
Twin-scroll
Engine Placement
Front
Engine Mount
Longitudinally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Mild-Hybrid
Yes
Service Intervals
Air Filter
60,000 km (37,282 mi)
Brake Fluid
30,000 km (18,641 mi)

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front
  • Rear
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated
Brake Caliper Pistons
Blue
Optional

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
Double Wishbone
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
60 litres
Emission
Emission Standard
Euro 6 (Euro 6e)
Emission Class
F
WLTP Consumption
Combined (l/100km)
6 - 6.5 litres / 100 km
Emission WLTP
CO₂, Combined
157 - 171 g/km

Dimensions & Weight

Exterior

Track, Front
1,622 mm (63.9 in)
Track, Rear
1,625 mm (64.0 in)
Turning Circle
12.3 m
Ground Clearance
147 mm (5.8 in)

Interior

Head Room, Front
1,033 mm (40.7 in)
Head Room, Rear
969 mm (38.1 in)
Leg Room, Front
1,049 mm (41.3 in)
Leg Room, Rear
940 mm (37.0 in)
Hip Room, Front
1,504 mm (59.2 in)
Hip Room, Rear
1,445 mm (56.9 in)
Shoulder Room, Front
1,536 mm (60.5 in)
Shoulder Room, Rear
1,497 mm (58.9 in)

Weight

Gross Weight
2,670 kg (5,886 lb)
Max Trailer Load, braked 12%
2,000 kg (4,409 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
620 - 695 kg (1,367 - 1,532 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Other Equipment
Roof Railing
Yes
Antenna
Shark Fin
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Colour
Silver

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Special Features
Adaptive Headlights

Colour

Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
12.3"
Instrument Cluster › Trip Computer › Display
Navigation
Yes
Type
Colour
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
DAB
Bluetooth
  • Phone
  • Audio
Cellular Network
4G
Displays
Center Display
14.9"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Lockable
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Footwell (Front)
  • Door Handles
Ambient Light
Yes
Other Equipment
Carpets
  • Front
  • Rear
Other Equipment › Carpets
Material
Textile
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
2
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Volume
Buttons
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Automatic Open
Optional
Automatic Close
Optional
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
570 litres
Volume, Back Seat Collapsed
1,700 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Ventilated Seats
Optional
Type of Seat
Sport Seats
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Front Seats › Ventilated Seats
Driver
Optional
Passenger
Optional
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Cameras
Rear
Wireless Phone Charger
Front
Cameras
View Location
Center Display

Other Features

GPS
Navigation

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional
Ski/Snowboard-bag
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes
Speed Assist
Optical Recognition System
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
Rear
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Active Bonnet
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2023

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

British Classification
Executive Car
Australian Classification
Large Car
European Segment
E-Segment
Car.info Classification
Executive Car
