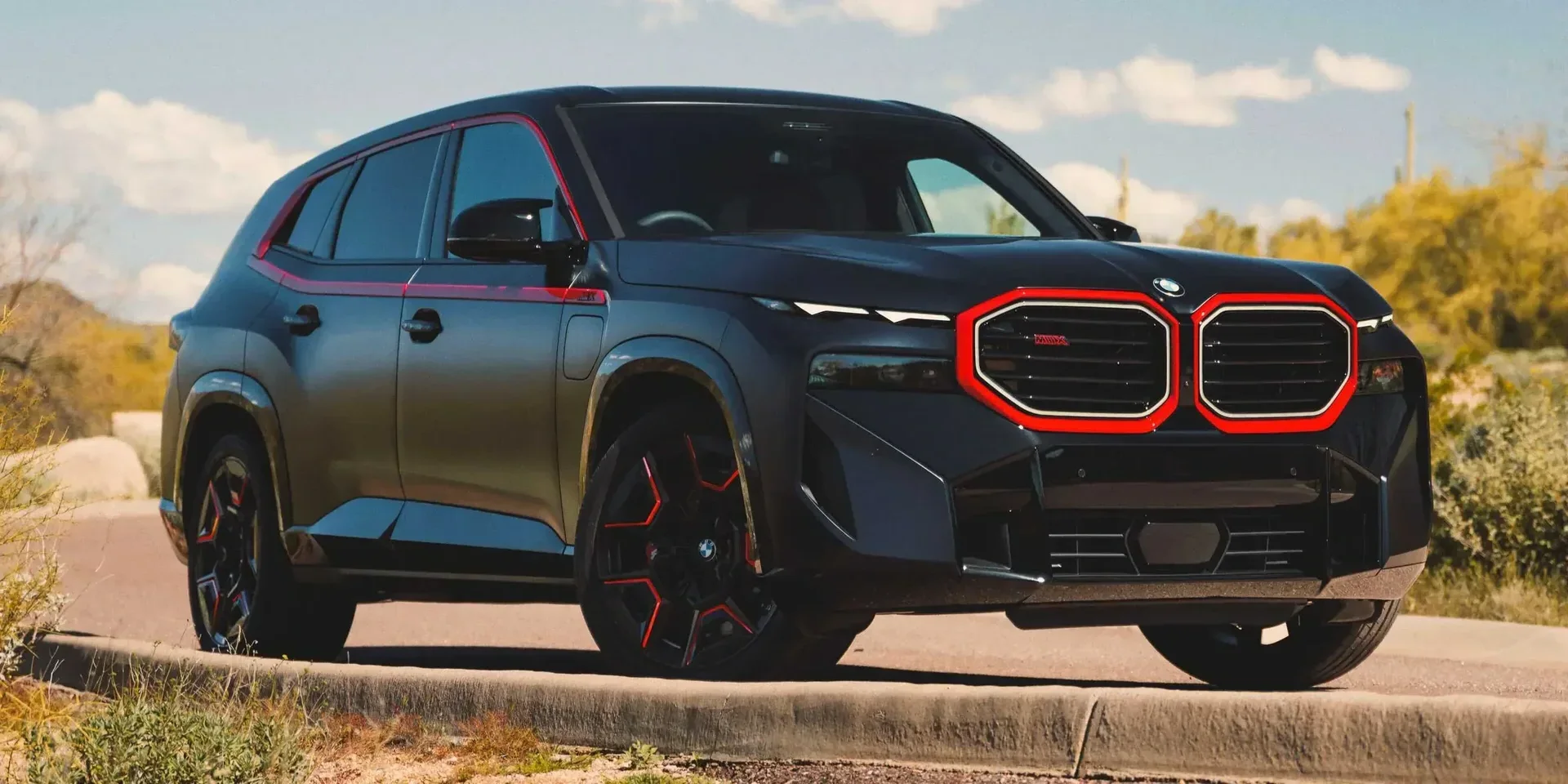

2024 BMW XM Label

GermanyPlug In Hybrid GasolineAWDSUV

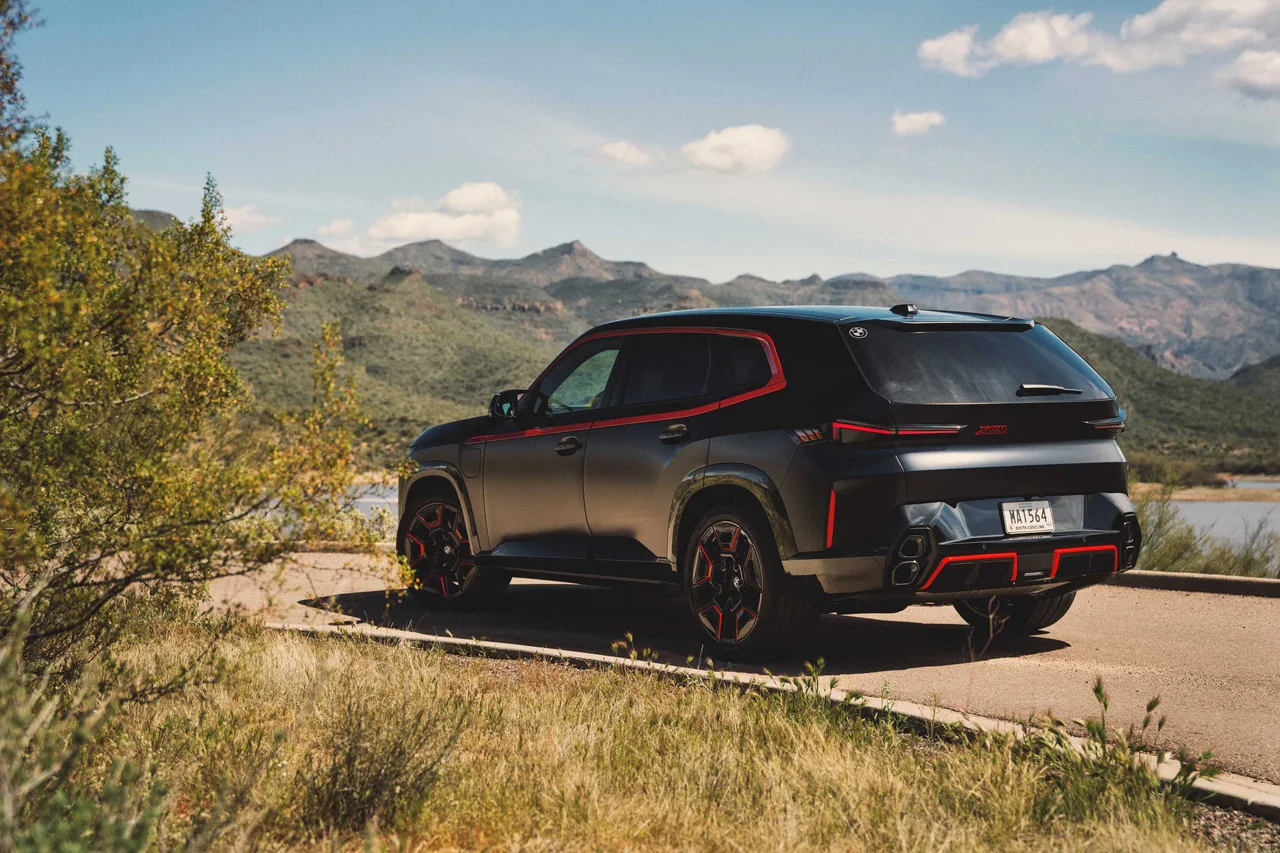

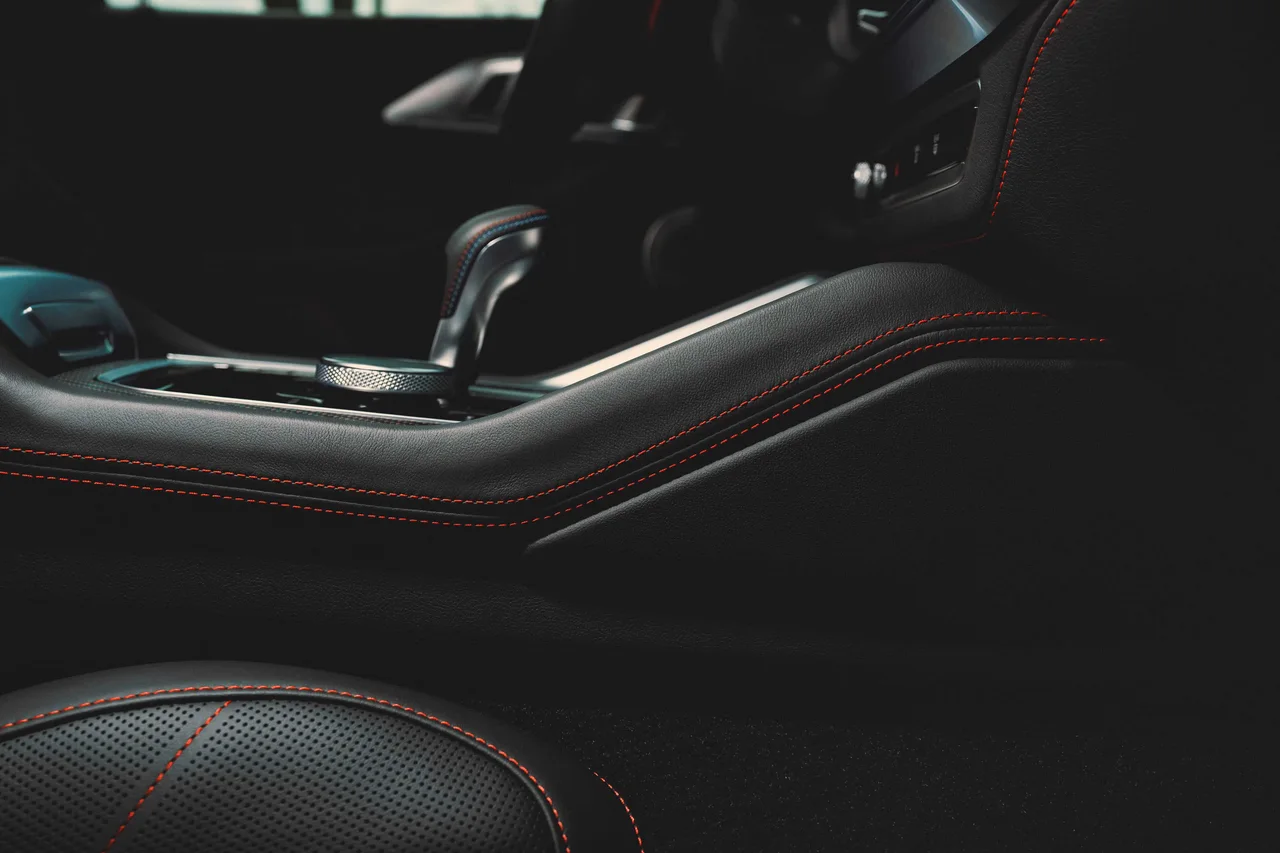

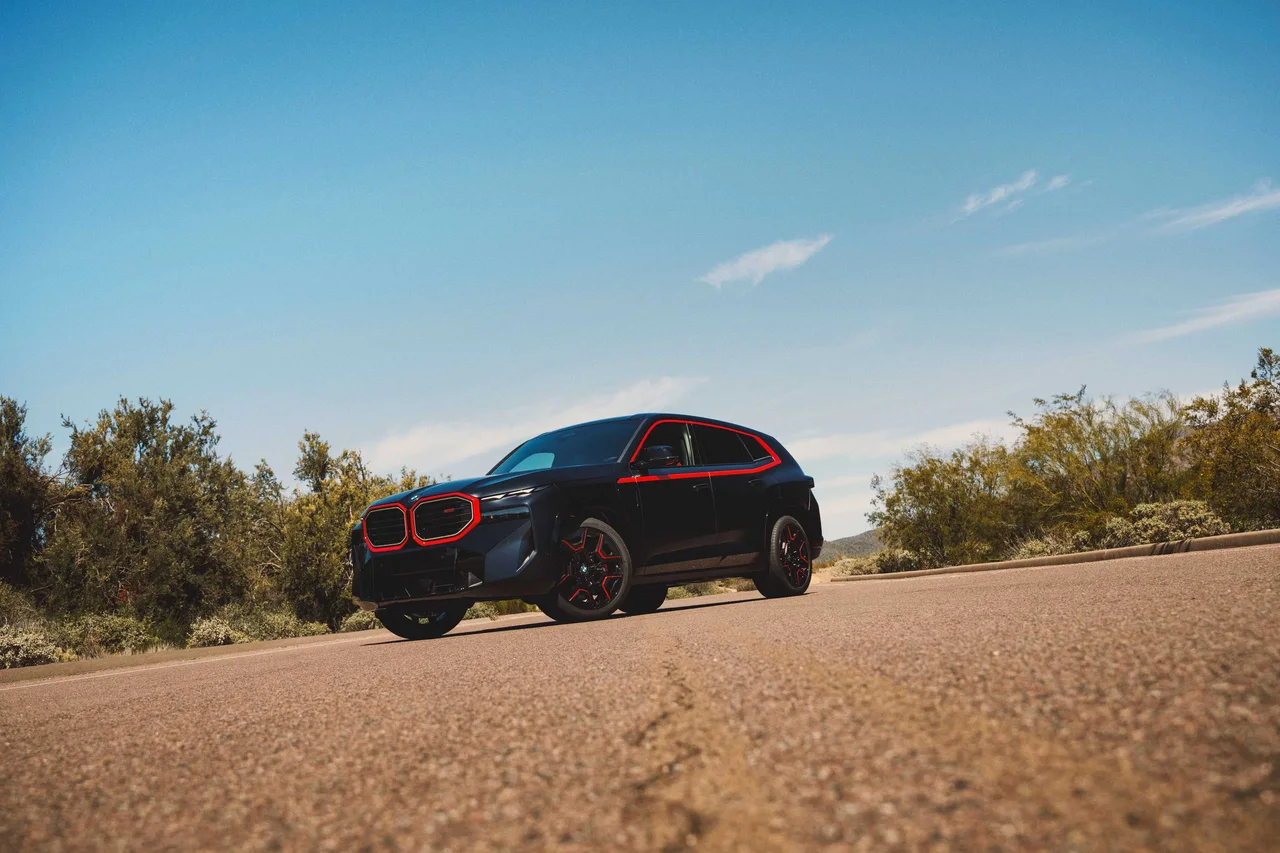

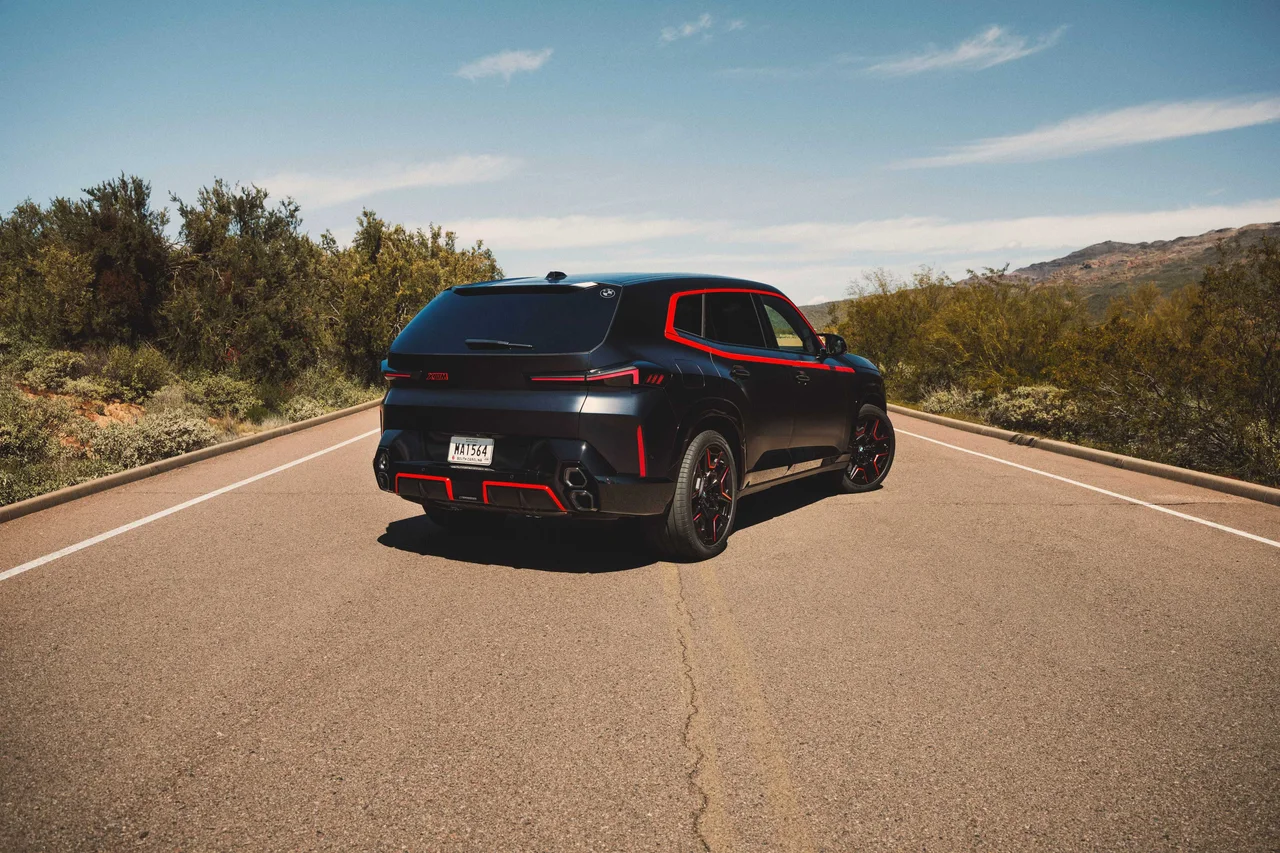

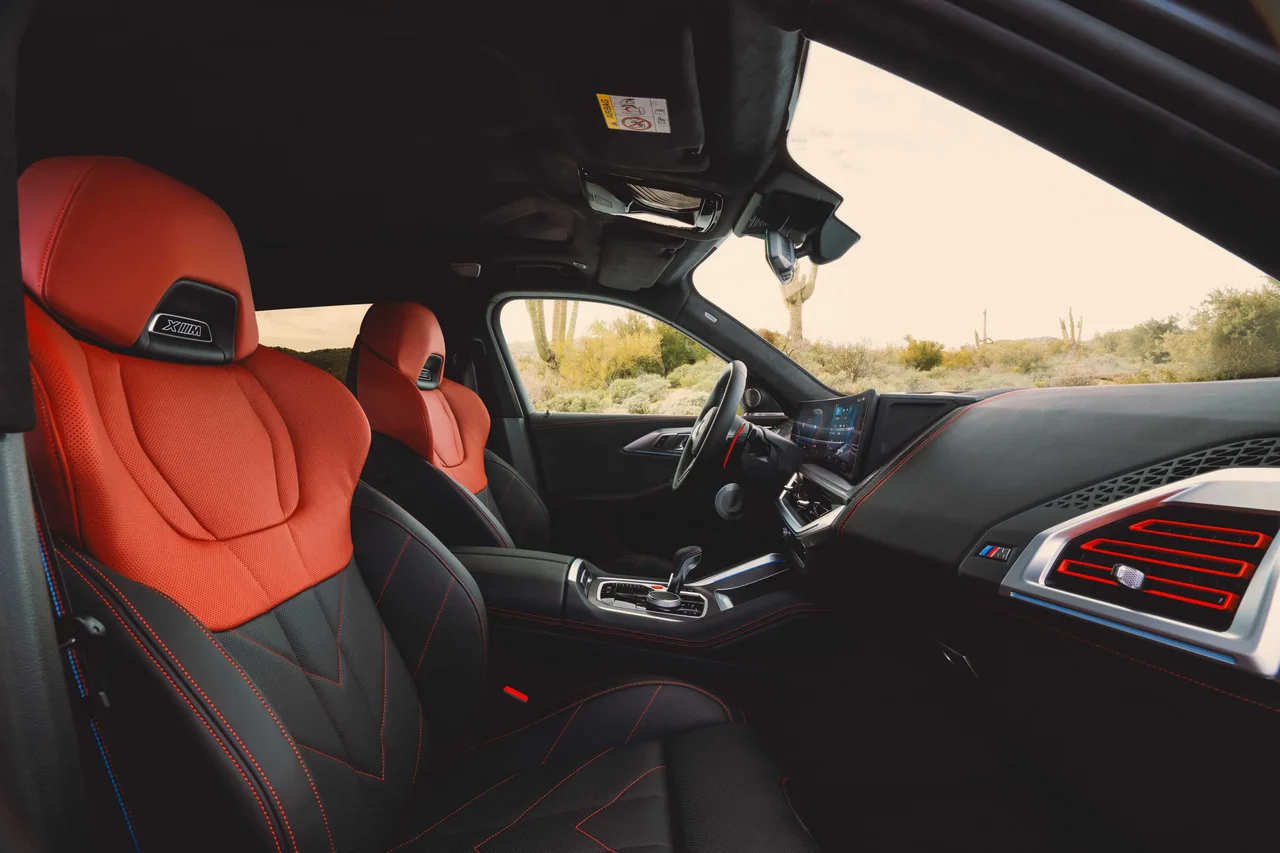

Photos

Specifications

Vehicle Details

Year
2024
Make
BMW
Model
XM
Variant
Label
Body Style
SUV
Generation
G09
Seats
5
Doors
5
Fuel
Plug In Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 8-speed

Powertrain

Engine Name
Label Steptronic
Engine Configuration
V
Power (hp)
748 hp
Power (kW)
550 kW
Torque
750 Nm (553 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
3.6 seconds (estimated)
0–100 km/h
3.8 seconds
Electric range
75 km (47 mi)
Battery
29.5 kWh
Displacement
4,395 cc

Dimensions

Length
5,110 mm (201.2 in)
Width
2,005 mm (78.9 in)
Height
1,755 mm (69.1 in)
Wheelbase
3,105 mm (122.2 in)
Curb weight
2,795 kg (6,162 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,600 rpm
Rev. at Max Torque
1,800 - 5,400 rpm
Configuration Combustion
Bore
88.3 mm (3.5 in)
Stroke
89 mm (3.5 in)
Compression Ratio
10.5 :1
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
145 kW
Electric Engine Horsepower (Metric)
197 hp
Torque
750 Nm (553 lb-ft)
Front Engines
Yes
Battery Capacity, Gross
29.5 kWh
Battery Capacity, Net
25.7 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Charging Plugs
Type 2
Configuration Electric › Front Engines
Power (kW)
145 kW
Horsepower
197 hp
RPM at Max Power
7,000 rpm
Number of Engines
1
Configuration Electric › Charge AC
Charge Time
4.25 h / 255 min
Charge Power
7.4 kW
Charge Ampere
32 A
Service Intervals
Air Filter
60,000 km / 4 years
Oil Change & Engine Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 8-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated
Rear Brakes
Cooling
Ventilated

Fuel

General
Tank Volume
69 litres
Emission
Emission Standard
Euro 6d
Emission Class
B
WLTP Consumption
Weighted, Combined
2 litres / 100 km
Weighted, Combined
33.5 kWh/100km
Electric Range
75 - 83 km (47 - 52 mi)
Emission WLTP
CO₂, Weighted, Combined
45 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,235 mm (88.0 in)
Track, Front
1,726 mm (68.0 in)
Track, Rear
1,690 mm (66.5 in)
Turning Circle
12.5 m
Ground Clearance
220 mm (8.7 in)

Interior

Head Room, Front
1,027 mm (40.4 in)
Head Room, Rear
986 mm (38.8 in)
Shoulder Room, Front
1,560 mm (61.4 in)
Shoulder Room, Rear
1,528 mm (60.2 in)

Weight

Gross Weight
3,300 kg (7,275 lb)
Max Trailer Load, braked 12%
2,700 kg (5,952 lb)
Max Trailer Load, braked 8%
2,700 kg (5,952 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
590 kg (1,301 lb)
Max Roof Load
0 kg (0 lb)
Max Towbar Download
140 kg (309 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Doors
Front Doors
Conventional
Rear Doors
Conventional
Soft Close
Yes
Platform
BMW Platform
CLAR Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Automatic Anti-glare
Driver side
Heated
Yes
Automatic Tilt Down
Yes
Turning Signal
Yes
House Colour
Black
Mirror Shape, Driver side
Aspheric
Mirror Shape, Passenger side
Aspheric
Windscreen Wipers
Heated Washer Nozzles
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Noise Reducing Windows
  • First Row
  • Second Row
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
Windows › Safety Glass
Front
Laminated
Side
Tempered
Other Equipment
Normal Roof
Yes
Antenna
Yes

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Adaptive Headlights
  • Dynamic Cornering Lights

Colour

Finish
Metallic
Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
120
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.5
Central Bore (CB), rear
66.5
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Voltmeter
Digital
Instrument Cluster › Trip Computer
Display
12.3"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Instrument Cluster › Head-up Display (HUD)
Navigation
Yes
Climate Control
Climate Control
Automatic
Number of Climate Zones
4
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Auto Defog System
Yes
Controls
Touchscreen
Back Seat Controls
Buttons
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
  • DAB+
  • RDS
App-Connect
  • Amazon Alexa
  • Android Auto
  • Apple CarPlay
Bluetooth
  • Phone
  • Audio
Cellular Network
  • 4G
  • 3G
WiFi
Yes
Connectivity › Media Inputs
USB
  • USB-A
  • USB-C
Connectivity › Media Inputs › USB
Placement
  • Armrest Hatch/Mid-console
  • Rear
Number of Ports
4 pcs
Displays
Center Display
14.9"
Center Display Controls
  • Touchscreen
  • Gesture Control
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
16 - 20 pcs
Tweeters
7 pcs
Midrange Speakers
7 - 11 pcs
Bass Speakers
2 pcs
Speakers Max. Watt
464 - 1,475 W
Rear-view Mirror
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Lockable
Armrest Hatch
Front
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Heat/Cooling
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
  • Door Handles (Interior)
  • Bottom of the Doors
Ambient Light
Yes
Selectable Light Colour
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Rear
  • Trunk
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Center Display

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Multifunction Steering Wheel
Menu Navigation
  • Buttons
  • Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Scrolling Wheel)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Answer Phone
Yes
Channels
Yes
Volume
Buttons

Trunk

Rear Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • Key Button
Automatic Close
Yes
Cover
Sliding
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
527 litres
Volume, Back Seat Collapsed
1,820 litres

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Powered
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Powered
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Heated Seats
  • Driver
  • Passenger
Armrest
Middle (Heated)
Massage
  • Driver
  • Passenger
Ventilated Seats
  • Driver
  • Passenger
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Power Seat, Passenger
User Memory
Yes
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Second Seat Row
Armrest
Yes
Collapsible
Manual
Features
Heated Seats
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
40/20/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Keyless Entry
Yes
Garage Remote Control
Optional
Speed Limiter
Yes
Cameras
Yes
Voice Control
  • Media
  • Navigation
  • Phone
Wireless Phone Charger
Front
Cameras
360° Camera
Yes
View Location
Center Display

Other Features

GPS
Navigation
Start & Stop
Yes
Driving Mode Selection
Yes
Smartphone App
Yes
Over-the-Air Updates
Yes
Sound Generator, Engine
Yes
Sound Generator, External
Yes
GPS
Map-update
Internet

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Warning Triangle
Yes
First Aid Kit
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Collision Warning (RCW)
Optional
Forward Distance Monitoring (FDM)
Yes
Front Cross-Traffic Alert (FCTA)
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Safe Exit Warning (SEW)
Optional
Lane Assist System
Yes
Parking Assist
Yes
Sign Assist
Optional
Trailer Stability Assist (TSA)
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes
Lane Assist System
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Reverse
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
  • Front
  • Rear
  • Side
Blind Spot Detection (BLIS)
Yes
Obstacle Detection Sensor
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Location Tracking
Yes
Central Locking
Remote
Emergency Call
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes
Theft Notification
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Warranty

Manufacturer
2 years
Paintwork
3 years
Rust Damage
12 years
EV Battery
100,000 km / 6 years

Car Classification

American Classification
Full-Size SUV
British Classification
Large 4x4
Australian Classification
Upper Large SUV
European Segment
J-Segment
Car.info Classification
Large SUV

Similar suvs

Suggested vehicles
