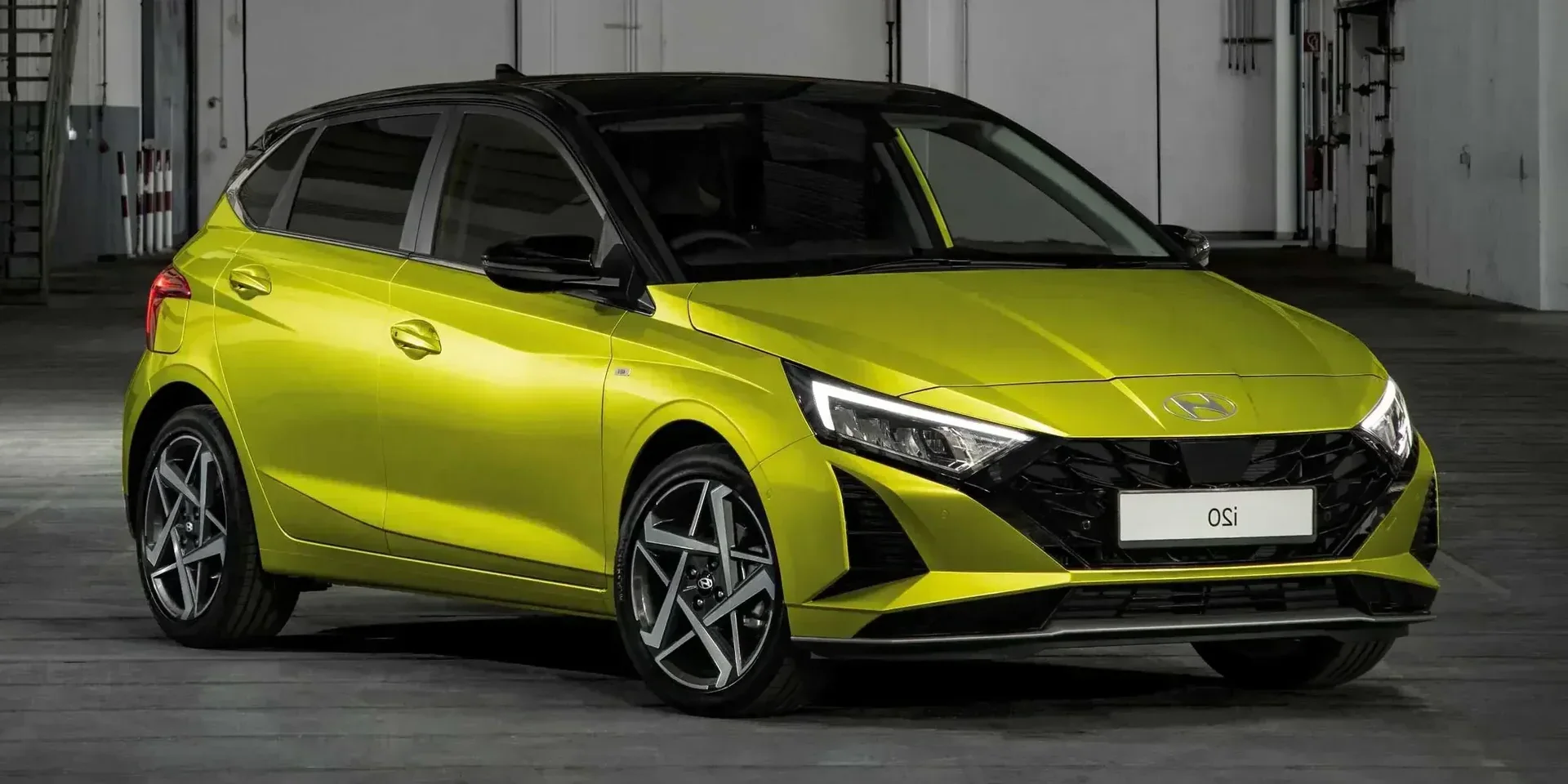

2024 Hyundai i20

South KoreaMild Hybrid GasolineFWDHatchback

Photos

Specifications

Vehicle Details

Year
2024
Make
Hyundai
Model
i20
Body Style
Hatchback
Generation
BC3 Facelift
Seats
5
Doors
5
Fuel
Mild Hybrid Gasoline
Drivetrain
FWD
Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Powertrain

Engine Name
1.0 T-GDI
Engine Configuration
Inline
Power (hp)
100 hp
Power (kW)
74 kW
Torque
172 Nm (127 lb-ft)
Top speed
182 km/h (113 mph)
0–60 mph
10.6 seconds (estimated)
0–100 km/h
11.1 seconds
Displacement
998 cc

Dimensions

Length
4,065 mm (160.0 in)
Width
1,775 mm (69.9 in)
Height
1,450 mm (57.1 in)
Wheelbase
2,580 mm (101.6 in)
Curb weight
1,140 kg (2,513 lb)

Engine & Performance

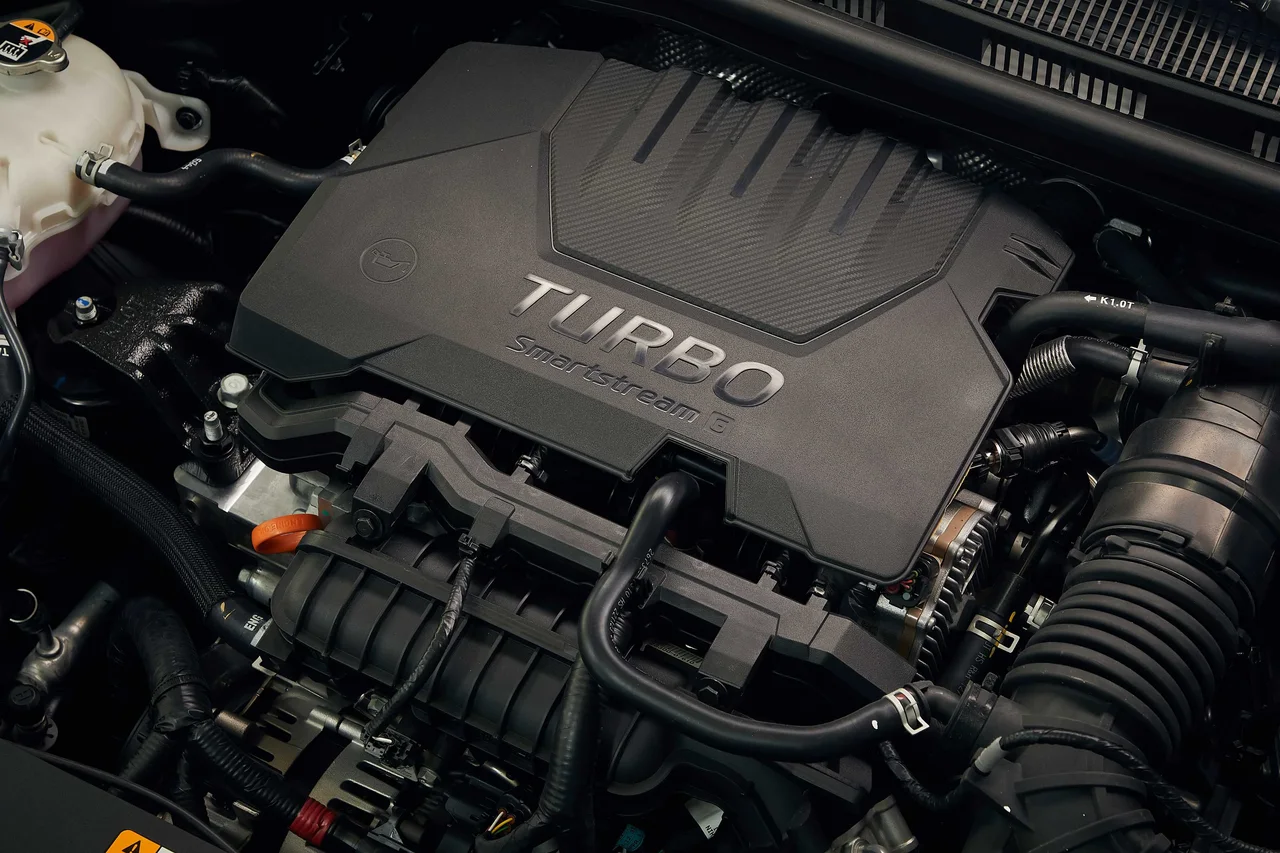

Engine

Engine Specification
Rev. at Max Power
4,500 - 6,000 rpm
Rev. at Max Torque
1500 – 2000 - 2500 – 3500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
3.1 litres
Engine Configuration
Bore
71 mm (2.8 in)
Stroke
84 mm (3.3 in)
Compression Ratio
10.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Mild-Hybrid
Yes
Service Intervals
Oil Change & Engine Filter
15,000 km / 1 years

Transmission & Drivetrain

Transmission
  • Automatic Dual-clutch
  • Manual, 6
  • 7-speed

Fuel

General
Tank Volume
40 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 6d
WLTP Consumption
Low (l/100km) (WLTP)
6.9 litres / 100 km
Medium (l/100km)
4.5 litres / 100 km
High (l/100km)
4.8 litres / 100 km
Extra High (l/100km)
6 litres / 100 km
Combined (l/100km)
5.1 – 5.2 litres / 100 km
Emission WLTP
CO₂, Combined
115 – 117 - 119 – 122 g/km

Dimensions & Weight

Exterior

Track, Front
1,531 - 1,539 mm (60.3 - 60.6 in)
Track, Rear
1,536 - 1,543 mm (60.5 - 60.7 in)
Turning Circle
10.4 m
Ground Clearance
140 mm (5.5 in)

Interior

Head Room, Front
985 mm (38.8 in)
Head Room, Rear
960 mm (37.8 in)
Leg Room, Front
1,072 mm (42.2 in)
Leg Room, Rear
882 mm (34.7 in)
Hip Room, Front
1,352 mm (53.2 in)
Hip Room, Rear
1,316 mm (51.8 in)
Shoulder Room, Front
1,395 mm (54.9 in)
Shoulder Room, Rear
1,390 mm (54.7 in)

Weight

Gross Weight
1610 – 1640 kg (3,549 – 3,616 lb)
Max Trailer Load, braked 12%
910 kg (2,006 lb)
Max Trailer Load, unbraked
450 kg (992 lb)
Cargo Capacity
330 – 355 - 470 – 475 kg (1,036 – 1,047 lb)
Max Roof Load
70 kg (154 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Rear Wiper
Yes
Windscreen Wipers: Connector type, Front
Pinch Tab
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Windows › Window Lifts, Features
Pinch Protection
Driver
One-touch up/down
Driver
Other Equipment
Normal Roof
Yes
Spoiler
Fixed

Lights

Daytime Running Light
LED
Special Features
Main Beam Assist
Special Features
Headlight Range Adjustment
Manual

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
4 pcs
Bolt Distance
100
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
54.1
Central Bore (CB), rear
54.1
Fastening Type
Lug Nuts
Tightening Torque
88 - 107 Nm
Rim Type
Disc Wheel

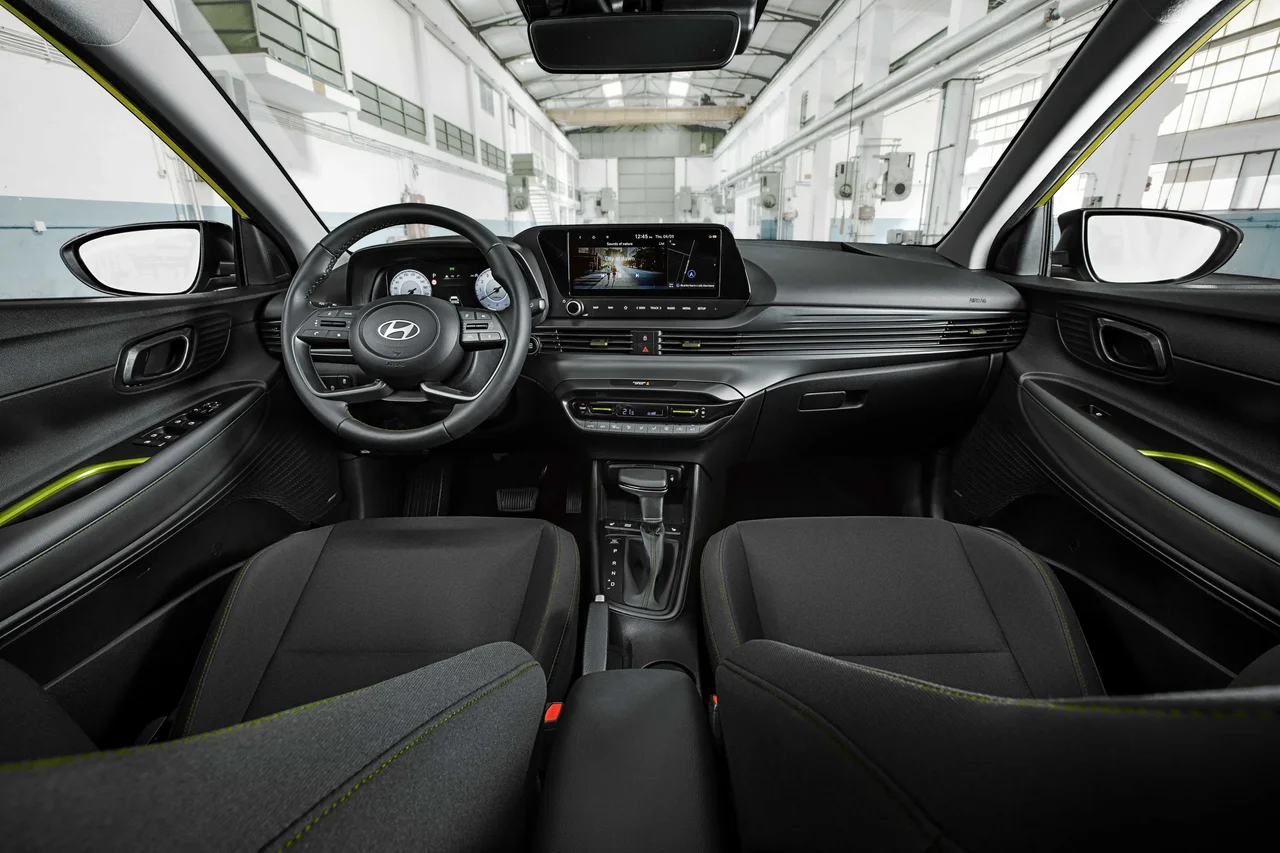

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Instrument Cluster › Trip Computer
Display
4.2"
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
  • DAB+
  • RDS
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
Yes
Connectivity › Media Inputs › USB
Placement
Front
Displays
Center Display
8 - 10.25"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
2 - 7 pcs
Interior Storage › Storage Compartments
Glove Compartment
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Lights
Read Light
  • Front
  • Rear
Other Equipment
Clock
Digital
12V Outlet
Front

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes
Adjustments
  • Tilt
  • Telescope
Number of Spokes
4
Material
Leather
Colour
Black

Trunk

Rear Trunk
Yes
Cover
Yes
Flat Surface
Yes
Light
Yes
Rear Trunk
Volume
352 litres
Volume, Back Seat Collapsed
1,165 litres

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black
Transmission Knob Material
Leather

Seats

Colour & Material
Upholstery
Textile
Seat Colour
Black
Front Seats › Adjustments, Driver
Seat Height
Manual
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Headrest, Height
Manual
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Cruise Control
Yes
Speed Limiter
Yes
Cameras
Rear

Other Features

Start & Stop
Yes

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Lane Assist System
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Yes
Lane Assist System
Lane Keeping Assist (LKA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes

Sensors

Pedestrian/Bicycle Detection
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Manual
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2021
Adult Occupant
76 %
Child Occupant
82 %
Vulnerable Road Users
76 %
Safety Assist
67 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Curtain Airbag
Airbag cut-off Switch

Other

Car Classification

American Classification
Subcompact Car/Economy Car
British Classification
Supermini
Australian Classification
Light Car
European Segment
B-Segment
Car.info Classification
Small Family Car
