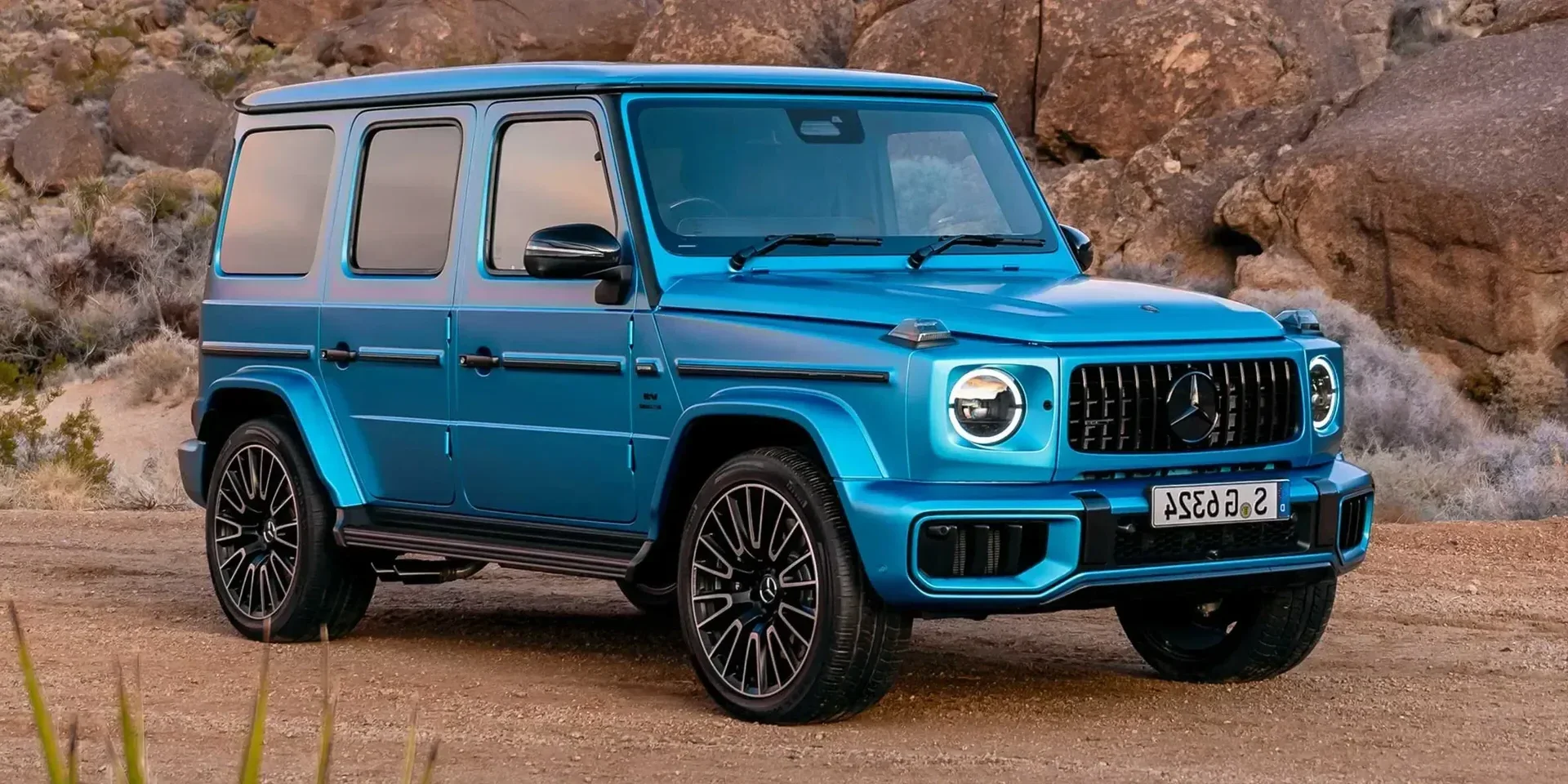

2024 Mercedes-Benz G-Class AMG G

GermanyMild Hybrid GasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2024
Make
Mercedes-Benz
Model
G-Class
Variant
AMG G
Body Style
SUV
Generation
W463 2nd Generation Facelift
Seats
5
Doors
5
Fuel
Mild Hybrid Gasoline
Drivetrain
AWD
Transmission
Automatic (Dual-clutch), 9-speed

Powertrain

Engine Name
AMG G 63 AMG SpeedShift TCT 9-speed
Engine Configuration
V
Power (hp)
585 hp
Power (kW)
430 kW
Torque
850 Nm (627 lb-ft)
Top speed
220 km/h (137 mph)
0–60 mph
4.2 seconds (estimated)
0–100 km/h
4.4 seconds
Displacement
3,982 cc

Dimensions

Length
4,873 mm (191.9 in)
Width
1,984 mm (78.1 in)
Height
1,971 mm (77.6 in)
Wheelbase
2,890 mm (113.8 in)
Curb weight
2,640 kg (5,820 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
6,000 rpm
Rev. at Max Torque
2,500 - 3,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
0W-20
Engine Oil, Volume
9 litres
Engine Configuration
Compression Ratio
8.6 :1
Engine Configuration
V-Engine
Turbocharger
Twin-turbo
Synchronization
Timing Chain
Fuel System
Electronic (Direct) Fuel Injection
Mild-Hybrid
Yes
Service Intervals
Oil Change & Engine Filter
20,000 km / 1 years

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 9-speed
Gear Ratio
1st Gear
5.35 :1
2nd Gear
3.24 :1
3rd Gear
2.25 :1
4th Gear
1.64 :1
5th Gear
1.21 :1
6th Gear
1 :1
7th Gear
0.87 :1
8th Gear
0.72 :1
9th Gear
0.6 :1
Reverse
4.8 :1

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Colour
Grey
Front Brakes
Cooling
Ventilated

Suspensions

Suspension, Front
Independent
Double Wishbone
Active/Adaptive Suspension
Yes
Suspension, Rear
Independent
Yes
Active/Adaptive Suspension
Yes

Fuel

General
Tank Volume
100 - 112 litres
Reserve Tank Capacity
12 litres
Emission
Emission Standard
Euro 6 (Euro 6e)
Emission Class
G
WLTP Consumption
Combined (l/100km)
14.7 - 15.7 litres / 100 km
Emission WLTP
CO₂, Combined
335 - 358 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,187 mm (86.1 in)
Height (Bonnet Open)
2,520 mm (99.2 in)
Track, Front
1,650 mm (65.0 in)
Track, Rear
1,654 mm (65.1 in)
Overhang, Front
887 mm (34.9 in)
Overhang, Rear
849 mm (33.4 in)
Turning Circle
13.43 m
Ground Clearance
244 mm (9.6 in)

Weight

Gross Weight
3,200 kg (7,055 lb)
Max Trailer Load, braked 12%
3,500 kg (7,716 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
560 kg (1,235 lb)
Max Roof Load
150 kg (331 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Heated
Yes
House Colour
Same as Car
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Other Equipment
Sunroof
Openable (Electric)
Normal Roof
Yes
Antenna
Yes
Other Equipment › Sunroof
Material
Glass
Shading
  • Sun Blind
  • Tinted Glass

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Headlight Range Adjustment
Fog Lights
Rear
LED

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
130
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
84.1
Central Bore (CB), rear
84.1
Fastening Type
Lug Bolts
Tightening Torque
180 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel
Spare Wheel
Yes

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
3
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • DAB+
Media Format
Hard Drive
App-Connect
  • Android Auto
  • Apple CarPlay
Bluetooth
  • Phone
  • Audio
Cellular Network
  • 4G
  • 3G
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Displays
Center Display
Yes
Center Display Controls
Touchpad
Displays › Center Display
Type
Colour
Speakers
Speaker Brand
Burmester
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front | Rear)
  • Door Handles (Interior)
Ambient Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
  • Front
  • Rear
Other Equipment › Clock
Digital
Center Display
Other Equipment › Carpets
Material
Textile
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electro-mechanical
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Yes
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Yes
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
990 litres
Volume, Back Seat Collapsed
2,010 litres
Depth
758 mm (29.8 in)
Depth, Back Seat Collapsed
1,740 mm (68.5 in)
Width, Between Wheel Arches
1,077 mm (42.4 in)
Sill Height
767 mm (30.2 in)

Seats

Colour & Material
Upholstery
Leather (Perforated)
Front Seats › Adjustments, Driver
Seat Depth
Powered
Front Seats › Adjustments, Passenger
Seat Depth
Powered
Seat Height
Powered
Backrest Angle
Powered
Headrest, Height
Powered
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Armrest
Middle
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Power Seat, Passenger
User Memory
Yes
Second Seat Row › Headrests
Outer Seats
Yes
Centre Seat
Yes
Second Seat Row
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Active Cruise Control
Speed Limiter
Yes
Parking Heater
Optional
Cameras
Rear
Voice Control
  • Media
  • Navigation
  • Phone
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Cameras
View Location
Center Display

Other Features

GPS
Navigation
Over-the-Air Updates
Yes
Horn
Dual Note
GPS
Map-update
Internet

Accessories

Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Distance Monitoring (FDM)
Yes
Emergency Steering Assist
Yes
Lane Assist System
Yes
Parking Assist
Yes
Sign Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive)
Child Safety Locks
Yes
Emergency Call
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes
Towing Protection
Yes
Back-up Horn
Yes
Vehicle Tracking
Yes

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Mid-Size SUV
British Classification
Large 4x4
Australian Classification
Large SUV
European Segment
J-Segment JD-Segment
Car.info Classification
Large SUV
