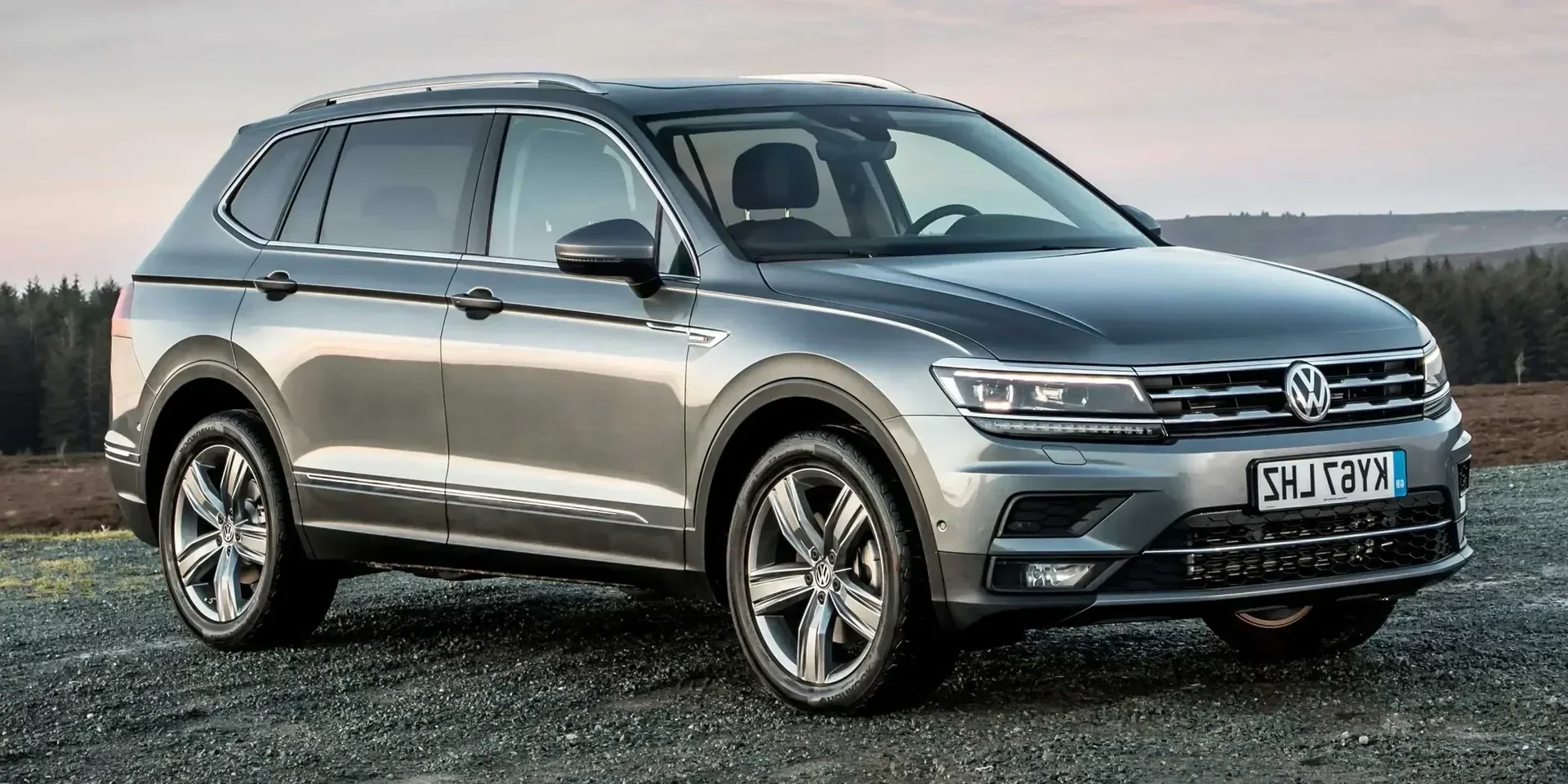

2024 Volkswagen Tiguan Allspace 7-seater

Germany Diesel AWD SUV

Race Tracks

Vehicles

Makes
Types
Years
Countries

Map

Makes
Race Tracks
Game Studios
TV Networks

TV Shows

Games

YouTube

People

Founders
Owners

© 2026 Vehicleref. All rights reserved.

Photos

Specifications

Vehicle Details Powertrain Dimensions Engine & Performance Dimensions & Weight Exterior Interior Features Safety & Security Other

Vehicle Details

Year: 2024
Make: Volkswagen
Model: Tiguan
Variant: Allspace 7-seater
Body Style: SUV
Generation: II Facelift (Type AX/BJ)
Seats: 5
Doors: 5
Fuel: Diesel
Drivetrain: AWD
Transmission: Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name: 2.0 TDI DPF SCR 4Motion DSG Sequential
Engine Configuration: Inline
Power (hp): 193 hp
Power (kW): 142 kW
Torque: 400 Nm (295 lb-ft)
Top speed: 216 km/h (134 mph)
0–60 mph: 7.4 seconds (estimated)
0–100 km/h: 7.8 seconds
Displacement: 1,968 cc

Dimensions

Length: 4,726 mm (186.1 in)
Width: 1,839 mm (72.4 in)
Height: 1,674 mm (65.9 in)
Wheelbase: 2,789 mm (109.8 in)
Curb weight: 1,790 kg (3,946 lb)

Engine & Performance

Engine

Engine Specification

Rev. at Max Power: 3,500 rpm
Rev. at Max Torque: 1,750 - 3,500 rpm

Engine Configuration

Bore: 81 mm (3.2 in)
Stroke: 95.5 mm (3.8 in)
Engine Configuration: Inline
Turbocharger: Single-turbo
Synchronization: Timing Belt
Engine Mount: Transversally
Type of Combustion Engine: Piston
Fuel System: Electronic (Direct) Fuel Injection
Camshaft Type: DOHC
Engine Block: Cast Iron
Engine Heads: Aluminium
Engine Cooling: Liquid Cooling

Service Intervals

Timing Interval: 210,000 km (130,488 mi)
Air Filter: 90,000 km / 6 years
Fuel Filter: 90,000 km (55,923 mi)
Brake Fluid: 2 years
Oil Change & Engine Filter: 15,000 km / 1 years
Interior Filter: 60,000 km / 2 years

Transmission & Drivetrain

Transmission: Automatic (Dual-clutch), 7-speed

Brakes

Parking Brake

Electric: Auto Hold

Front Brakes: Disc Brakes
Rear Brakes: Disc Brakes
Brake Caliper Pistons: Front
Rear

Front Brakes

Diameter: 310 - 340 mm (12.2 - 13.4 in)
Width: 30 mm (1.2 in)
Cooling: Ventilated

Rear Brakes

Diameter: 310 - 314 mm (12.2 - 12.4 in)
Width: 12 mm (0.5 in)
Cooling: Solid

Rear Brakes › Cooling

Ventilated: Optional

Suspensions

Spring, Front: Coil
Spring, Rear: Coil
Anti-roll Bar: Front
Rear

Suspension, Front

Independent: MacPherson Strut

Suspension, Rear

Independent: Multi-link

Fuel

General

Tank Volume: 58 litres
Lockable Fuel Cap: Yes

General › Fuel Cap Position

Rear: Right

Emission

Emission Standard: Euro 6

WLTP Consumption

Low (l/100km) (WLTP): 8.7 litres / 100 km
Medium (l/100km): 6.5 litres / 100 km
High (l/100km): 5.8 litres / 100 km
Extra High (l/100km): 6.9 litres / 100 km
Combined (l/100km): 6.7 litres / 100 km

Emission WLTP

CO₂, Combined: 176 g/km

Dimensions & Weight

Exterior

Width, with Mirrors: 2,099 mm (82.6 in)
Track, Front: 1,575 - 1,585 mm (62.0 - 62.4 in)
Track, Rear: 1,564 - 1,575 mm (61.6 - 62.0 in)
Turning Circle: 11.5 m
Ground Clearance: 201 mm (7.9 in)

Interior

Head Room, Front: 1,008 - 1,054 mm (39.7 - 41.5 in)
Head Room, Rear: 958 - 1,002 mm (37.7 - 39.4 in)
Head Room, Third Row: 859 mm (33.8 in)
Leg Room, Front: 1,021 mm (40.2 in)
Leg Room, Rear: 930 mm (36.6 in)
Leg Room, Third Row: 709 mm (27.9 in)
Hip Room, Front: 1,384 mm (54.5 in)
Hip Room, Rear

Weight

Gross Weight: 2,380 kg (5,247 lb)
Max Trailer Load, braked 12%: 2,500 kg (5,512 lb)
Max Trailer Load, unbraked: 750 kg (1,653 lb)
Cargo Capacity: 590 kg (1,301 lb)
Max Roof Load: 75 kg (165 lb)
Max Towbar Download: 100 kg (220 lb)

Exterior

Chassis & Body

Chassis

Chassis: SUV
Pillars: A-D
Chassis Construction: Unibody
Body Material: Steel

Doors

Front Doors: Conventional
Rear Doors: Conventional
Door Handles: Pull-out

Equipment

Side Mirrors

Mirror Type: Conventional
Adjustments: Electrical
User Memory: Optional
Heated: Yes
Ground Light: Optional
Turning Signal: Yes
Mirror Shape, Driver side: Aspheric

Windscreen Wipers

Lights

Rear Lights: LED
Daytime Running Light: LED
Fog Lights: Yes
Special Features: Automatic Headlight Activation
Main Beam Assist
Come Home/Leaving Lights

Fog Lights

Front: Yes

Fog Lights › Front

Cornering Lights

Colour

Door Handles: Same as Car

Interior

Equipment

Instrument Cluster

Trip Computer: Yes
Head-up Display (HUD): Optional
Odometer Limit: 1,000,000 km/miles

Instrument Cluster › Trip Computer

Display: Yes

Instrument Cluster › Trip Computer › Display

Features

Comfort Features

Keyless Entry: Optional
Keyless Start: Optional
Cruise Control: Yes
Speed Limiter: Yes
Parking Heater: Optional
Parking Heater Preparation: Yes
Cameras

Safety & Security

Seat Belt

Height Adjustable Retractor: Yes
Seat Belt Colour: Black

Feature

Driver

Passenger

Rear

Seat Belt Reminder

Driver

Other

Car Classification

American Classification: Mid-Size SUV
British Classification: Large 4x4
Australian Classification: Large SUV
European Segment: J-Segment JC-Segment
Car.info Classification: Large SUV

Spare Parts BETA

Bulb Types

Rims & Tires

Tire Pressure Monitoring System (TPMS): Optional
Number of Bolts: 5 pcs
Bolt Distance: 112
Nut/Bolt Dimensions: M14x1.5
Central Bore (CB), front: 57.1
Central Bore (CB), rear: 57.1
Fastening Type: Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts: Optional

Type

Colour

Climate Control

Climate Control: Automatic
Number of Climate Zones: 3
Air Condition: Yes
Micro Filter: Yes
Pollen Filter: Yes
Outside Temperature Indicator: Yes
Controls: Buttons
Rotary Dials
Back Seat Controls: Optional

Climate Control › Air Condition

Refrigerant: R1234yf

Climate Control › Back Seat Controls

Buttons: Optional

Connectivity

Radio: AM
FM
DAB+
Media Format: CD
AAC
MP3
WMA
App-Connect: Optional
Bluetooth: Phone
Audio
Cellular Network: Optional
WiFi: Optional

Connectivity › Radio

Internet Radio: Optional

Connectivity › Media Format

Memory Card Reader: SD

Connectivity › Media Inputs

AUX: Armrest Hatch/Mid-console
USB: USB-C

Connectivity › Media Inputs › USB

Placement: Front
Number of Ports: 2 pcs

Connectivity › App-Connect

Android Auto: Optional
Apple CarPlay: Optional

Connectivity › Cellular Network

4G: Optional

Connectivity › Cellular Network › 4G

3G: Optional

Displays

Center Display: Yes
Center Display Controls: Touchscreen
Buttons

Speakers

Total Number of Speakers: 8 pcs

Rear-view Mirror

Adjustments: Mechanical
Anti-glare: Automatic
Rear-view Mirror: Mirror Type: Standard

Interior Storage › Storage Compartments

Glove Compartment: Cooled
Light
Lockable (Manual)
Armrest Hatch: Front
Back Pocket: Yes
Sunglass Compartment: Yes
Coin Holder: Yes
Card Holder: Yes
Under Seats: Front
Door: Driver Side
Passenger Side

Interior Storage

Cup Holders: Yes

Interior Storage › Cup Holders

Front: 2

Interior Storage › Cup Holders › Front

Placement: Middle Console

Lights

Read Light: Front
Rear
Guide Light: Entry Guard
Footwell (Front)
Bottom of the Doors
Ambient Light: Optional
Selectable Light Colour: Optional

Lights › Guide Light

Side Mirrors: Optional

Other Equipment

Make-up Mirror: Driver Side
Passenger Side
Clock: Yes
12V Outlet: Front
Rear
Trunk
230V Outlet: Optional
Carpets: Optional
Ashtray: Optional
Cigarette Lighter: Optional

Other Equipment › Make-up Mirror

Make-up Light: Driver
Passenger

Other Equipment › Clock

Digital: Center Display
Instrument Cluster

Other Equipment › 230V Outlet

Trunk: Optional

Other Equipment › Carpets

Front: Optional
Rear: Optional

Other Equipment › Ashtray

Front: Optional
Rear: Optional

Steering Wheel

Multifunction Steering Wheel: Yes
Heated: Optional
Power Steering: Electro-mechanical
Adjustments: Tilt
Telescope
Sport: Optional
Number of Spokes: 3
Material: Leather
Colour: Black

Trunk

Rear Trunk: Yes
Automatic Open: Button on Trunk Door
From Inside Car
Automatic Close: Optional
Barrier Net/Grid: Optional
Cargo Hooks: Yes
Carpet: Optional
Flat Surface: Yes
Hatch Through Rear Seats: Yes

Design

Accent: Chrome
Transmission Knob Material: Leather
Pedals: Standard

Seats

Front Seats › Adjustments, Driver

Seat Depth: Yes
Seat Height: Yes
Backrest Angle: Yes
Lumbar Support: Yes
Headrest, Height: Manual
Headrest, Tilt: Manual

Front Seats › Adjustments, Passenger

Seat Depth

Optional

Rear Camera Preparation

Yes

Cruise Control

Adaptive Cruise Control: Optional

Parking Heater

Cabin Heater: Optional

Parking Heater › Cabin Heater

Engine Heater: Optional
Remote: Optional
Timer: Optional

Cameras

Rear: Optional

Other Features

GPS: Optional
GPS Preparation: Yes
Start & Stop: Yes
Horn: Dual Note

GPS

Internet: Optional

GPS › Internet

USB: Optional

Accessories

Tool Kit and Jack: Yes
Tire Repair Kit: Yes
Compressor: Yes
Fire Extinguisher: Optional
Warning Triangle: Yes
First Aid Kit: Yes
Trunk Modules: Optional
Bicycle Holder: Optional

Yes

PassengerYes

RearYes

Belt Pretensioner

DriverYes

PassengerYes

RearYes

Belt Load Limiter

DriverYes

PassengerYes

RearYes

Height Adjustable Retractor

Manual: Yes

Type of Belt

Three-Point-Belt: Front Seats
Outer Rear Seats
Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC): Yes
Dynamic Steering Response (DSR): Yes
Forward Collision Warning (FCW): Yes
Rear Cross-Traffic Alert (RCTA): Optional
Safe Exit Warning (SEW): Yes
Lane Assist System: Yes
Speed Assist: Yes
Hill Start Assist (HSA): Yes

Brake Systems

Autonomous Emergency Brake System (AEB): Yes
Power Brakes: Yes
Anti-lock Braking System (ABS): Four-channel
Traction Control System (TCS): Yes
Electronic Brakeforce Distribution (EBD): Yes
Brake Energy Regeneration: Yes
Electronic Brake Assist (BA/EBA): Yes
Brake Pad Wear Indicator: Yes

Sensors

Parking Sensors: Front
Rear
Blind Spot Detection (BLIS): Optional
Pedestrian/Bicycle Detection: Yes
Driver Alertness Warning (DAW): Yes
Light Sensor: Yes
Rain Sensors: Yes

Other Features

Immobiliser: Yes
Anti-theft Alarm: Optional
Central Locking: Remote
Child Safety Locks: Manual
Active Bonnet: Yes
Emergency Call: Yes

Immobiliser

Electronic: Yes

Child Safety Locks

Safety Testing

General

Test Year: 2016
Adult Occupant: 96 %
Child Occupant: 84 %
Vulnerable Road Users: 72 %
Safety Assist: 68 %
Overall: 5/5 stars

Airbags

Feature

Driver

Passenger

Rear

Frontal Airbag

DriverYes

PassengerYes

RearNo

Side Chest Airbag

Child Protection

Feature

Passenger

Rear

Isofix

PassengerNo

RearYes

Integrated Child Seat

PassengerNo

Rear

Low Beam: H7
Main Beam: H7
Fog Light, Front: H8
Turn Indicators, Front: BAU15s (PY21W)
Turn Indicators, Rear: WX3×16d (WY21W)
Glove Compartment: W2.1×9.5d (W3W)
Read Light: W2.1×9.5d (W5W)

1,359 mm (53.5 in)

Hip Room, Third Row

1,003 mm (39.5 in)

Shoulder Room, Front

1,503 mm (59.2 in)

Shoulder Room, Rear

1,503 mm (59.2 in)

Shoulder Room, Third Row

1,214 mm (47.8 in)

Heated Washer Nozzles

Yes

Heated Wiper Blades

Optional

Rear Wiper

Yes

Rear Washer System

Yes

Windows

Window Lifts, Front: Powered
Window Lifts, Rear: Powered (Safety Lock)
Heated Windows: Rear
Heat-Insulating Windows: Front
First Row
Second Row
Rear
Noise Reducing Windows: Front
Tinted Windows: Optional
Safety Glass: Yes

Windows › Window Lifts, Features

Pinch Protection: Driver

Windows › Heated Windows

Front: Optional

Windows › Tinted Windows

Second Row: Optional
Rear Window: Optional

Windows › Safety Glass

Front: Laminated
Side: Tempered
Rear: Tempered

Other Equipment

Sunroof: Optional
Tow Hook: Front
Rear
Roof Railing: Yes
Antenna: Shark Fin
Mud Flaps: Optional

Other Equipment › Sunroof

Sun Blind: Optional

Other Equipment › Sunroof › Sun Blind

Tinted Glass: Optional

Other Equipment › Roof Railing

Roof Railing Type: Raised Rails (Open Rails)

Other Equipment › Mud Flaps

Front: Optional
Rear: Optional

Yes

Special Features

Headlight Range Adjustment: Automatic (Dynamic)

Tightening Torque

140 Nm

Rim Material

Alloy

Rim Type

Disc Wheel

Spare Wheel

Optional

Tire Pressure Monitoring System (TPMS)

Indirect: Optional

Spare Wheel

Full-size: Optional
Temporary: Optional

Spare Wheel › Full-size

Steel: Optional

Rear

Steering Mechanism

Rack and Pinion

Multifunction Steering Wheel

Menu Navigation: Buttons
Cruise Control: Activate/Deactivate
Speed Up/Down (Buttons)
Resume
Media: Yes

Multifunction Steering Wheel › Media

Voice Command: Yes
Answer Phone: Yes
Channels: Yes
Volume: Buttons
Mute Audio: Yes

Light

Yes

Hatch Opening Type

From Roof

Rear Trunk

Volume: 760 litres
Volume, Back Seat Collapsed: 1,920 litres
Depth: 1,046 mm (41.2 in)
Depth, Back Seat Collapsed: 1,921 mm (75.6 in)
Width, Between Wheel Arches: 1,004 mm (39.5 in)
Trunk Door Opening Height: 2,101 mm (82.7 in)

Automatic Open

Key Button: Optional
Motion Activated: Optional

Carpet

Rubber: Optional

Yes

Seat Height

Yes

Backrest Angle

Yes

Lumbar Support

Yes

Headrest, Height

Manual

Headrest, Tilt

Manual

Collapsible

Yes

Front Seats

Power Seat, Driver: Optional
Power Seat, Passenger: Optional
Armrest: Middle
Massage: Optional
Ventilated Seats: Optional

Front Seats › Massage

Driver: Optional
Passenger: Optional

Front Seats › Ventilated Seats

Driver: Optional
Passenger: Optional

Second Seat Row

Armrest: Yes
Collapsible: Manual
Number of Seats: 3
Type of Seat: Adult

Second Seat Row › Collapsible

Backrest Release: From Trunk
Split Fold Ratio: 60/40
Heated Seats: Optional

Second Seat Row › Headrests

Outer Seats: Height Adjustment
Centre Seat: Yes

Third/Fourth Seat Row

Third Seat Row: Optional

Coat Hanger

Optional

Hill Descent Control (HDC)

Optional

Parking Assist

Optional

Sign Assist

Optional

Trailer Assist

Optional

Trailer Stability Assist (TSA)

Yes

Emergency Assist

Optional

Emergency Stop Signal (ESS)

Yes

Lane Assist System

Lane Keeping Assist (LKA): Yes

Differential Lock

Electronic

Autonomous Emergency Brake System (AEB)

Car-to-car: Yes
Pedestrian: Yes

Electrical: Optional

DriverYes

PassengerYes

RearOptional

Side Head Airbag

DriverYes

PassengerYes

RearNo

Side Pelvis Airbag

DriverNo

PassengerNo

RearNo

Knee Airbag

DriverYes

PassengerNo

RearNo

Curtain Airbag

DriverYes

PassengerYes

RearYes

Center Airbag

DriverNo

PassengerNo

RearNo

Airbag cut-off Switch

Driver-

PassengerYes

RearNo

No

Volkswagen emblem

Tiguan

€67,000

MSRP · EUR

Body

SUV

Variant

Tiguan Allspace 7-seater SUV Generations2 of 2

Year

Powertrain

Horsepower

193 hp

Drivetrain

AWD

Fuel

Diesel

Transmission

Automatic (Dual-clutch), 7-speed
