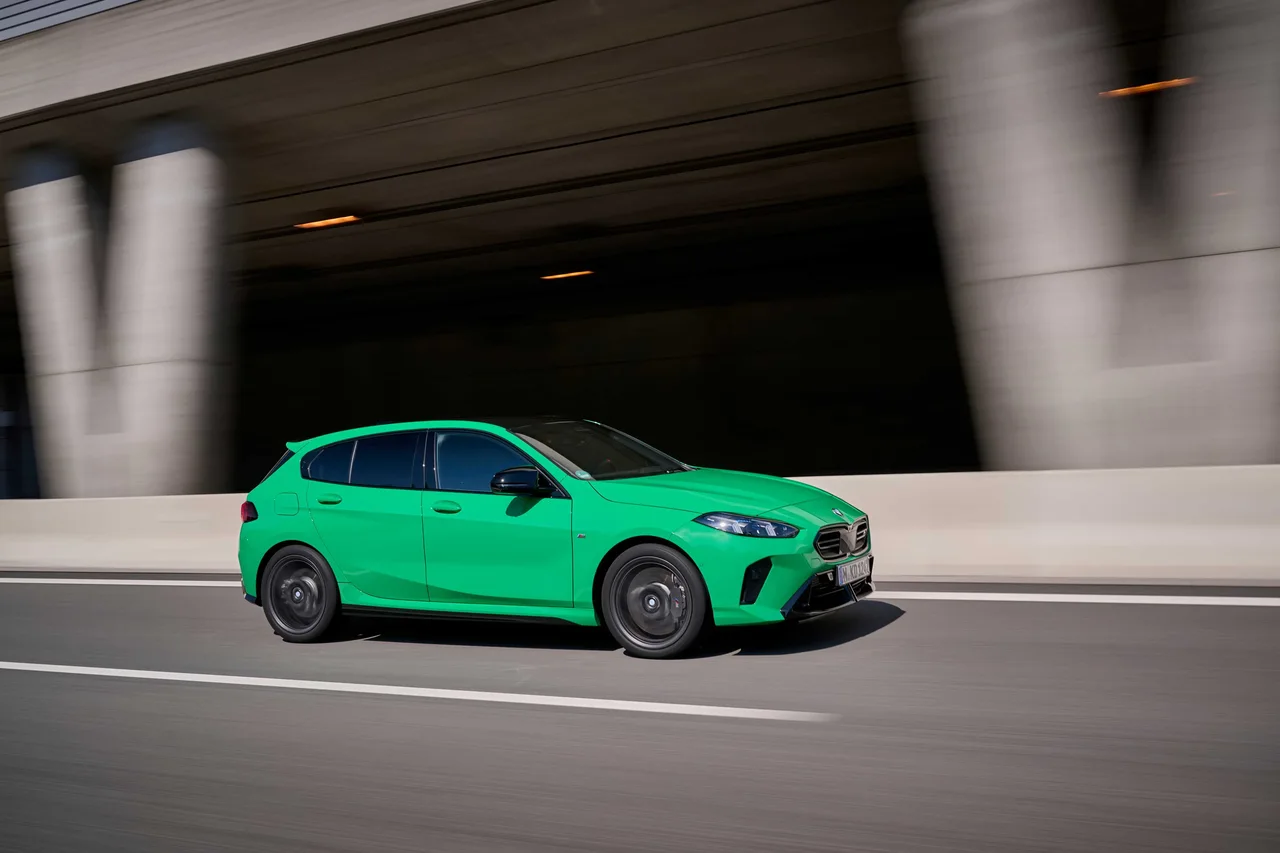

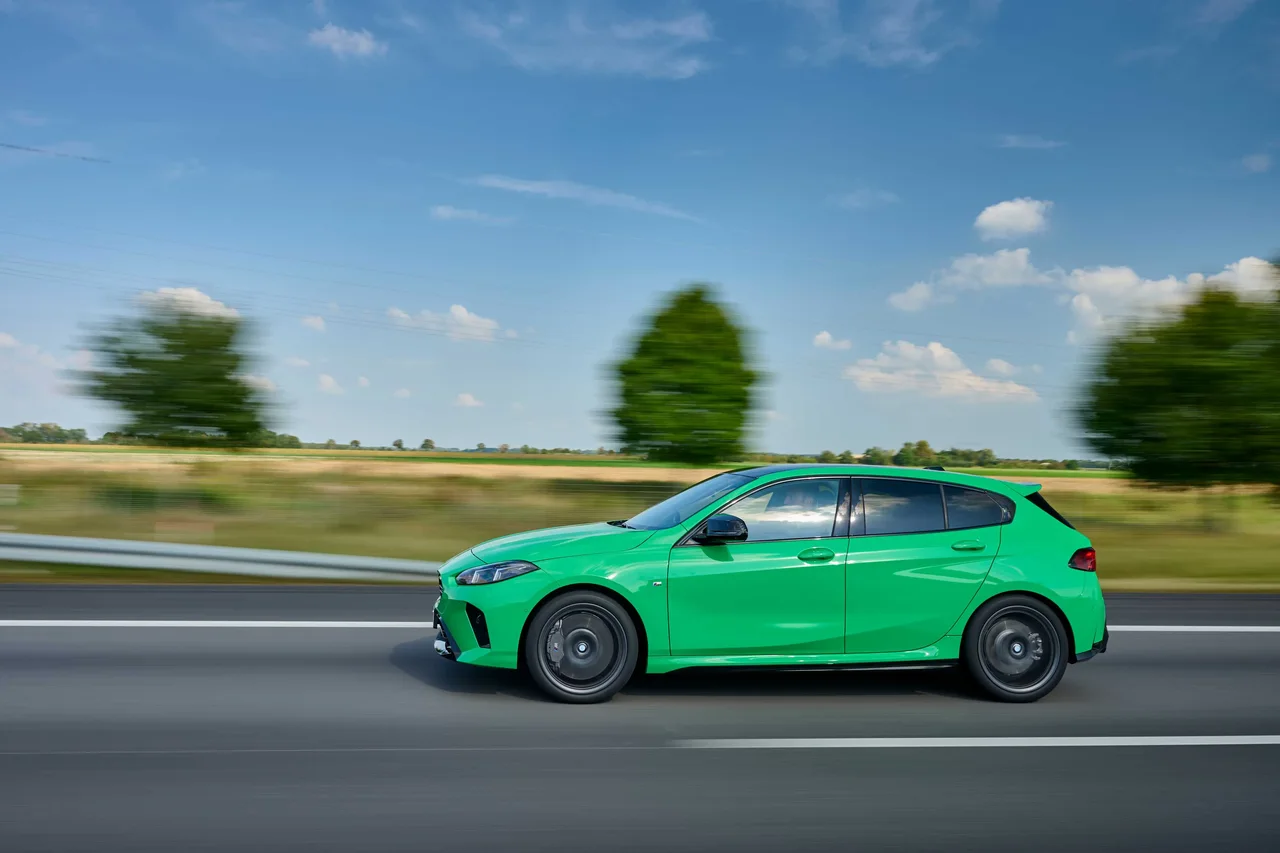

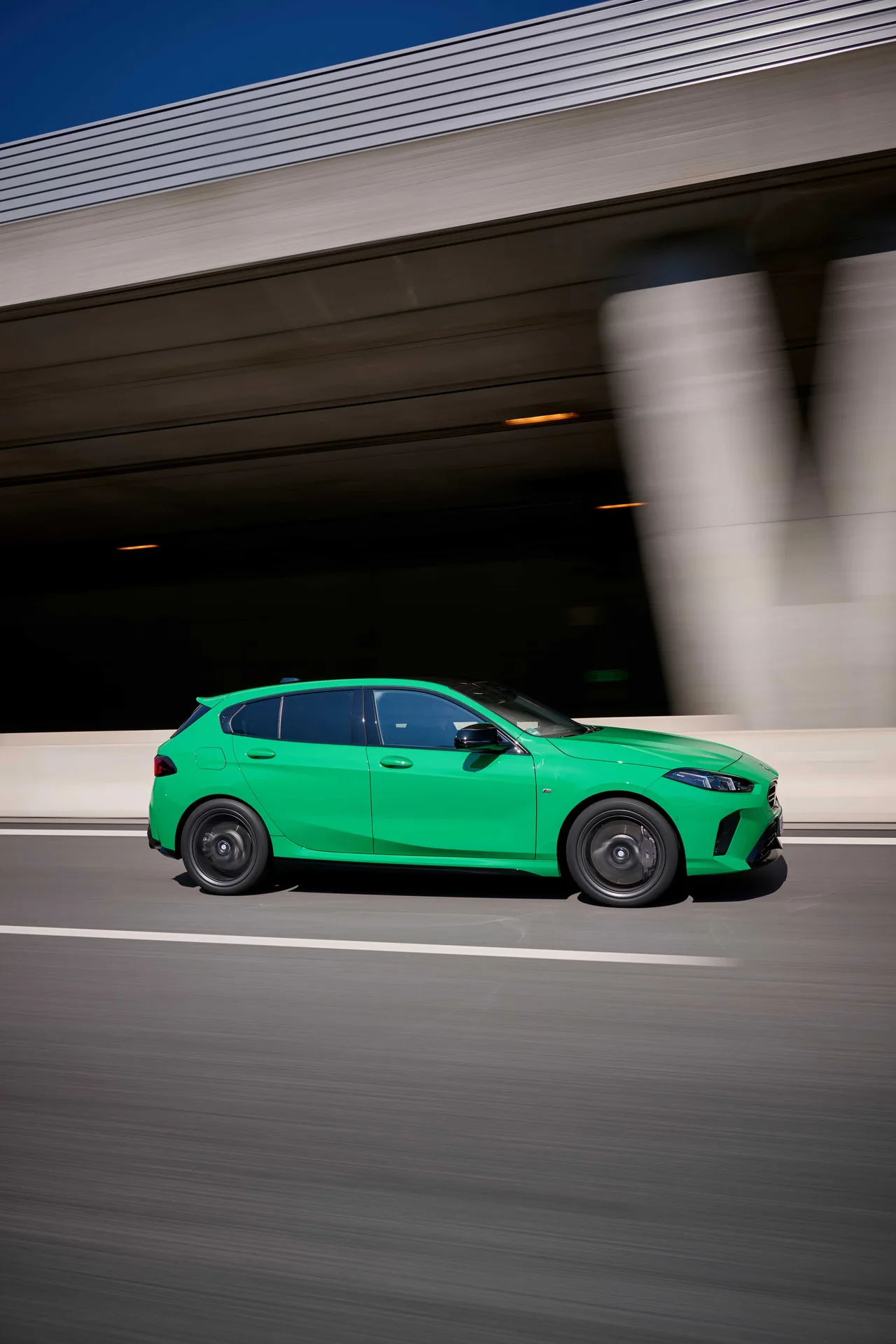

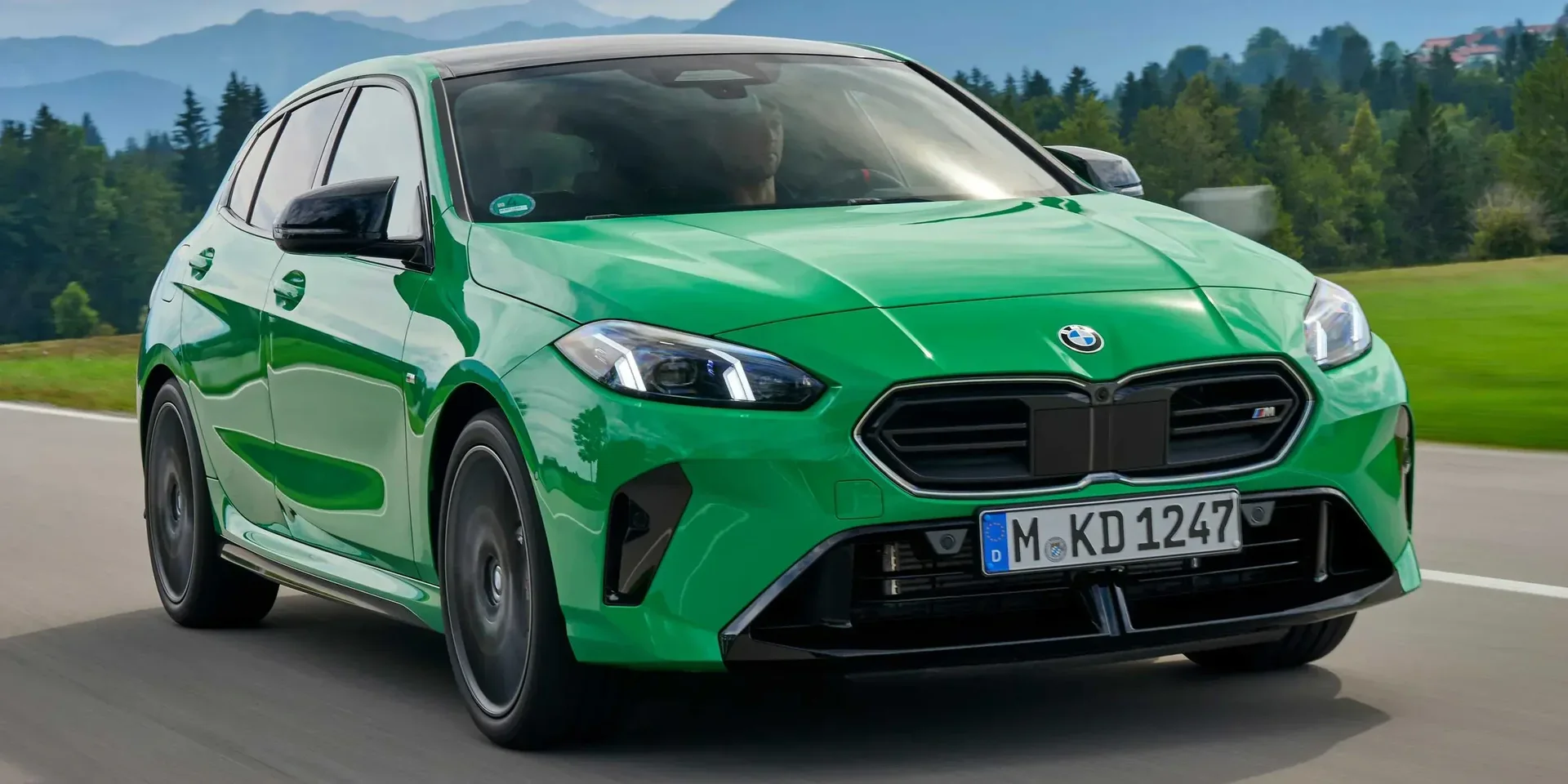

2025 BMW 1 Series M135 xDrive

GermanyGasolineAWDHatchback

Photos

Specifications

Vehicle Details

Year
2025
Make
BMW
Model
1 Series
Variant
M135 xDrive
Body Style
Hatchback
Generation
F70
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic (Manumatic), 7-speed

Powertrain

Engine Name
M135 xDrive Steptronic
Engine Configuration
Inline
Power (hp)
300 hp
Power (kW)
221 kW
Torque
400 Nm (295 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.7 seconds (estimated)
0–100 km/h
4.9 seconds
Displacement
1,998 cc

Dimensions

Length
4,361 mm (171.7 in)
Width
1,800 mm (70.9 in)
Height
1,459 mm (57.4 in)
Wheelbase
2,670 mm (105.1 in)
Curb weight
1,625 kg (3,583 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,750 - 6,500 rpm
Rev. at Max Torque
2,000 - 4,500 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-20
  • 0W-30
Engine Oil, Volume
5.25 litres
Car Battery
Voltage
12 V
Battery Capacity
60 Ah
Engine Configuration
Bore
82 mm (3.2 in)
Stroke
94.6 mm (3.7 in)
Compression Ratio
9.5 :1
Engine Configuration
Inline
Turbocharger
Twin-turbo
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection

Transmission & Drivetrain

Transmission
Automatic (Manumatic), 7-speed
Gear Ratio
1st Gear
16.99 :1
2nd Gear
10.59 :1
3rd Gear
7.08 :1
4th Gear
4.91 :1
5th Gear
4 :1
6th Gear
3.27 :1
7th Gear
2.52 :1
Reverse
16.32 :1

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (4)
  • Rear (1)
Brakes Material
Steel
Front Brakes
Diameter
385 mm (15.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
330 mm (13.0 in)
Width
20 mm (0.8 in)
Cooling
Ventilated

Suspensions

Suspension, Front
Independent
MacPherson Strut
Active/Adaptive Suspension
Yes
Suspension, Rear
Independent
Multi-link
Active/Adaptive Suspension
Yes
Anti-roll Bar
Yes

Fuel

General
Tank Volume
49 litres
Emission
Emission Standard
Euro 6 (Euro 6e)
Emission Class
  • F
  • G
WLTP Consumption
Combined (l/100km)
7.6 - 8.1 litres / 100 km
Emission WLTP
CO₂, Combined
173 - 184 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,072 mm (81.6 in)
Track, Front
1,562 mm (61.5 in)
Track, Rear
1,562 mm (61.5 in)
Overhang, Front
899 mm (35.4 in)
Overhang, Rear
792 mm (31.2 in)
Turning Circle
11.7 m
Ground Clearance
156 mm (6.1 in)

Interior

Head Room, Front
1,019 mm (40.1 in)
Head Room, Rear
956 mm (37.6 in)
Shoulder Room, Front
1,442 mm (56.8 in)
Shoulder Room, Rear
1,430 mm (56.3 in)

Weight

Curb Weight (DIN)
1,550 kg (3,417 lb)
Gross Weight
2,100 kg (4,630 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
550 kg (1,213 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
1,105 kg (2,436 lb)
Permitted Axle Load, rear
1,045 kg (2,304 lb)

Exterior

Chassis & Body

Chassis
Chassis
Hatchback
Pillars
A-C
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Windscreen Wipers
Speed Sensing Intermittent
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Other Equipment
Sunroof
Optional
Normal Roof
Yes
Spoiler
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.25
Central Bore (CB), front
66.6
Central Bore (CB), rear
66.6
Fastening Type
Lug Bolts
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

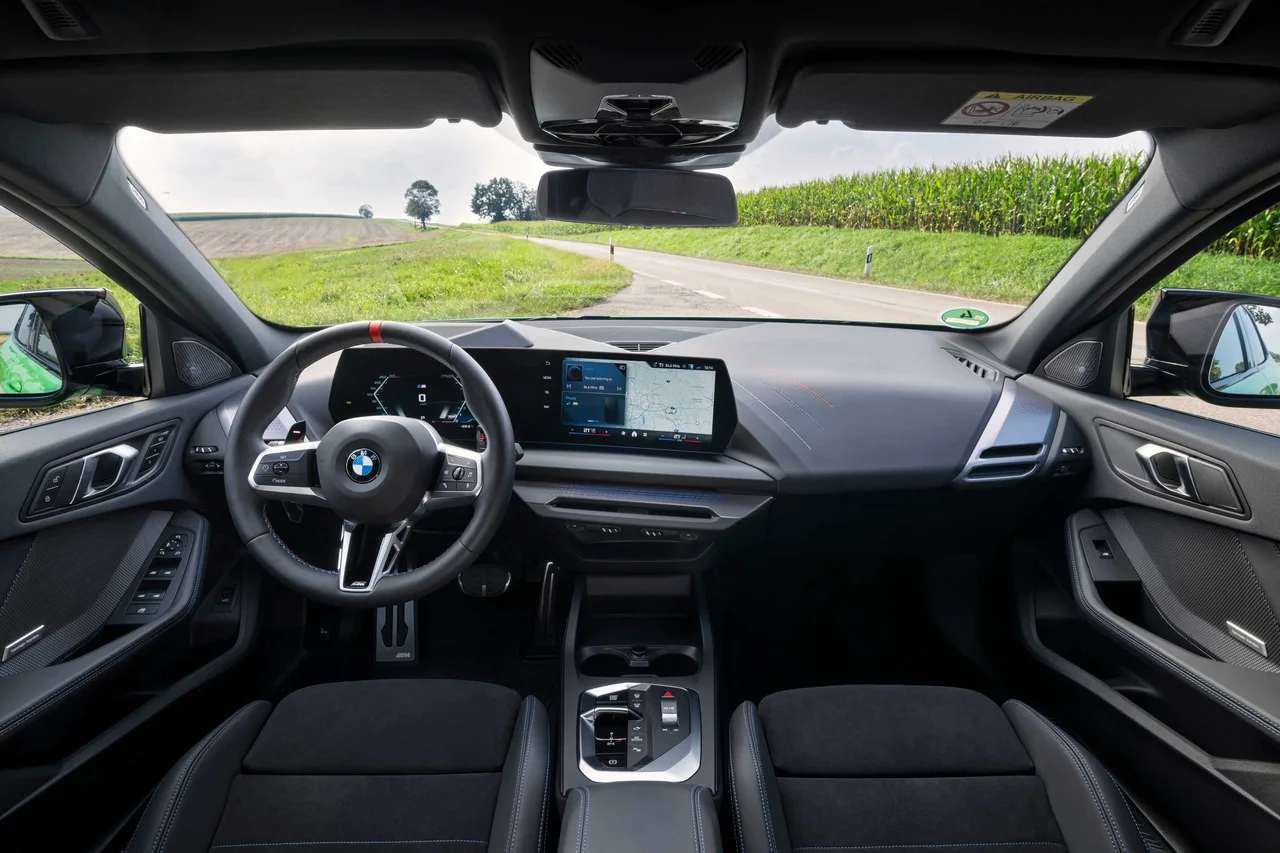

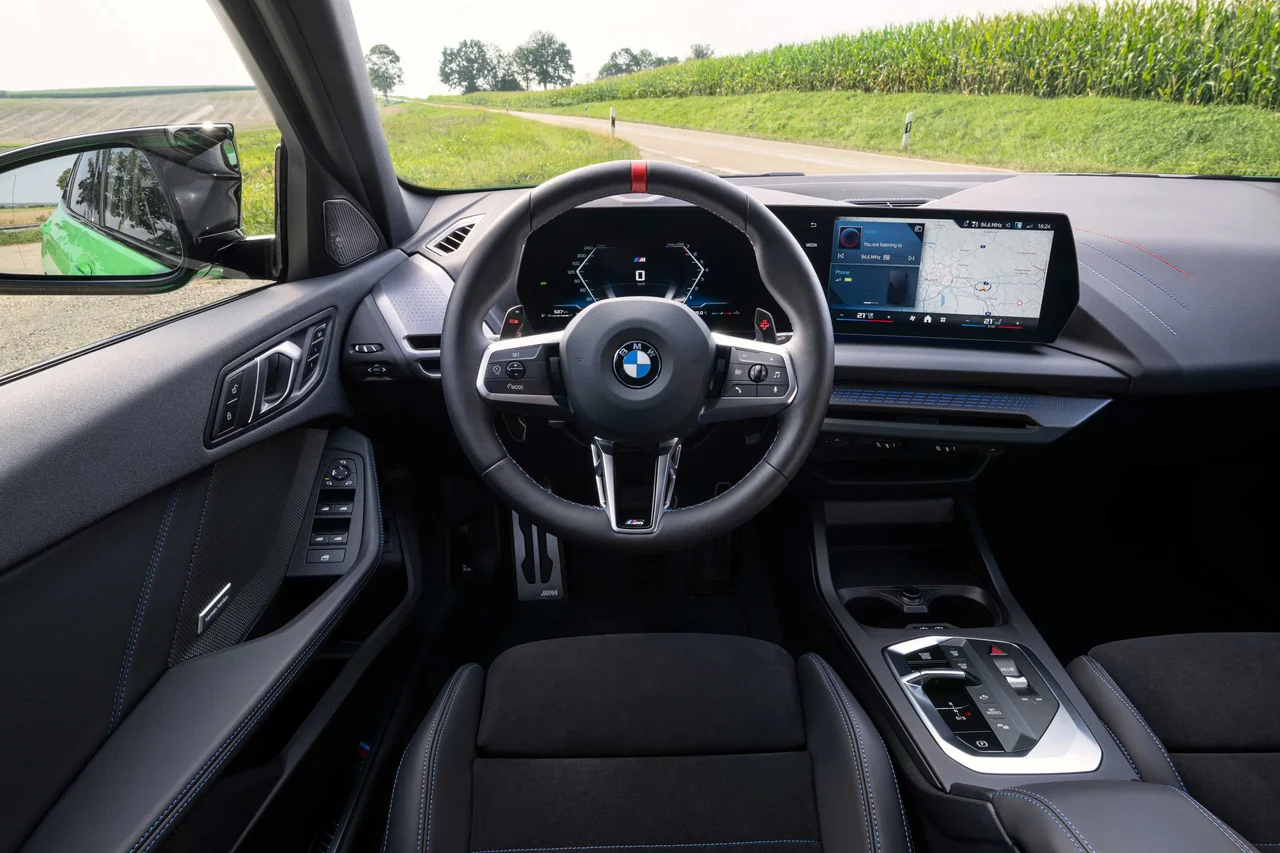

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Head-up Display (HUD)
Optional
Shift Indicator
Yes
Instrument Cluster › Trip Computer
Display
10.25"
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Climate Control › Air Condition
Refrigerant
  • R1234yf
  • R134A
Connectivity
Radio
  • AM
  • FM
  • DAB
App-Connect
  • Android Auto
  • Apple CarPlay
Cellular Network
5G
WiFi
Yes
Displays
Center Display
10.7"
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
6 pcs
Speakers Max. Watt
100 W
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Lights
Guide Light
Footwell
Selectable Light Colour
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Electro-mechanical
Sport
Yes
Number of Spokes
3
Steering Ratio
15.3 :1
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
380 litres
Volume, Back Seat Collapsed
1,200 litres

Design

Interior Decor Material
Plastic
Interior Decor Colour
Black

Seats

Colour & Material
Seat Colour
Black
Second Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Cruise Control
Active Cruise Control
Speed Limiter
Yes
Cameras
Rear
Voice Control
Optional
Wireless Phone Charger
Optional

Other Features

Start & Stop
Yes
Driving Mode Selection
Individual

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Collision Warning (RCW)
Yes
Front Cross-Traffic Alert (FCTA)
Yes
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Yes
Trailer Assist
Yes
Trailer Stability Assist (TSA)
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Active Lane Change
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Cornering Brake Control (CBC)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Differential Lock
Manual
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
  • Remote
  • Auto Lock (Speed Sensitive | Timing)
Child Safety Locks
Electrical
Active Bonnet
Yes
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2025
Adult Occupant
78 %
Child Occupant
84 %
Vulnerable Road Users
85 %
Safety Assist
80 %
Overall
4/5 stars
Adult Occupant
Total Points
31.2 /38
Frontal Impact
8.9 /16
Lateral Impact
16 /16
Rear Impact
3.7 /4
Rescue and Extrication
2.7 /2
Child Occupant
Total Points
41.6 /49
Crash Test Performance
  • 15.6
  • 8 /16
Safety Features
6 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
53.9 /49
Pedestrian
  • 12.5
  • 4.2
  • 8.6
AEB Pedestrian
6.6 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
7.8 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2 /3
Speed Assistance (assesment)
Adequate
Occupant Status Monitoring (points)
1.3 /3
Occupant Status Monitoring (assesment)
Marginal
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
0.3
Driver Monitoring (assesment)
Weak
Lane Support (points)
3 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
8.2 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Yes
  • Rear: Yes

Other

Car Classification

American Classification
Compact Car
British Classification
Small Family Car
Australian Classification
Small Car
European Segment
C-Segment
Car.info Classification
Medium Family Car
