2025 Cadillac XT5

United StatesGasolineAWDSUV

Photos

Specifications

Vehicle Details

Year
2025
Make
Cadillac
Model
XT5
Body Style
SUV
Generation
1st Generation Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
AWD
Transmission
Automatic, 9-speed

Powertrain

Engine Name
400 AWD Hydra-Matic
Engine Configuration
V
Power (hp)
314 hp
Power (kW)
231 kW
Torque
367 Nm (271 lb-ft)
Displacement
3,649 cc

Dimensions

Length
4,816 mm (189.6 in)
Width
1,902 mm (74.9 in)
Height
1,679 mm (66.1 in)
Wheelbase
2,858 mm (112.5 in)
Curb weight
1,968 kg (4,339 lb)

Engine & Performance

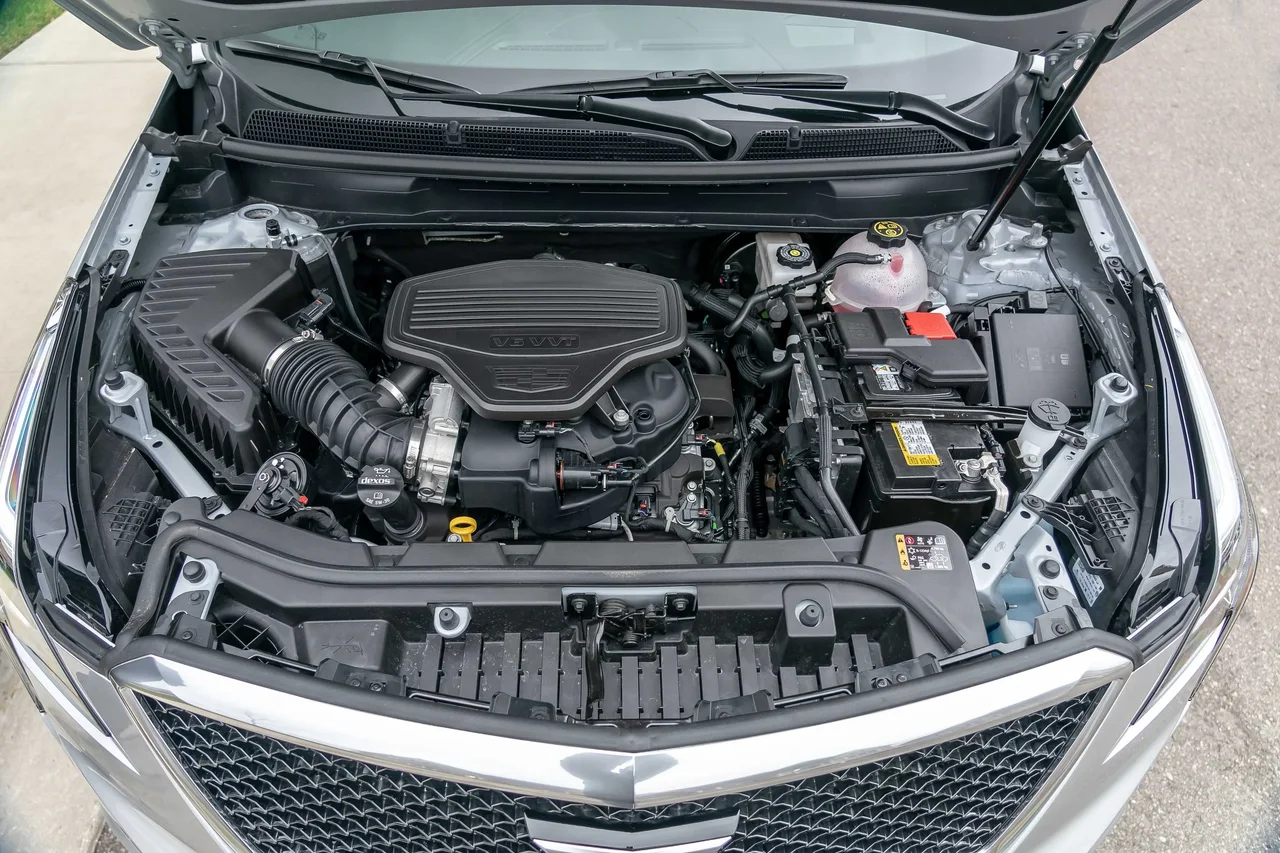

Engine

Engine Specification
Rev. at Max Power
6,600 rpm
Rev. at Max Torque
5,000 rpm
Redline
7,200 rpm
Engine Fluids
Engine Oil, Volume
5.7 litres
Engine Coolant, Volume
11.4 litres
Engine Configuration
Bore
95 mm (3.7 in)
Stroke
85.8 mm (3.4 in)
Compression Ratio
11.5 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
Automatic, 9-speed
Gear Selector
Joystick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
4.69 :1
2nd Gear
3.31 :1
3rd Gear
3.01 :1
4th Gear
2.44 :1
5th Gear
1.92 :1
6th Gear
1.44 :1
7th Gear
1 :1
8th Gear
0.75 :1
9th Gear
0.62 :1
Final Drive
3.49 :1
Reverse
2.96 :1

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Cast Iron
Front Brakes
Diameter
345 mm (13.6 in)
Cooling
Ventilated
Rear Brakes
Diameter
315 mm (12.4 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Fuel

General
Tank Volume
82 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Control
  • Catalyst
  • Adaptive Cylinder Management
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption EPA
City
18 MPG
Highway
26 MPG

Dimensions & Weight

Exterior

Track, Front
1,646 mm (64.8 in)
Track, Rear
1,646 mm (64.8 in)
Turning Circle
11.8 m

Interior

Head Room, Front
1,008 mm (39.7 in)
Head Room, Rear
976 mm (38.4 in)
Leg Room, Front
1,046 mm (41.2 in)
Leg Room, Rear
991 mm (39.0 in)
Hip Room, Front
1,424 mm (56.1 in)
Hip Room, Rear
1,392 mm (54.8 in)
Shoulder Room, Front
1,481 mm (58.3 in)
Shoulder Room, Rear
1,430 mm (56.3 in)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
General Motors Platforms
Epsilon Platform (C1XX)

Rims & Tires

Tightening Torque
190 Nm

Interior

Trunk

Rear Trunk
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
849 litres
Volume, Back Seat Collapsed
1,748 litres

Other

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV
