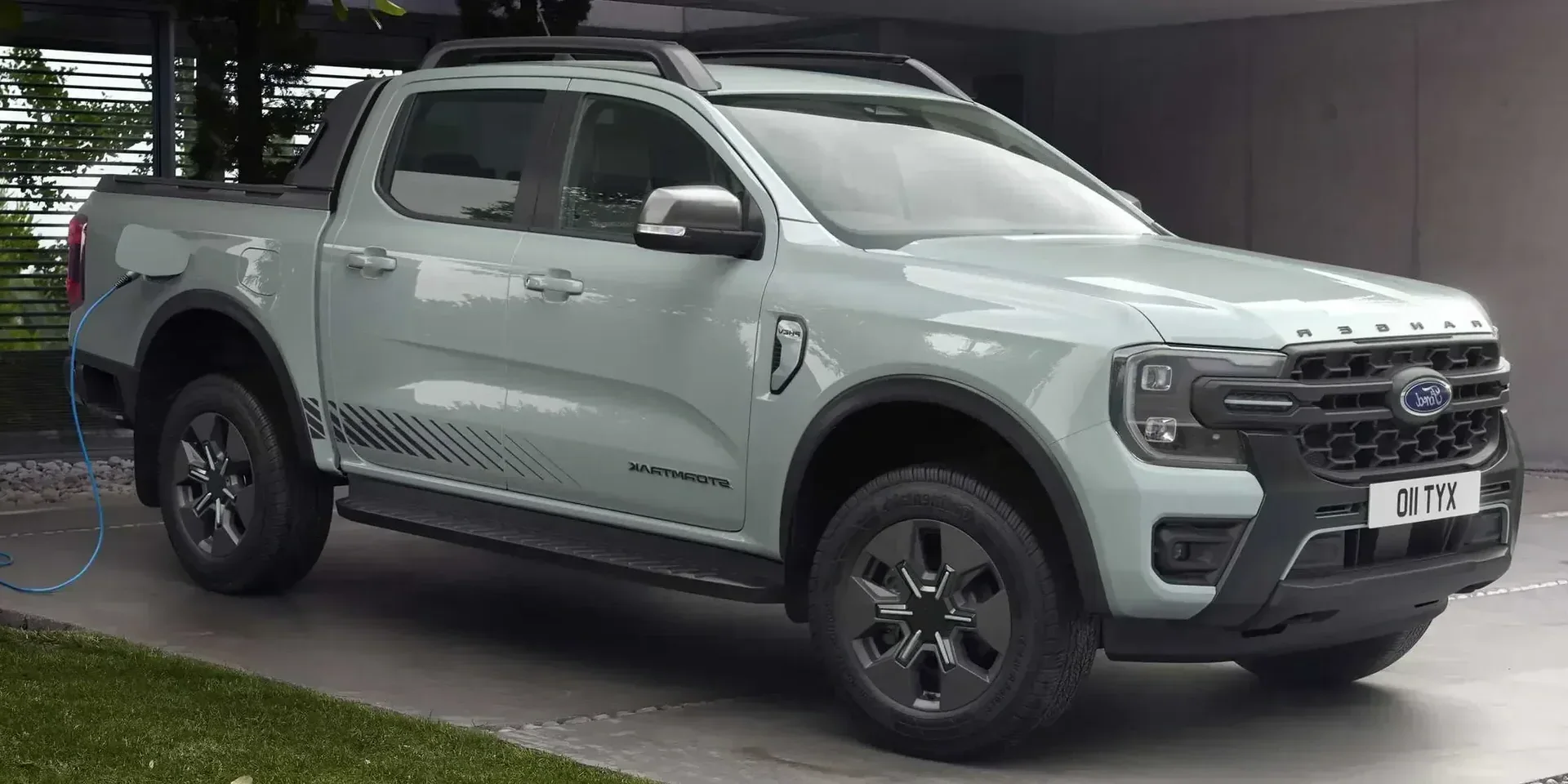

2025 Ford Ranger PHEV

United StatesPlug In Hybrid Gasoline4WDPickup

Photos

Specifications

Vehicle Details

Year
2025
Make
Ford
Model
Ranger
Variant
PHEV
Body Style
Pickup
Generation
RA
Seats
5
Doors
4
Fuel
Plug In Hybrid Gasoline
Drivetrain
4WD
Transmission
Automatic, 10-speed

Powertrain

Engine Name
PHEV SelectShift
Power (hp)
279 hp
Power (kW)
205 kW
Torque
690 Nm (509 lb-ft)
Electric range
45 km (28 mi)
Battery
11.8 kWh
Displacement
2 cc

Dimensions

Length
5,282 mm (208.0 in)
Width
1,861 mm (73.3 in)
Height
1,815 mm (71.5 in)
Wheelbase
3,220 mm (126.8 in)
Curb weight
3,500 kg (7,716 lb)

Engine & Performance

Engine

Configuration Electric
Type of Electric Car
Plug-in Hybrid
Electric Engine Power
75 kW
Battery Capacity, Gross
11.8 kWh
Service Intervals
Engine Coolant
10 years
Accessory Belt
240,000 km / 10 years

Transmission & Drivetrain

Transmission
Automatic, 10-speed

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes

Fuel

General › Fuel Cap Position
Rear
Left
WLTP Consumption
Electric Range
45 km (28 mi)

Dimensions & Weight

Exterior

Width, with Mirrors
2,163 - 2,179 mm (85.2 - 85.8 in)
Track, Front
1,560 mm (61.4 in)
Track, Rear
1,560 mm (61.4 in)
Turning Circle
12.7 m
Ground Clearance
232 mm (9.1 in)

Interior

Head Room, Front
1,022 mm (40.2 in)
Head Room, Rear
975 mm (38.4 in)
Leg Room, Front
1,058 mm (41.7 in)
Leg Room, Rear
902 mm (35.5 in)
Hip Room, Front
1,419 mm (55.9 in)
Hip Room, Rear
1,374 mm (54.1 in)
Shoulder Room, Front
1,450 mm (57.1 in)
Shoulder Room, Rear
1,440 mm (56.7 in)

Weight

Cargo Capacity
1,000 kg (2,205 lb)

LCV Specific

Pickup Box Dimensions
Box Length, Floor
1613 mm (63.5 in)
Box Width
1560 mm (61.4 in)

Exterior

Chassis & Body

Chassis
Chassis
Pickup
Pillars
A-C
Chassis Construction
Body-on-Frame
Body Material
Steel
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Windscreen Wipers
Speed Sensing Intermittent
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
  • Front
  • Rear
Windows › Window Lifts, Features
Pinch Protection
Driver
One-touch up/down
  • Driver
  • Passenger
  • Rear
Other Equipment
Mud Flaps
Rear

Lights

Fog Lights
Yes
Fog Lights
Rear
Yes
Special Features
Headlight Range Adjustment
Automatic

Colour

Accent
Black

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Optional
Number of Bolts
6 pcs
Bolt Distance
139.7
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
93.1
Central Bore (CB), rear
93.1
Fastening Type
Lug Nuts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Rim Material
Alloy
Number of Spokes
6
Rim Type
Disc Wheel
Tire Pressure Monitoring System (TPMS)
Direct
Optional

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Climate Control
Air Condition
Yes
Climate Control › Air Condition
Refrigerant
HF01234yf
Connectivity
Radio
  • AM
  • FM
  • DAB
Bluetooth
Phone
Connectivity › Media Inputs
USB
USB-A
Connectivity › Media Inputs › USB
Placement
Front
Rear-view Mirror
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Other Equipment
12V Outlet
Rear

Steering Wheel

Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
4
Colour
Black
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Cargo Hooks
Yes
Flat Surface
Yes
Light
Yes
Hatch Opening Type
Fold Down Sill
Rear Trunk
Depth
1,613 mm (63.5 in)
Width
1,560 mm (61.4 in)
Width, Between Wheel Arches
1,136 mm (44.7 in)
Sill Height
835 mm (32.9 in)

Design

Interior Decor Material
Plastic

Seats

Colour & Material
Seat Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Yes
Headrest, Tilt
Yes
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes
Second Seat Row
Number of Seats
3
Type of Seat
Adult
Headrests, Centre Seat, Foldable: Type
Manual

Features

Comfort Features

Cruise Control
Yes
Speed Limiter
Yes

Other Features

Driving Mode Selection
  • Comfort
  • Off-road
  • Rock Crawl/Mountain
  • Snow
Horn
Dual Note

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Yes
Trailer Assist
Yes
Trailer Stability Assist (TSA)
Yes
Traffic Light Recognition
Yes
Emergency Stop Signal (ESS)
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Other Features

Central Locking
Remote
Child Safety Locks
Manual

Safety Testing

General
Test Year
2022
Adult Occupant
84 %
Child Occupant
90 %
Vulnerable Road Users
74 %
Safety Assist
84 %
Overall
5/5 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Car Classification

American Classification
Mid-Size Pickup Truck
British Classification
Pick-up
Australian Classification
Ute
European Segment
J-Segment JD-Segment
Car.info Classification
Pickup
