2025 Volvo EX40

SwedenElectricRWDSUV

Photos

Specifications

Vehicle Details

Year
2025
Make
Volvo
Model
EX40
Body Style
SUV
Generation
1st Generation (XZ)
Seats
5
Doors
5
Fuel
Electric
Drivetrain
RWD
Transmission
Automatic (Fixed)

Powertrain

Engine Name
Single Motor Single Speed
Engine Configuration
Electric
Power (hp)
238 hp
Power (kW)
175 kW
Torque
420 Nm (310 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
7.0 seconds (estimated)
0–100 km/h
7.3 seconds
Electric range
435 km (270 mi)
Battery
70 kWh

Dimensions

Length
4,440 mm (174.8 in)
Width
1,863 mm (73.3 in)
Height
1,647 mm (64.8 in)
Wheelbase
2,702 mm (106.4 in)
Curb weight
2,040 kg (4,497 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,500 rpm
Rev. at Max Torque
0 - 3,000 rpm
Engine Configuration
Type of Electric Car
Electric
Electric Engine Power
175 kW
Electric Engine Horsepower (Metric)
238 hp
Battery Capacity, Gross
70 kWh
Battery Capacity, Net
67 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Engine Configuration › Charge AC
Charge Time
7 h
Charge Power
11 kW
Engine Configuration › Charge DC
Charge Time, to 80%
26 min
Charge Power
200 kW

Brakes

Parking Brake
Electric
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Diameter
345 mm (13.6 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
340 mm (13.4 in)
Width
20 mm (0.8 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Energy & Range

Emission
Emission Class
A
WLTP Consumption
Energy consumption
17 - 18.7 kWh/100km
Electric Range
435 - 480 km (270 - 298 mi)
Electric Range, City
609 - 646 km (378 - 401 mi)
Emission WLTP
CO₂, Combined
0 g/km
Emission NEDC
CO₂, Combined
0 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,034 mm (80.1 in)
Width, with Mirrors (folded)
1,938 mm (76.3 in)
Track, Front
1,601 mm (63.0 in)
Track, Rear
1,608 mm (63.3 in)
Overhang, Front
870 mm (34.3 in)
Overhang, Rear
868 mm (34.2 in)
Approach Angle
20 °
Breakover Angle
16.2
Departure Angle
26.4 °
Turning Circle
11.4 m
Ground Clearance
175 mm (6.9 in)

Interior

Head Room, Front
1,030 mm (40.6 in)
Head Room, Rear
994 mm (39.1 in)
Leg Room, Front
1,040 mm (40.9 in)
Leg Room, Rear
917 mm (36.1 in)
Hip Room, Front
1,390 mm (54.7 in)
Hip Room, Rear
1,388 mm (54.6 in)
Shoulder Room, Front
1,440 mm (56.7 in)
Shoulder Room, Rear
1,429 mm (56.3 in)

Weight

Gross Weight
2,470 kg (5,445 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
430 kg (948 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
User Memory
Optional
Heated
Yes
Turning Signal
Yes
House Colour
Black
Side Mirrors › Folding
Driver side
Optional
Passenger side
Optional
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
One-touch up/down
  • Driver
  • Passenger
  • Rear
Other Equipment
Sunroof
Optional
Roof Railing
Yes
Antenna
Shark Fin
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Headlight Range Adjustment
Fog Lights
Rear
LED
Special Features
Adaptive Headlights
Optional
Dynamic Cornering Lights
Optional
Come Home/Leaving Lights
Optional
Headlight Washers
Optional

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Indirect
Number of Bolts
5 pcs
Bolt Distance
4.25
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Central Bore (CB), rear
63.4
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

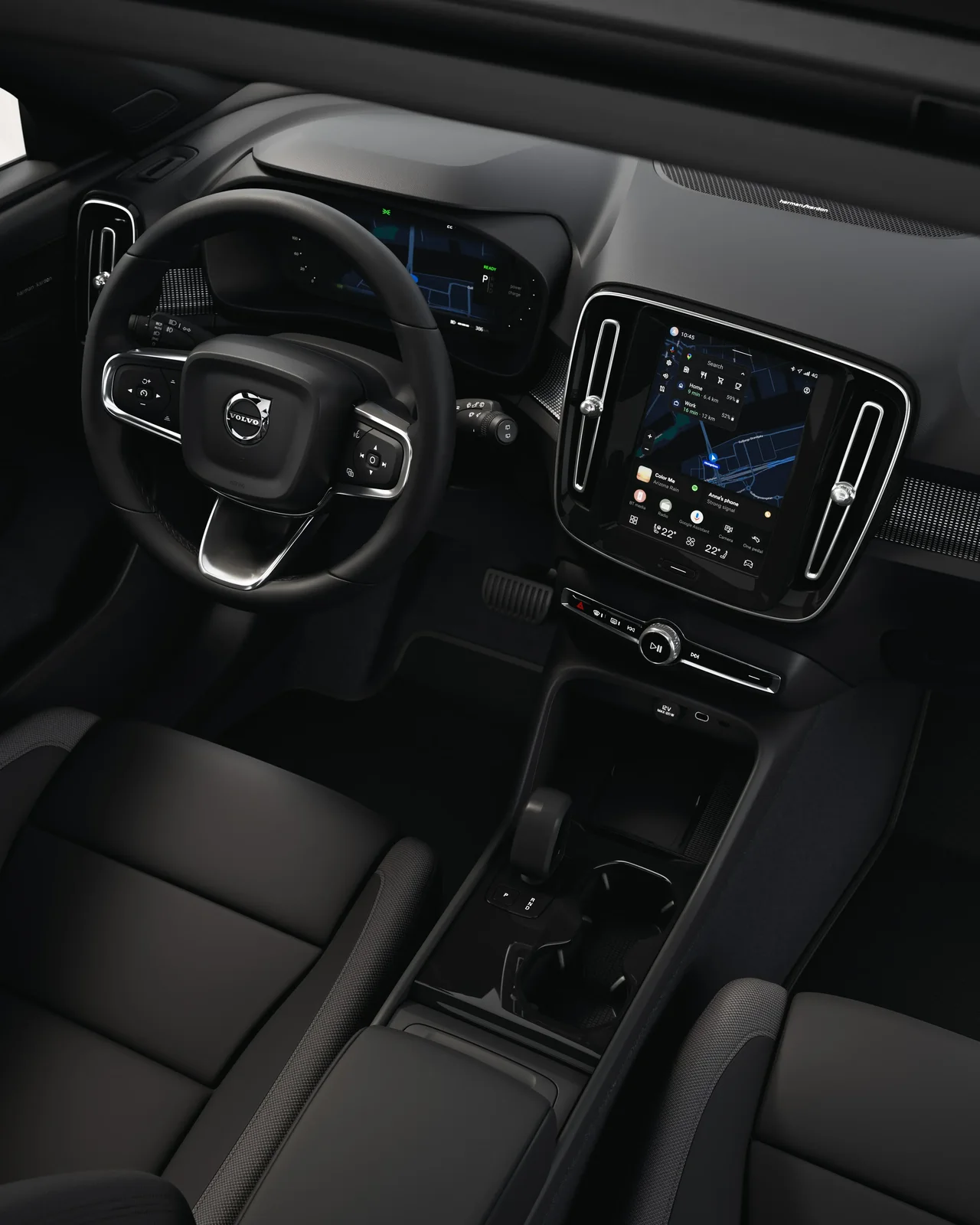

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Touchscreen
Connectivity
Radio
  • AM
  • FM
  • DAB+
App-Connect
Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Displays
Center Display
9"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
13 pcs
Speakers Max. Watt
600 W
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Footwell (Front | Rear)
Ambient Light
Yes
Lights › Guide Light
Door Handles
Optional
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Center Display
Other Equipment › Carpets
Material
Textile
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Optional
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons

Trunk

Total Trunk Volume
441 litres
Rear Trunk
Yes
Front Trunk
Yes
Automatic Open
Optional
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
410 litres
Volume, Back Seat Collapsed
1,400 litres
Depth
887 mm (34.9 in)
Depth, Back Seat Collapsed
1,670 mm (65.7 in)
Opening Width
1,004 mm (39.5 in)
Height
746 mm (29.4 in)
Height, to Trunk Cover
310 mm (12.2 in)
Sill Height
755 mm (29.7 in)
Front Trunk
Volume
31 litres
Automatic Open
Button on Trunk Door
Optional
Key Button
Optional
Motion Activated
Optional

Design

Interior Decor Colour
Black
Entry Guard Material
Aluminium
Pedals
Standard

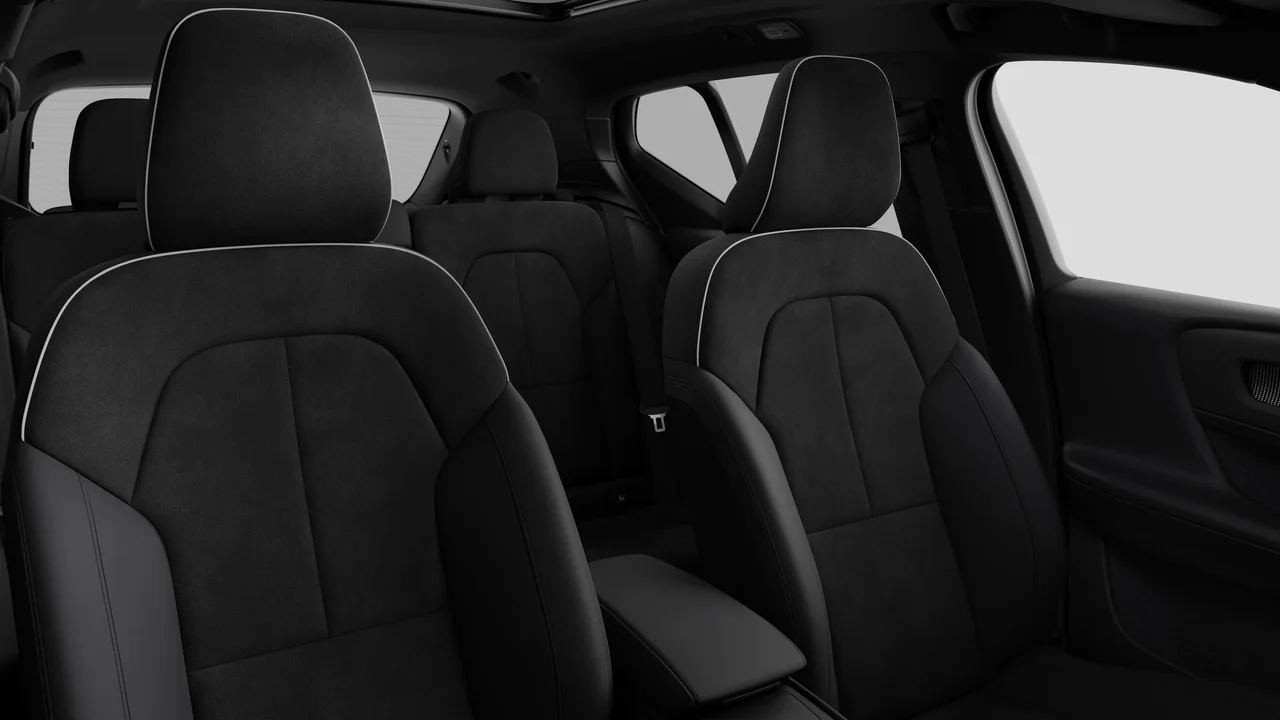

Seats

Colour & Material
Upholstery
Textile
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Optional
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Outer Seats
Foldable
Optional
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes
Parking Heater
Yes
Cameras
Rear
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Optional
Parking Heater
Type
Cabin Heater
Power Source
Battery-operated
Controls
Timer
Cameras
View Location
Center Display
Wireless Phone Charger
Front
Optional

Other Features

GPS
Navigation
Over-the-Air Updates
Yes
Sound Generator, External
Yes
GPS
Map-update
Internet

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Fire Extinguisher
Optional
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Dynamic Steering Response (DSR)
Yes
Emergency Steering Assist
Yes
Rear Cross-Traffic Alert (RCTA)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Sign Assist
Yes
Trailer Stability Assist (TSA)
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Speed Assist
Optical Recognition System
Yes
Speeding Alert
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Reverse
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
Rear
Blind Spot Detection (BLIS)
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Front
Optional
Side
Optional

Other Features

Immobiliser
Yes
Central Locking
  • Remote (Panic Button)
  • Auto Lock (Speed Sensitive)
Child Safety Locks
Electrical
Emergency Call
Yes
Key Features
Window Control

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Knee Airbag
Curtain Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Warranty

EV Battery
160,000 km / 8 years

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Small SUV

Similar suvs

Suggested vehicles
