2026 Cupra Formentor VZ5

SpainGasoline4WDCrossover

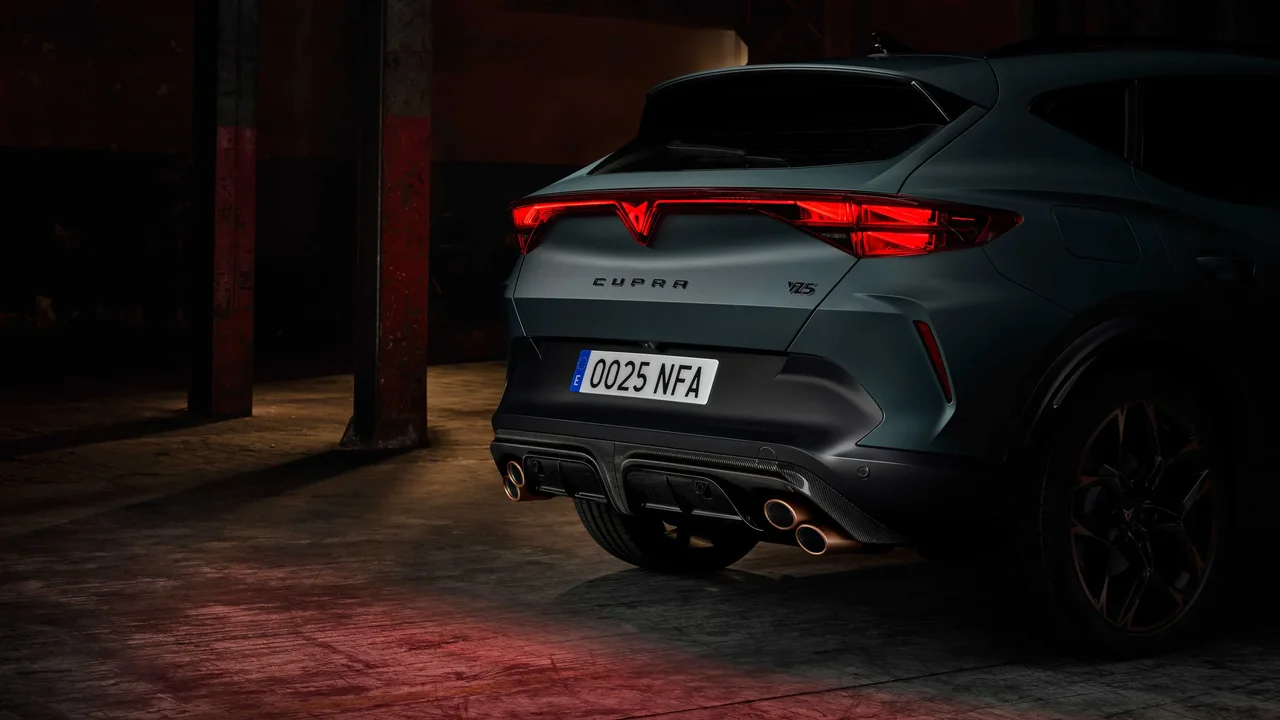

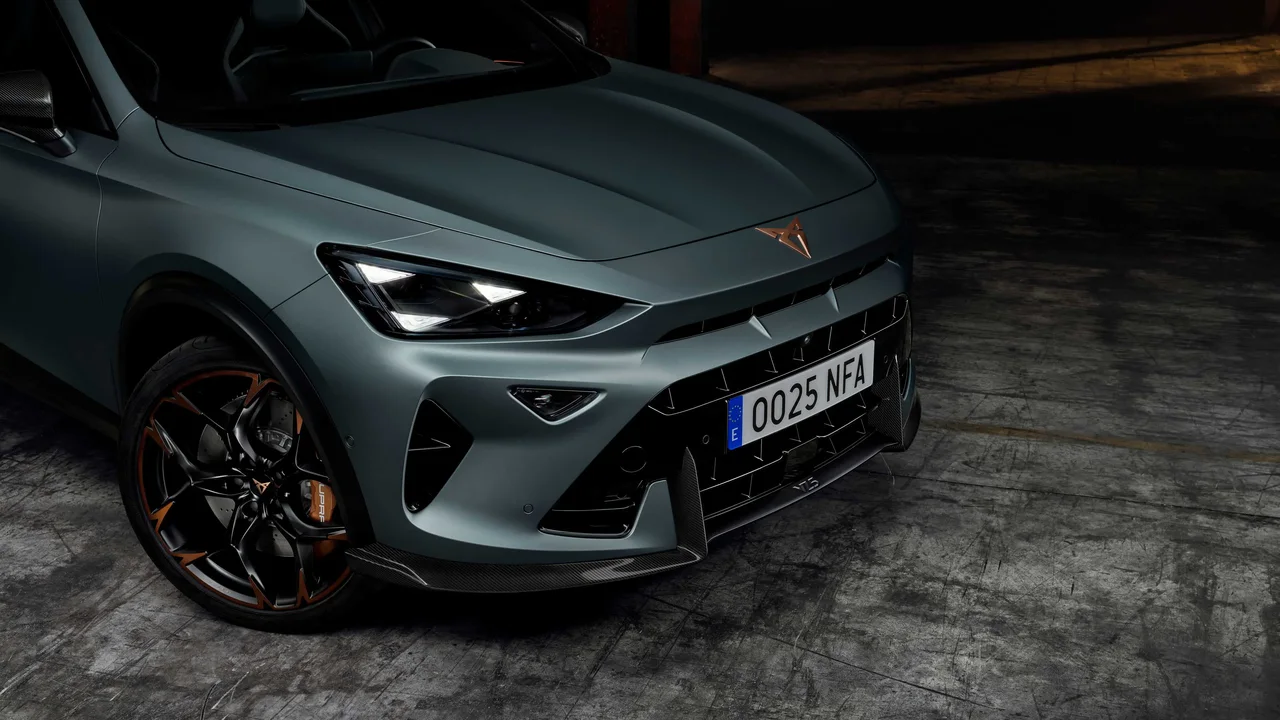

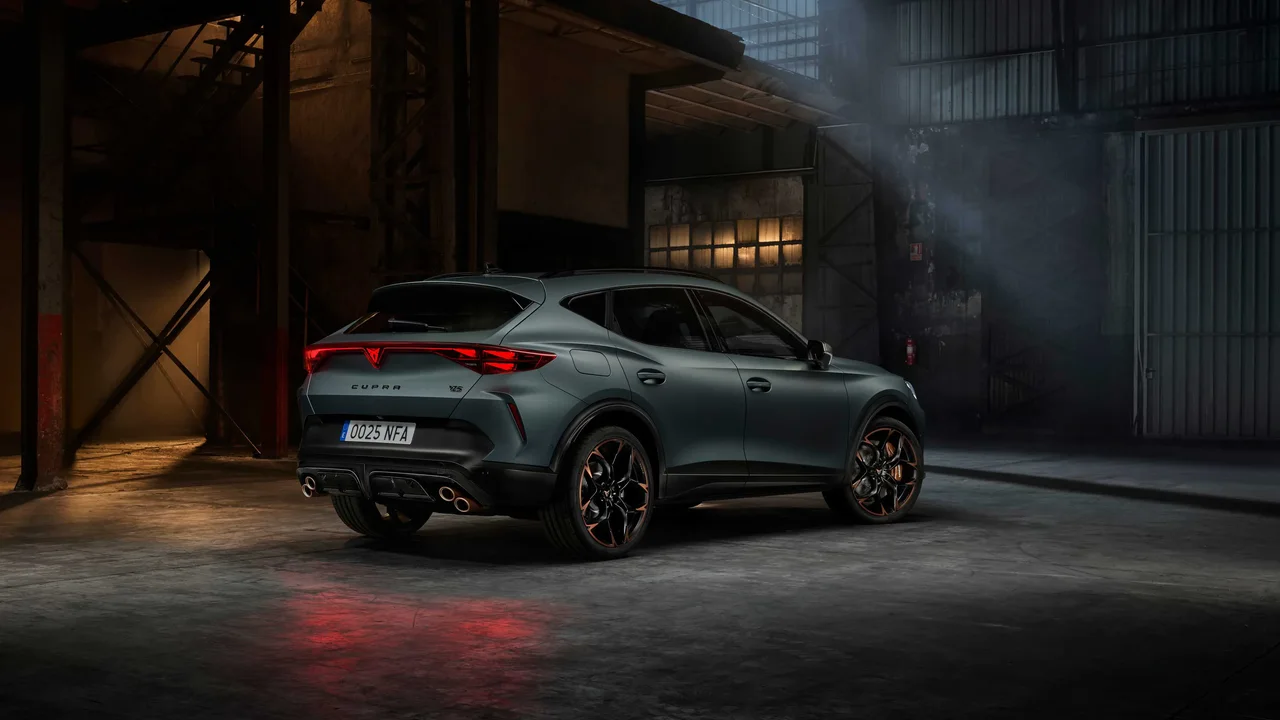

Photos

Specifications

Vehicle Details

Year
2026
Make
Cupra
Model
Formentor
Variant
VZ5
Body Style
Crossover
Generation
1st Generation Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
4WD
Transmission
Automatic (Dual-clutch), 7-speed

Powertrain

Engine Name
VZ5 DSG Sequential
Engine Configuration
Inline
Power (hp)
390 hp
Power (kW)
287 kW
Torque
480 Nm (354 lb-ft)
Top speed
250 km/h (155 mph)
0–60 mph
4.0 seconds (estimated)
0–100 km/h
4.2 seconds
Displacement
2,480 cc

Dimensions

Length
4,451 mm (175.2 in)
Width
1,839 mm (72.4 in)
Height
1,520 mm (59.8 in)
Wheelbase
2,679 mm (105.5 in)

Engine & Performance

Engine

Engine Configuration
Bore
82.5 mm (3.2 in)
Stroke
92.8 mm (3.7 in)
Engine Configuration
Inline
Turbocharger
Yes
Engine Placement
Front
Type of Combustion Engine
Piston
Fuel System
Electronic Fuel Injection
Engine Cooling
Liquid Cooling

Transmission & Drivetrain

Transmission
Automatic (Dual-clutch), 7-speed

Fuel

General
Tank Volume
55 litres
Lockable Fuel Cap
Yes
General › Fuel Cap Position
Rear
Right

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Dimensions & Weight

Exterior

Track, Front
1,583 mm (62.3 in)
Track, Rear
1,555 mm (61.2 in)
Turning Circle
11.4 m

Interior

Head Room, Front
1,075 mm (42.3 in)
Head Room, Rear
986 mm (38.8 in)
Shoulder Room, Front
1,409 mm (55.5 in)
Shoulder Room, Rear
1,362 mm (53.6 in)
Leg Room (est.), Rear
850 - 900 mm (33.5 - 35.4 in)

Weight

Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon (Crossover)
Pillars
A-D
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Conventional

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical
Heated
Yes
Turning Signal
Yes
Windscreen Wipers
Intermittent Control
Yes
Rear Wiper
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Other Equipment
Sunroof
Optional
Roof Railing
Optional
Antenna
Shark Fin
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Sunroof › Sun Blind
Tinted Glass
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Come Home/Leaving Lights
  • Headlight Range Adjustment
Fog Lights
Front
LED
Rear
LED
Fog Lights › Front
Cornering Lights
Yes

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Tightening Torque
140 Nm
Rim Material
Alloy
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Tachometer
Digital
Fuel Gauge
Digital
Coolant Temperature
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
10.25"
Instrument Cluster › Trip Computer › Display
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
3
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Touchscreen
Connectivity
Radio
  • AM
  • FM
  • DAB+
App-Connect
  • Android Auto
  • Apple CarPlay (Wired | Wireless)
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Number of Ports
4 pcs
Displays
Center Display
12.9"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
6 - 11 pcs
Subwoofer
Optional
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
Front
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
230V Outlet
Trunk
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
Center Display
Other Equipment › Carpets
Material
Textile
Colour
Black

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
  • Buttons
  • Scrolling Wheel
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
  • Resume
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Scrolling Wheel
Mute Audio
Yes

Trunk

Rear Trunk
Yes
Cover
Yes
Cargo Hooks
Yes
Flat Surface
Yes
Hatch Through Rear Seats
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
450 litres

Design

Interior Decor Colour
Black
Accent
Painted Inserts (Brown)

Seats

Colour & Material
Seat Colour
Black
Stitching Colour
Brown
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Lumbar Support
Yes
Front Seats
Power Seat, Passenger
Optional
Armrest
Middle
Type of Seat
Sport Seats
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Yes
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes

Features

Comfort Features

Keyless Start
Yes
Cruise Control
Yes
Speed Limiter
Yes
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Front
Cruise Control
Adaptive Cruise Control
Yes
Voice Control
Navigation
Optional

Other Features

GPS
Optional
GPS Preparation
Optional
Start & Stop
Yes
Driving Mode Selection
Yes
Dynamic Chassis Control (DCC)
Yes
Over-the-Air Updates
Optional
Multifunction Camera
Yes
Horn
Dual Note
GPS
Internet
Optional

Accessories

Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Forward Distance Monitoring (FDM)
Yes
Safe Exit Warning (SEW)
Optional
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Sign Assist
Yes
Emergency Assist
Optional
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Reverse
No
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Optional
Door Open Warning
Optional
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Central Locking
  • Remote
  • Auto Lock
Child Safety Locks
Yes
Active Bonnet
No
Emergency Call
Yes
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2025
Adult Occupant
91 %
Child Occupant
86 %
Vulnerable Road Users
79 %
Safety Assist
77 %
Overall
5/5 stars
Adult Occupant
Total Points
36.6 /38
Frontal Impact
13.1 /16
Lateral Impact
15.8 /16
Rear Impact
3.6 /4
Rescue and Extrication
4 /2
Child Occupant
Total Points
42.6 /49
Crash Test Performance
  • 15.6
  • 8 /16
Safety Features
7 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
50.2 /49
Pedestrian
  • 12.1
  • 3.3
  • 8.7
AEB Pedestrian
6.6 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
7.7 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
1.7 /3
Speed Assistance (assesment)
Adequate
Occupant Status Monitoring (points)
1.3 /3
Occupant Status Monitoring (assesment)
Marginal
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
0.3
Driver Monitoring (assesment)
Weak
Lane Support (points)
2.5 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
8.5 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment
Car.info Classification
Medium SUV

Similar crossovers

Suggested vehicles
