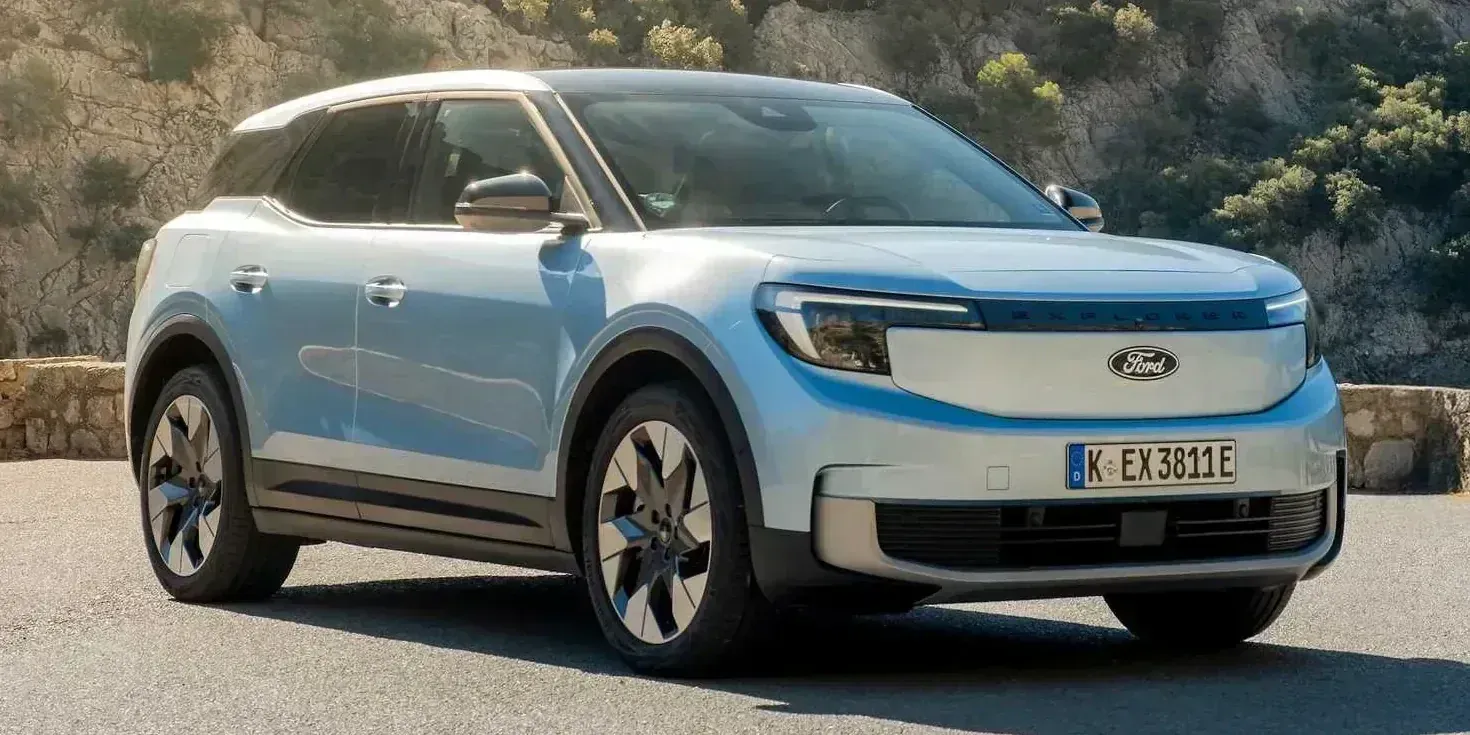

2026 Ford Explorer EV Standard Range RWD

United StatesElectricRWDSUV

Photos

Specifications

Vehicle Details

Year
2026
Make
Ford
Model
Explorer
Variant
EV Standard Range RWD
Body Style
SUV
Generation
1st Generation
Seats
5
Doors
5
Fuel
Electric
Drivetrain
RWD
Transmission
Automatic (Fixed)

Powertrain

Engine Name
Standard Range RWD 58 kWh
Engine Configuration
Electric
Power (hp)
190 hp
Power (kW)
140 kW
Torque
350 Nm (258 lb-ft)
0–60 mph
7.6 seconds (estimated)
0–100 km/h
8 seconds
Electric range
444 km (276 mi)

Dimensions

Length
4,468 mm (175.9 in)
Width
1,871 mm (73.7 in)
Height
1,639 mm (64.5 in)
Wheelbase
2,767 mm (108.9 in)

Engine & Performance

Engine

Engine Configuration
Type of Electric Car
Electric
Electric Engine Power
140 kW
Electric Engine Horsepower (Metric)
190 hp
Torque
350 Nm (258 lb-ft)
Rear Engines
Yes
Type of Battery
Li-ion

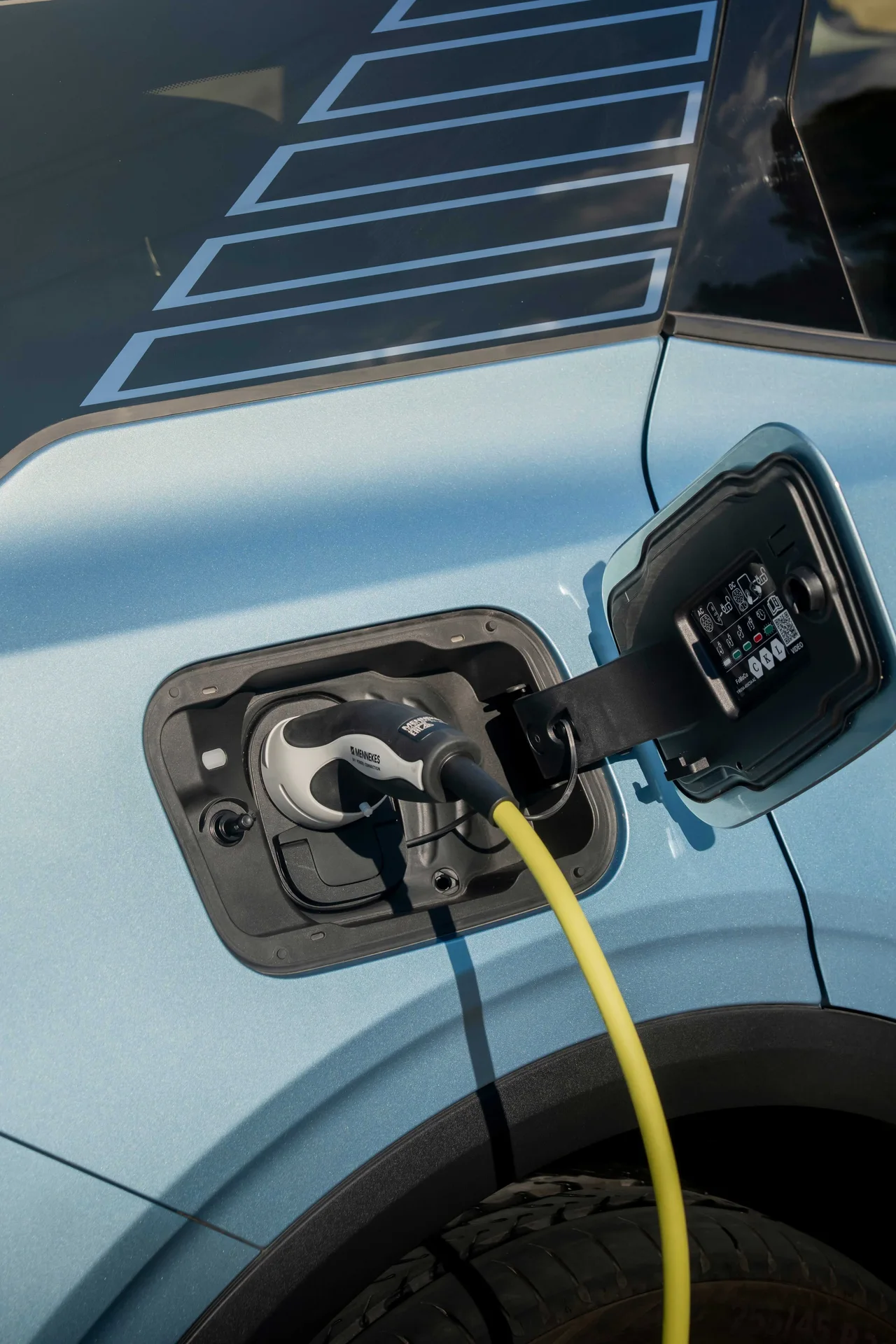

AC Charge Type
  • Single-phase
  • Three-phase
Charging Plugs
Type 2 (CCS)
Engine Configuration › Rear Engines
Electric Power (kW)
140 kW
Horsepower
190 hp
Number of Engines
1

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Brakes Material
Steel
Front Brakes
Diameter
358 mm (14.1 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Energy & Range

Emission
Emission Class
A
WLTP Consumption
Electric Range
444 km (276 mi)
Emission WLTP
CO₂, Combined
0 g/km

Dimensions & Weight

Exterior

Width, with Mirrors
2,063 mm (81.2 in)
Width, with Mirrors (folded)
1,946 mm (76.6 in)
Track, Front
1,587 - 1,588 mm (62.5 - 62.5 in)
Track, Rear
1,572 - 1,578 mm (61.9 - 62.1 in)
Overhang, Front
851 mm (33.5 in)
Overhang, Rear
850 mm (33.5 in)
Approach Angle
17.47 °
Departure Angle
24.8 °
Turning Circle
9.7 - 11 m
Ground Clearance
141 - 148 mm (5.6 - 5.8 in)

Interior

Head Room, Front
1,008 - 1,039 mm (39.7 - 40.9 in)
Head Room, Rear
975 mm (38.4 in)
Leg Room, Front
1,135 mm (44.7 in)
Leg Room, Rear
916 mm (36.1 in)
Hip Room, Front
1,389 mm (54.7 in)
Hip Room, Rear
1,195 mm (47.0 in)
Shoulder Room, Front
1,460 mm (57.5 in)
Shoulder Room, Rear
1,420 mm (55.9 in)

Weight

Max Roof Load
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-D
Chassis Construction
Monocoque
Body Material
  • Aluminium
  • Steel
Roof Material
Steel
Protective Moldings
Yes
Chassis › Protective Moldings
Sides
Bottom-Strip
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Optional
Windscreen Wipers
Intermittent Control
Yes
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Tinted Windows
Optional
Safety Glass
Yes
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Normal Roof
Yes
Antenna
Shark Fin

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
Special Features
Adaptive Headlights
Optional
Headlight Range Adjustment
Automatic
Matrix LED
Optional

Colour

Finish
Solid

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Direct
Number of Bolts
5 pcs
Bolt Distance
112
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
57.1
Central Bore (CB), rear
57.1
Fastening Type
Lug Bolts
Tightening Torque
204 Nm
Rim Material
Alloy
Rim Colour
Black
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Head-up Display (HUD)
Optional
Climate Control
Climate Control
Automatic
Number of Climate Zones
1
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Climate Control › Air Condition
Refrigerant
R1234yf
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Lights
Read Light
  • Front
  • Rear
Guide Light
Entry Guard
Other Equipment
Make-up Mirror
Driver Side
Clock
Digital
Carpets
Optional
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Yes
Power Steering
Yes

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
450 litres
Volume, Back Seat Collapsed
1,422 litres
Depth
804 mm (31.7 in)
Depth, Back Seat Collapsed
1,611 mm (63.4 in)
Width
1,312 mm (51.7 in)
Width, Between Wheel Arches
1,008 mm (39.7 in)
Opening Width
1,058 mm (41.7 in)
Height
664 mm (26.1 in)
Sill Height
772 mm (30.4 in)

Design

Pedals
Standard

Features

Comfort Features

Cameras
Rear
Cameras
View Location
Center Display

Other Features

Driving Mode Selection
  • Eco
  • Individual
  • Normal
  • Sport
Horn
Single Note

Safety & Security

Airbags

Total Number of Airbags
13
Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Emergency Steering Assist
Yes
Front Cross-Traffic Alert (FCTA)
Yes
Safe Exit Warning (SEW)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Parking Assist
Optional
Sign Assist
Yes
Emergency Stop Signal (ESS)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Reverse
Yes
Pedestrian
Yes
Cyclist
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Yes
Door Open Warning
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes

Other Features

Immobiliser
Yes
Central Locking
Remote
Child Safety Locks
Electrical
Active Bonnet
No
Immobiliser
Electronic
Yes

Safety Testing

General
Test Year
2024
Adult Occupant
89 %
Child Occupant
86 %
Vulnerable Road Users
80 %
Safety Assist
72 %
Overall
5/5 stars
Adult Occupant
Total Points
35.7 /38
Frontal Impact
13.8 /16
Lateral Impact
15.5 /16
Rear Impact
3.4 /4
Child Occupant
Total Points
42.2 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
6.3 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Pedestrian
  • 11.1
  • 4.5
  • 4.5
AEB Pedestrian
6.2 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
6.5 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.4 /3
Speed Assistance (assesment)
Good
Occupant Status Monitoring (points)
1.3 /3
Occupant Status Monitoring (assesment)
Marginal
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Good
Driver Monitoring (points)
0.3
Driver Monitoring (assesment)
Weak
Lane Support (points)
3 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
6.4 /6
AEB Car-to-Car (assesment)
Adequate

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Warranty

EV Battery
160,000 km / 8 years

Identification

VIN Location
Left Side Casing of Window
Yes
Pillar
B-Pillar, Left

Car Classification

American Classification
Compact SUV
British Classification
Compact SUV
Australian Classification
Medium SUV
European Segment
J-Segment JC-Segment
Car.info Classification
Medium SUV
