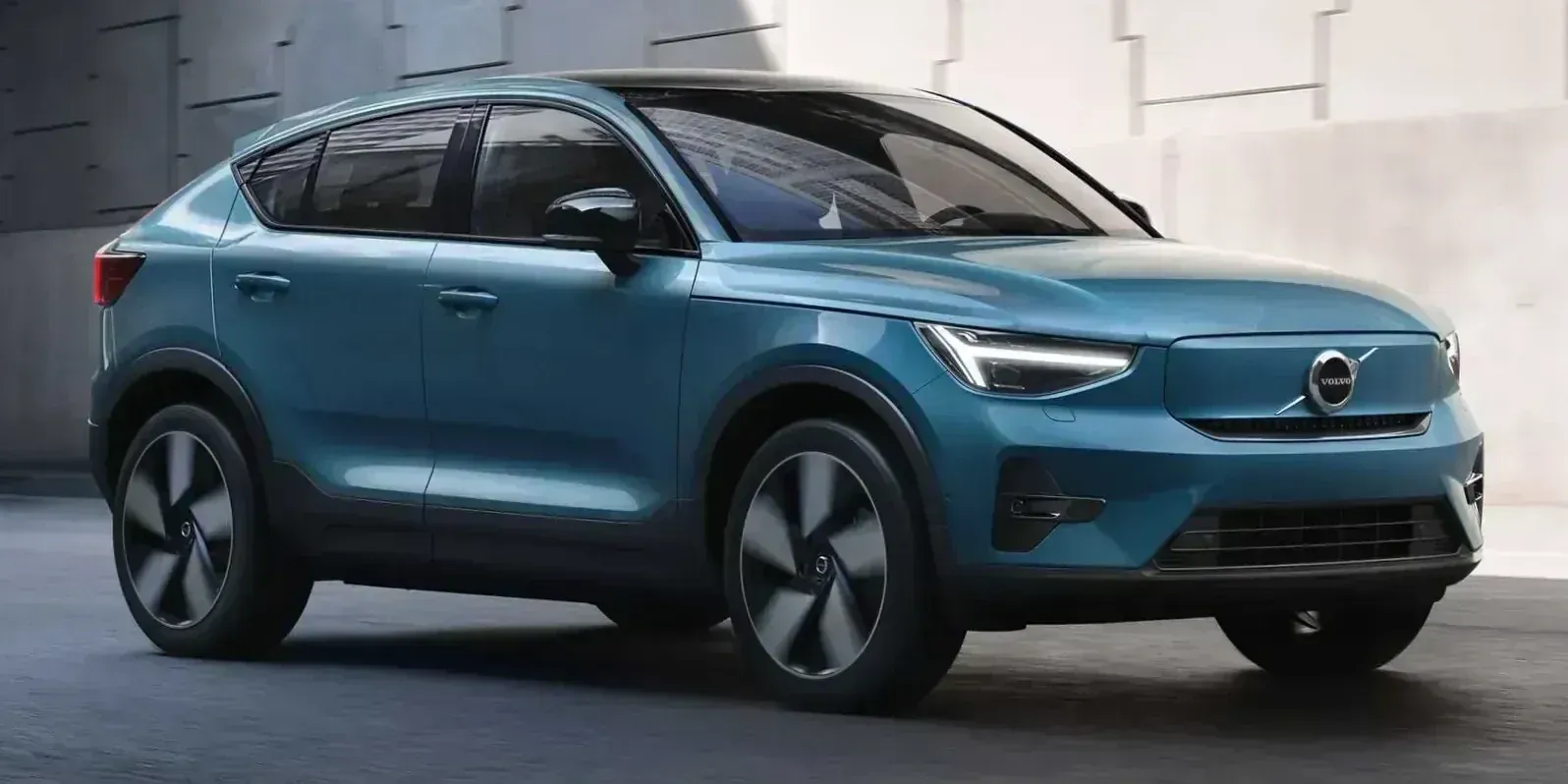

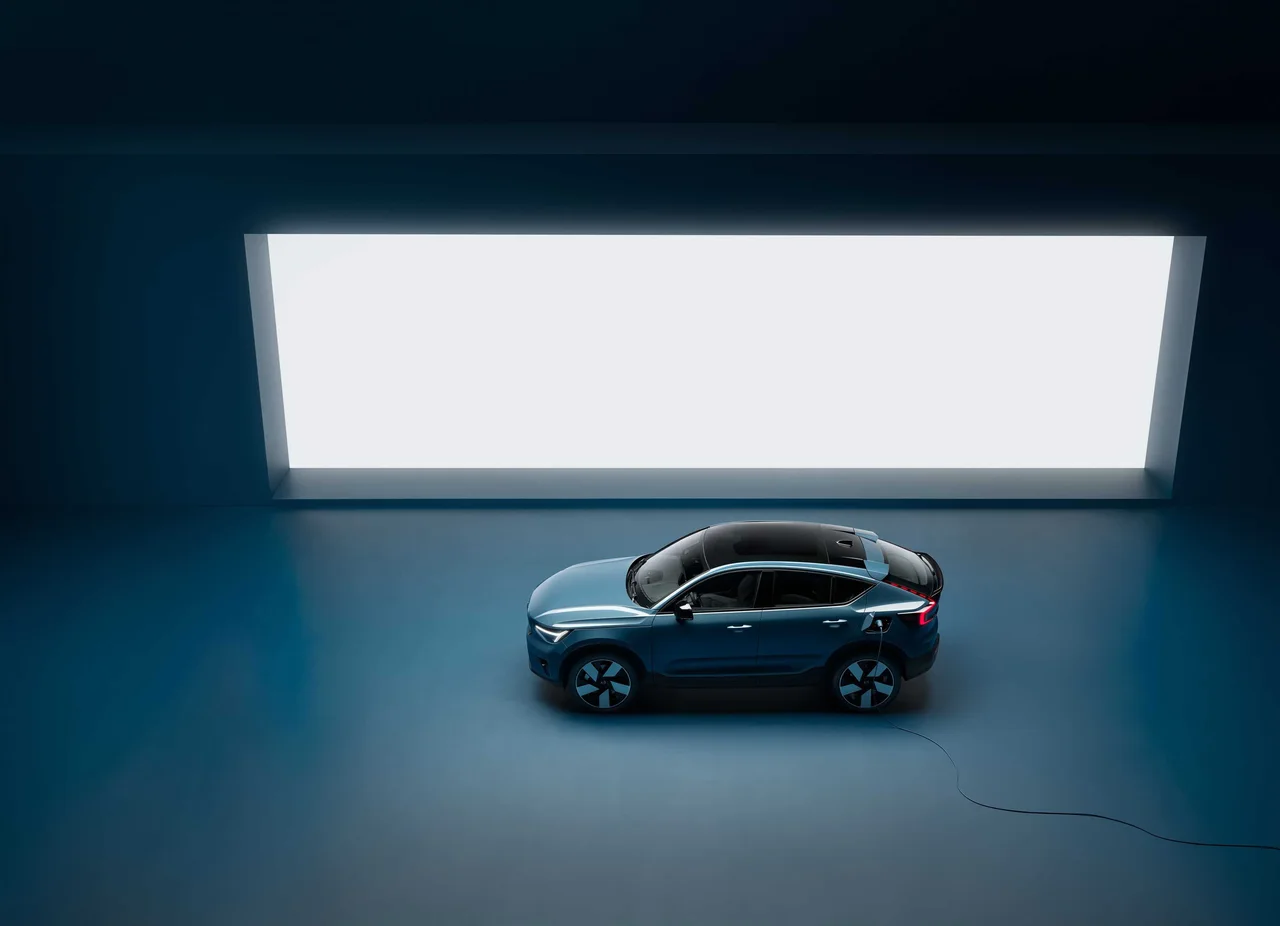

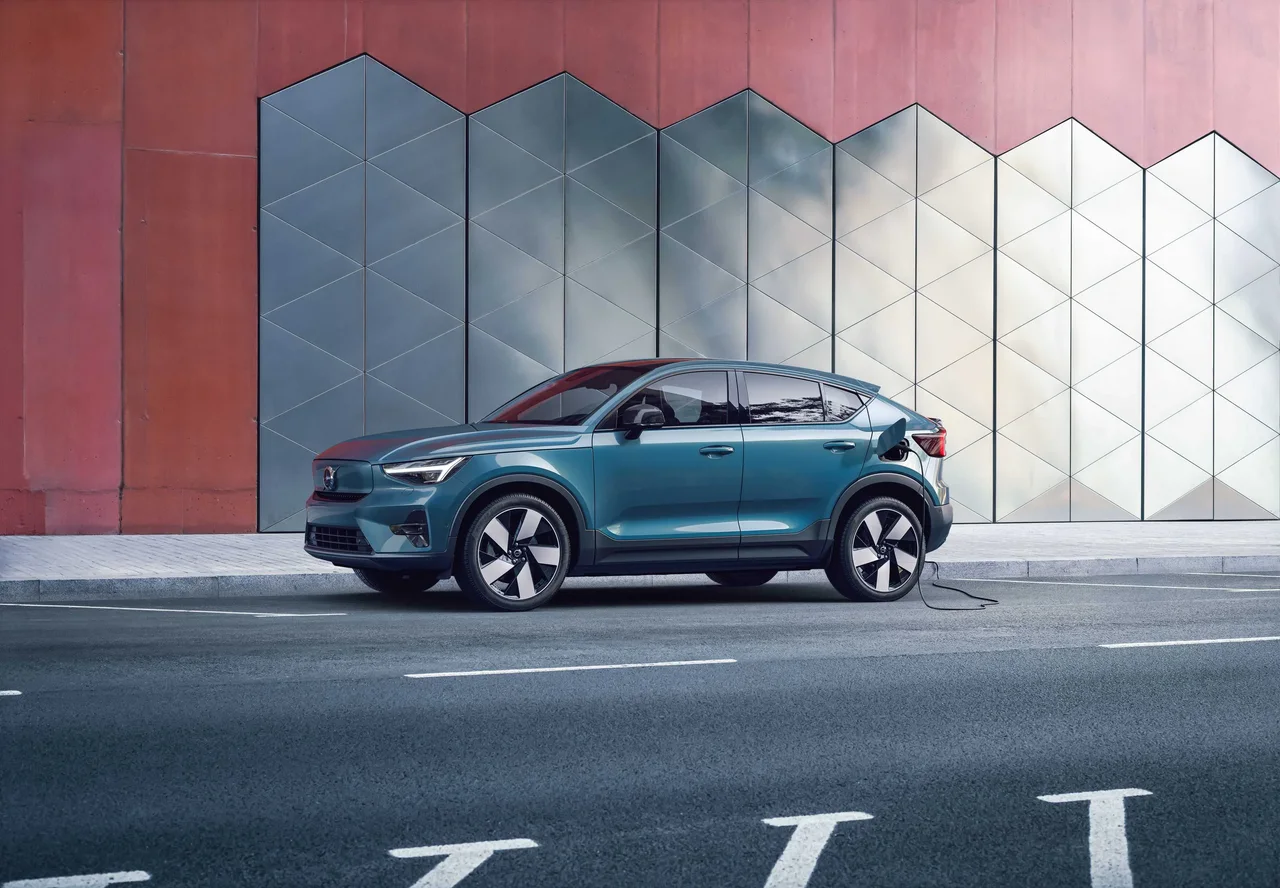

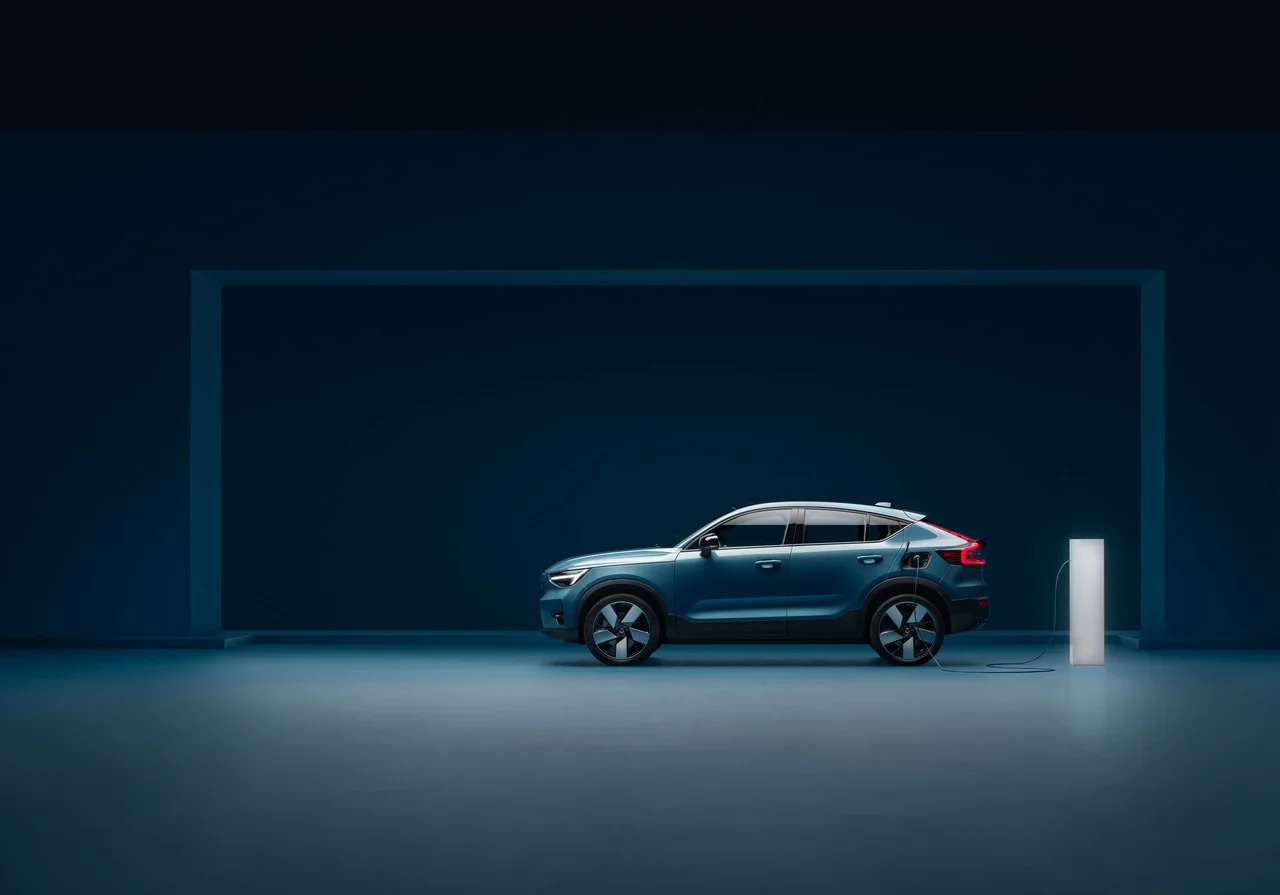

2027 Volvo EC40

SwedenElectricAWDSUV

Photos

Specifications

Vehicle Details

Year
2027
Make
Volvo
Model
EC40
Body Style
SUV
Generation
1st Generation (XK)
Seats
5
Doors
5
Fuel
Electric
Drivetrain
AWD
Transmission
Automatic (Fixed)

Powertrain

Engine Name
Twin Motor Performance Single Speed
Engine Configuration
Electric
Power (hp)
442 hp
Power (kW)
325 kW
Torque
670 Nm (494 lb-ft)
Top speed
180 km/h (112 mph)
0–60 mph
4.4 seconds
0–100 km/h
4.6 seconds
Electric range
510 km (317 mi)
Battery
82 kWh

Dimensions

Length
4,440 mm (174.8 in)
Width
1,873 mm (73.7 in)
Height
1,591 mm (62.6 in)
Wheelbase
2,702 mm (106.4 in)
Curb weight
2,110 kg (4,652 lb)

Engine & Performance

Engine

Engine Configuration
Type of Electric Car
Electric
Torque
670 Nm (494 lb-ft)
Front Engines
Yes
Rear Engines
Yes
Battery Capacity, Gross
82 kWh
Battery Capacity, Net
79 kWh
Type of Battery
Li-ion
AC Charge Type
  • Single-phase
  • Three-phase
Charging Plugs
Type 2 (CCS)
Engine Configuration › Front Engines
Power (kW)
135 kW
Horsepower
184 hp
Number of Engines
1
Engine Configuration › Rear Engines
Electric Power (kW)
190 kW
Horsepower
258 hp
Number of Engines
1
Engine Configuration › Charge AC
Charge Time
8 h
Charge Power
11 kW
Charge Ampere
16 A
Engine Configuration › Charge DC
Charge Time, to 80%
28 min
Charge Power
205 kW

Brakes

Parking Brake
Electric
Auto Hold
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (1)
  • Rear (1)
Front Brakes
Diameter
345 mm (13.6 in)
Width
30 mm (1.2 in)
Cooling
Ventilated
Rear Brakes
Diameter
340 mm (13.4 in)
Width
20 mm (0.8 in)
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
  • Front
  • Rear
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
Multi-link

Energy & Range

Emission
Euro 6e
Yes
WLTP Consumption
Energy consumption
17.3 - 17.9 kWh/100km
Electric Range
510 - 552 km (317 - 343 mi)

Dimensions & Weight

Exterior

Width, with Mirrors
2,034 mm (80.1 in)
Track, Front
1,598 mm (62.9 in)
Track, Rear
1,603 mm (63.1 in)
Overhang, Front
870 mm (34.3 in)
Overhang, Rear
868 mm (34.2 in)
Turning Circle
11.4 m
Ground Clearance
171 - 177 mm (6.7 - 7.0 in)

Interior

Head Room, Front
1,002 - 1,041 mm (39.4 - 41.0 in)
Head Room, Rear
932 mm (36.7 in)
Leg Room, Front
1,040 mm (40.9 in)
Leg Room, Rear
917 mm (36.1 in)
Hip Room, Front
1,390 mm (54.7 in)
Hip Room, Rear
1,388 mm (54.6 in)
Shoulder Room, Front
1,440 mm (56.7 in)
Shoulder Room, Rear
1,429 mm (56.3 in)

Weight

Gross Weight
2,620 kg (5,776 lb)
Max Trailer Load, braked 12%
1,800 kg (3,968 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
435 kg (959 lb)
Max Roof Load
75 kg (165 lb)
Max Towbar Download
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
SUV
Pillars
A-C
Chassis Construction
Unibody
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Bottom-Strip
Rear
Bottom-Strip
Sides
Bottom-Strip
Colour
Non-Painted
Doors
Front Doors
Conventional
Rear Doors
Conventional
Platform
Volvo
CMA

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Electrical (Automatic Parking Fold)
Automatic Anti-glare
  • Driver side
  • Passenger side
User Memory
Yes
Heated
Yes
Turning Signal
Yes
House Colour
Black
Windscreen Wipers
Integrated Water Nozzles in Wipers
Yes
Intermittent Control
Yes
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Window Lifts, Features
Pinch Protection
  • Driver
  • Passenger
  • Rear
One-touch up/down
  • Driver
  • Passenger
  • Rear
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Panoramic (Not Openable)
Normal Roof
Yes
Spoiler
Fixed
Antenna
Shark Fin
Mud Flaps
Optional
Colour
Black
Other Equipment › Sunroof
Material
Glass
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
LED
Low Beam
LED
Rear Lights
LED
Daytime Running Light
LED
Fog Lights
Yes
Special Features
  • Automatic Headlight Activation
  • Main Beam Assist
  • Dynamic Cornering Lights
  • Headlight Washers
Fog Lights
Front
Yes
Rear
LED
Special Features
Headlight Range Adjustment
Manual (Electric)

Colour

Roof Colour
Black
Accent
Black
Door Handles
Same as Car

Rims & Tires

Tire Pressure Monitoring System (TPMS)
Indirect
Number of Bolts
5 pcs
Bolt Distance
4.25
Nut/Bolt Dimensions
M14x1.5
Central Bore (CB), front
63.4
Central Bore (CB), rear
63.4
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Yes
Tightening Torque
140 Nm
Rim Material
Alloy
Number of Spokes
5
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Optional
Spare Wheel
Temporary
Optional

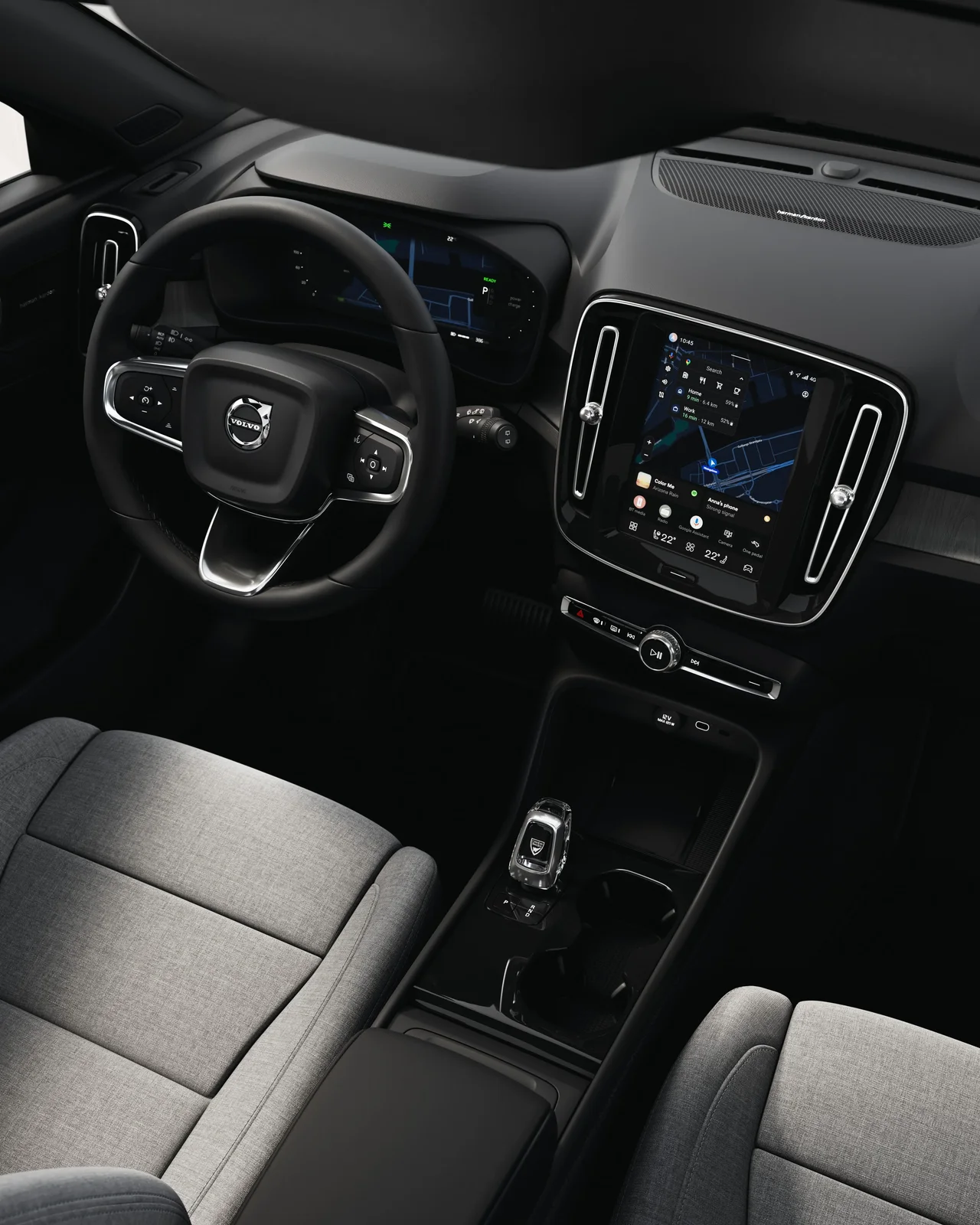

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Digital
Fuel Gauge
Digital
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
12.3"
Instrument Cluster › Trip Computer › Display
Navigation
Yes
Type
Colour
Shape
Cockpit
Climate Control
Climate Control
Automatic
Number of Climate Zones
2
Air Condition
Yes
Micro Filter
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Controls
Touchscreen
Climate Control › Air Condition
Refrigerant
R1234yf
Connectivity
Radio
  • AM
  • FM
  • DAB+
App-Connect
Apple CarPlay (Wireless)
Bluetooth
  • Phone
  • Audio
Connectivity › Media Inputs
USB
USB-C
Connectivity › Media Inputs › USB
Placement
  • Front
  • Rear
Number of Ports
4 pcs
Displays
Center Display
9"
Center Display Controls
Touchscreen
Displays › Center Display
Type
Colour
Speakers
Total Number of Speakers
13 pcs
Speakers Max. Watt
600 W
Subwoofer
Optional
Speakers › Subwoofer
Number of Subwoofers
1 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Automatic
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
Light
Armrest Hatch
  • Front
  • Back
Coin Holder
Yes
Card Holder
Yes
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
  • Middle Console
  • Armrest
Interior Storage › Cup Holders › Rear
Placement
Armrest
Lights
Read Light
Front
Guide Light
  • Entry Guard
  • Footwell (Front)
  • Door Handles (Interior)
Ambient Light
Yes
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
  • Front
  • Rear
Other Equipment › Make-up Mirror
Make-up Light
  • Driver
  • Passenger
Other Equipment › Clock
Digital
  • Center Display
  • Instrument Cluster

Steering Wheel

Multifunction Steering Wheel
Yes
Heated
Yes
Power Steering
Electric
Adjustments
  • Tilt
  • Telescope
Number of Spokes
3
Material
Leather
Colour
Black
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Menu Navigation
Buttons
Cruise Control
  • Activate/Deactivate
  • Speed Up/Down (Buttons)
Media
Yes
Multifunction Steering Wheel › Media
Voice Command
Yes
Answer Phone
Yes
Channels
Yes
Volume
Buttons

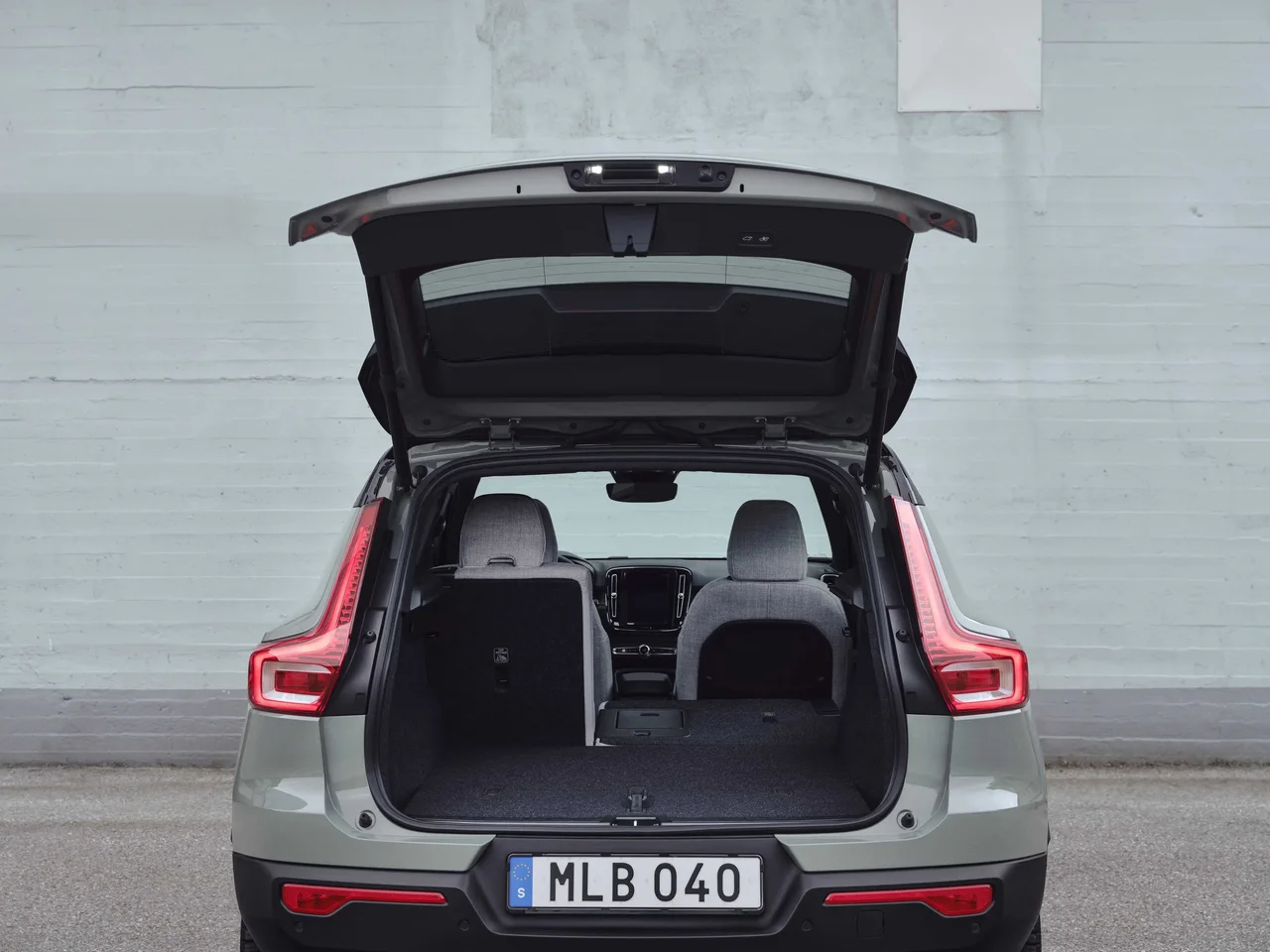

Trunk

Total Trunk Volume
435 litres
Rear Trunk
Yes
Front Trunk
Yes
Automatic Open
  • Button on Trunk Door
  • Key Button
Automatic Close
Yes
Barrier Net/Grid
Yes
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
404 litres
Volume, Back Seat Collapsed
1,205 litres
Depth
750 mm (29.5 in)
Depth, Back Seat Collapsed
1,685 mm (66.3 in)
Width
1,059 mm (41.7 in)
Width, Between Wheel Arches
1,005 mm (39.6 in)
Opening Width
1,022 mm (40.2 in)
Height
630 mm (24.8 in)
Height, to Trunk Cover
310 mm (12.2 in)
Sill Height
741 mm (29.2 in)
Front Trunk
Volume
31 litres
Carpet
Rubber
Optional
Rubber/Rug
Optional

Design

Interior Decor Colour
Black
Entry Guard Material
Aluminium
Pedals
Sport

Seats

Front Seats › Adjustments, Driver
Seat Depth
Powered
Seat Height
Powered
Cushion Edge
Manual
Backrest Angle
Powered
Lumbar Support
Powered
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Cushion Edge
Manual
Backrest Angle
Yes
Lumbar Support
Powered
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Optional
Heated Seats
  • Driver
  • Passenger
Armrest
Middle
Front Seats › Power Seat, Driver
User Memory
Yes
Front Seats › Heated Seats
Areas
  • Cushion
  • Backrest
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Optional
Second Seat Row › Headrests › Outer Seats
Foldable
Powered

Features

Comfort Features

Keyless Entry
Yes
Keyless Start
Yes
Cruise Control
Adaptive Cruise Control
Speed Limiter
Yes
Parking Heater
Yes
Cameras
Rear
Rear Camera Preparation
Yes
Voice Control
  • Media
  • Phone
Wireless Phone Charger
Front
Parking Heater
Type
Cabin Heater
Power Source
Battery-operated
Cameras
View Location
Center Display

Other Features

GPS
Navigation
Horn
Dual Note
GPS
Map-update
  • Internet
  • USB

Accessories

Tire Repair Kit
Yes
Compressor
Yes
Warning Triangle
Yes
First Aid Kit
Yes
Trunk Modules
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Forward Collision Warning (FCW)
Yes
Rear Cross-Traffic Alert (RCTA)
Yes
Lane Assist System
Yes
Speed Assist
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Yes
Parking Assist
Yes
Sign Assist
Yes
Trailer Assist
Yes
Trailer Stability Assist (TSA)
Yes
Emergency Assist
Yes
Emergency Stop Signal (ESS)
Yes
Electronic Stability Control (ESC)
Roll Stability Control (RSC)
Yes
Lane Assist System
Lane Departure Warning (LDW)
Yes
Lane Keeping Assist (LKA)
Yes
Emergency Lane Keeping (ELK)
Yes

Brake Systems

Autonomous Emergency Brake System (AEB)
Yes
Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Yes
Electronic Brakeforce Distribution (EBD)
Yes
Brake Energy Regeneration
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes
Differential Lock
Electronic
Autonomous Emergency Brake System (AEB)
Car-to-car
Yes
Pedestrian
Yes
Cyclist
Yes
City
Yes

Sensors

Parking Sensors
  • Front
  • Rear
Blind Spot Detection (BLIS)
Yes
Pedestrian/Bicycle Detection
Yes
Driver Alertness Warning (DAW)
Yes
Light Sensor
Yes
Rain Sensors
Yes
Parking Sensors
Side
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Yes
Central Locking
Remote
Child Safety Locks
Electrical
Emergency Call
Yes
Alcohol Ignition Interlock Device
Optional
Immobiliser
Electronic
Yes
Anti-theft Alarm
Interior Monitoring
Yes

Safety Testing

General
Test Year
2022
Adult Occupant
92 %
Child Occupant
89 %
Vulnerable Road Users
70 %
Safety Assist
89 %
Overall
5/5 stars
Adult Occupant
Total Points
35.3 /38
Frontal Impact
13.7 /16
Lateral Impact
16 /16
Rear Impact
3.6 /4
Rescue and Extrication
2 /2
Child Occupant
Total Points
44 /49
Crash Test Performance
  • 16
  • 8 /16
Safety Features
8 /13
CRS Installation Check
12 /12
Vulnerable Road Users
Total Points
37.9 /49
Pedestrian
  • 15.7
  • 2.7
  • 6
AEB Vulnerable Road Users
13.5 /18
AEB Pedestrian
6 /9
AEB Pedestrian (assesment)
Adequate
AEB Cyclist
7.5 /9
AEB Cyclist (assesment)
Good
Safety Assist
Speed Assistance (points)
2.5 /3
Speed Assistance (assesment)
Good
Occupant Status Monitoring (points)
2 /3
Occupant Status Monitoring (assesment)
Adequate
Seat Belt Reminder (points)
1 /2
Seat Belt Reminder (assesment)
Marginal
Driver Monitoring (points)
1
Driver Monitoring (assesment)
Good
Lane Support (points)
4 /4
Lane Support (assesment)
Good
Emergency Lane Keeping (assesment)
Good
Lane Keep Assist (assesment)
Good
Human Machine Interface (assesment)
Good
AEB Car-to-Car (points)
5.7 /6
AEB Car-to-Car (assesment)
Good

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Side Pelvis Airbag
Knee Airbag
Curtain Airbag
Center Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Yes
  • Rear: Yes

Other

Warranty

Manufacturer
100,000 km / 3 years
EV Battery
160,000 km / 8 years
Roadside Assistance
Yes
Roadside Assistance
Roadside Assistance
3 years

Car Classification

American Classification
Subcompact SUV
European Segment
J-Segment JB-Segment
Car.info Classification
Small SUV

Similar suvs

Suggested vehicles
