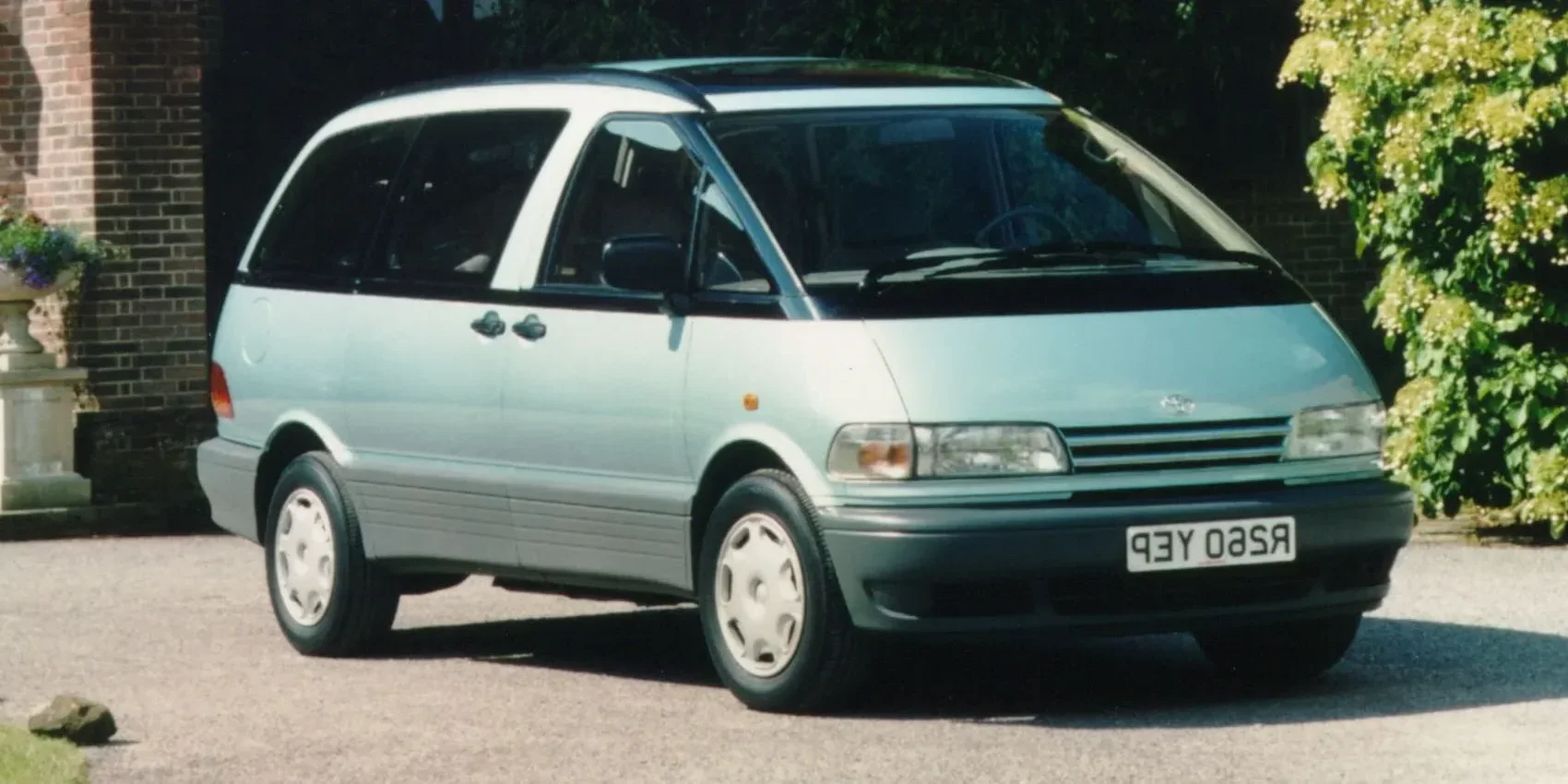

1990 Toyota Previa

JapanGasolineRWDMinivan

Specifications

Vehicle Details

Year
1990
Make
Toyota
Model
Previa
Body Style
Minivan
Generation
XR10/XR20
Seats
6
Doors
5
Fuel
Gasoline
Drivetrain
RWD
Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Powertrain

Engine Name
2.4
Engine Configuration
Inline
Power (hp)
132 hp
Power (kW)
97 kW
Torque
204 Nm (150 lb-ft)
Top speed
170 km/h (106 mph)
0–60 mph
11.0 seconds (estimated)
0–100 km/h
11.5 seconds
Displacement
2,438 cc

Dimensions

Length
4,750 mm (187.0 in)
Width
1,800 mm (70.9 in)
Height
1,780 mm (70.1 in)
Wheelbase
2,860 mm (112.6 in)
Curb weight
1,687 kg (3,719 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 rpm
Rev. at Max Torque
4,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
Semi-synthetic Oil (viscosity)
  • 10W-30
  • 15W-40
  • 20W-50
Engine Configuration
Bore
95 mm (3.7 in)
Stroke
86 mm (3.4 in)
Compression Ratio
9.3 :1
Engine Configuration
Inline
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Air Filter
45,000 km / 3 years
Fuel Filter
90,000 km / 6 years
Spark Plug
30,000 km / 2 years
Brake Fluid
30,000 km / 2 years
Oil Change & Engine Filter
15,000 km / 1 years
Engine Coolant
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 4
  • 5-speed

Brakes

Front Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Independent
MacPherson Strut

Fuel

General
Tank Volume
75 litres
Fuel Consumption NEDC
Combined
11 – 11.6 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,560 mm (61.4 in)
Track, Rear
1,550 mm (61.0 in)
Turning Circle
12.2 m
Ground Clearance
150 mm (5.9 in)

Weight

Gross Weight
2,450 kg (5,401 lb)
Max Trailer Load, braked 12%
1,600 kg (3,527 lb)
Max Trailer Load, unbraked
600 kg (1,323 lb)
Cargo Capacity
759 – 763 kg (1,673 – 1,682 lb)
Max Roof Load
100 kg (220 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D + Extra Pillar(s)
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)
Door Handles
Swing-out

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
House Colour
Black
Windscreen Wipers
Rear Wiper
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Other Equipment
Roof Railing
Optional
Antenna
Optional
Number of Exhaust Pipes
1

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
60.1
Fastening Type
Lug Nuts
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Oil Pressure
Analogue
Odometer Limit
100,000 km/miles
Climate Control
Climate Control
Manual
Number of Climate Zones
1
Number of Vents, Front
4 pcs
Connectivity
Radio
Optional
Connectivity › Radio
AM
Optional
FM
Optional
Displays
Center Display
Optional
Rear-view Mirror
Anti-glare
Manual
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
Yes
Other Equipment
12V Outlet
Front
Cigarette Lighter
Yes

Steering Wheel

Power Steering
Yes
Number of Spokes
4
Material
Plastic
Colour
Grey
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Flat Surface
Yes
Rear Trunk
Volume
670 litres
Volume, Back Seat Collapsed
1,800 litres

Design

Transmission Knob Material
Plastic

Seats

Colour & Material
Stitching Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Manual
Seat Height
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Backrest Angle
Manual
Headrest, Height
Manual
Front Seats
Armrest
  • Driver
  • Passenger
Second Seat Row
Collapsible
Manual
Third/Fourth Seat Row
Third Seat Row
Yes

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Front Seats

Brake Systems

Power Brakes
Yes

Safety Testing

IIHS
Test Year
1996
Moderate Overlap Front
Poor

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right

Car Classification

American Classification
Minivan
British Classification
Large MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Large MPV

Spare Parts BETA

Bulb Types
Low Beam
H4
Main Beam
H4
Fog Light, Front
H1
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
BA15s (P21W)
Turn Indicators, Side
W2.1×9.5d (W5W)
Turn Indicators, Rear
BA15s (P21W)
Read Light
SV8.5 (C10W)
Trunk
SV8.5 (C5W)
License Plate Light
W2.1×9.5d (W5W)
