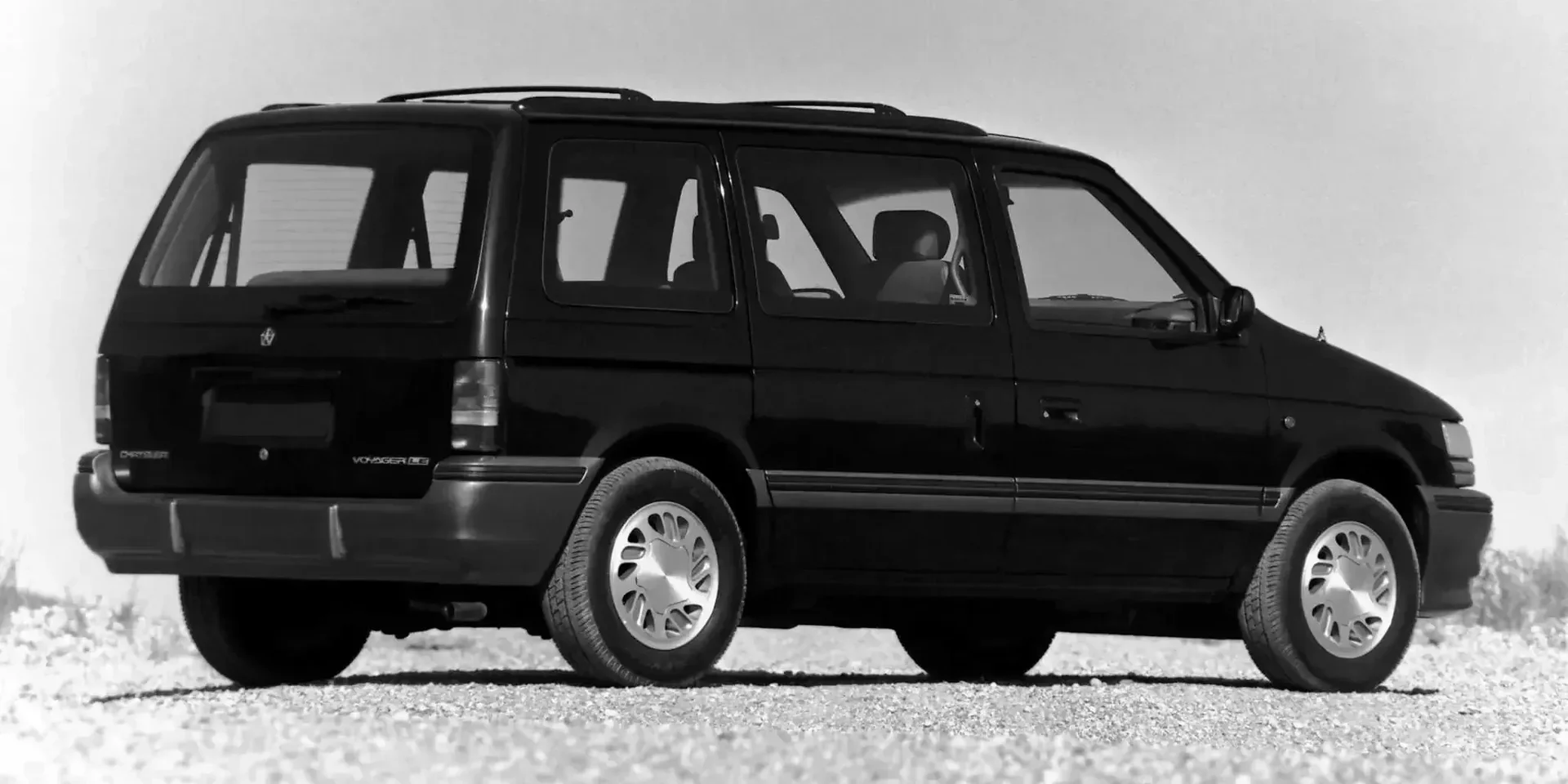

1991 Chrysler Voyager

United StatesGasolineFWDMinivan

Specifications

Vehicle Details

Year
1991
Make
Chrysler
Model
Voyager
Body Style
Minivan
Generation
ES/GH
Seats
5
Doors
3
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic, 4-speed

Powertrain

Engine Name
3.0 V6 Automatic
Engine Configuration
V
Power (hp)
141 hp
Power (kW)
104 kW
Torque
232 Nm (171 lb-ft)
Top speed
170 km/h (106 mph)
0–60 mph
12.2 seconds (estimated)
0–100 km/h
12.8 seconds
Displacement
2,972 cc

Dimensions

Length
4,524 mm (178.1 in)
Width
1,830 mm (72.0 in)
Height
1,780 mm (70.1 in)
Wheelbase
2,852 mm (112.3 in)
Curb weight
1,600 kg (3,527 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 rpm
Rev. at Max Torque
2,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Oil, Volume
4.3 litres
Engine Configuration
Bore
91.1 mm (3.6 in)
Stroke
76 mm (3.0 in)
Compression Ratio
8.9 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
OHC
Engine Block
Cast Iron
Service Intervals
Timing Interval
96,000 km (59,652 mi)

Transmission & Drivetrain

Transmission
Automatic, 4-speed

Fuel

General
Tank Volume
75 litres
Fuel Consumption NEDC
Combined
11 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,522 mm (59.9 in)
Track, Rear
1,578 mm (62.1 in)
Turning Circle
12.5 m

Weight

Gross Weight
2,395 kg (5,280 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
795 kg (1,753 lb)
Max Roof Load
50 kg (110 lb)

Exterior

Chassis & Body

Chassis
Chassis
MPV

Equipment

Other Equipment
Roof Railing
Yes
Other Equipment › Roof Railing
Roof Railing Type
Flush Rails (Closed Rails)

Interior

Seats

Third/Fourth Seat Row
Third Seat Row
Optional

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
671 litres
Volume, Back Seat Collapsed
3,256 litres

Other

Identification

VIN Location
Engine Compartment, Front Panel
Yes
Left Side Casing of Window
Yes

Car Classification

American Classification
Minivan
British Classification
Large MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Large MPV
