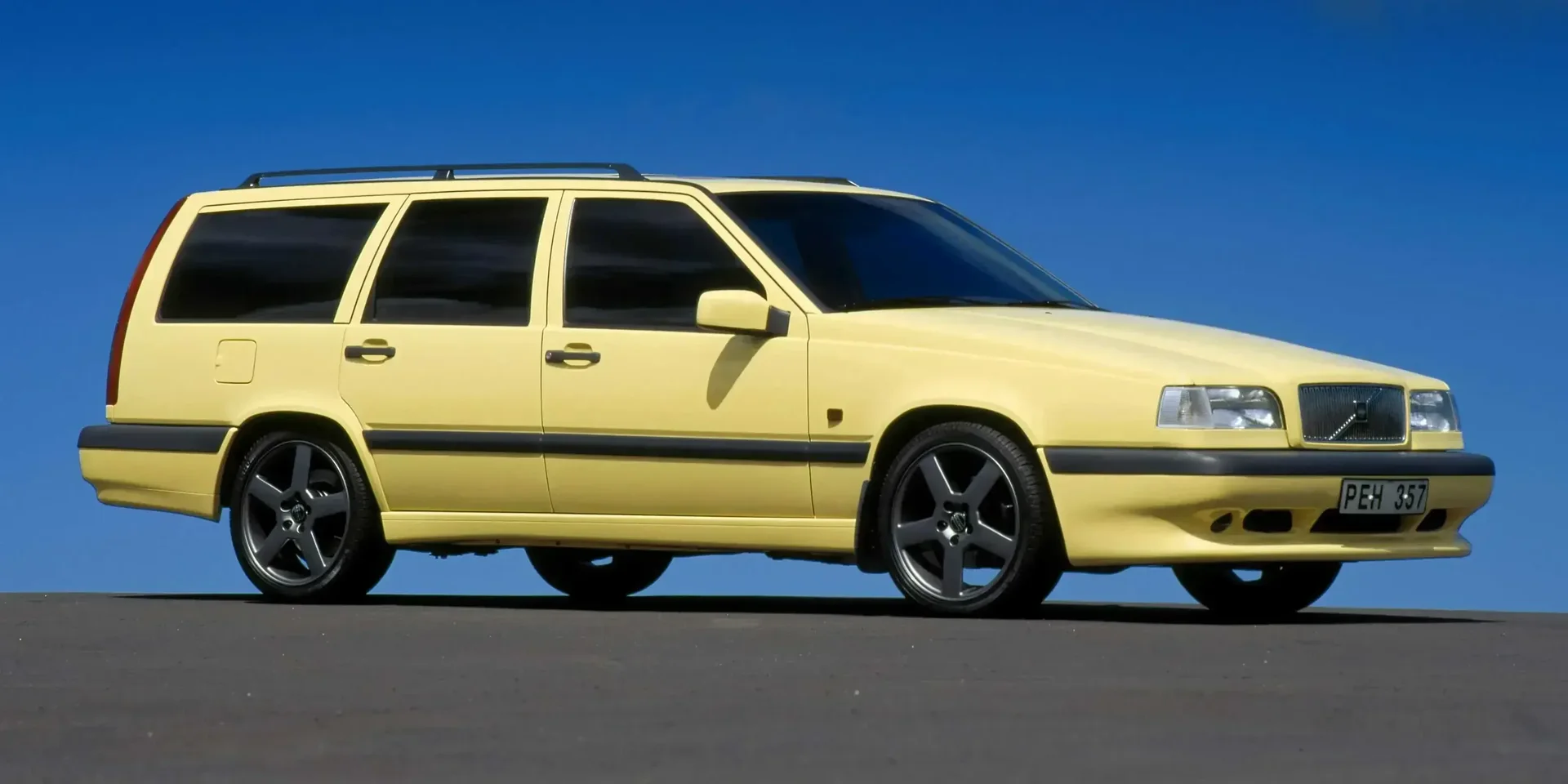

1994 Volvo 850 Turbo

SwedenGasolineFWDWagon

Specifications

Vehicle Details

Year
1994
Make
Volvo
Model
850
Variant
Turbo
Body Style
Wagon
Generation
1st Generation Facelift
Seats
5
Doors
5
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic Electrohydraulic
  • Manual, 4
  • 5-speed

Powertrain

Engine Name
Turbo Estate
Engine Configuration
Inline
Power (hp)
226 hp
Power (kW)
166 kW
Torque
300 Nm (221 lb-ft)
Top speed
230 km/h (143 mph)
0–60 mph
7.1 seconds (estimated)
0–100 km/h
7.5 seconds
Displacement
2,319 cc

Dimensions

Length
4,710 mm (185.4 in)
Width
1,760 mm (69.3 in)
Height
1,430 mm (56.3 in)
Wheelbase
2,670 mm (105.1 in)
Curb weight
1,427 kg (3,146 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,200 rpm
Rev. at Max Torque
2,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 15W-40
Engine Oil, Volume
5.3 litres
Transmission Fluid, Volume
2.1 – 7.6 litres
Engine Coolant, Volume
7 litres
Car Battery
Voltage
12 V
Cold Start Power
420 - 520 A
Alternator Charge Current
80 – 100 - 100 A
Alternator Voltage
14 V
Engine Configuration
Bore
81 mm (3.2 in)
Stroke
90 mm (3.5 in)
Compression Ratio
8.5 :1
Engine Configuration
Inline
Turbocharger
Single-turbo
Synchronization
Timing Belt
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
DOHC
Engine Block
Aluminium
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Timing Interval
112,000 km / 8 years
Air Filter
48,000 km / 4 years
Fuel Filter
160,000 km / 7 years
Spark Plug
48,000 km / 3 years
Brake Fluid
48,000 km / 2 years
Oil Change & Engine Filter
8,000 km / 1 years
Engine Coolant
2 years
Interior Filter
20,000 km (12,427 mi)
Accessory Belt
96,000 km (59,652 mi)

Transmission & Drivetrain

Transmission
  • Automatic Electrohydraulic
  • Manual, 4
  • 5-speed
Gear Selector
Stick
Gear Selector Location
Mid-Console
Gear Ratio
1st Gear
3.07 – 3.61 :1
2nd Gear
1.77 – 2.06 :1
3rd Gear
1.19 – 1.37 :1
4th Gear
0.87 – 0.98 :1
5th Gear
0.7 :1
Final Drive
2.54 – 4 :1
Reverse
2.99 – 3.95 :1

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brakes Material
Steel
Front Brakes
Diameter
280 mm (11.0 in)
Width
26 mm (1.0 in)
Cooling
Ventilated
Rear Brakes
Diameter
290 mm (11.4 in)
Width
9.6 mm (0.4 in)
Cooling
Solid

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Strut Bar
Optional
Anti-roll Bar
Yes
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Semi-dependent
Yes
Strut Bar
Front
Optional
Anti-roll Bar
Front
20 - 21 mm (0.8 - 0.8 in)
Rear
19.5 - 22 mm (0.8 - 0.9 in)

Fuel

General
Tank Volume
73 litres
Lockable Fuel Cap
Optional
General › Fuel Cap Position
Rear
Right
Emission
Emission Control
  • Catalyst
  • Evaporative Control System
  • Exhaust Gas Recirculation
  • Positive Crankcase Ventilation
Fuel Consumption NEDC
City
12.9 – 14.2 litres / 100 km
Highway
8.4 – 8.5 litres / 100 km
Combined
9.4 – 9.7 litres / 100 km
Fuel Consumption EPA
City
19.9 – 21.9 MPG
Highway
33.2 – 33.6 MPG

Performance

Braking
100-0 km/h
43.3 m
Drag Coefficient
0.32

Dimensions & Weight

Exterior

Track, Front
1,520 mm (59.8 in)
Track, Rear
1,470 mm (57.9 in)
Turning Circle
10.2 m
Ground Clearance
127 mm (5.0 in)

Interior

Head Room, Front
1,000 mm (39.4 in)
Head Room, Rear
960 mm (37.8 in)
Shoulder Room, Front
1,450 mm (57.1 in)
Shoulder Room, Rear
1,430 mm (56.3 in)

Weight

Gross Weight
1,870 kg (4,123 lb)
Max Trailer Load, braked 12%
1,600 kg (3,527 lb)
Max Trailer Load, unbraked
500 kg (1,102 lb)
Cargo Capacity
422 – 443 kg (930 – 977 lb)
Max Roof Load
100 kg (220 lb)
Max Towbar Download
75 kg (165 lb)
Permitted Axle Load, front
1,040 kg (2,293 lb)
Permitted Axle Load, rear
1,010 kg (2,227 lb)

Exterior

Chassis & Body

Chassis
Chassis
Station Wagon
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Mid-Strip
Rear
Mid-Strip
Sides
Mid-Strip
Colour
Non-Painted
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Volvo
P80

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Manual
Heated
Yes
House Colour
Same as Car
Windscreen Wipers
Number of Wiper Speeds
2
Intermittent Control
Yes
Volume Water Tank
4.5 litres
Rear Wiper
Yes
Rear Washer System
Yes
Windscreen Wipers: Connector type, Front
Hook
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Sun Visors
Optional
Tinted Windows
Optional
Safety Glass
Yes
Windows › Tinted Windows
Windscreen, upper part
Optional
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
  • Front
  • Rear
Roof Railing
Optional
Spoiler
Optional
Antenna
Glass-integrated
Number of Exhaust Pipes
1
Mud Flaps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Spoiler
Fixed
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Yes
Special Features
  • Headlight Wipers
  • Headlight Washers
Fog Lights
Front
Halogen
Rear
Halogen
Spot Light
Optional

Colour

Door Handles
Non-painted

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.75
Central Bore (CB), front
65.1
Fastening Type
Lug Bolts
Anti-Theft Locking Lug Nuts/Bolts
Optional
Tightening Torque
110 Nm
Rim Material
Aluminium
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Temporary

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Turbo Pressure
Analogue
Odometer Limit
1,000,000 km/miles
Instrument Cluster › Trip Computer
Display
Yes
Instrument Cluster › Trip Computer › Display
Type
Monochrome
Shape
Square
Climate Control
Air Condition
Yes
Micro Filter
Optional
Pollen Filter
Optional
Outside Temperature Indicator
Yes
Number of Vents, Front
4 pcs
Controls
  • Buttons
  • Faders
  • Rotary Dials
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
750 g
Connectivity
Radio
Optional
Radio Preparation
Yes
Phone Preparation
Optional
Connectivity › Radio
AM
Optional
FM
Optional
RDS
Optional
Connectivity › Media Format
CD
Optional
Cassette
Optional
Displays
Equalizer
Optional
Speakers
Total Number of Speakers
6 - 8 pcs
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Card Holder
Yes
Under Seats
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage › Storage Compartments › Glove Compartment
Cooled
Optional
Interior Storage › Storage Compartments › Under Seats
Front
Optional
Interior Storage
Cup Holders
Optional
Lights
Read Light
  • Front
  • Rear
Guide Light
  • Entry Guard
  • Footwell (Front)
  • Bottom of the Doors
Other Equipment
Make-up Mirror
Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Driver Side
Optional
Make-up Light
Passenger
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › 12V Outlet
Trunk
Optional
Other Equipment › Carpets
Front
Optional
Rear
Optional
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Power Steering
Hydraulic
Adjustments
  • Tilt
  • Telescope
Sport
Optional
Steering Mechanism
Rack and Pinion

Trunk

Rear Trunk
Yes
Cover
Optional
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Optional
Flat Surface
Yes
Second Trunk Compartment
Optional
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
792 litres
Volume, Back Seat Collapsed
1,580 litres
Depth
1,040 mm (40.9 in)
Depth, Back Seat Collapsed
1,810 mm (71.3 in)
Depth, Passenger Seat Collapsed
2,780 mm (109.4 in)
Width
1,200 mm (47.2 in)
Height
800 mm (31.5 in)
Sill Height
590 mm (23.2 in)
Cover
Sliding
Optional
Cover › Sliding
Manual
Optional
Carpet
Rubber
Optional
Rubber/Rug
Optional

Design

Interior Decor Material
Plastic
Pedals
Standard
Pedals
Brown
Optional

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Tilt
Yes
Backrest Angle
Yes
Lumbar Support
Manual
Front Seats
Number of Driver Seat Adjustments, Manual
8
Number of Driver Seat Adjustments, Powered
8
Number of Driver Seat Adjustments, Total
8
Number of Passenger Seat Adjustments, Manual
8
Number of Passenger Seat Adjustments, Powered
8
Number of Passenger Seat Adjustments, Total
8
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Cushion Tilt
Yes
Backrest Angle
Yes
Lumbar Support
Manual
Collapsible
Yes
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Armrest
Yes
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Heated Seats
Optional
Second Seat Row › Headrests
Outer Seats
Yes
Centre Seat
Yes
Second Seat Row › Headrests › Outer Seats
Foldable
Manual
Second Seat Row › Headrests › Centre Seat
Height Adjustment
Yes
Third/Fourth Seat Row
Third Seat Row
Optional
Colour & Material
Upholstery
  • Leather
  • Velour

Features

Comfort Features

Cruise Control
Optional
Parking Heater
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional

Other Features

Horn
Dual Note

Accessories

Tool Kit and Jack
Yes
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Portable Cooling Box
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Three-channel (Four-sensors)
Traction Control System (TCS)
Optional
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Light Sensor
Optional
Rain Sensors
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Child Safety Locks
Manual
Number of Standard Keys
2
Total Number of Keys
2
Immobiliser
Electronic
Yes
Central Locking
Remote
Optional

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag

Child Protection

Integrated Child Seat
  • Passenger: -
  • Rear: Optional

Other

Identification

VIN Location
Engine Compartment, Front Panel
Yes
Left Side Casing of Window
Yes
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Media Center, Low

Car Classification

American Classification
Entry-Level Luxury Car
British Classification
Compact Executive Car
Australian Classification
Medium Car
European Segment
D-Segment
Car.info Classification
Medium Executive Car

Production

Statistics
Production Number (Series)
716,903
Statistics › Production Number (Model)
1st Generation
326,703
Statistics › Production Number (Year)
1992
11,605
1993
65,073
1994
88,961
1995
95,246
1996
65,183

Similar wagons

Suggested vehicles
