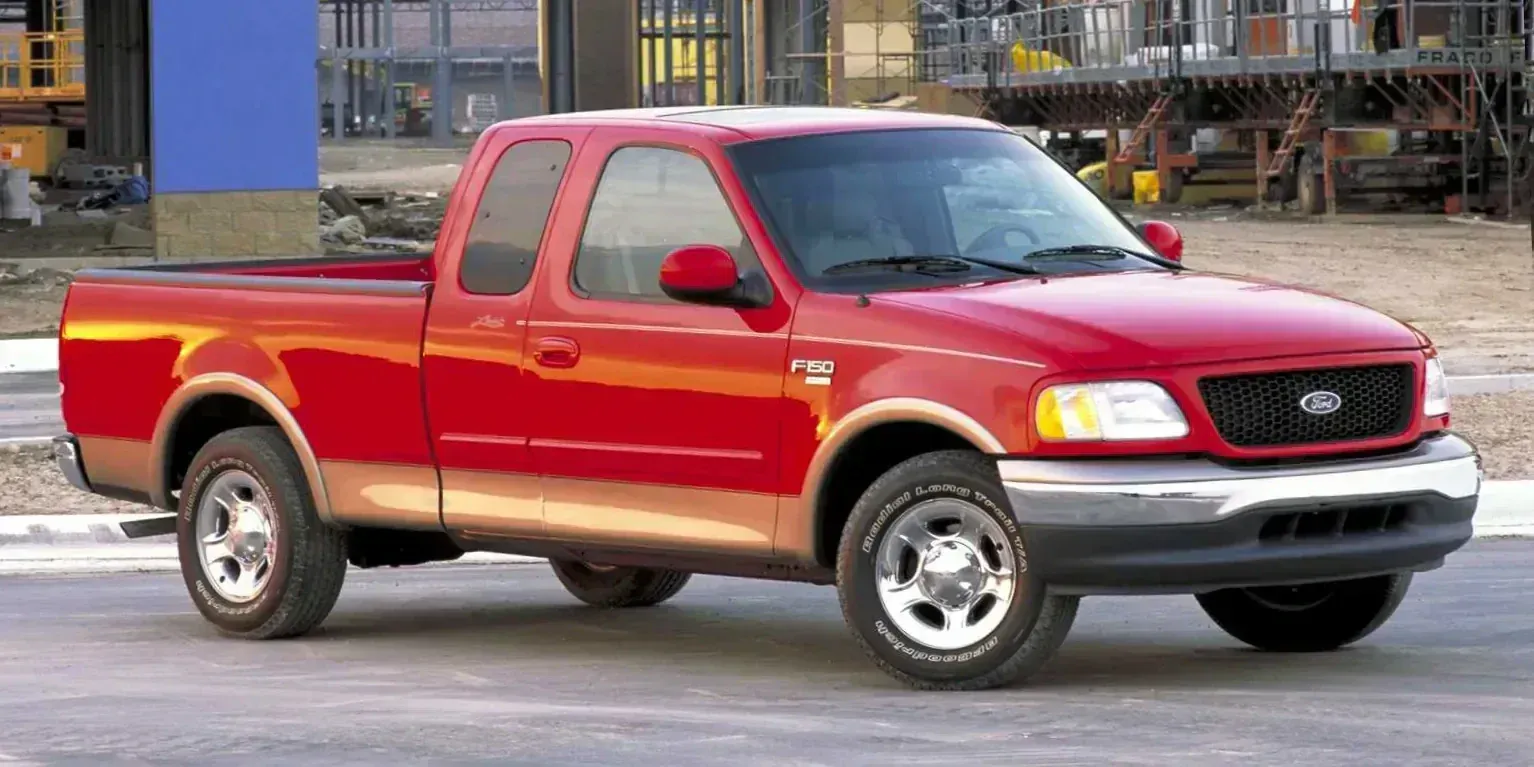

2004 Ford F-Series F-150

United StatesGasoline2WDPickup

Photos

Specifications

Vehicle Details

Year
2004
Make
Ford
Model
F-Series
Variant
F-150
Body Style
Pickup
Generation
10th Generation Facelift (PN96)
Doors
2
Fuel
Gasoline
Drivetrain
2WD
Transmission
Automatic, 4-speed

Powertrain

Engine Name
5.4 V8 SEFI 2V Automatic
Engine Configuration
V
Power (hp)
264 hp
Power (kW)
194 kW
Torque
468 Nm (345 lb-ft)
Displacement
5,408 cc

Engine & Performance

Engine

Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Engine Configuration
Engine Configuration
V-Engine
Type of Combustion Engine
Piston
Fuel System
Fuel Injection

Transmission & Drivetrain

Transmission
Automatic, 4-speed

Fuel

General › Fuel Cap Position
Rear
Left

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Brake Caliper Pistons
  • Front (2)
  • Rear (1)
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf
Suspension, Front
Independent
Double Wishbone

Dimensions & Weight

Exterior

Ground Clearance
185 mm (7.3 in)

Exterior

Chassis & Body

Chassis
Chassis
Pickup
Pillars
A-B
Chassis Construction
Body-on-Frame
Body Material
Steel
Roof Material
Steel
Doors
Front Doors
Conventional
Door Handles
Pull-up
Platform
Ford Motor Company
P Platform (P2)

Equipment

Side Mirrors
Mirror Type
Conventional
Turning Signal
Optional
Windscreen Wipers
Speed Sensing Intermittent
Optional
Intermittent Control
Optional
Windows › Window Lifts, Features
One-touch up/down
Optional
Windows › Window Lifts, Features › One-touch up/down
Driver
Optional
Windows
Heated Windows
Optional
Heat-Insulating Windows
  • Front
  • First Row
  • Rear
Tinted Windows
Optional
Safety Glass
Yes
Rear Windows, Sliding
Optional
Windows › Heated Windows
Rear
Optional
Windows › Tinted Windows
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Other Equipment
Sunroof
Optional
Tow Hook
Optional
Antenna
Bumper-integrated
Push Bumper
Optional
Mud Flaps
Optional
Side Steps
Optional
Other Equipment › Sunroof
Tinted Glass
Optional
Other Equipment › Tow Hook
Front
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional
Other Equipment › Side Steps
Stationary
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Optional
Special Features
Automatic Headlight Activation
Optional
Headlight Range Adjustment
Manual

Rims & Tires

Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Full-size (Steel)

Interior

Equipment

Instrument Cluster
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Oil Pressure
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Climate Control
Air Condition
Optional
Outside Temperature Indicator
Optional
Controls
Rotary Dials
Connectivity
Radio
  • AM
  • FM
Media Format
Cassette
Connectivity › Media Format
CD
Optional
MP3
Optional
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Compass
Optional
Interior Storage › Storage Compartments
Glove Compartment
Yes
Armrest Hatch
Front
Sunglass Compartment
Optional
Door
  • Driver Side
  • Passenger Side
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Guide Light
  • Entry Guard
  • Bottom of the Doors
Other Equipment
Make-up Mirror
Passenger Side
Clock
Yes
Carpets
Optional
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Driver Side
Optional
Make-up Light
Optional
Other Equipment › Clock
Digital
Dashboard
Other Equipment › Carpets
Front
Optional
Other Equipment › Ashtray
Front
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Yes
Number of Spokes
2
Steering Mechanism
Recirculating Ball
Multifunction Steering Wheel
Number of Buttons
5 pcs
Power Steering
Tilt
Optional

Design

Interior Decor Colour
Black
Transmission Knob Material
Plastic
Pedals
Standard

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats › Adjustments, Passenger
Seat Depth
Manual
Backrest Angle
Manual
Lumbar Support
Optional
Headrest, Height
Manual
Front Seats
Power Seat, Driver
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Number of Seats
3
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Optional
Garage Remote Control
Optional
Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional

Other Features

GPS
Optional
Horn
Dual Note

Accessories

Tool Kit and Jack
Optional
Tire Repair Kit
Optional
Compressor
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Bicycle Holder
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
Front Seats

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Immobiliser
Electronic
Yes
Central Locking
Remote
Optional

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Airbag cut-off Switch

Child Protection

Isofix
  • Passenger: Yes
  • Rear: -

Other

Car Classification

American Classification
Full-Size Pickup Truck
British Classification
Pick-up
Australian Classification
Pickup
European Segment
J-Segment JE-Segment
Car.info Classification
Pickup
