2005 Nissan Navara

JapanDiesel4WDPickup

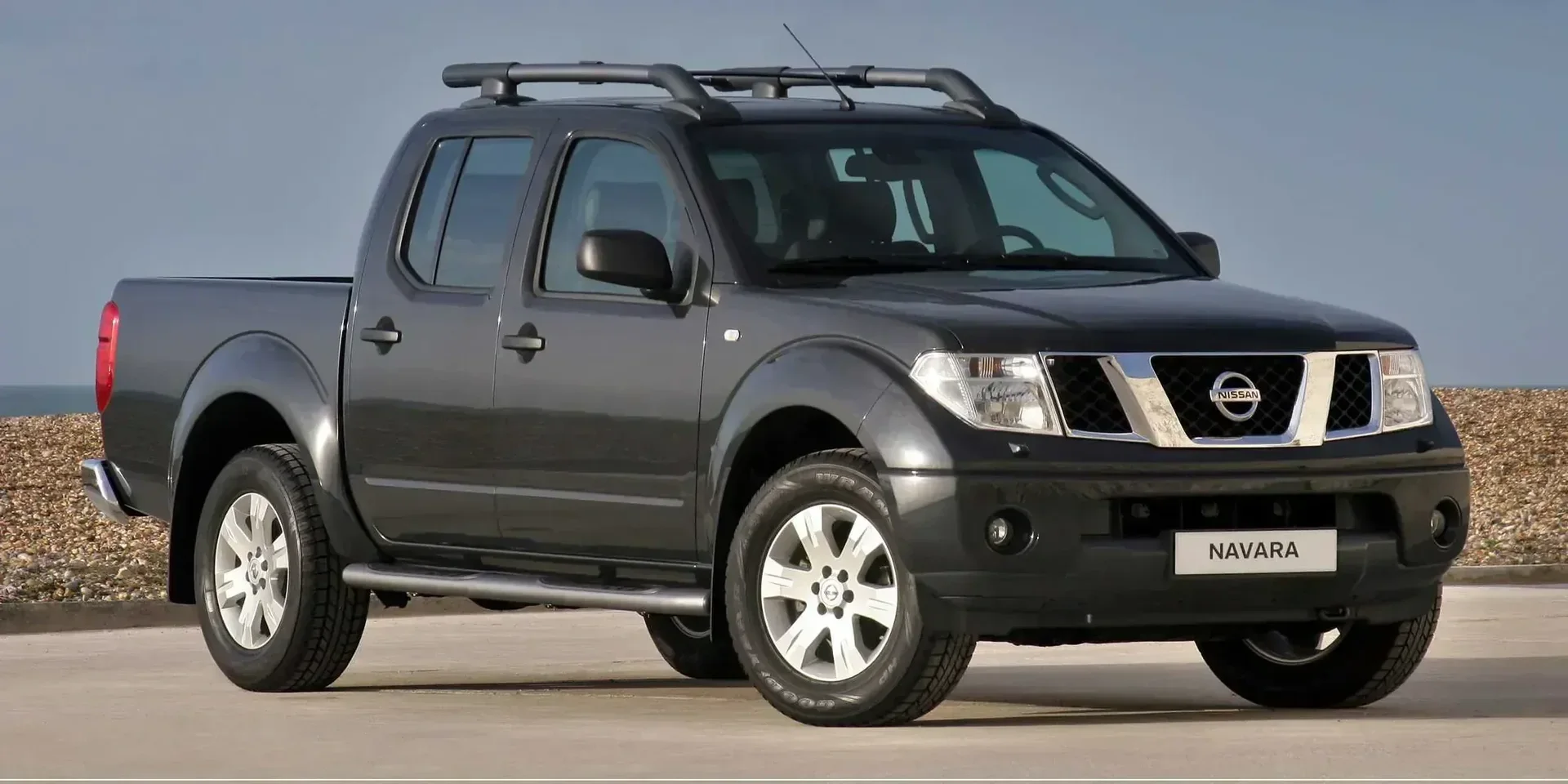

Photos

Specifications

Vehicle Details

Year
2005
Make
Nissan
Model
Navara
Body Style
Pickup
Generation
D40
Seats
5
Doors
4
Fuel
Diesel
Drivetrain
4WD
Transmission
  • Automatic
  • Manual, 5
  • 6-speed

Powertrain

Engine Name
2.5 dCi 4x4
Engine Configuration
Inline
Power (hp)
174 hp
Power (kW)
128 kW
Torque
403 Nm (297 lb-ft)
Top speed
170 km/h (106 mph)
0–60 mph
10.9 seconds (estimated)
0–100 km/h
11.4 seconds
Displacement
2,488 cc

Dimensions

Length
5,220 mm (205.5 in)
Width
1,850 mm (72.8 in)
Height
1,774 mm (69.8 in)
Wheelbase
3,200 mm (126.0 in)
Curb weight
2,088 kg (4,603 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
4,000 rpm
Rev. at Max Torque
2,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
  • 10W-50
  • 15W-40
  • 20W-40
Engine Oil, Volume
6.9 litres
Engine Configuration
Bore
89 mm (3.5 in)
Stroke
100 mm (3.9 in)
Compression Ratio
16.5 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Chain
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km / 4 years
Brake Fluid
60,000 km / 4 years
Oil Change & Engine Filter
30,000 km / 2 years
Engine Coolant
60,000 km / 4 years
Interior Filter
30,000 km / 2 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 5
  • 6-speed

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Plastic
Leather
Optional
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Spring, Rear
Leaf
Anti-roll Bar
Front
Suspension, Front
Independent
Double Wishbone

Fuel

General
Tank Volume
80 litres
General › Fuel Cap Position
Rear
Left
Emission
Emission Standard
Euro 3
Fuel Consumption NEDC
City
10.7 – 11.7 litres / 100 km
Highway
7.3 – 7.8 litres / 100 km
Combined
8.5 – 9.2 litres / 100 km

Dimensions & Weight

Exterior

Track, Front
1,570 mm (61.8 in)
Track, Rear
1,570 mm (61.8 in)
Turning Circle
13.4 m
Ground Clearance
233 mm (9.2 in)

Weight

Gross Weight
3,210 kg (7,077 lb)
Max Trailer Load, braked 12%
2,600 kg (5,732 lb)
Max Trailer Load, braked 8%
3,000 kg (6,614 lb)
Max Trailer Load, unbraked
750 kg (1,653 lb)
Cargo Capacity
1090 – 1122 kg (2,403 – 2,474 lb)
Max Towbar Download
120 kg (265 lb)

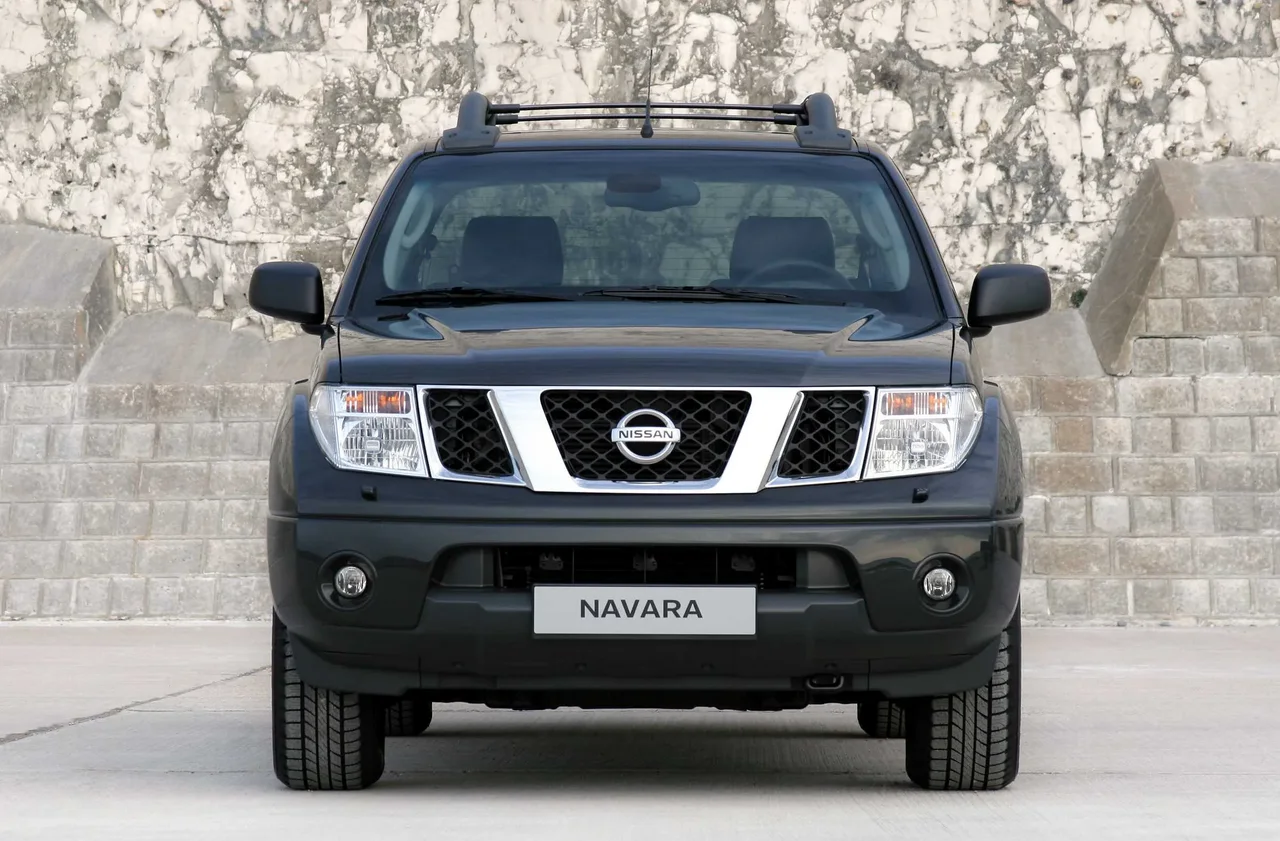

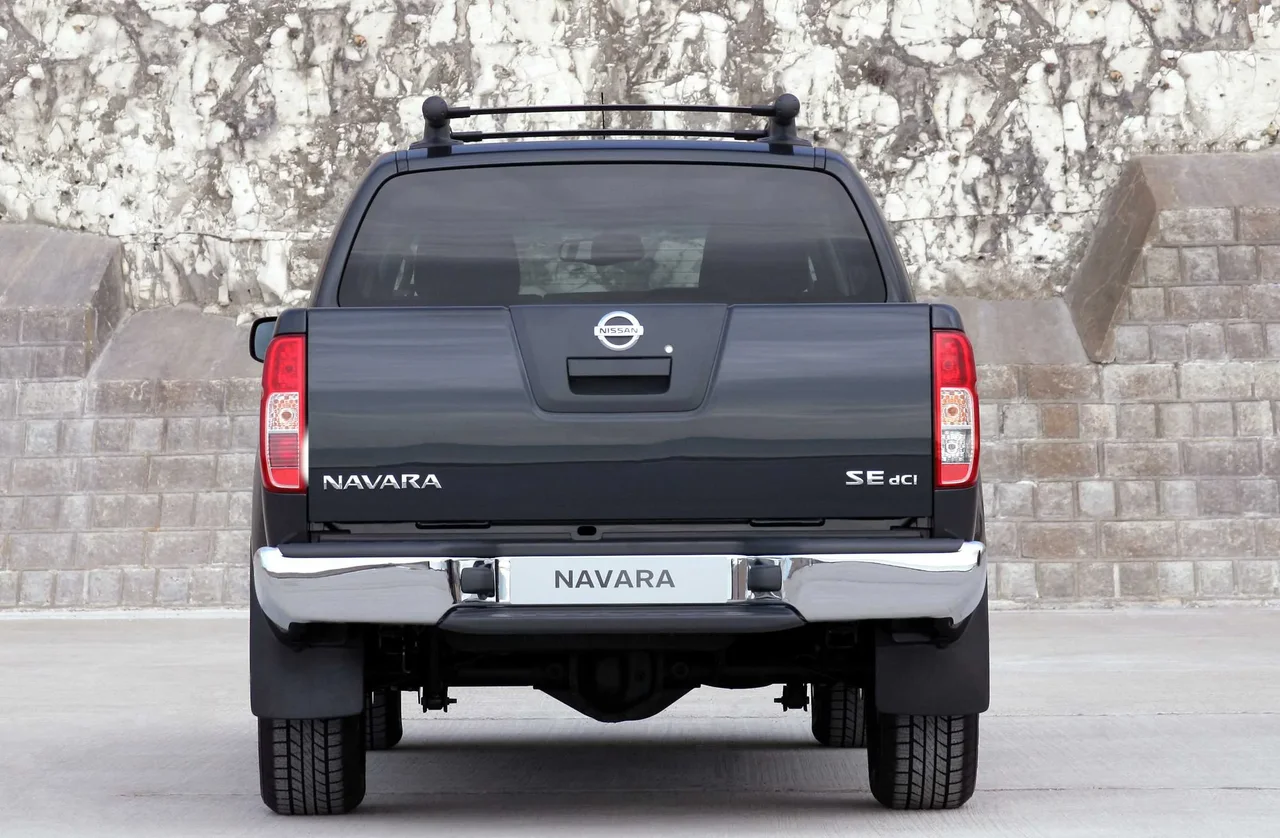

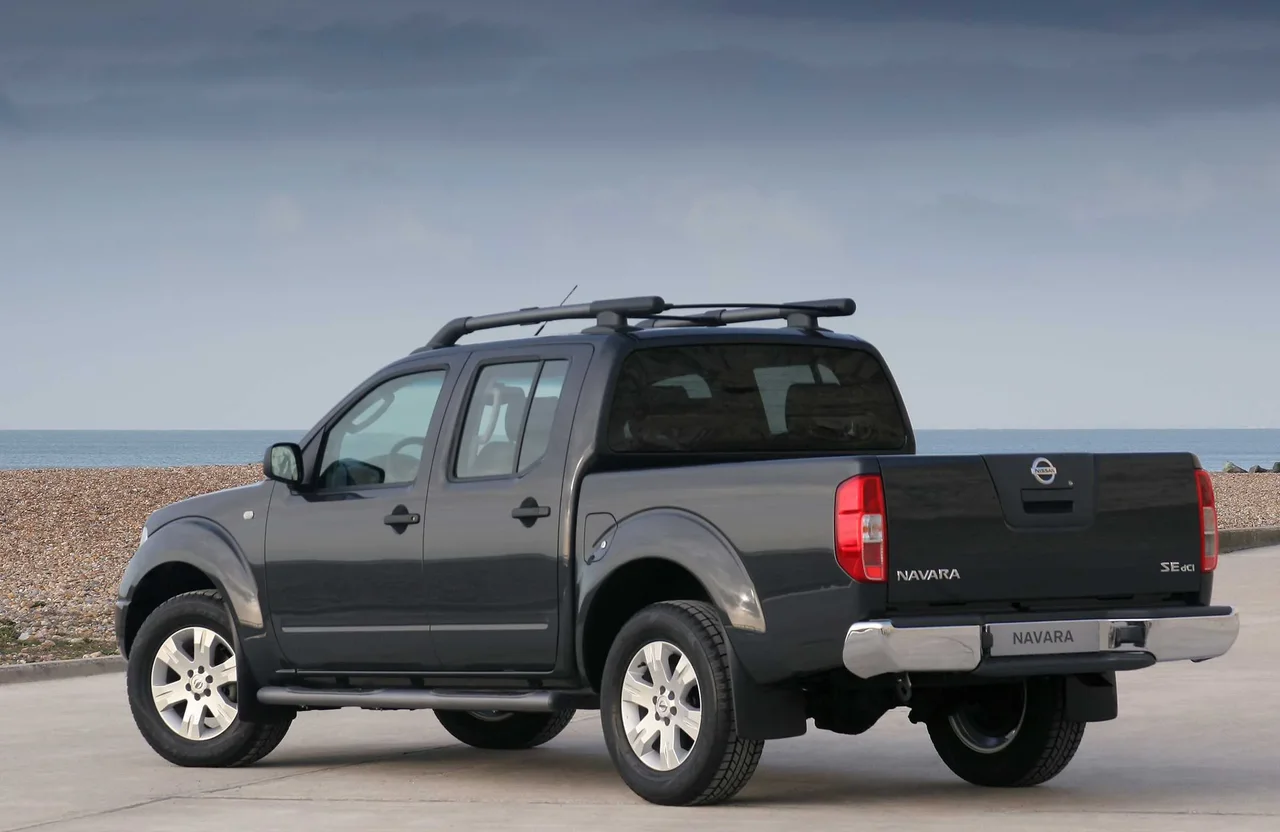

Exterior

Chassis & Body

Chassis
Chassis
Pickup
Pillars
A-C
Doors
Front Doors
Conventional
Rear Doors
Conventional
Door Handles
Pull-out
Platform
Nissan Platforms
F-Alpha Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Folding
Manual
Heated
Optional
Ground Light
Optional
Turning Signal
Optional
Windscreen Wipers
Intermittent Control
Yes
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Optional
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Other Equipment
Sunroof
Optional
Antenna
  • Roof-integrated
  • Whip
Windblocker
Optional
Mud Flaps
Optional
Side Steps
Optional
Other Equipment › Sunroof
Sun Blind
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional
Other Equipment › Side Steps
Stationary
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Fog Lights
Optional
Fog Lights
Automatic Headlight Activation
Optional
Headlight Washers
Optional

Colour

Non-painted
Bumper (Front)

Rims & Tires

Number of Bolts
6 pcs
Bolt Distance
114.3
Nut/Bolt Dimensions
M12x1.25
Central Bore (CB), front
66.1
Fastening Type
Lug Nuts
Tightening Torque
133 Nm
Rim Colour
Silver
Rim Type
Disc Wheel
Spare Wheel
Full-size (Steel)

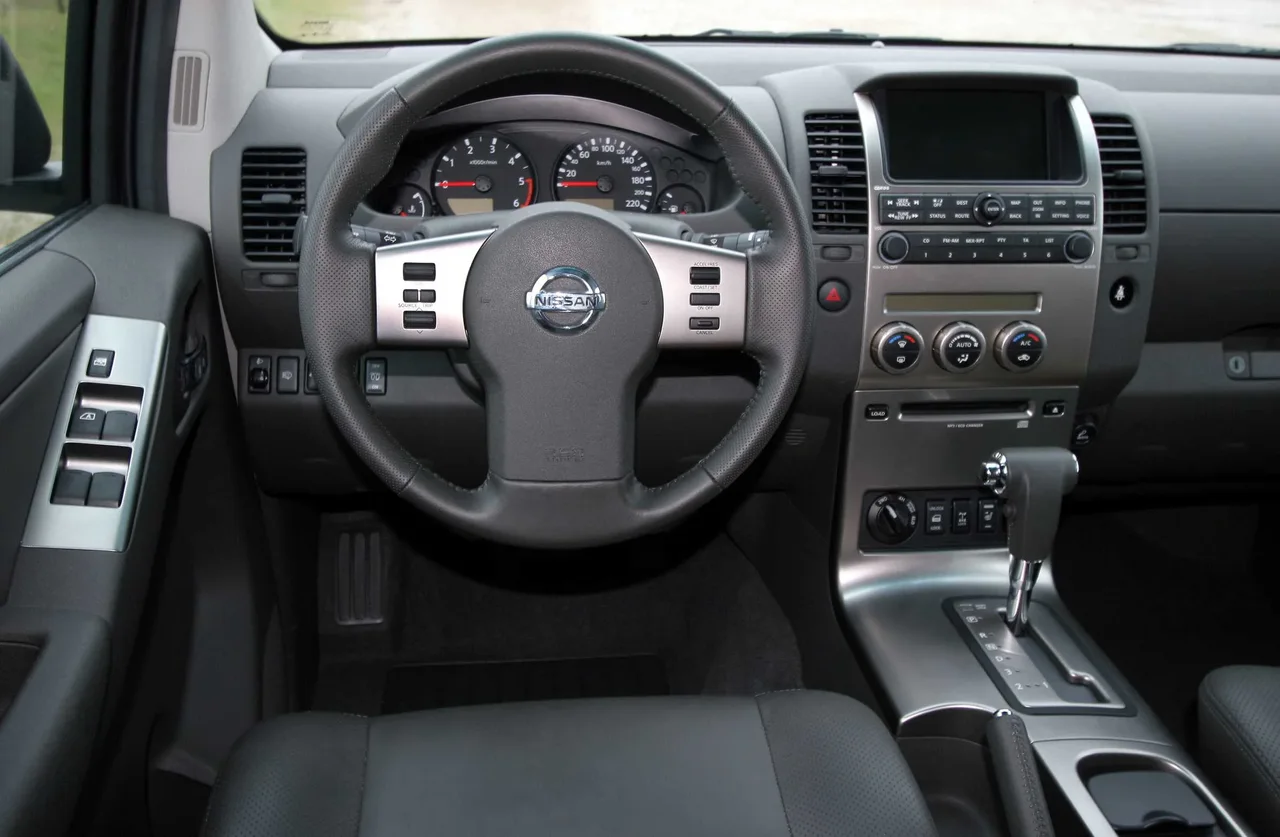

Interior

Equipment

Instrument Cluster
Trip Computer
Optional
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Climate Control
Air Condition
Yes
Pollen Filter
Optional
Outside Temperature Indicator
Optional
Controls
  • Buttons
  • Rotary Dials
Connectivity
Radio
Optional
Radio Preparation
Yes
Bluetooth
Optional
Connectivity › Radio
AM
Optional
FM
Optional
Connectivity › Media Format
CD
Optional
DVD
Optional
MP3
Optional
Connectivity › Bluetooth
Phone
Optional
Displays
Center Display
Optional
Displays › Center Display
Buttons
Optional
Rotary Dial
Optional
Speakers
Total Number of Speakers
4 - 6 pcs
Rear-view Mirror
Adjustments
Mechanical
Rear-view Mirror: Mirror Type
Standard
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Armrest Hatch
Front
Back Pocket
Optional
Sunglass Compartment
Yes
Coin Holder
Yes
Under Seats
Rear
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Optional
Guide Light
Optional
Lights › Read Light
Front
Optional
Lights › Guide Light
Footwell
Optional
Other Equipment
Make-up Mirror
Passenger Side
Clock
Yes
12V Outlet
Front
Carpets
Optional
Other Equipment › Clock
Digital
Instrument Cluster
Other Equipment › Carpets
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Yes
Adjustments
Tilt
Number of Spokes
3
Colour
Black
Steering Mechanism
Rack and Pinion

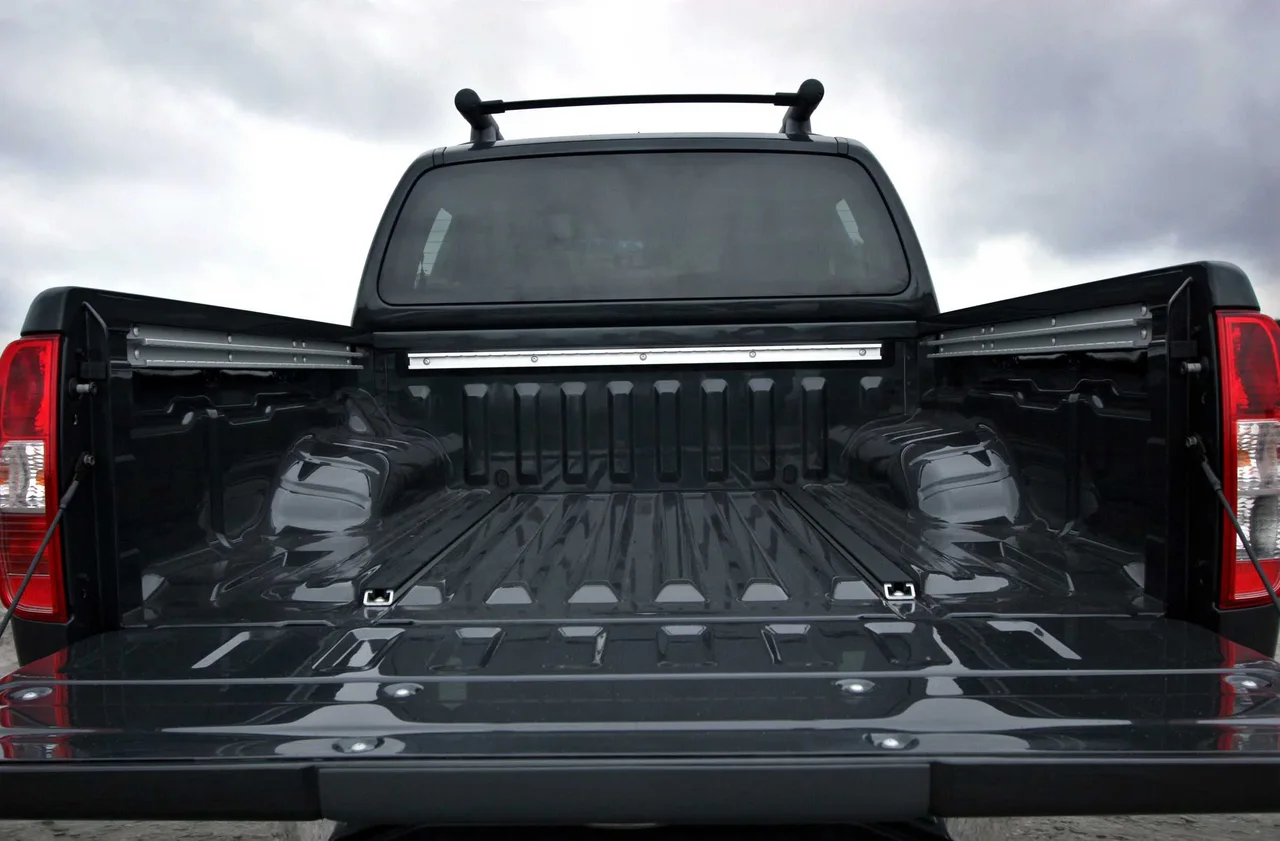

Trunk

Hatch Opening Type
Fold Down Sill

Design

Pedals
Standard

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Optional
Backrest Angle
Yes
Lumbar Support
Optional
Headrest, Height
Manual
Headrest, Tilt
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Backrest Angle
Yes
Headrest, Height
Manual
Headrest, Tilt
Yes
Front Seats
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
Middle
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Number of Seats
3
Type of Seat
Adult
Second Seat Row › Collapsible
Backrest Release
On Top of Backrest
Split Fold Ratio
60/40
Second Seat Row › Headrests
Outer Seats
Height Adjustment

Features

Comfort Features

Cruise Control
Optional
Speed Limiter
Optional
Parking Heater
Optional
Parking Heater Preparation
Optional
Parking Heater
Cabin Heater
Optional
Parking Heater › Cabin Heater
Engine Heater
Optional
Remote
Optional
Timer
Optional

Other Features

GPS
Optional
Horn
Dual Note
GPS
DVD
Optional

Accessories

Tool Kit and Jack
Yes
Tire Repair Kit
Optional
Compressor
Optional
Fire Extinguisher
Optional
Warning Triangle
Optional
First Aid Kit
Optional
Trunk Modules
Optional
Bicycle Holder
Optional
Coat Hanger
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Rear Centre Seat Belt
Yes
Seat Belt Colour
Black
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats
  • Centre Rear Seat

Assist Systems

Electronic Stability Control (ESC)
Yes
Hill Start Assist (HSA)
Yes
Hill Descent Control (HDC)
Optional

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
Four-channel
Traction Control System (TCS)
Optional
Electronic Brakeforce Distribution (EBD)
Yes
Electronic Brake Assist (BA/EBA)
Yes
Brake Pad Wear Indicator
Yes

Sensors

Parking Sensors
Optional
Light Sensor
Optional
Rain Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes
Child Safety Locks
Manual
Active Headrests
Optional
Immobiliser
Electronic
Yes
Central Locking
Remote
Optional

Safety Testing

General
Test Year
2008
Adult Occupant
1/5 stars
Child Occupant
3/5 stars
Pedestrian
2/4 stars

Airbags

Feature
Frontal Airbag
Side Chest Airbag
Side Head Airbag
Curtain Airbag

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
  • Left
  • Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Mid-Size Pickup Truck
British Classification
Pick-up
Australian Classification
Ute
European Segment
J-Segment JD-Segment
Car.info Classification
Pickup

Spare Parts BETA

Bulb Types
Low Beam
H4
Main Beam
H4
Fog Light, Front
H11
Fog Light, Rear
W3×16d (W21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
W2.1×9.5d (W16W)
Turn Indicators, Front
BAU15s (PY21W)
Turn Indicators, Rear
BAU15s (PY21W)
Read Light
W2.1×9.5d (W5W)
License Plate Light
W2.1×9.5d (W5W)
