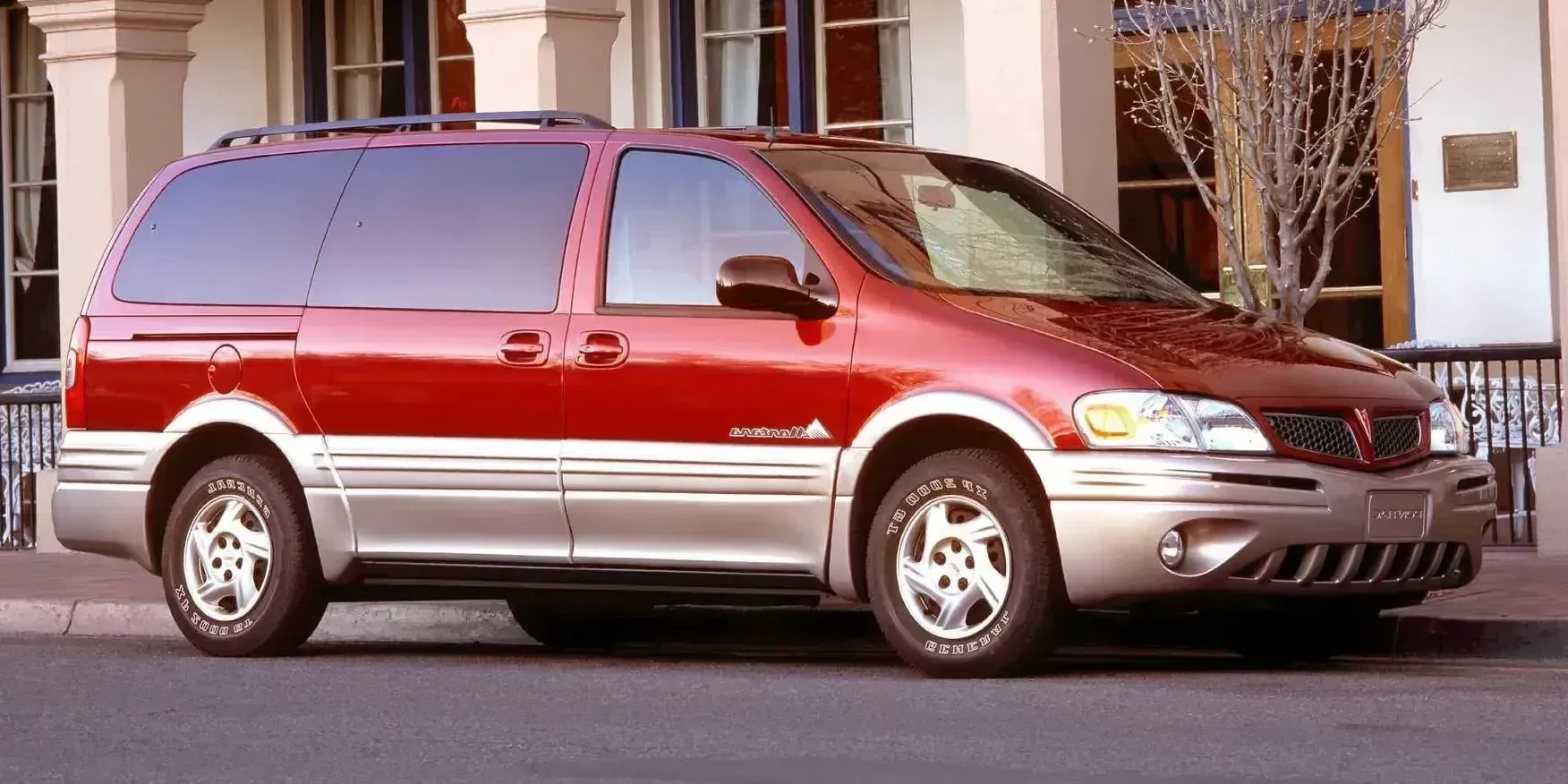

2004 Pontiac Montana LWB

United StatesGasolineFWDMinivan

Specifications

Vehicle Details

Year
2004
Make
Pontiac
Model
Montana
Variant
LWB
Body Style
Minivan
Generation
1st Generation Facelift (GMT200)
Seats
7
Doors
4
Fuel
Gasoline
Drivetrain
FWD
Transmission
Automatic (Electrohydraulic), 4-speed

Powertrain

Engine Name
LWB 3.4 V6 SFI Hydra-Matic
Engine Configuration
V
Power (hp)
188 hp
Power (kW)
138 kW
Torque
284 Nm (209 lb-ft)
Displacement
3,392 cc

Dimensions

Length
5,103 mm (200.9 in)
Width
1,829 mm (72.0 in)
Height
1,730 mm (68.1 in)
Wheelbase
3,073 mm (121.0 in)
Curb weight
1,788 kg (3,942 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,200 rpm
Rev. at Max Torque
4,000 rpm
Redline
6,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 10W-30
Engine Oil, Volume
4.3 litres
Transmission Fluid, Volume
7.5 litres
Engine Coolant, Volume
11.25 litres
Engine Fluids › Engine Coolant
OAT
GM OE DEX-COOL
Car Battery
Voltage
12 V
Battery Capacity
61 - 72 Ah
Cold Start Power
670 - 800 A
Alternator Charge Current
105 - 125 A
Alternator Voltage
12 V
Engine Configuration
Bore
92 mm (3.6 in)
Stroke
84 mm (3.3 in)
Compression Ratio
9.5 :1
Engine Configuration
V-Engine
Naturally Aspirated
Yes
Synchronization
Timing Chain
Engine Placement
Front
Engine Mount
Transversally
Type of Combustion Engine
Piston
Fuel System
Electronic (Multi-Point) Fuel Injection
Camshaft Type
Cam-in-block (Pushrod)
Engine Block
Cast Iron
Engine Heads
Aluminium
Engine Cooling
Liquid Cooling
Service Intervals
Air Filter
50,000 km (31,069 mi)
Spark Plug
166,000 km (103,148 mi)
Oil Change & Engine Filter
12,500 km / 1 years
Engine Coolant
240,000 km / 5 years
Transmission, Fluid
166,000 km (103,148 mi)
Transmission, Fluid Filter
166,000 km (103,148 mi)
Interior Filter
25,000 km (15,534 mi)
Accessory Belt
100,000 km (62,137 mi)

Transmission & Drivetrain

Transmission
Automatic (Electrohydraulic), 4-speed
Gear Selector
Stalk
Gear Selector Location
Steering Column
Gear Ratio
1st Gear
2.92 :1
2nd Gear
1.57 :1
3rd Gear
1 :1
4th Gear
0.71 :1
Final Drive
3.29 :1
Reverse
2.39 :1

Brakes

Parking Brake
Manual
Pedal
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Brakes Material
Steel
Front Brakes
Diameter
275 mm (10.8 in)
Width
32 mm (1.3 in)
Cooling
Ventilated
Rear Brakes
Diameter
225 mm (8.9 in)

Suspensions

Spring, Front
Coil
Spring, Rear
Coil
Anti-roll Bar
Yes
Suspension, Front
Independent
MacPherson Strut
Suspension, Rear
Semi-dependent
Twist-Beam
Anti-roll Bar
Front
34 mm (1.3 in)
Rear
30 - 36 mm (1.2 - 1.4 in)

Fuel

General
Tank Volume
94.6 litres
General › Fuel Cap Position
Rear
Left
Fuel Consumption EPA
City
19 MPG
Highway
26 MPG
Combined
21 MPG

Dimensions & Weight

Exterior

Track, Front
1,570 mm (61.8 in)
Track, Rear
1,608 mm (63.3 in)
Turning Circle
12.1 m
Ground Clearance
216 mm (8.5 in)

Interior

Head Room, Front
1,014 mm (39.9 in)
Head Room, Rear
998 mm (39.3 in)
Head Room, Third Row
988 mm (38.9 in)
Leg Room, Front
1,014 mm (39.9 in)
Leg Room, Rear
991 mm (39.0 in)
Leg Room, Third Row
932 mm (36.7 in)
Hip Room, Front
1,410 mm (55.5 in)
Hip Room, Rear
1,633 mm (64.3 in)
Hip Room, Third Row
1,227 mm (48.3 in)
Shoulder Room, Front
1,519 mm (59.8 in)
Shoulder Room, Rear
1,572 mm (61.9 in)
Shoulder Room, Third Row
1,514 mm (59.6 in)

Weight

Max Trailer Load, braked 12%
1,588 kg (3,501 lb)
Max Trailer Load, unbraked
450 kg (992 lb)
Max Roof Load
68 kg (150 lb)
Max Towbar Download
90.7 kg (200 lb)

LCV Specific

Side Door › Side Door Height
H1
1,117 mm (44.0 in)
Side Door › Side Door Width
L1
812 mm (32.0 in)

Exterior

Chassis & Body

Chassis
Chassis
MPV
Pillars
A-D
Chassis Construction
Unibody
Body Material
Steel
Protective Moldings
Yes
Chassis › Protective Moldings
Front
Mid-Strip
Rear
Mid-Strip
Sides
Mid-Strip
Wheel Arches
Yes
Colour
Painted
Doors
Front Doors
Conventional
Rear Doors
Sliding (Left | Right)
Powered Opening/Closing
Optional
Door Handles
Pull-out
Platform
General Motors Platforms
U Platform (2nd Generation)

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Folding
Manual
Heated
Yes
Mirror Shape, Passenger side
Convex
Windscreen Wipers
Number of Wiper Speeds
2
Integrated Water Nozzles in Wipers
Yes
Intermittent Control
Yes
Volume Water Tank
0.37 litres
Rear Wiper
Yes
Rear Washer System
Yes
Windows
Window Lifts, Front
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Tinted Windows
Windscreen, upper part
Safety Glass
Yes
Rear Windows, Pop-out
Manual
Windows › Window Lifts, Features
One-touch up/down
Driver
Windows › Tinted Windows
Second Row
Optional
Rear Window
Optional
Windows › Safety Glass
Front
Laminated
Side
Tempered
Rear
Tempered
Windows › Rear Windows, Pop-out
Powered
Optional
Other Equipment
Roof Railing
Optional
Antenna
Glass-integrated
Air Intakes
1-port
Number of Exhaust Pipes
1
Mud Flaps
Optional
Other Equipment › Mud Flaps
Front
Optional
Rear
Optional

Lights

Main Beam
Halogen
Low Beam
Halogen
Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Yes
Fog Lights
Front
Halogen

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
115
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
70.3
Fastening Type
Lug Nuts
Rim Type
Disc Wheel
Spare Wheel
Temporary

Interior

Equipment

Instrument Cluster
Trip Computer
Optional
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Coolant Temperature
Analogue
Odometer Limit
1,000,000 km/miles
Climate Control
Climate Control
Manual
Air Condition
Yes
Pollen Filter
Yes
Number of Vents, Front
5 pcs
Number of Vents, Rear
2 pcs
Controls
  • Buttons
  • Rotary Dials
Back Seat Controls
Optional
Climate Control › Air Condition
Refrigerant
R134A
Refrigerant, Capacity
0.8 g
Climate Control › Back Seat Controls
Rotary Dials
Optional
Connectivity
Radio
  • AM
  • FM
  • RDS
Connectivity › Media Format
CD
Yes
DVD
Optional
Cassette
Optional
Displays
Entertainment Screens
Optional
Equalizer
Optional
Displays › Entertainment Screens
Middle of Roof
Optional
Speakers
Total Number of Speakers
4 pcs
Rear-view Mirror
Adjustments
Mechanical
Anti-glare
Manual
Rear-view Mirror: Mirror Type
Standard
Compass
Optional
Oustide Temperature
Optional
Interior Storage › Storage Compartments
Glove Compartment
  • Light
  • Lockable (Manual)
Back Pocket
Yes
Sunglass Compartment
Optional
Coin Holder
Yes
Under Seats
Front
Door
  • Driver Side
  • Passenger Side
  • Rear
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Rear
Yes
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
  • Front
  • Rear
Other Equipment
Make-up Mirror
  • Driver Side
  • Passenger Side
Clock
Yes
12V Outlet
  • Front
  • Trunk
Carpets
  • Front
  • Rear
Ashtray
Optional
Cigarette Lighter
Optional
Other Equipment › Make-up Mirror
Make-up Light
Optional
Other Equipment › Clock
Digital
Dashboard
Other Equipment › Carpets
Material
Textile
Other Equipment › Ashtray
Front
Optional
Rear
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Hydraulic
Adjustments
Tilt
Sport
Yes
Number of Spokes
4
Colour
Black
Steering Ratio
16.8 :1
Steering Mechanism
Rack and Pinion
Multifunction Steering Wheel
Number of Buttons
6 pcs

Trunk

Rear Trunk
Yes
Barrier Net/Grid
Optional
Cargo Hooks
Yes
Carpet
Rug
Flat Surface
Yes
Light
Yes
Hatch Opening Type
From Roof
Rear Trunk
Volume
683 litres
Volume, Back Seat Collapsed
4,414 litres
Volume (Opt. third seat row, Collapsed seat)
1,548 litres
Depth
683 mm (26.9 in)
Depth, Back Seat Collapsed
2,540 mm (100.0 in)
Width, Between Wheel Arches
1,266 mm (49.8 in)
Opening Width
1,282 mm (50.5 in)
Opening Width (at roof)
1,092 mm (43.0 in)
Height
1,145 mm (45.1 in)
Sill Height
635 mm (25.0 in)

Design

Interior Decor Material
Plastic
Transmission Knob Material
Plastic
Entry Guard Material
Plastic
Pedals
Standard

Seats

Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Cushion Tilt
Optional
Backrest Angle
Manual
Headrest, Height
Manual
Front Seats
Number of Driver Seat Adjustments, Manual
4
Number of Driver Seat Adjustments, Powered
6
Number of Driver Seat Adjustments, Total
4 - 6
Number of Passenger Seat Adjustments, Manual
2
Number of Passenger Seat Adjustments, Powered
6
Number of Passenger Seat Adjustments, Total
2 - 6
Power Seat, Driver
Optional
Power Seat, Passenger
Optional
Heated Seats
Optional
Armrest
  • Driver
  • Passenger
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Optional
Cushion Tilt
Optional
Backrest Angle
Manual
Headrest, Height
Manual
Front Seats › Heated Seats
Cushion
Optional
Front Seats › Heated Seats › Cushion
Backrest
Optional
Second Seat Row
Collapsible
Manual
Type of Seat
Adult
Second Seat Row › Headrests
Outer Seats
Height Adjustment
Centre Seat
Optional
Seat Depth
Optional
Backrest Angle
Optional
Third/Fourth Seat Row
Third Seat Row
Yes
Third/Fourth Seat Row › Third Seat Row
Collapsible
Yes
Number of Seats
3
Type of Seat
Adult
Seat Angle
Front Facing
Third/Fourth Seat Row › Third Seat Row › Collapsible
Fold Type
Manual
Split Fold Ratio
50/50

Features

Comfort Features

Keyless Entry
Yes
Garage Remote Control
Optional
Cruise Control
Yes
Parking Heater
Optional
Parking Heater
Engine Heater
Optional

Accessories

Tool Kit and Jack
Yes
Compressor
Optional

Safety & Security

Seat Belt

Height Adjustable Retractor
Yes
Feature
Belt Pretensioner
Belt Load Limiter
Height Adjustable Retractor
Manual
Yes
Type of Belt
Two-Point-Belt (Lap Belt)
Centre Rear Seat
Three-Point-Belt
  • Front Seats
  • Outer Rear Seats

Brake Systems

Power Brakes
Yes
Anti-lock Braking System (ABS)
  • Yes
  • Optional

Sensors

Parking Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Remote
Child Safety Locks
Manual
Emergency Call
Optional
Number of Remote Keys
1
Number of Standard Keys
2
Total Number of Keys
3
Speed Sensitive
Yes
Immobiliser
Electronic
Yes

Safety Testing

Frontal Crash
Front Driver Side
4/5 stars
Front Passenger Side
4/5 stars
Side Crash
Side Crash, Driver
5/5 stars
Side Crash, Passenger
4/5 stars

Airbags

Feature
Frontal Airbag
Side Head Airbag

Child Protection

Feature
Isofix
Integrated Child Seat

Other

Identification

VIN Location
Left Side Casing of Window
Yes
On-board Diagnostic, Port Type
OBD-II
On-board Diagnostic, Port Location
Steering Wheel, Lower Middle

Car Classification

American Classification
Minivan
British Classification
Large MPV
Australian Classification
People Mover
European Segment
M-Segment
Car.info Classification
Large MPV

Similar minivans

Suggested vehicles
