2006 Toyota Hilux

JapanDiesel4WDPickup

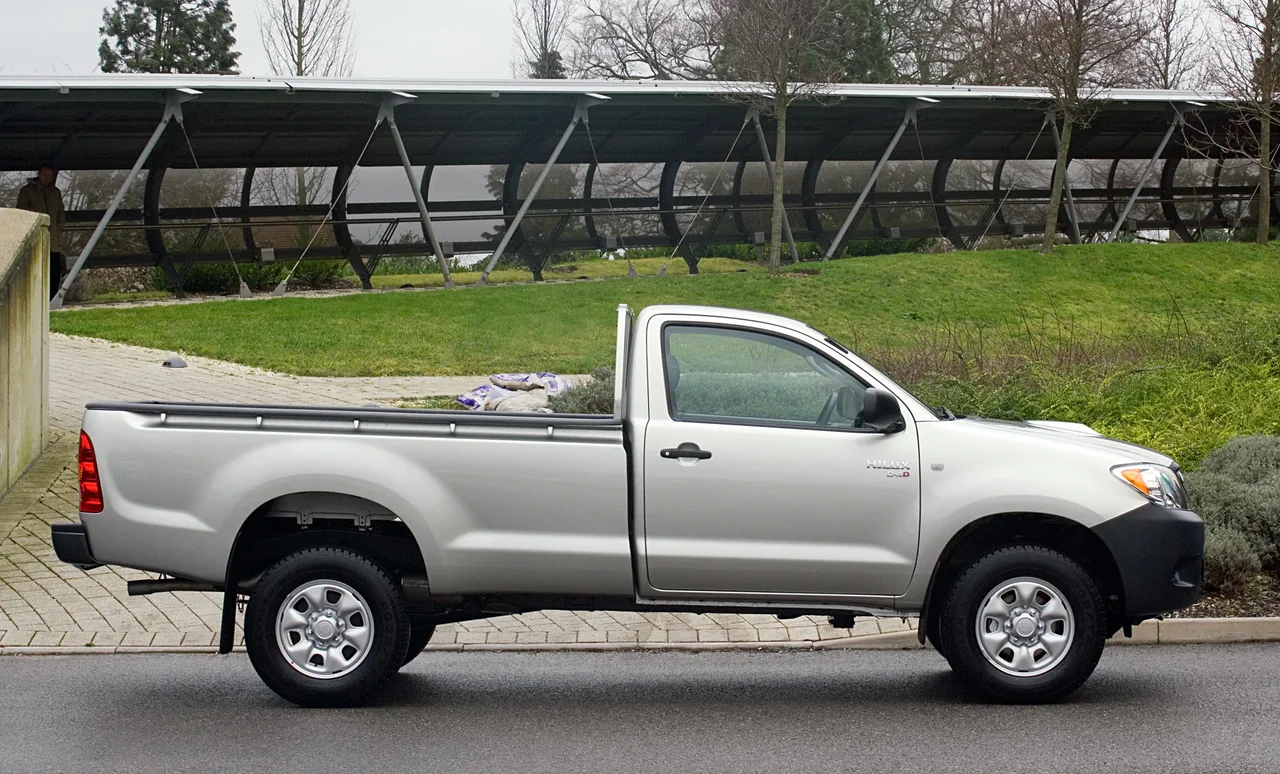

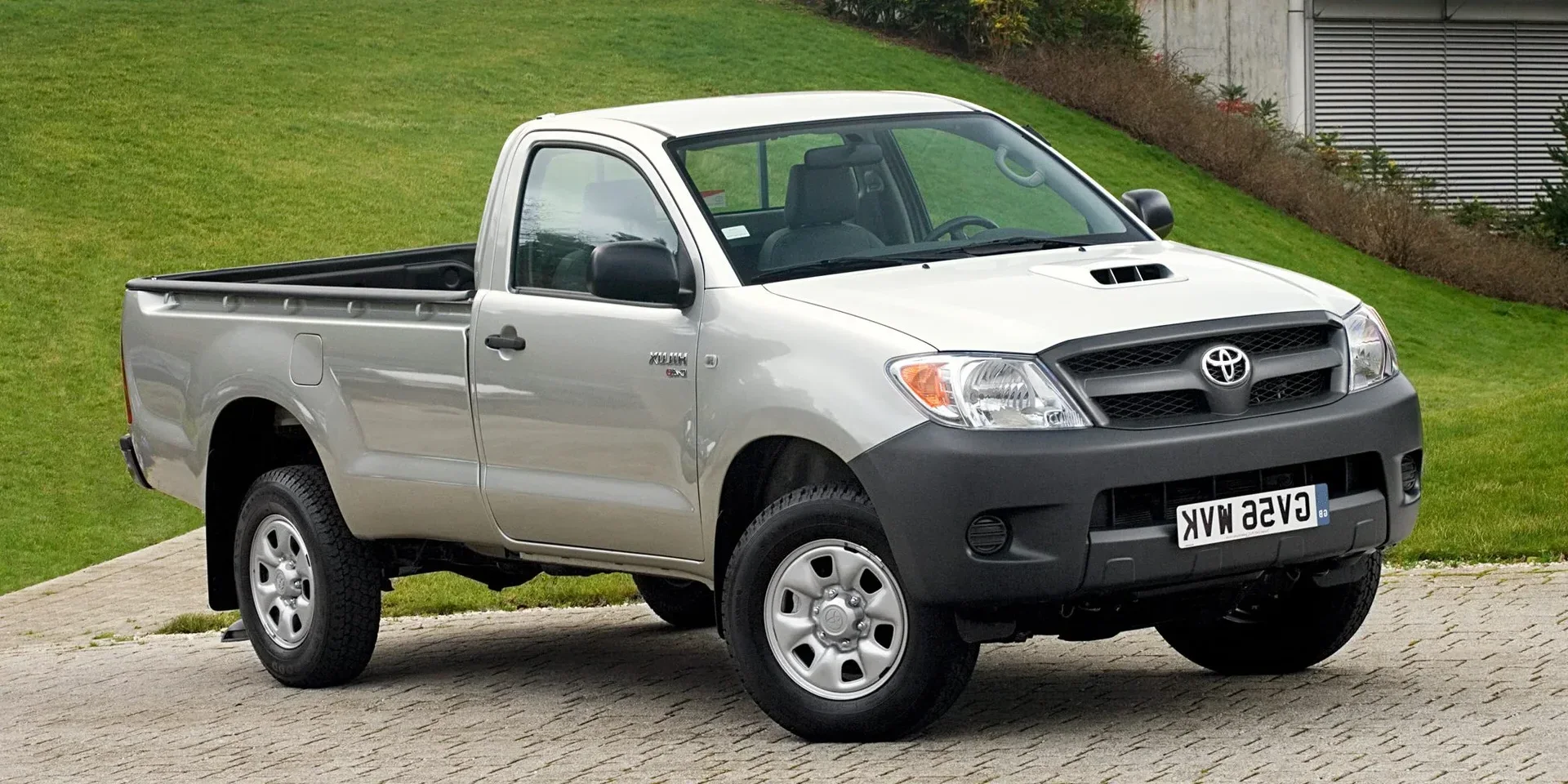

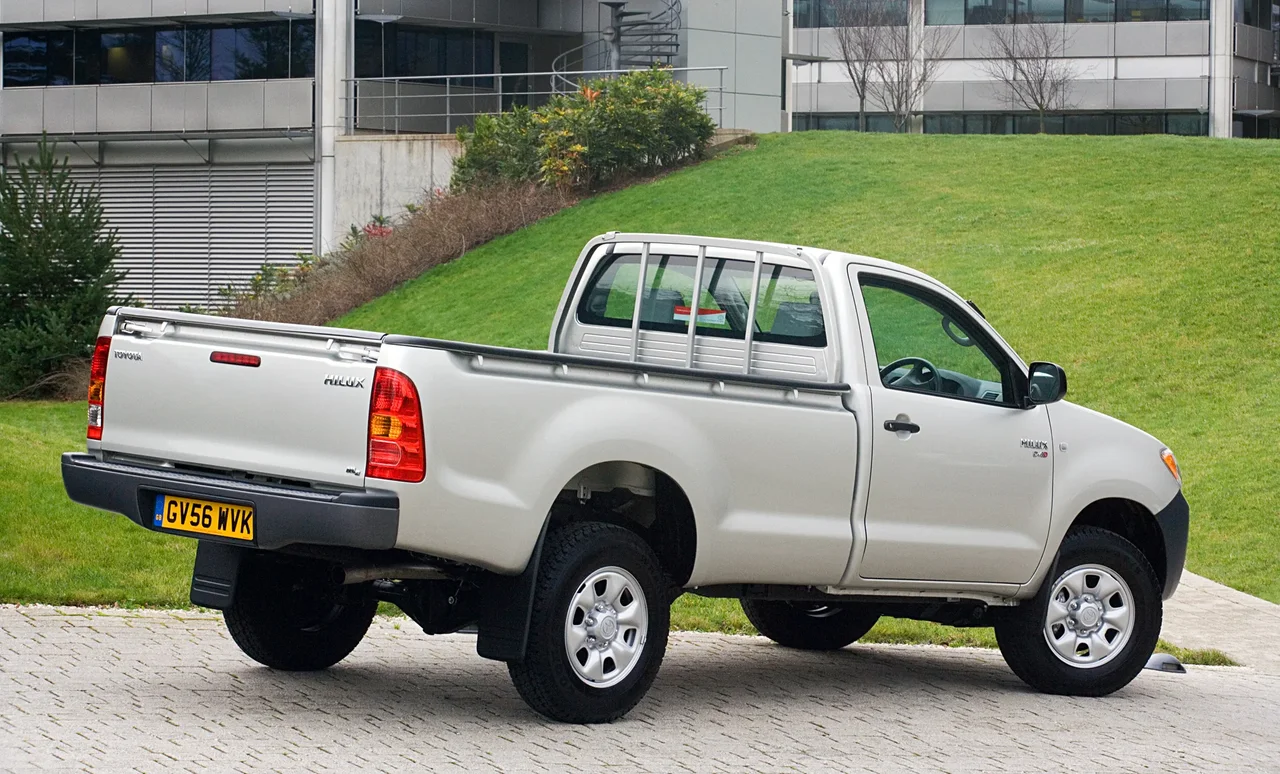

Photos

Specifications

Vehicle Details

Year
2006
Make
Toyota
Model
Hilux
Body Style
Pickup
Generation
AN10/AN20/AN30
Seats
2
Doors
2
Fuel
Diesel
Drivetrain
4WD
Transmission
Manual, 5-speed

Powertrain

Engine Name
2.5 4x4 Manual
Engine Configuration
Inline
Power (hp)
120 hp
Power (kW)
88 kW
Torque
325 Nm (240 lb-ft)
Displacement
2,494 cc

Dimensions

Length
5,255 mm (206.9 in)
Width
1,760 mm (69.3 in)
Height
1,680 mm (66.1 in)
Wheelbase
3,085 mm (121.5 in)

Engine & Performance

Engine

Engine Specification
Rev. at Max Torque
2,000 rpm
Engine Fluids
Synthetic Oil (viscosity)
  • 0W-30
  • 0W-40
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
Semi-synthetic Oil (viscosity)
  • 5W-30
  • 5W-40
  • 10W-30
  • 10W-40
  • 15W-40
  • 20W-40
Engine Oil, Volume
6.9 litres
Engine Configuration
Engine Configuration
Inline
Synchronization
Timing Belt
Engine Placement
Front
Type of Combustion Engine
Piston
Service Intervals
Timing Interval
150,000 km / 8 years
Air Filter
60,000 km / 4 years
Fuel Filter
60,000 km / 6 years
Oil Change & Engine Filter
15,000 km / 1 years
Interior Filter
30,000 km (18,641 mi)

Brakes

Parking Brake
Manual
Front Brakes
Disc Brakes
Rear Brakes
Drum Brakes
Front Brakes
Cooling
Ventilated

Dimensions & Weight

Exterior

Track, Front
1,510 mm (59.4 in)
Track, Rear
1,510 mm (59.4 in)
Ground Clearance
212 mm (8.3 in)

Exterior

Chassis & Body

Chassis
Chassis
Pickup
Platform
Toyota Platform
IMV Platform

Equipment

Windows
Window Lifts, Front
Powered

Lights

Main Beam
Halogen
Low Beam
Halogen

Rims & Tires

Number of Bolts
6 pcs
Bolt Distance
139.7
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
106.2
Fastening Type
Lug Nuts

Interior

Equipment

Instrument Cluster
Tachometer
Analogue
Climate Control
Air Condition
Optional
Connectivity
Radio
Optional
Connectivity › Radio
CD
Optional
MP3
Optional

Seats

Colour & Material
Upholstery
Textile

Safety & Security

Brake Systems

Anti-lock Braking System (ABS)
Yes

Sensors

Parking Sensors
Optional
Parking Sensors
Rear
Optional

Other Features

Immobiliser
Yes
Central Locking
Yes

Safety Testing

General
Not Tested by Euro NCAP
Yes

Airbags

Frontal Airbag
  • Driver: Yes
  • Passenger: Yes
  • Rear: -

Other

Identification

VIN Location
Engine Compartment, Inner Wing
Left
Left Side Casing of Window
Yes
Longerun Frame
  • Behind Right Front Wheel
  • Behind Right Rear Wheel

Car Classification

American Classification
Mid-Size Pickup Truck
British Classification
Pick-up
Australian Classification
Ute
European Segment
J-Segment JD-Segment
Car.info Classification
Pickup

Spare Parts BETA

Bulb Types
Low Beam
H4
Main Beam
H4
Fog Light, Front
HB4
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d (W5W)
Rear/Brake Light
BAY15d (P21/5W)
Reversing Light
BA15s (P21W)
Turn Indicators, Front
WX3×16d (WY21W)
Turn Indicators, Rear
BA15s (P21W)
License Plate Light
W2.1×9.5d (W5W)
