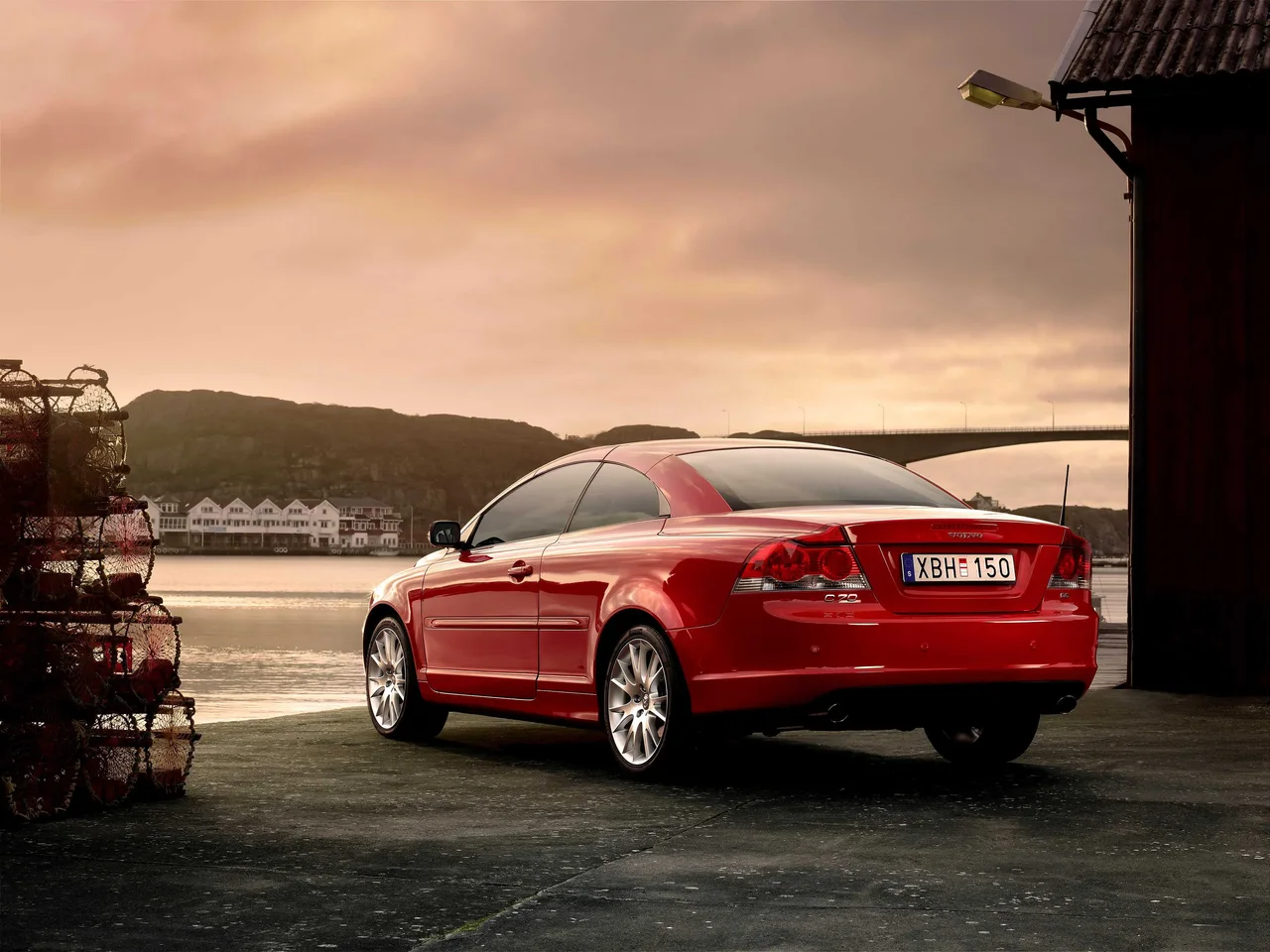

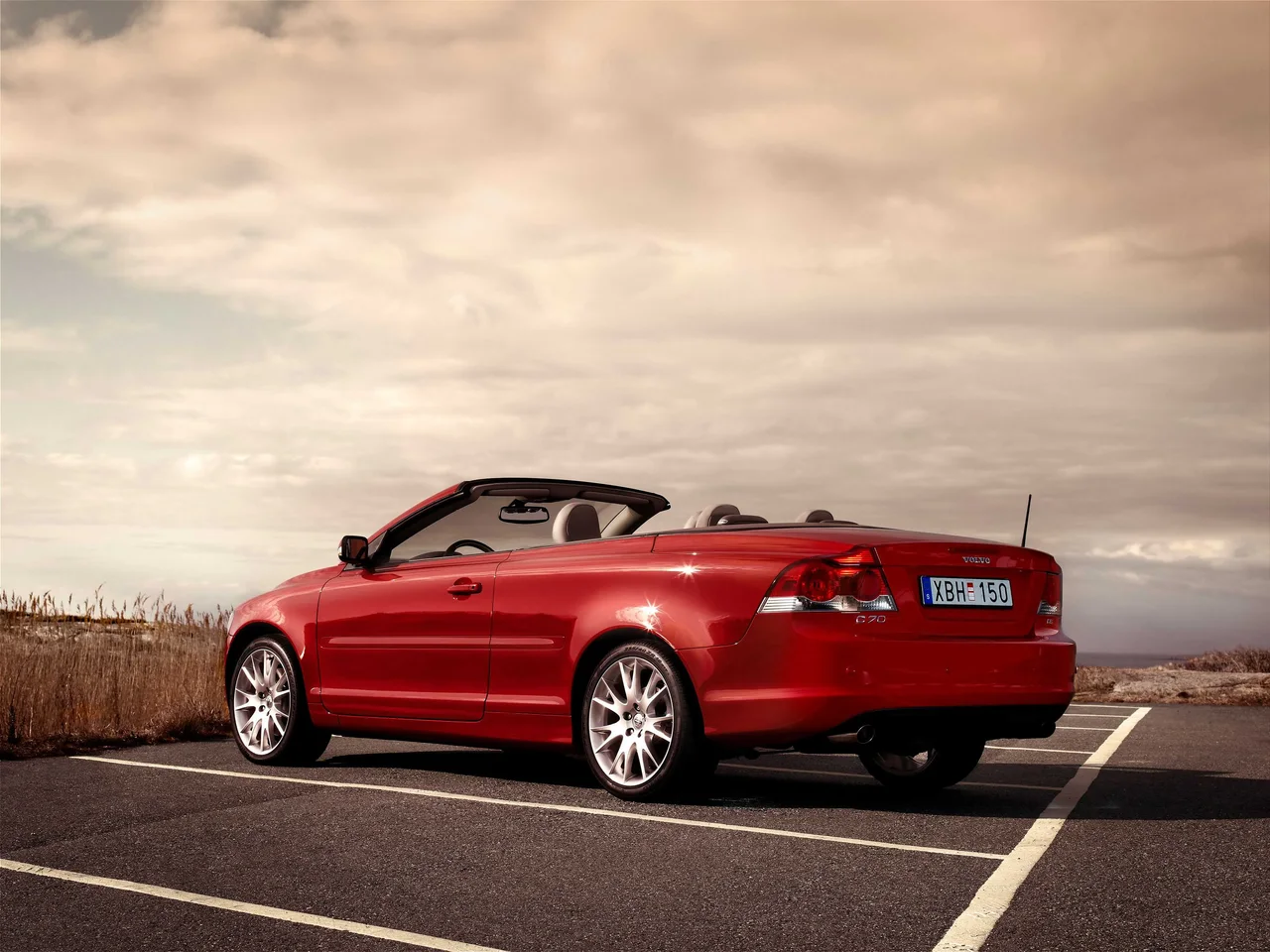

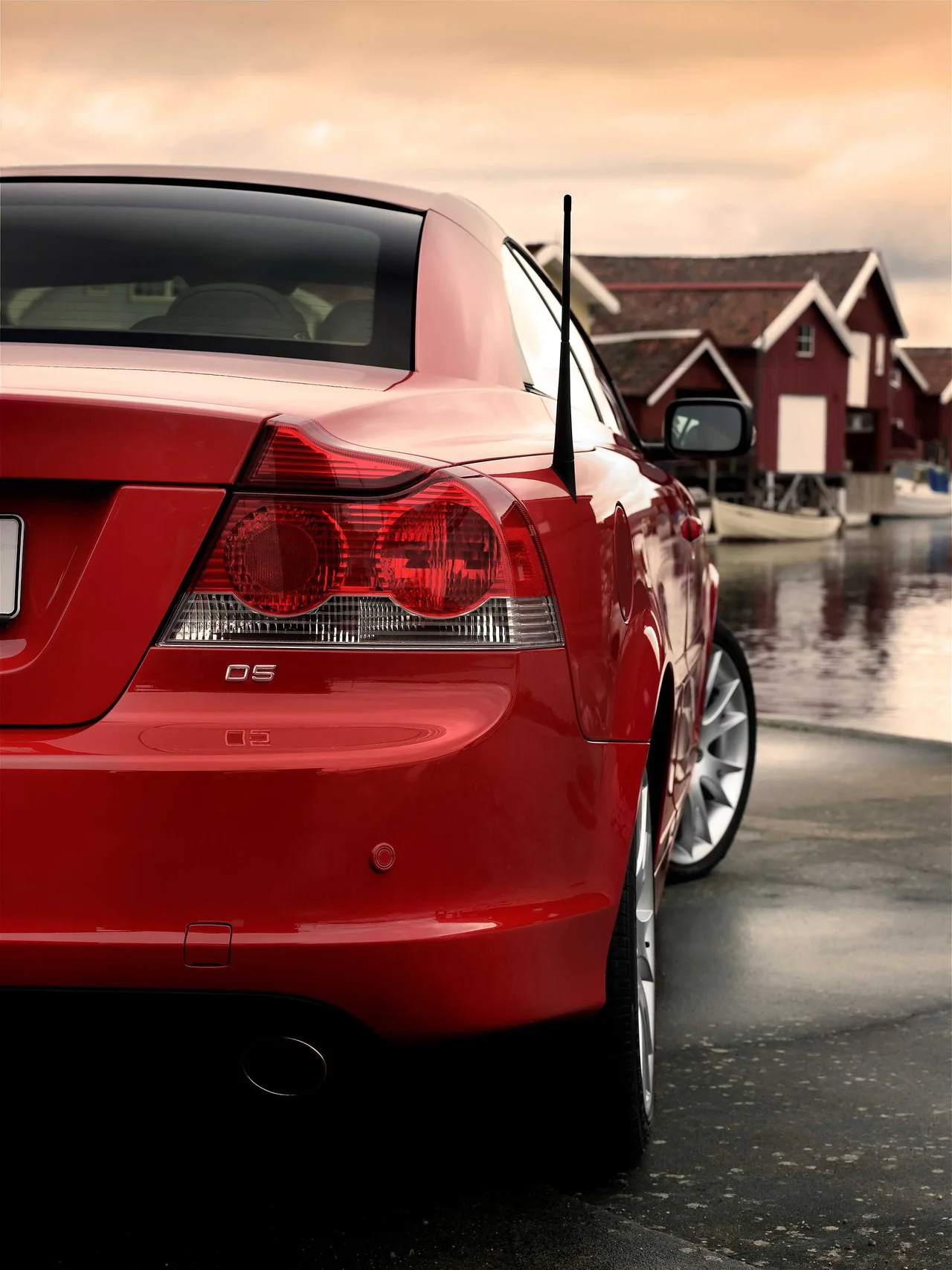

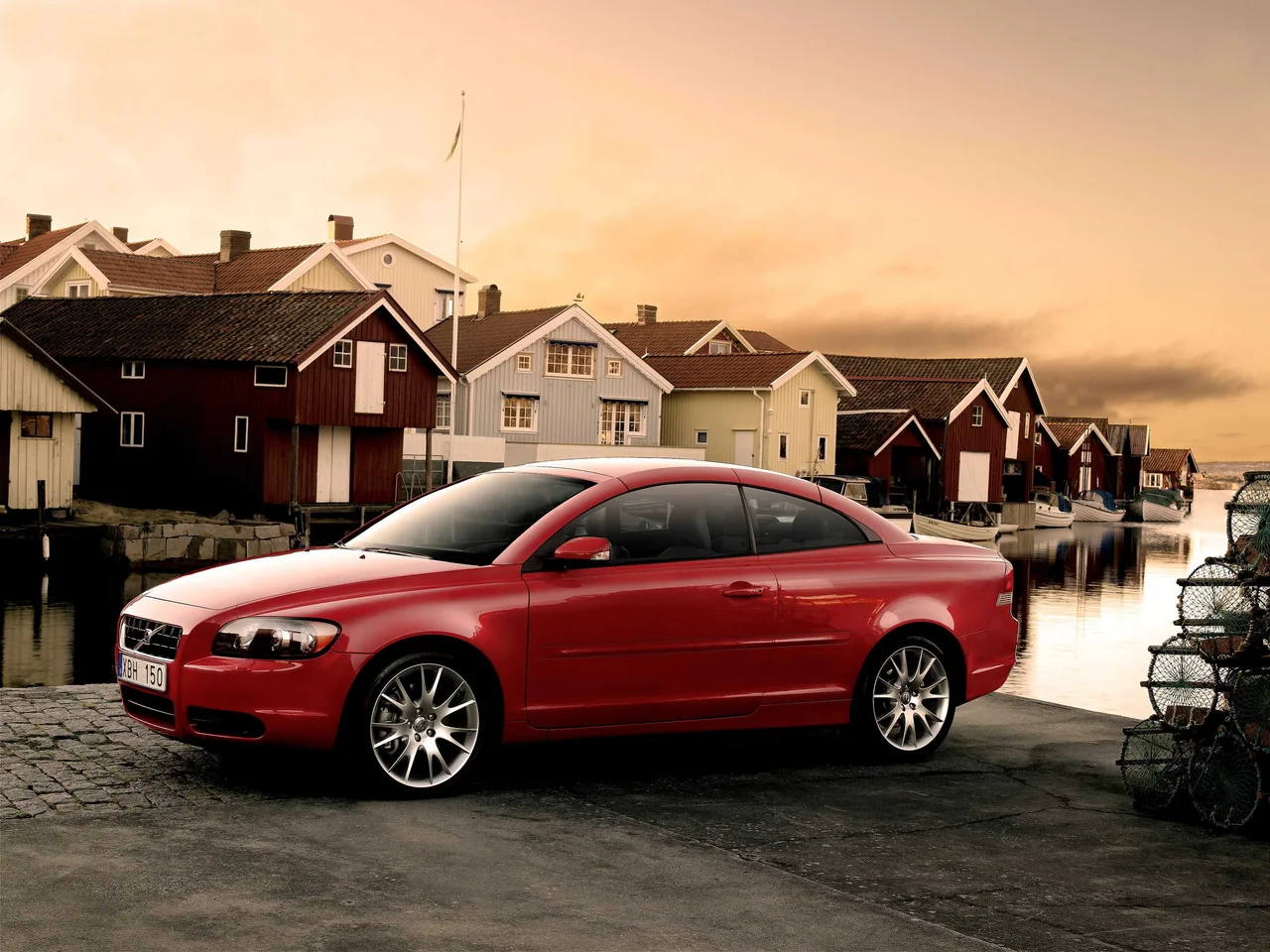

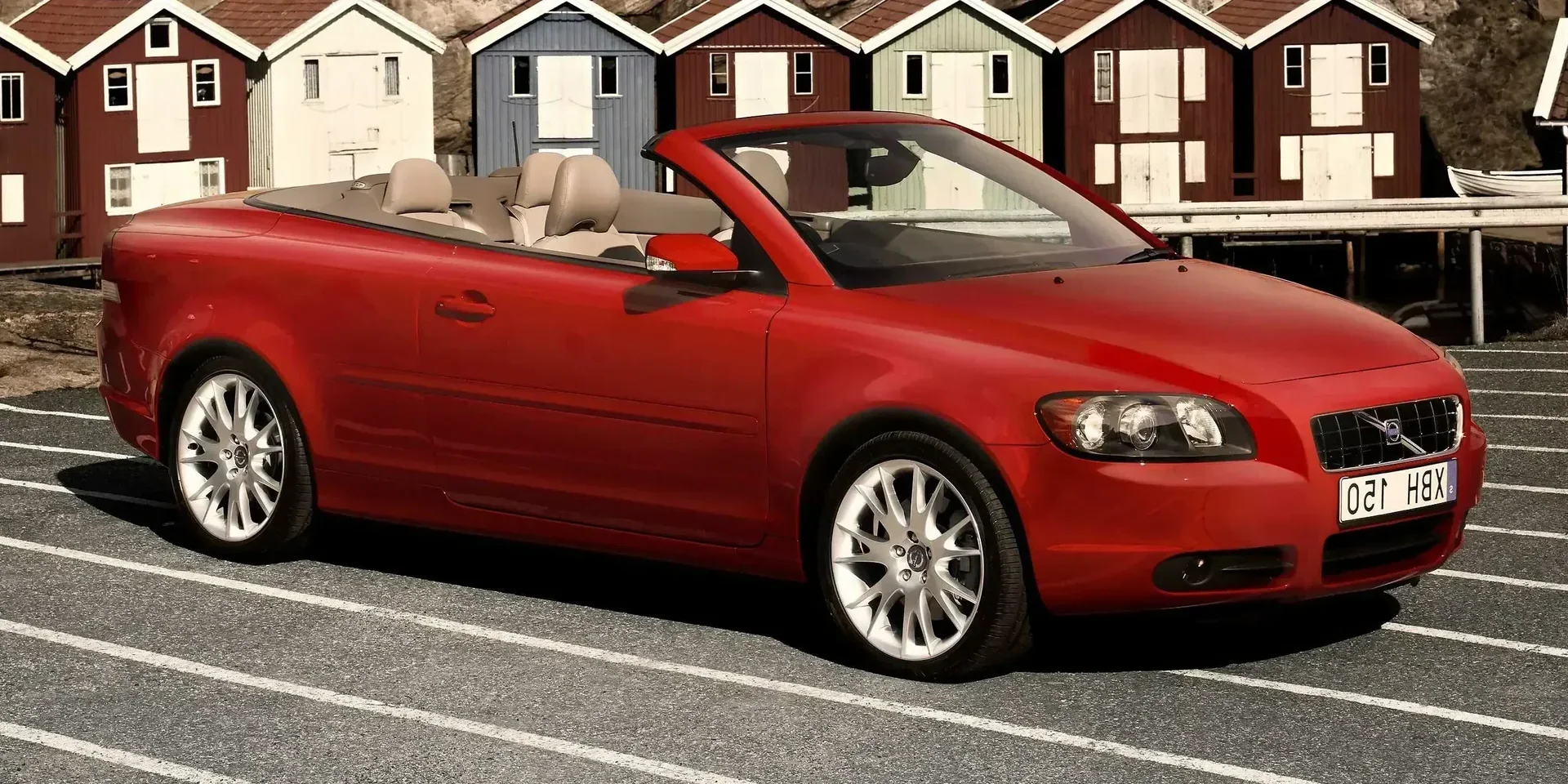

2006 Volvo C70

SwedenGasolineFWDConvertible

Photos

Specifications

Vehicle Details

Year
2006
Make
Volvo
Model
C70
Body Style
Convertible
Generation
M
Seats
4
Doors
2
Fuel
Gasoline
Drivetrain
FWD
Transmission
  • Automatic
  • Manual, 5
  • 6-speed

Powertrain

Engine Name
T5
Engine Configuration
Inline
Power (hp)
220 hp
Power (kW)
162 kW
Torque
320 Nm (236 lb-ft)
Top speed
235 km/h (146 mph)
0–60 mph
7.2 seconds (estimated)
0–100 km/h
7.6 seconds
Displacement
2,521 cc

Dimensions

Length
4,582 mm (180.4 in)
Width
1,820 mm (71.7 in)
Height
1,400 mm (55.1 in)
Wheelbase
2,640 mm (103.9 in)
Curb weight
1,611 kg (3,552 lb)

Engine & Performance

Engine

Engine Specification
Rev. at Max Power
5,000 rpm
Rev. at Max Torque
1,500 - 4,800 rpm
Engine Fluids
Synthetic Oil (viscosity)
5W-30
Semi-synthetic Oil (viscosity)
5W-30
Engine Oil, Volume
5.8 litres
Engine Configuration
Bore
83 mm (3.3 in)
Stroke
93.2 mm (3.7 in)
Compression Ratio
9 :1
Engine Configuration
Inline
Turbocharger
Yes
Synchronization
Timing Belt
Service Intervals
Oil Change & Engine Filter
15,000 km / 1 years

Transmission & Drivetrain

Transmission
  • Automatic
  • Manual, 5
  • 6-speed

Brakes

Parking Brake
Manual
Lever
Parking Brake › Manual
Material
Leather
Front Brakes
Disc Brakes
Rear Brakes
Disc Brakes
Front Brakes
Cooling
Ventilated

Suspensions

Spring, Front
Coil
Suspension, Front
Independent
Yes

Fuel

General
Tank Volume
62 litres
General › Fuel Cap Position
Rear
Right
Emission
Emission Standard
Euro 4
Fuel Consumption NEDC
City
13 – 14.3 litres / 100 km
Highway
6.8 – 7.2 litres / 100 km
Combined
9.1 – 9.8 litres / 100 km
Emission NEDC
CO₂, Combined
217 – 234 g/km

Dimensions & Weight

Exterior

Track, Front
1,550 mm (61.0 in)
Track, Rear
1,560 mm (61.4 in)
Ground Clearance
135 mm (5.3 in)

Interior

Head Room, Front
970 mm (38.2 in)
Head Room, Rear
924 mm (36.4 in)
Leg Room, Front
1,074 mm (42.3 in)
Leg Room, Rear
861 mm (33.9 in)
Shoulder Room, Front
1,349 mm (53.1 in)
Shoulder Room, Rear
1,054 mm (41.5 in)

Weight

Gross Weight
2070 – 2080 kg (4,564 – 4,586 lb)
Max Trailer Load, braked 12%
1,500 kg (3,307 lb)
Max Trailer Load, unbraked
700 kg (1,543 lb)
Cargo Capacity
455 – 459 kg (1,003 – 1,012 lb)
Max Roof Load
0 kg (0 lb)
Max Towbar Download
75 kg (165 lb)

Exterior

Chassis & Body

Chassis
Chassis
Coupé-Cabriolet
Pillars
A-B
Chassis Construction
Unibody
Doors
Front Doors
Conventional
Platform
Ford Motor Company
C1 Platform

Equipment

Side Mirrors
Mirror Type
Conventional
Adjustments
Electrical
Heated
Yes
Turning Signal
Yes
House Colour
Same as Car
Windscreen Wipers
Intermittent Control
Yes
Windscreen Wipers: Connector type, Front
Push Button
Number of Windscreen Wipers, Front
2
Windows
Window Lifts, Front
Powered
Window Lifts, Rear
Powered
Heated Windows
Rear
Heat-Insulating Windows
  • Front
  • First Row
  • Second Row
  • Rear
Other Equipment
Antenna
Shark Fin
Cabriolet Roof Opening
Powered

Lights

Rear Lights
Halogen
Daytime Running Light
Halogen
Fog Lights
Yes
Special Features
Headlight Range Adjustment
Fog Lights
Front
Yes

Rims & Tires

Number of Bolts
5 pcs
Bolt Distance
108
Nut/Bolt Dimensions
M12x1.5
Central Bore (CB), front
63.4
Fastening Type
Lug Nuts
Tightening Torque
90 - 110 Nm
Rim Type
Disc Wheel

Interior

Equipment

Instrument Cluster
Trip Computer
Yes
Speedometer
Analogue
Tachometer
Analogue
Fuel Gauge
Analogue
Instrument Cluster › Trip Computer
Display
Yes
Climate Control
Climate Control
Automatic
Air Condition
Yes
Pollen Filter
Yes
Outside Temperature Indicator
Yes
Connectivity
Radio
  • AM
  • FM
Connectivity › Media Format
CD
Yes
MP3
Optional
Connectivity › Media Inputs
AUX
Yes
USB
Optional
Displays
Center Display
Optional
Interior Storage › Storage Compartments
Glove Compartment
Lockable (Manual)
Armrest Hatch
Front
Door
Yes
Interior Storage
Cup Holders
Yes
Interior Storage › Cup Holders
Front
2
Interior Storage › Cup Holders › Front
Placement
Middle Console
Lights
Read Light
Front
Other Equipment
Clock
Digital
12V Outlet
Front
Cigarette Lighter
Optional

Steering Wheel

Multifunction Steering Wheel
Optional
Power Steering
Yes
Adjustments
Tilt
Sport
Optional
Steering Mechanism
Rack and Pinion
Channels
Optional
Volume
Optional
Mute Audio
Optional

Trunk

Rear Trunk
Yes
Rear Trunk
Volume
404 litres
Volume (Roof Folded)
200 litres
Depth
850 mm (33.5 in)
Width
960 mm (37.8 in)

Seats

Colour & Material
Seat Colour
Black
Front Seats › Adjustments, Driver
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Front Seats › Adjustments, Passenger
Seat Depth
Yes
Seat Height
Yes
Backrest Angle
Yes
Front Seats
Power Seat, Driver
Yes
Power Seat, Passenger
Yes
Second Seat Row
Number of Seats
2
Type of Seat
Adult

Features

Comfort Features

Keyless Entry
Optional
Cruise Control
Yes

Other Features

GPS
Optional

Safety & Security

Seat Belt

Type of Belt
Three-Point-Belt
Yes
Feature
Seat Belt Reminder
Belt Pretensioner
Belt Load Limiter

Assist Systems

Electronic Stability Control (ESC)
Yes

Brake Systems

Anti-lock Braking System (ABS)
Yes
Traction Control System (TCS)
Yes
Electronic Brake Assist (BA/EBA)
Yes

Sensors

Blind Spot Detection (BLIS)
Optional

Other Features

Immobiliser
Yes
Anti-theft Alarm
Optional
Central Locking
Yes

Safety Testing

IIHS
Test Year
2007
Moderate Overlap Front
Good
Side
Good
Head Restraints & Seats
Good

Airbags

Frontal Airbag
  • Driver: Yes
  • Passenger: Yes
  • Rear: -

Child Protection

Isofix
  • Passenger: -
  • Rear: Yes

Other

Identification

VIN Location
Engine Compartment, Bulkhead
Right
Left Side Casing of Window
Yes
Pillar
B-Pillar, Right

Car Classification

American Classification
Convertible
British Classification
Convertible
Australian Classification
Sports Car
European Segment
S-Segment
Car.info Classification
Sports Car

Spare Parts BETA

Bulb Types
Low Beam
H7
Main Beam
HB3
Bi-Xenon
D2S
Fog Light, Front
H11
Fog Light, Rear
BA15s (P21W)
Positioning-/Parking Lights, Front
W2.1×9.5d
Positioning-/Parking Lights, Front Side
W2.1×9.5d
Positioning-/Parking Lights, Rear
BAY15d (P21/5W)
Rear/Brake Light
BA15s (P21W)
Reversing Light
BA15s (P21W)
Turn Indicators, Side Mirrors
W2.1×9.5d
Glove Compartment
BA9
Make-up Mirrors
SV5.5
Trunk
SV8.5 (C5W)
Entry Light
SV8.5 (C5W)
License Plate Light
SV8.5 (C5W)

Production

Statistics
Production Number (Series)
83,597
Statistics › Production Number (Year)
1997
554
1998
4,440
1999
7,715
2000
9,306
2001
5,937
2002
3,344
2003
10,237
2004
7,119
2005
1,622
2006
15,017
2007
20,306
2008
14,381
2009
9,124
2010
9,532
2011
8,029
2012
5,758
2013
959
2014
12
2015
1
